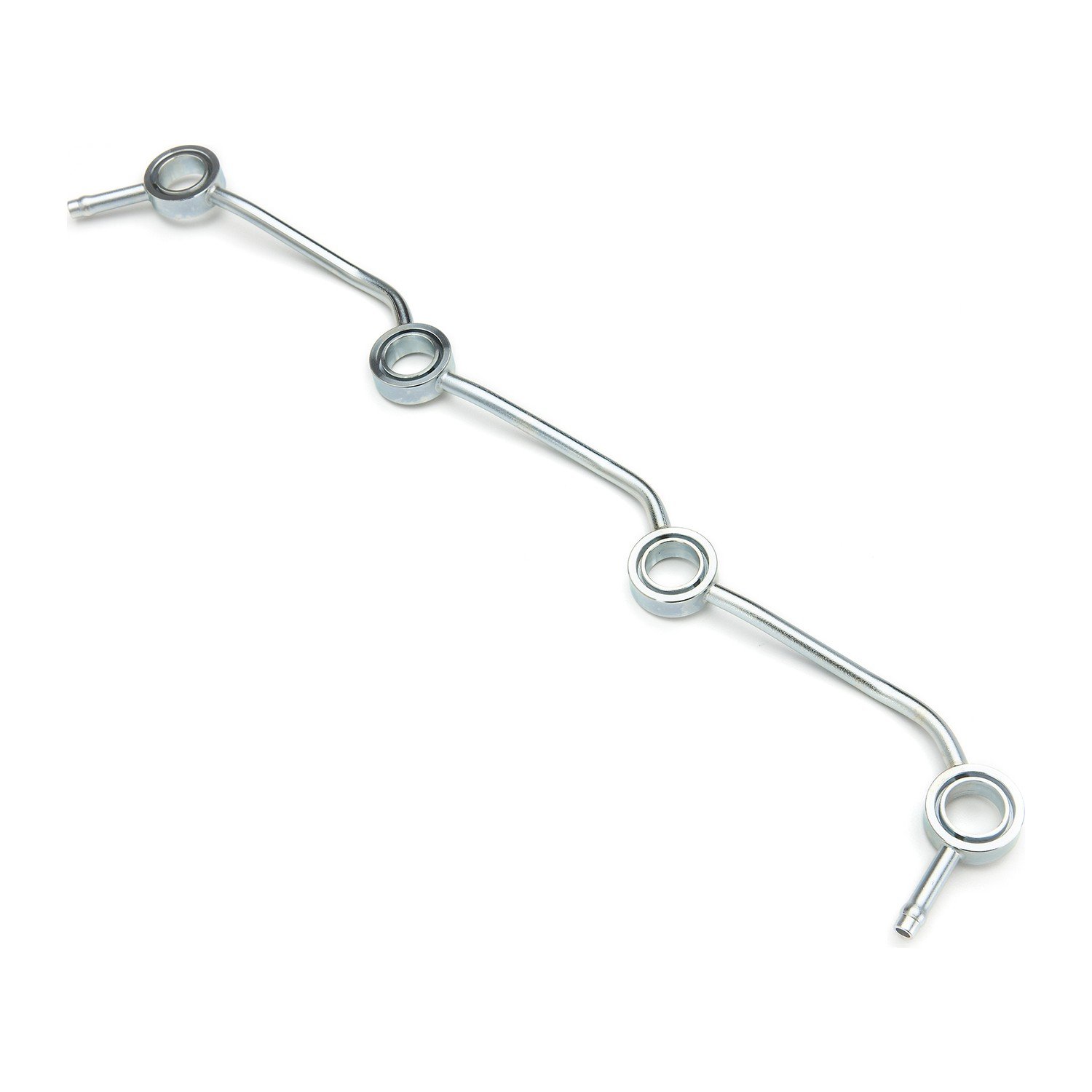

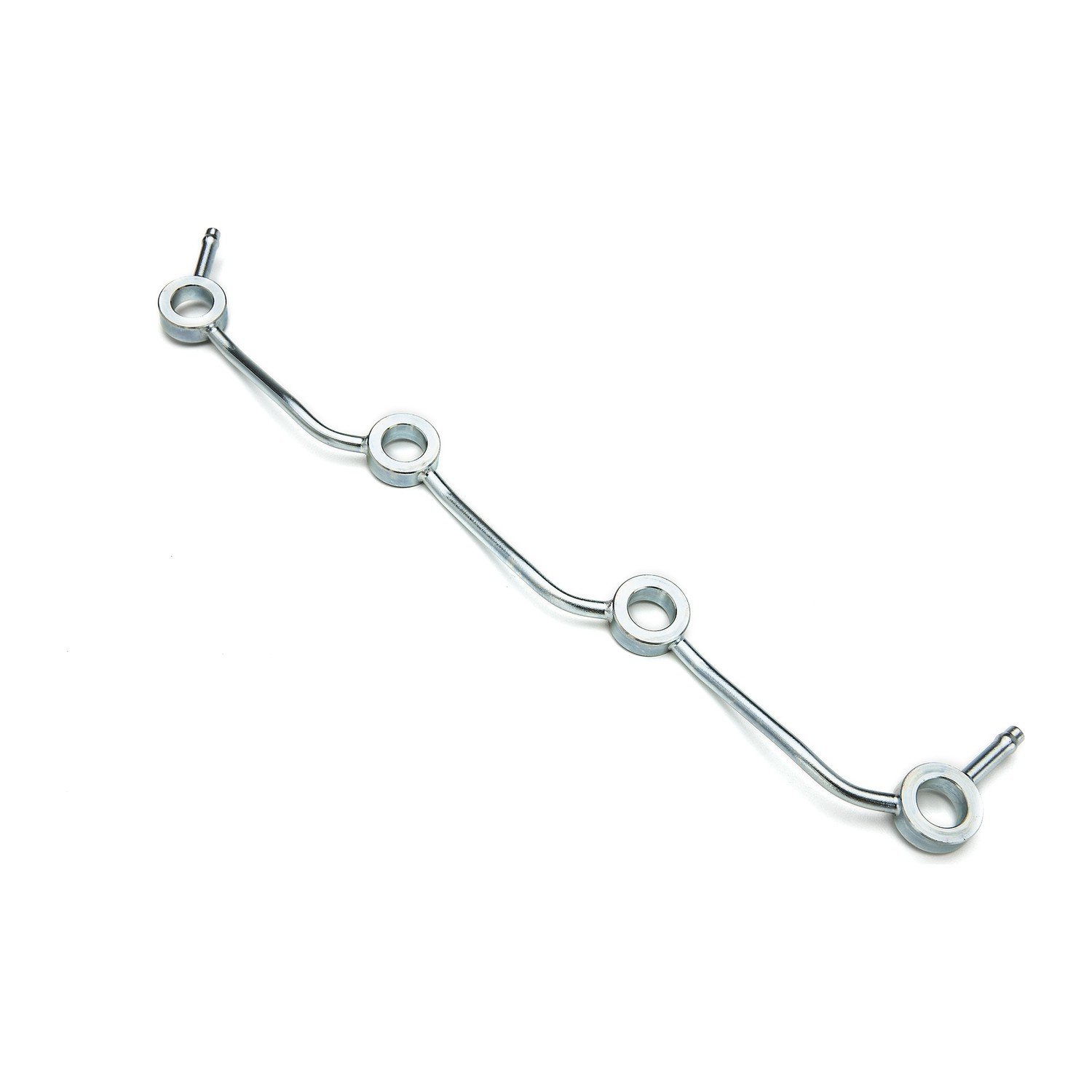

Kubota V1305 & V1505 Injector Overflow (Fuel Return) Pipe Assembly | Genuine Kubota 16271-42502
This is the genuine Kubota injector overflow pipe assembly, part number 16271-42502. It is the return pipe that sits across the top of the four injectors on the V1305 and V1505 and carries leak-off fuel away from them. Kubota dealers list it for the B2710, B2910, B3000, B3030, B3200, B3300SU, B3350 and B7800 tractors, the KX030-4, KX71, KX71-3 and KX91-2 excavators, the old type R310 loader, the F3060, F3680 and F3990 front mowers and the ZD1511. It replaces 16271-42500.
Replace it when it is cracked, kinked or weeping diesel at a joint, or when it was bent taking the injectors out. This is the four-cylinder pipe. The three-cylinder D905, D1005, D1105 and D1305 take 16261-42502, and the common rail V2403-CR takes 1J800-42500.
Confirm Fitment Before You Order
This pipe is for the four-cylinder V1305 and V1505. The three-cylinder D905, D1005, D1105 and D1305 take 16261-42502, and the V2403-CR takes 1J800-42500. Match 16271-42502 or 16271-42500 on your parts list, or send us the engine model and serial number. Call 530-668-0818 and we will confirm the exact match at no charge before anything ships.
Specifications
| Part number | 16271-42502 |
| Brand | Kubota |
| Condition | New, genuine, in original packaging |
| Warranty | Kubota genuine parts warranty: 1 year against defects in materials or workmanship. |
| Type | Injector overflow (fuel return) pipe assembly |
| Kubota name | ASSY PIPE,OVER FLOW |
| Engines | Kubota V1305 and V1505 (4-cylinder) |
| Machines | B2710, B2910, B3000, B3030, B3200, B3300SU, B3350, B7800, KX030-4, KX71, KX71-3, KX91-2, R310 (old type), F3060, F3680, F3990, ZD1511 |
| Replaces | 16271-42500 |
| Catalog weight | 0.02 lb |
| Shipping weight | 1 lb |
Fits / Applications
- Kubota V1305 and V1505 four-cylinder diesel engines
- Kubota B2710HSD, B2910HSD, B3000HSDC, B3030HSD, B3200HSD, B3300SUHSD, B3350HSD and B7800HSD tractors
- Kubota KX030-4, KX71, KX71-3, KX71-3S and KX91-2 excavators
- Kubota R310 and R310BH wheel loaders (old type)
- Kubota F3060, F3680 and F3990 front mowers
- Kubota ZD1511 zero-turn mowers
- Replaces Kubota 16271-42500
Tighten the retaining nuts evenly so the pipe is not twisted. Run the engine and check each joint for leaks.
Part Numbers & Cross Reference
Kubota 16271-42502 · Kubota (older number) 16271-42500
Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.
Frequently Asked Questions
What does the 16271-42502 fit?
The four-cylinder Kubota V1305 and V1505. Kubota dealers list it on machines such as the B3030, B3200, B3350, KX71-3, KX91-2, F3680, F3990 and ZD1511.
Will it fit a three-cylinder D1105?
No. The three-cylinder D905, D1005, D1105 and D1305 take a different pipe, Kubota 16261-42502. Call 530-668-0818 with your engine model and serial number if you are not sure.
My parts list shows 16271-42500. Is this the same part?
Yes. 16271-42502 replaces 16271-42500.
Is this the same pipe the V2403-CR uses?
No. The common rail V2403-CR uses a different return tube, Kubota 1J800-42500.
