Kubota V2203 Mechanical Fuel Lift Pump With Hand Primer Lever | Genuine Kubota 16604-52032

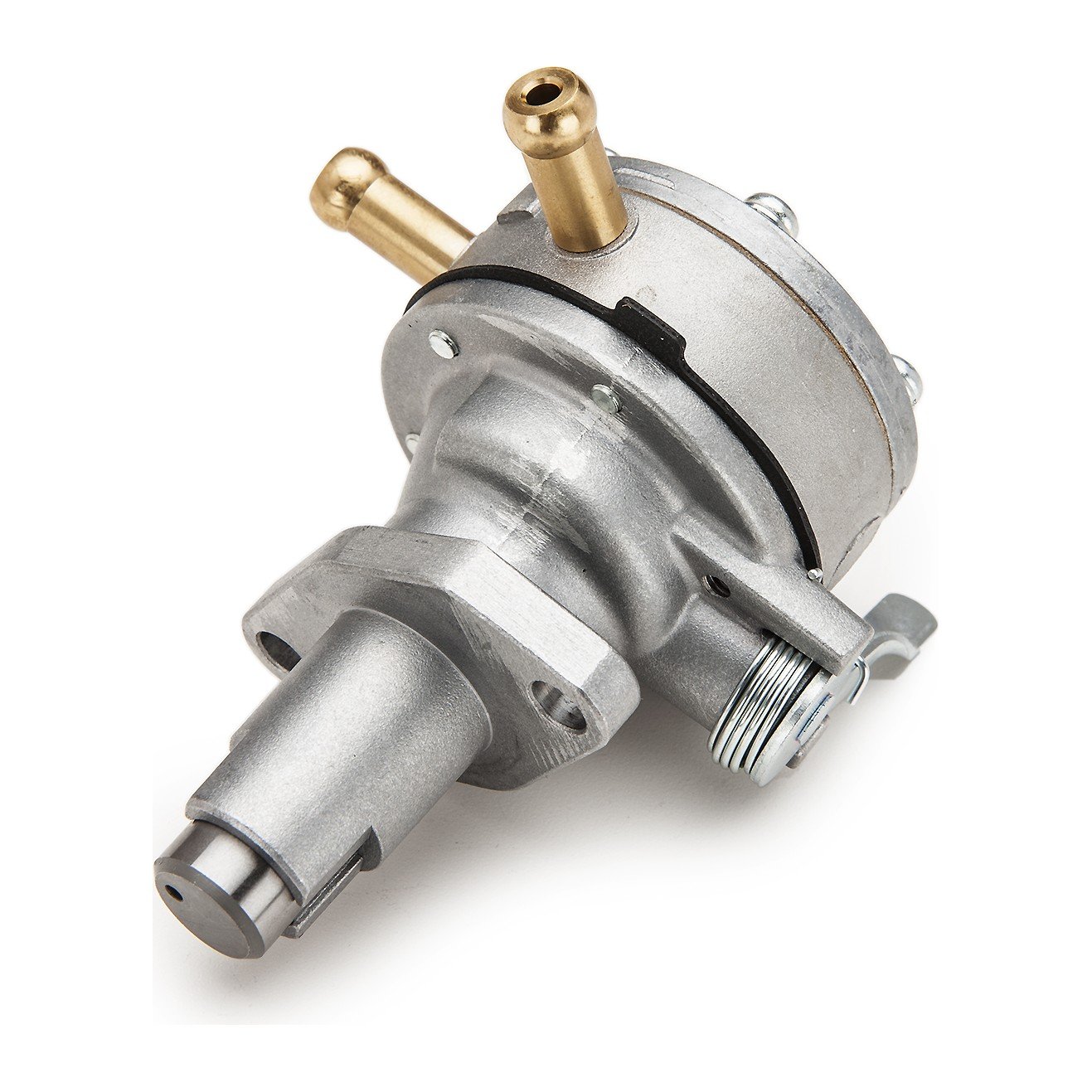

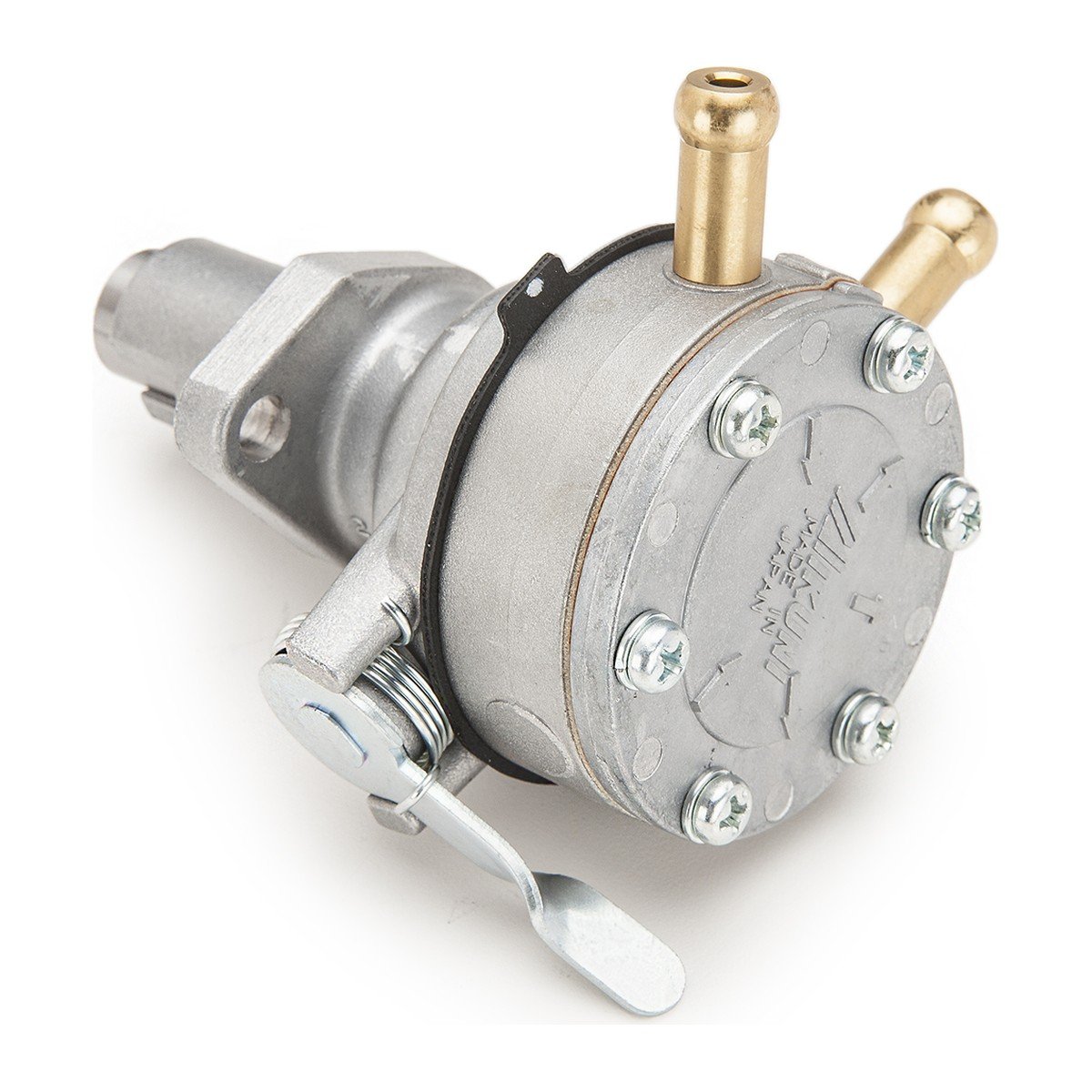

Kubota 16604-52032 is a new, genuine Kubota mechanical fuel lift pump with a hand primer lever. It is a diaphragm pump on a two-bolt flange, driven by a plunger off the engine, with two hose fittings. Kubota engine dealers list it for the V2203 four-cylinder diesel, and it replaces the older 16604-52030. Two Kubota engine dealer catalogs now show 16604-52032 itself superseded by 19844-52030, which Kubota describes as the fuel pump assembly with primer, so current parts books may show that number.
A tired lift pump shows up as hard starting, surging or loss of power under load, and a torn diaphragm can leak fuel at the pump or let fuel into the engine oil. The primer lever lets you fill the filter and bleed the low-pressure side by hand after a filter change or after running the tank dry. Check the filter, the tank vent and the suction hose for air leaks before you condemn the pump.
Confirm Fitment Before You Order
The V2203 and the other 03 Series engines have used several lift pumps under separate numbers: this one, 17539-52033 (also with primer), 17121-52033, and 1G896-52030 on many L and MX series tractors. 15263-52030 is a similar pump with no primer lever. Send us the engine model, the engine serial number and the number on your old pump, and we will confirm the match before you order. Call 530-668-0818 and we will confirm the exact match at no charge before anything ships.
Specifications
| Part number | 16604-52032 |
| Brand | Kubota |
| Condition | New, genuine, in original packaging |
| Warranty | Kubota genuine parts warranty: 1 year against defects in materials or workmanship. |
| Type | Mechanical fuel lift pump, engine-driven, diaphragm type |
| Hand primer | Yes, lever on the pump body |
| Mounting | Two-bolt flange, plunger driven |
| Fuel connections | Two hose barbs |
| Engine | Kubota V2203 |
| Replaces | 16604-52030 |
| Superseded by | 19844-52030, per two Kubota engine dealer catalogs |
| Shipping weight | 3 lb |
Fits / Applications
- Kubota V2203 engine (some builds)
- Replaces Kubota fuel pump 16604-52030
- Kubota engine dealer catalogs show 19844-52030 as the newer number for this pump
Fit a new mounting gasket and seat the pump plunger squarely on its drive before you tighten the two flange bolts. Use the primer lever to fill the filter and bleed the low-pressure side, then check both hose connections for leaks. If the lever has no stroke, turn the engine a little so the pump drive is off its high point.
Part Numbers & Cross Reference
Kubota 16604-52032 · Kubota (superseded) 16604-52030 · Kubota (newer number) 19844-52030
Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.
Frequently Asked Questions
Will the 16604-52032 fit my Kubota V2203?
Kubota engine dealers list it for the V2203, but the V2203 has used more than one lift pump, including 17539-52033 and 17121-52033. Match the number on your old pump or call 530-668-0818 with the engine serial number.
Has the 16604-52032 been superseded?
Two Kubota engine dealer catalogs show 16604-52032 replaced by 19844-52030, which Kubota describes as the fuel pump assembly with primer. 16604-52032 itself replaced the older 16604-52030.
Does the 16604-52032 have a hand primer?
Yes. It has a primer lever on the pump body for filling the filter and bleeding the low-pressure side by hand. The similar Kubota pump without a lever is 15263-52030.
Is the 16604-52032 new or remanufactured?
New, genuine Kubota. It is a complete pump assembly with its primer lever.
Related Parts
- Kubota V2203 & V2403 Fuel Injector, Nozzle Holder Kit | Genuine Kubota 16454-53905
- Kubota V2203-M Injection Pump 1G916-51013 (Genuine)
- Kubota L3200, L3400, L3800, L4600, MX5100 & M5140 Mechanical Fuel Lift Pump | Genuine Kubota 1G896-52030
- Kubota D1503, D1703, D1803, V2003, V2203 & V2403 Engine Stop Solenoid | Genuine Kubota 1A021-60017
Why Buy From Valley Fuel Injection
We are an authorized Kubota dealer and a diesel fuel-injection shop in Woodland, CA, working on diesel engines since 1993. When you call, you talk to people who know Kubota engines, and we check the part number against your engine serial or machine model before anything ships, so the right part arrives the first time. See our Kubota engine sales, parts and service.
UPS Ground anywhere in the lower 48. Questions on fitment? Call 530-668-0818.
Pricing covers the unit itself. Any applicable sales tax is additional; shipping is calculated at checkout. Buying tax-exempt? Qualifying diesel repair shops, fleets, farms, and agricultural operations can purchase tax-free. Set up tax-exempt purchasing once and every qualifying order is tax-free going forward.
