Kubota V2607, V3300, V3307, V3600 & V3800 Mechanical Fuel Lift Pump | Genuine Kubota 1C010-52035
Kubota 1C010-52035 is the new, genuine Kubota mechanical fuel lift pump for Kubota’s larger four-cylinder diesels. Kubota engine dealers list it for the V2607, V3300, V3307, V3600 and V3800. Kubota’s tractor parts list puts it on the M5040, M6040, M6800, M7040, M8200, M8540, M9000, M9540 and M96S. It is the current number for the older 1C010-52034 and 1C010-52033.

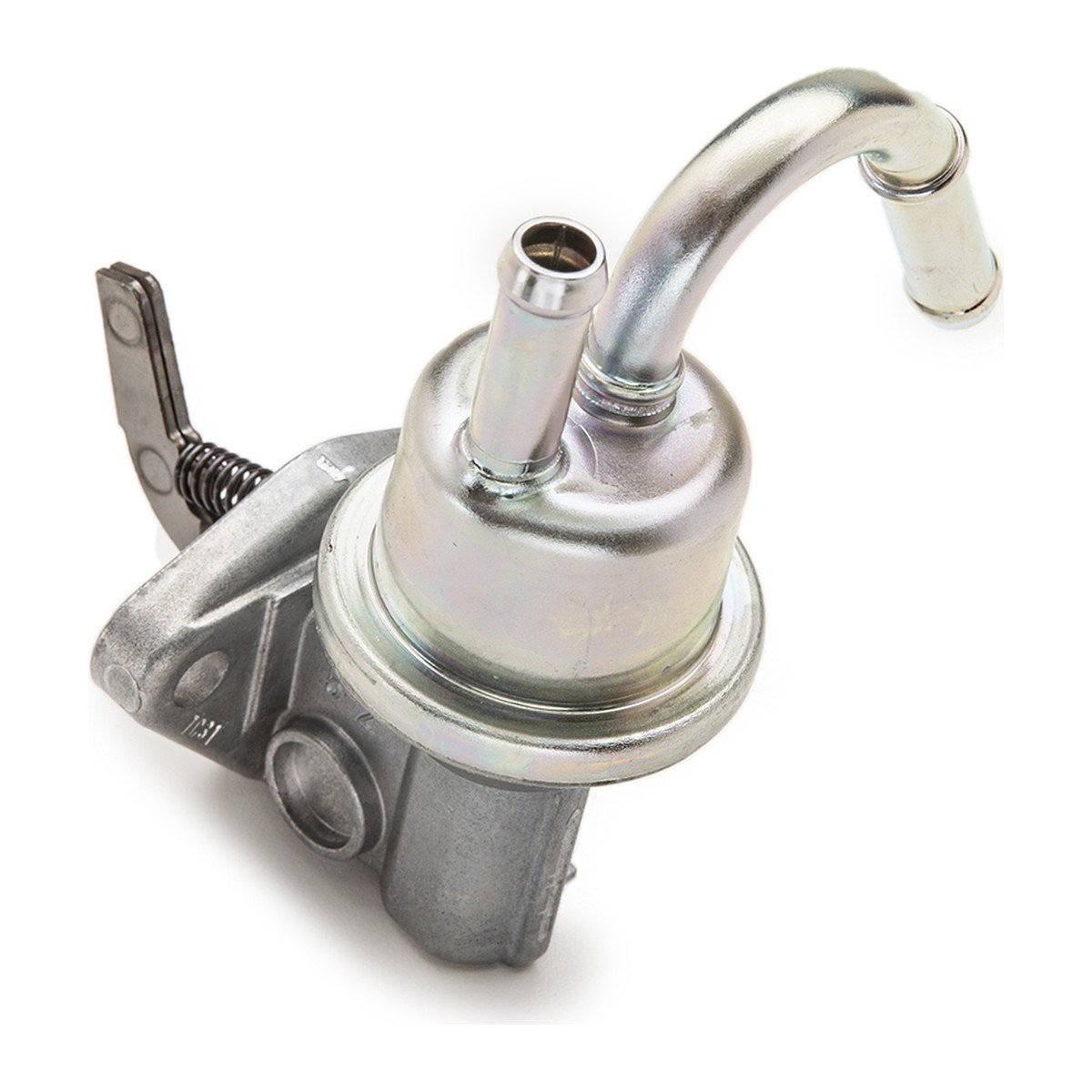

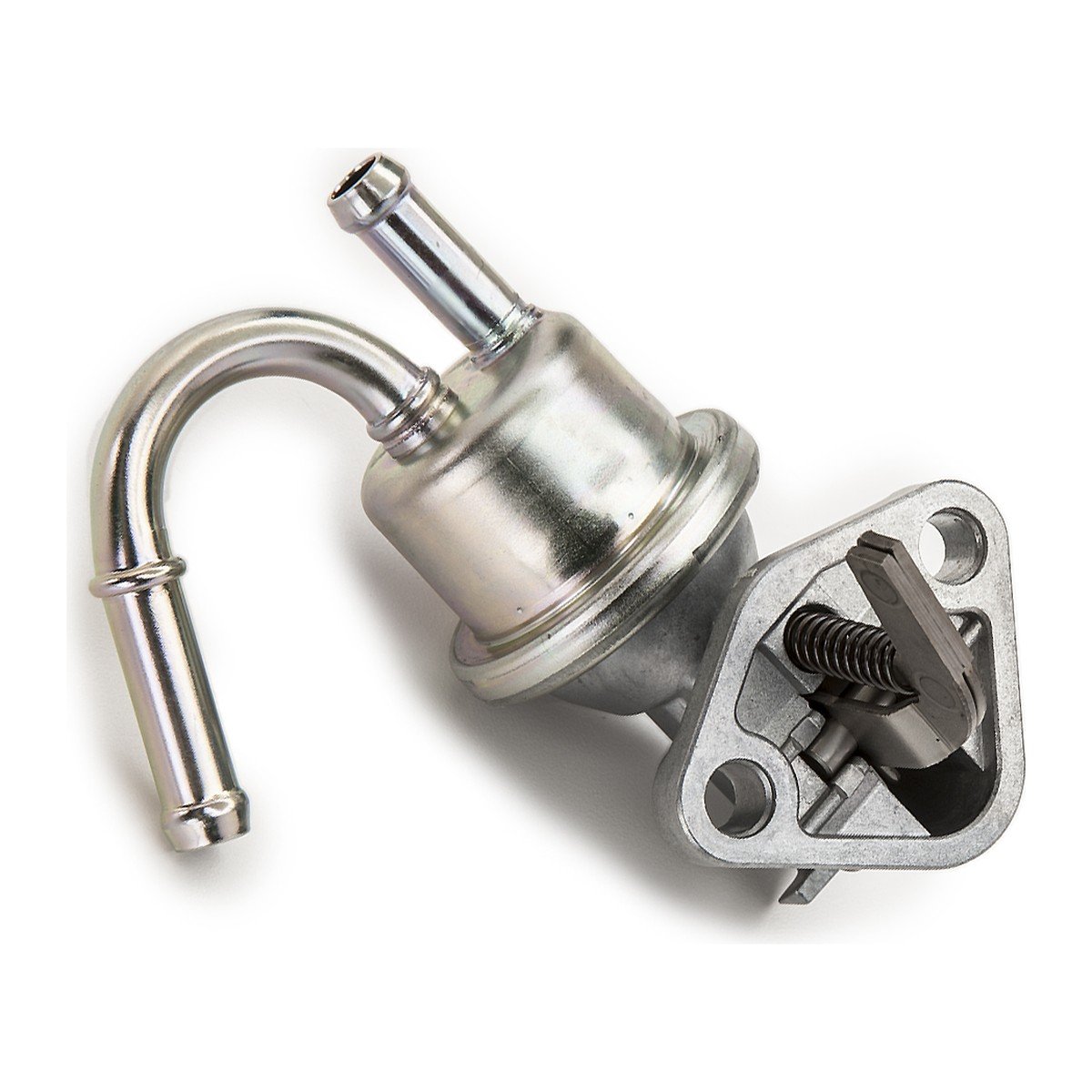

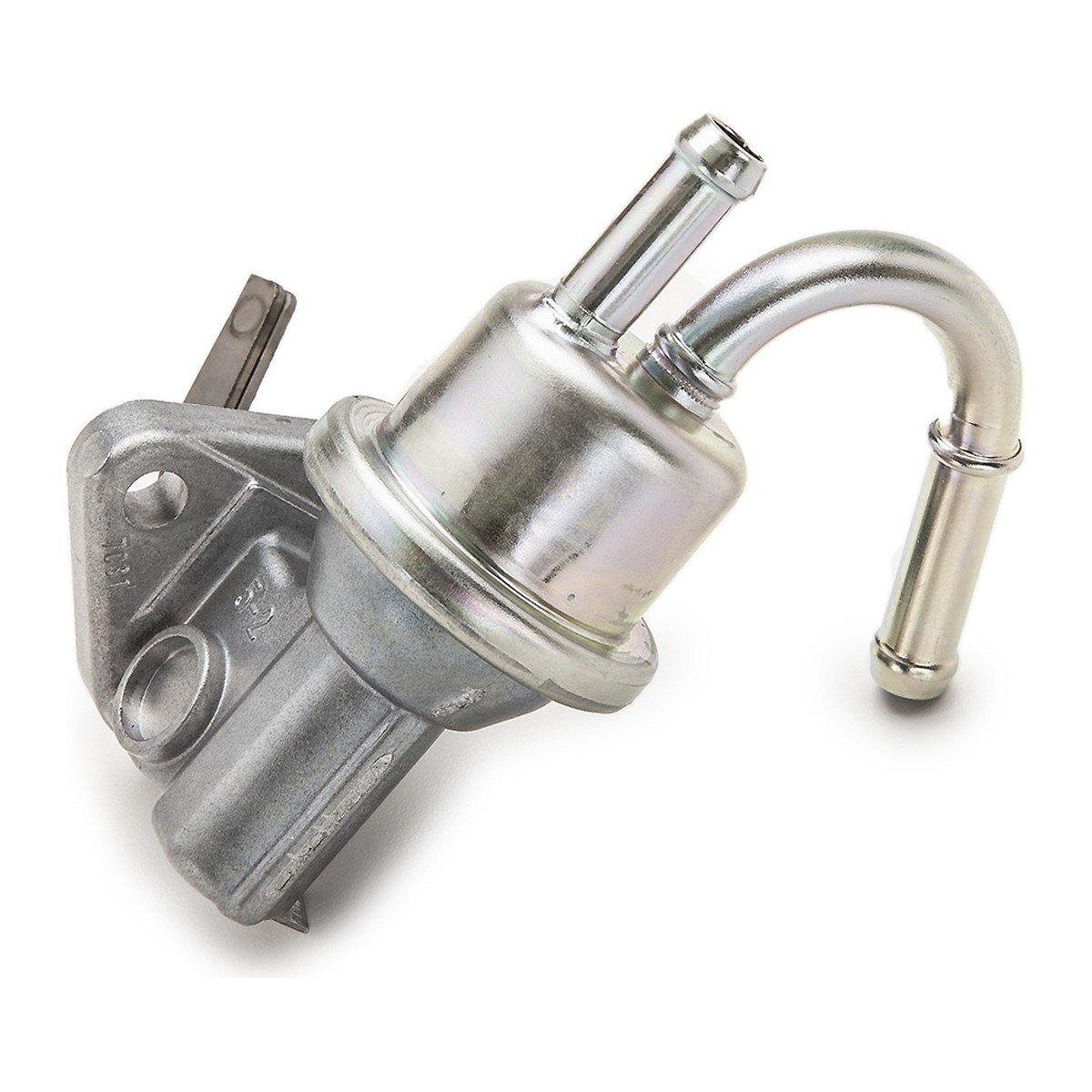

This is a lever-driven diaphragm pump that bolts to the engine and feeds the injection pump. When it fails you see hard starting, surging, loss of power under load or stalling, and a torn diaphragm can leak fuel or let fuel into the engine oil. Check the fuel filter, the tank vent and the suction hose for air leaks before you replace it.
Confirm Fitment Before You Order
Some builds of these engines use a 12 V electric lift pump such as 1G639-52035 instead of this mechanical one. One Kubota engine dealer lists this pump only for the mechanical-injection versions (V2607-DI, V3300, V3307-DI-T, V3600 and V3800-DI), so check before ordering for a common-rail (CR) engine. Send us the tractor or engine model, the serial number and the number on your old pump, and we will confirm the match before you order. Call 530-668-0818 and we will confirm the exact match at no charge before anything ships.
Specifications
| Part number | 1C010-52035 |
| Brand | Kubota |
| Condition | New, genuine, in original packaging |
| Warranty | Kubota genuine parts warranty: 1 year against defects in materials or workmanship. |
| Type | Mechanical fuel lift pump, engine-driven, lever operated |
| Engines | V2607, V3300, V3307, V3600, V3800 |
| Machines | Kubota M5040, M6040, M6800, M7040, M8200, M8540, M9000, M9540 and M96S tractors |
| Replaces | 1C010-52034, 1C010-52033 |
| Shipping weight | 3 lb |
Fits / Applications
- Kubota V2607, V3300, V3307, V3600 and V3800 engines (some builds)
- Kubota M5040, M6040 and M7040 tractors
- Kubota M6800, M8200 and M9000 tractors
- Kubota M8540, M9540 and M96S tractors
- Replaces Kubota fuel pumps 1C010-52034 and 1C010-52033
Fit a new mounting gasket and make sure the pump lever sits on its drive cam before you tighten the mounting bolts. Clamp both hoses, bleed the fuel system as the tractor or engine manual describes, and check for leaks.
Part Numbers & Cross Reference
Kubota 1C010-52035 · Kubota (superseded) 1C010-52034 · Kubota (superseded) 1C010-52033
Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.
Frequently Asked Questions
Will the 1C010-52035 fit my Kubota M7040 or M9540?
Kubota’s parts list shows this pump on the M5040, M6040, M6800, M7040, M8200, M8540, M9000, M9540 and M96S. Send us the tractor serial number and the number on your old pump if you want it checked first.
What numbers does the 1C010-52035 replace?
It replaces Kubota 1C010-52034 and 1C010-52033. If your old pump carries either number, this is the current one.
Which engines is the 1C010-52035 listed for?
Kubota engine dealers list it for the V2607, V3300, V3307, V3600 and V3800. Kubota sells separate lift pumps for its smaller engines, such as 16285-52033 for the 05 Series and 17121-52033 and 17539-52033 for the 03 Series.
Is the 1C010-52035 new or remanufactured?
It is a new, genuine Kubota pump assembly, not a rebuilt one.
