Kubota Z482, Z602, D722, D782 & D902 Fuel Injector Kit for BX2230, G2160 & ZD21 | Genuine Kubota 16001-53904

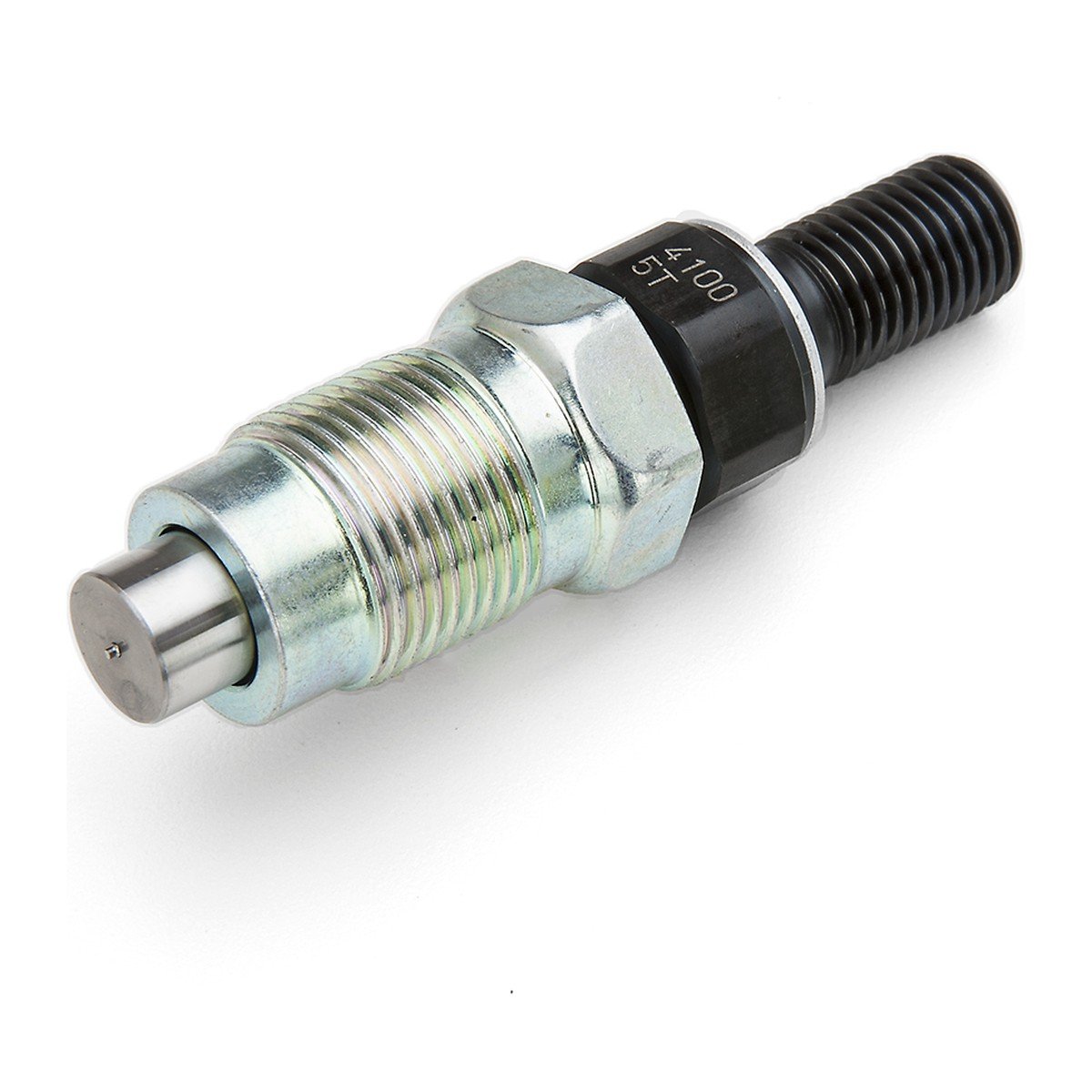

This is a new, genuine Kubota fuel injector, part number 16001-53904. Kubota calls it a nozzle holder kit (KIT HOLDER,NOZZLE). It is the complete injector, with the holder body, spring, push rod and nozzle assembled and set. It fits Kubota’s Super Mini indirect-injection diesels: the two-cylinder Z482 and Z602 and the three-cylinder D722, D782 and D902. It is Kubota’s current number for kit 16001-53900.
Kubota lists it on the BX1500D, BX1800D, BX1830D, BX2230D, BX2350D and BX24D, the B7400 and B7410, the RTV900, the G2160, TG1860 and GR2100, the ZD18 and ZD21 and the K008-3. These injectors are replaced for hard starting, smoke, a miss or knock at idle, or a poor spray pattern on the pop tester. Kubota used two injector families on the Super Mini engines. This is the 16001 series. Later machines such as the BX1870, BX2370, BX2380 and RTV-X900 take the 16871 series (16871-53002 or kit 16871-53904). Some models built across the change, the BX1860, the RTV900 9 series, the K008-3 and the KX41-3 among them, are on Kubota’s lists for both.
Confirm Fitment Before You Order
Super Mini engines used two injector families: the 16001 series (this kit) and the 16871 series (16871-53002 and kit 16871-53904). The BX1860, RTV900 9 series, K008-3 and KX41-3 are on Kubota’s lists for both, so the machine model alone does not settle it. Before you order, send us the engine model, the engine serial number and the number on your old injector. Call 530-668-0818 and we will confirm the exact match at no charge before anything ships.
Specifications
| Part number | 16001-53904 |
| Brand | Kubota |
| Condition | New, genuine, in original packaging |
| Warranty | Kubota genuine parts warranty: 1 year against defects in materials or workmanship. |
| Type | Fuel injector: complete nozzle holder assembly with nozzle, supplied as a kit |
| Kubota description | KIT HOLDER,NOZZLE |
| Injector family | 16001 series |
| Engines | Kubota Z482, Z602, D722, D782 and D902 (Super Mini, indirect injection) |
| Injectors per engine | 2 on the Z482 and Z602, 3 on the D722, D782 and D902 |
| Opening pressure | 13.73 to 14.71 MPa (1,991 to 2,134 psi), Kubota Super Mini workshop manual |
| Mounting thread | M20 x 1.5 |
| Tightening torque | 49.0 to 68.6 Nm (36.2 to 50.6 ft-lb), Kubota Super Mini workshop manual |
| Replaces | Kubota 16001-53900 (kit) |
| Shipping weight | 2 lb |
Fits / Applications
- Kubota Z482 and Z602 two-cylinder diesel engines
- Kubota D722, D782 and D902 three-cylinder diesel engines
- Kubota BX1500D, BX1800D, BX1830D, BX2230D, BX2350D and BX24D tractors
- Kubota B7400 and B7410 tractors
- Kubota RTV900 utility vehicles (9 series models are also on Kubota’s list for the 16871 series)
- Kubota G2160, TG1860 and GR2100 lawn and garden tractors
- Kubota ZD18 and ZD21 zero-turn mowers
- Kubota BX1860 tractor and K008-3 and KX41-3 excavators: this kit or the 16871 series, depending on the engine
- Kubota Z482-E3B-KEA-2 parts book: listed from engine serial BA0001. Before that the book lists 16001-53900.
- Kubota Z602-E3B-KEA-1 parts book: listed from engine serial BA0001. Before that the book lists 16001-53900.
- Kubota GL11000-USA parts book: listed from serial BA0001. Before that the book lists 16001-53900. From serial 4DA0001 it lists 16871-53904.
- On the other side of a serial break? Send us the serial number and we will check which part number Kubota calls for.
Kubota’s Super Mini workshop manual says the copper gasket and the heat seal must be changed whenever an injector is removed. Kubota’s numbers for them on these engines are 15841-53622 (gasket) and 19077-53650 (heat seal). Clean the bore and seat, tighten the nozzle holder assembly to 49.0 to 68.6 Nm (36.2 to 50.6 ft-lb), bleed the fuel system and check the injection pipes and the overflow pipe for leaks.
Part Numbers & Cross Reference
Kubota 16001-53904 · Kubota (superseded) 16001-53900 · Bobcat (crosses to injector 16001-53002) 7012004
Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.
Frequently Asked Questions
Will the 16001-53904 fit my Kubota BX tractor or RTV900?
Kubota lists this kit for the BX1500D, BX1800D, BX1830D, BX2230D, BX2350D and BX24D and for the RTV900. The BX1860 and the RTV900 9 series can take the 16871 series injector instead, so call 530-668-0818 with your engine serial number before you order.
Is it a complete injector or just a nozzle?

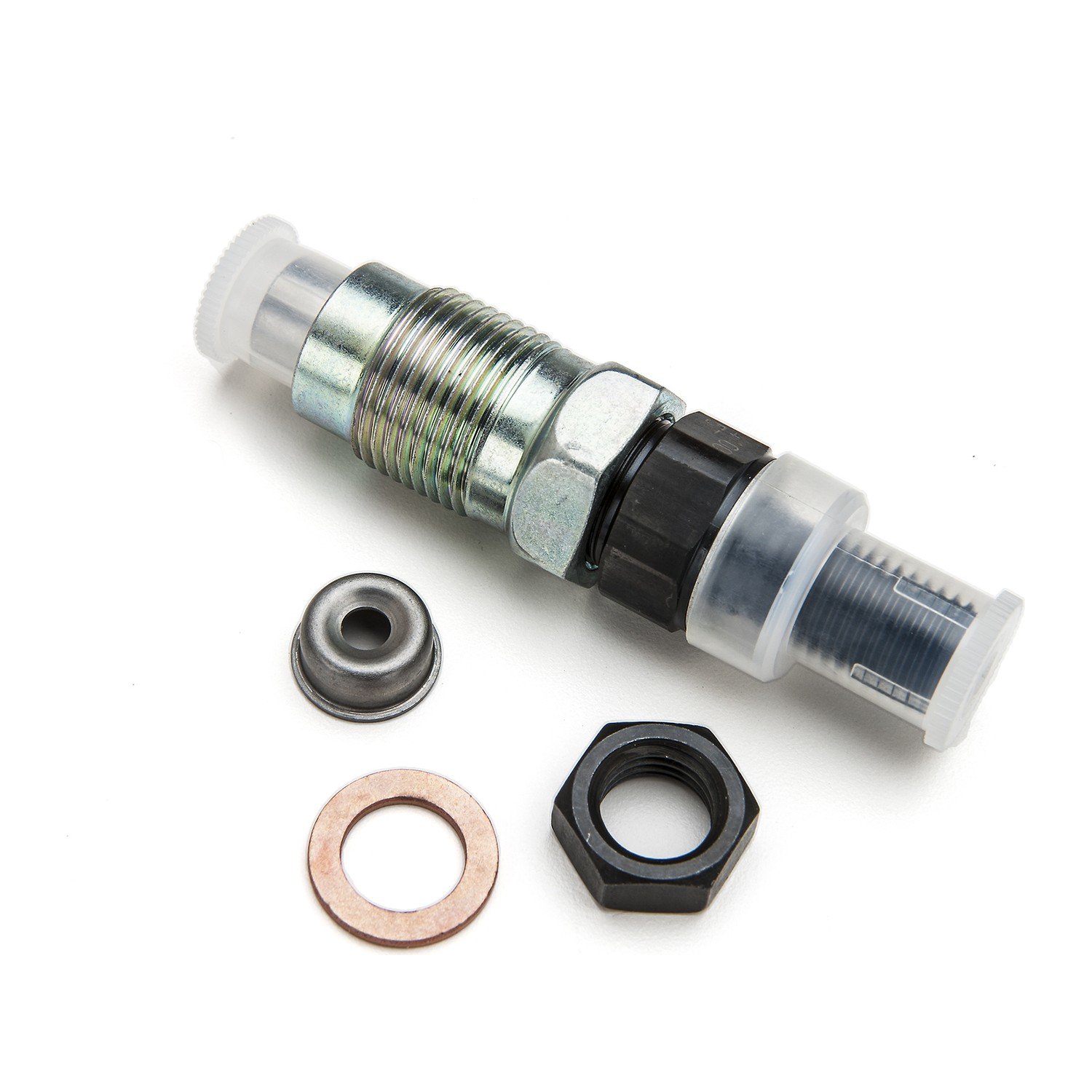

It is the complete injector: holder body, spring, push rod and nozzle, assembled and set. It is new, genuine Kubota. Fit a new copper gasket and heat seal under it when you install it.
What numbers does the 16001-53904 replace?
Kubota kit 16001-53900.
Is 16001-53904 the same as 16871-53904?
No. They are two different injector families for the Super Mini engines, and Kubota catalogs them as separate parts. Match the number on your old injector, or send us the engine serial number and we will check.
