2007.5-2012 Dodge Ram 6.7L Cummins Turbocharger with Actuator | Holset 5325950HX Remanufactured

$2,991.00

In stock

Usually ships within 24 hours

This will also add the following products to your cart:

  • Core Charge - Holset 5325950HX (Refundable) - $500.00

View Core Charge & Return Policy

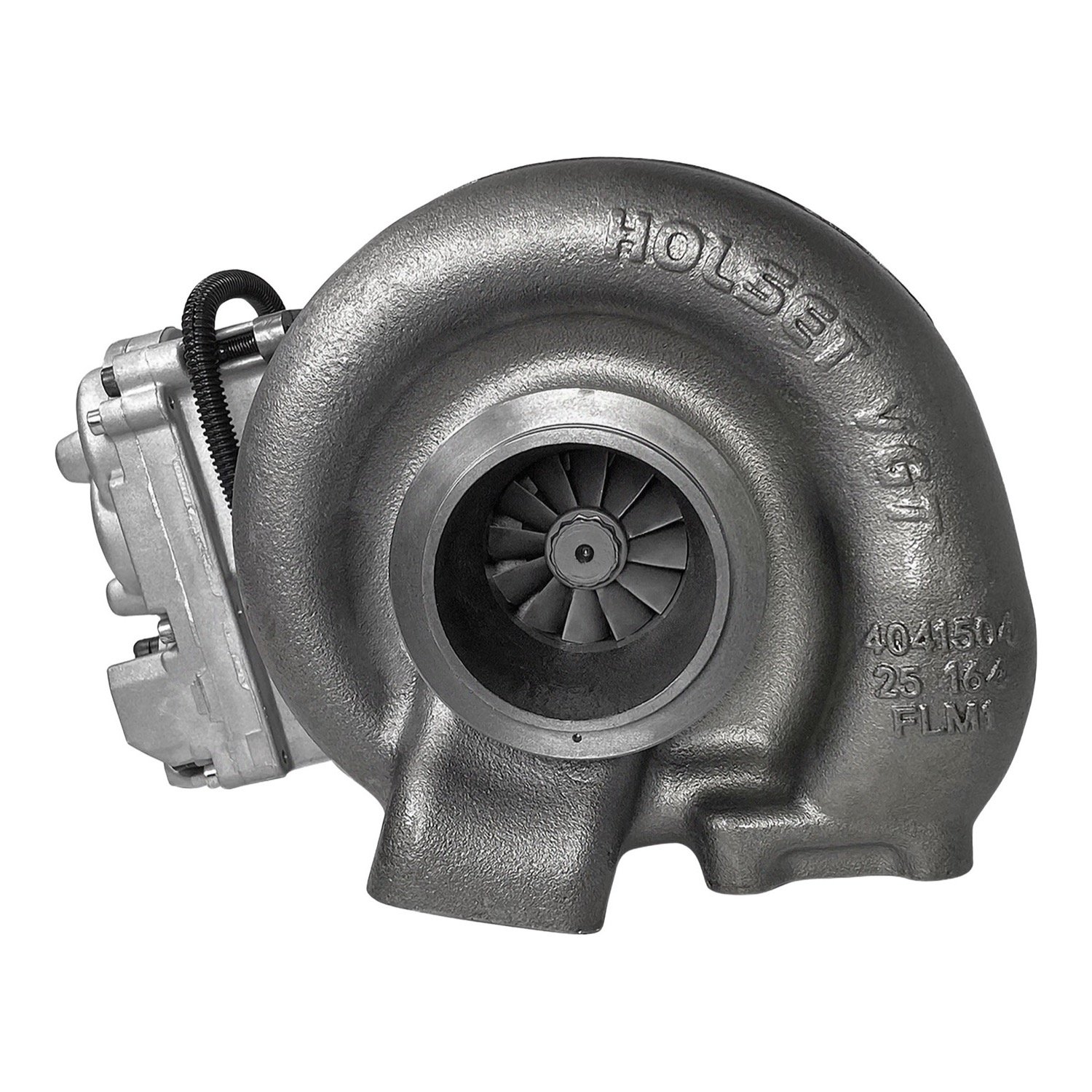

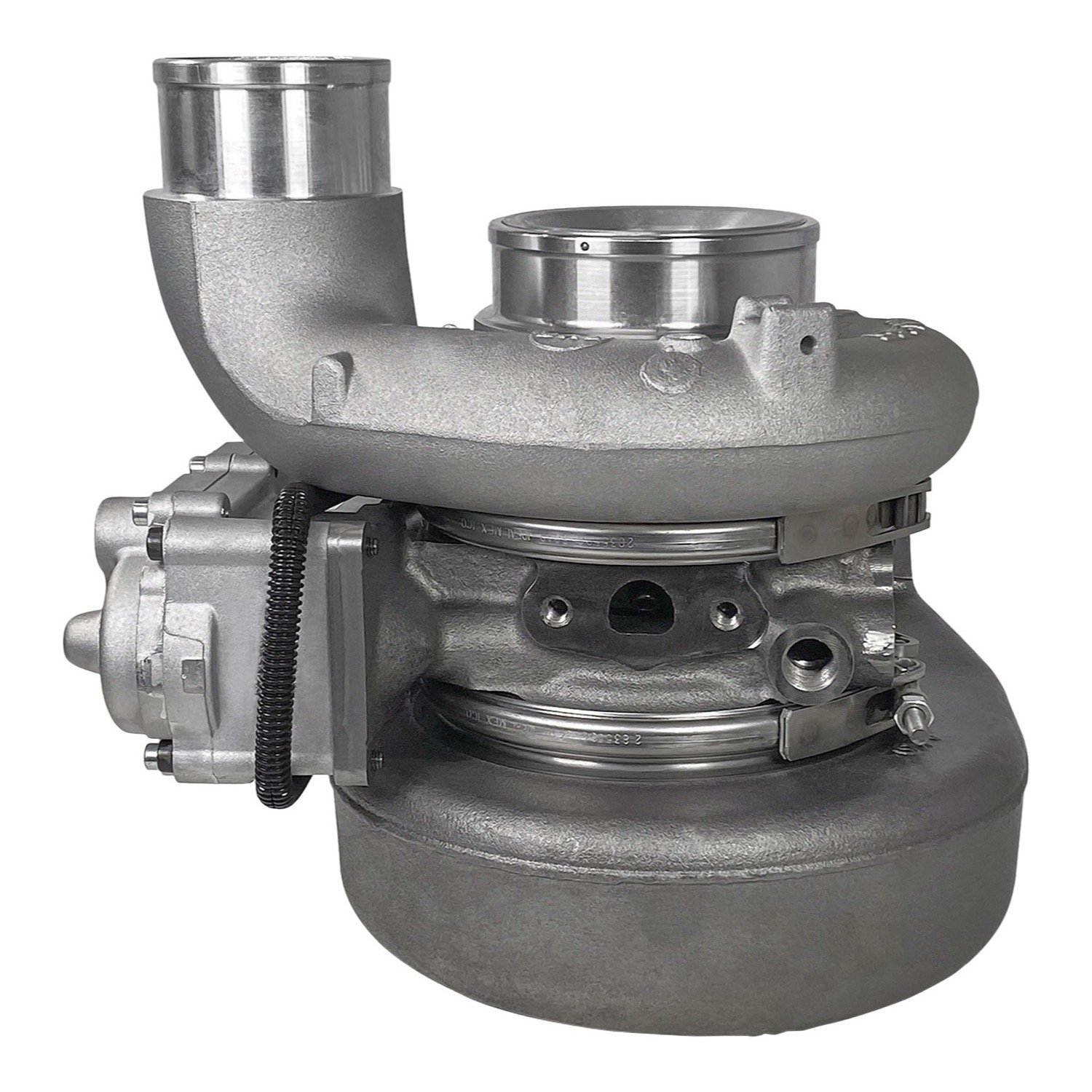

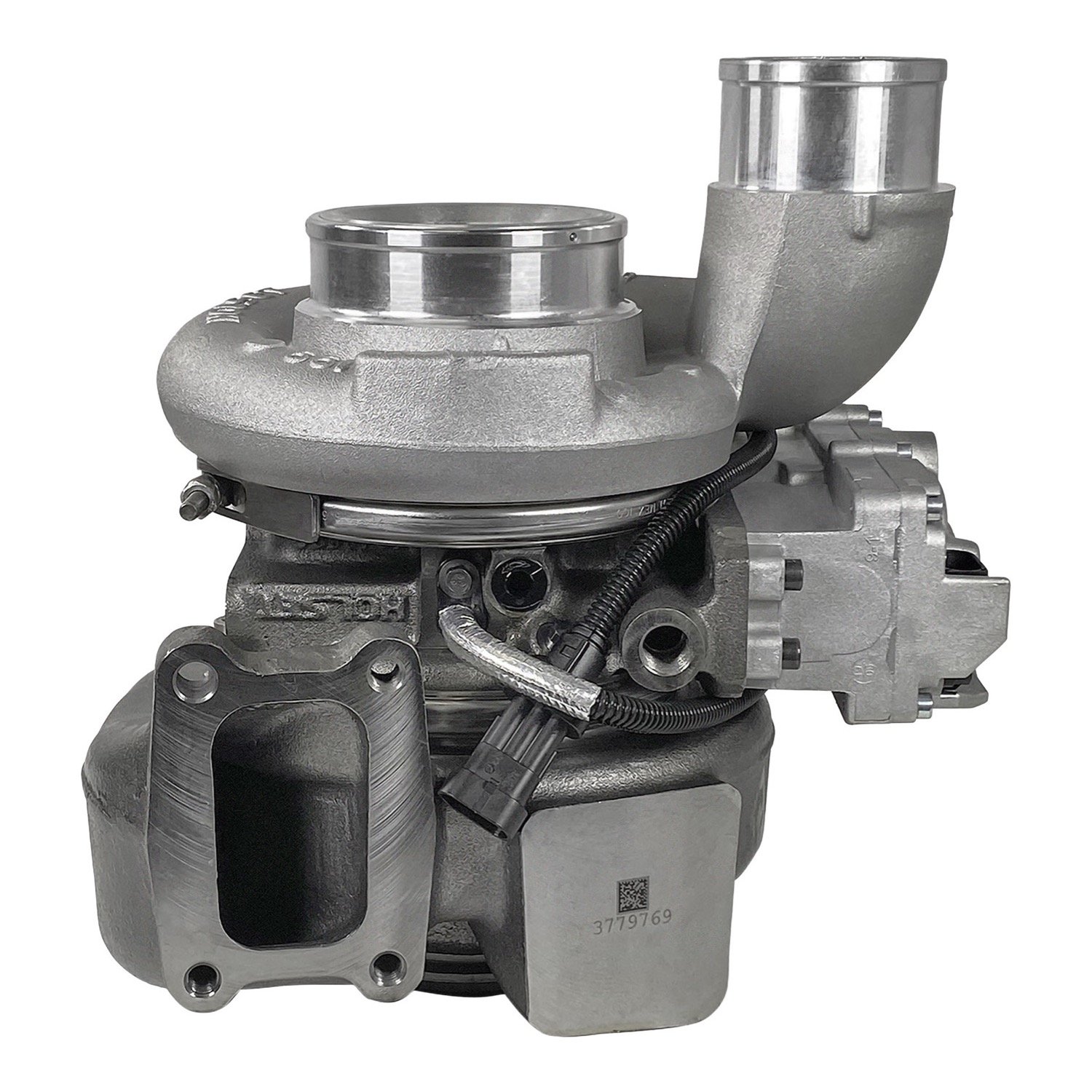

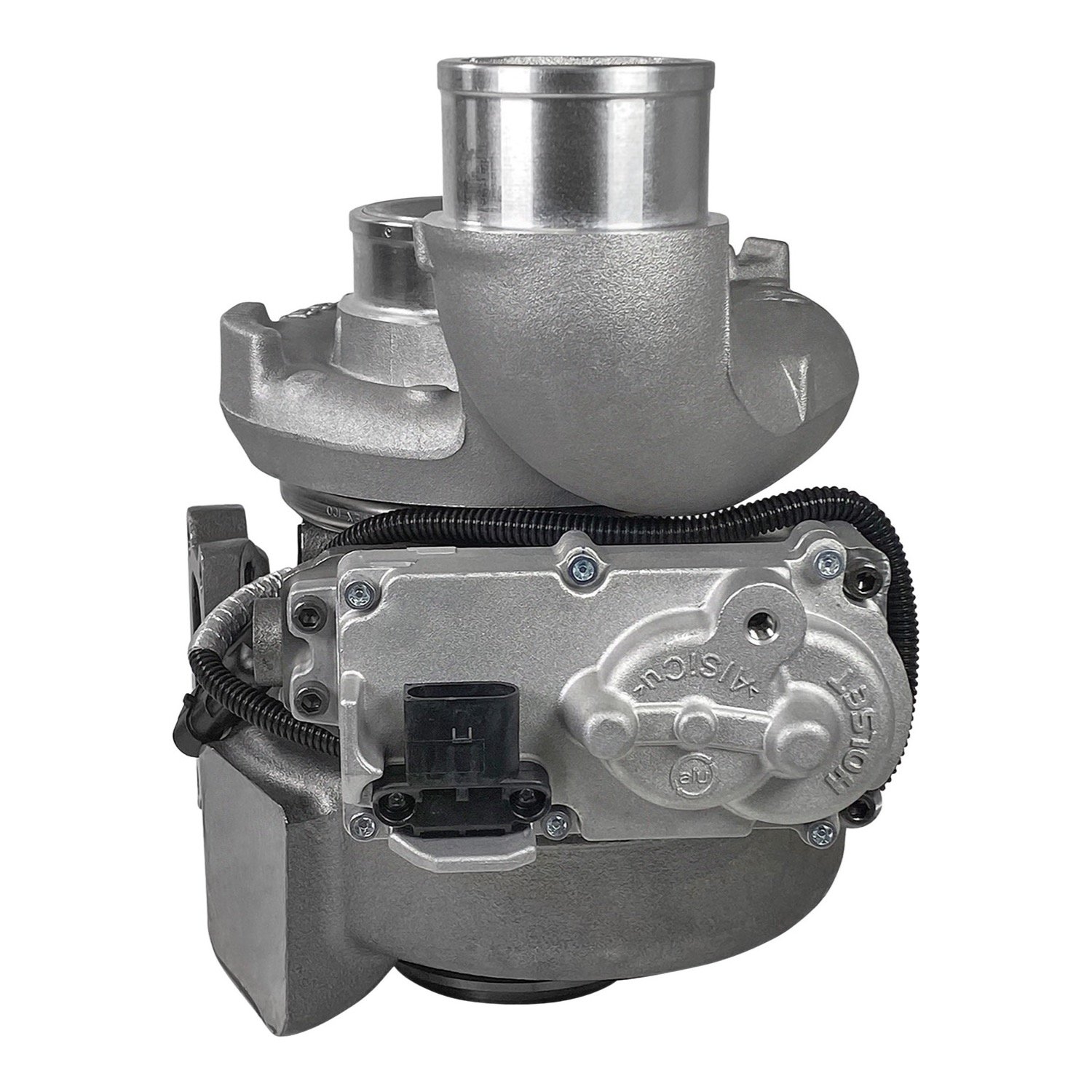

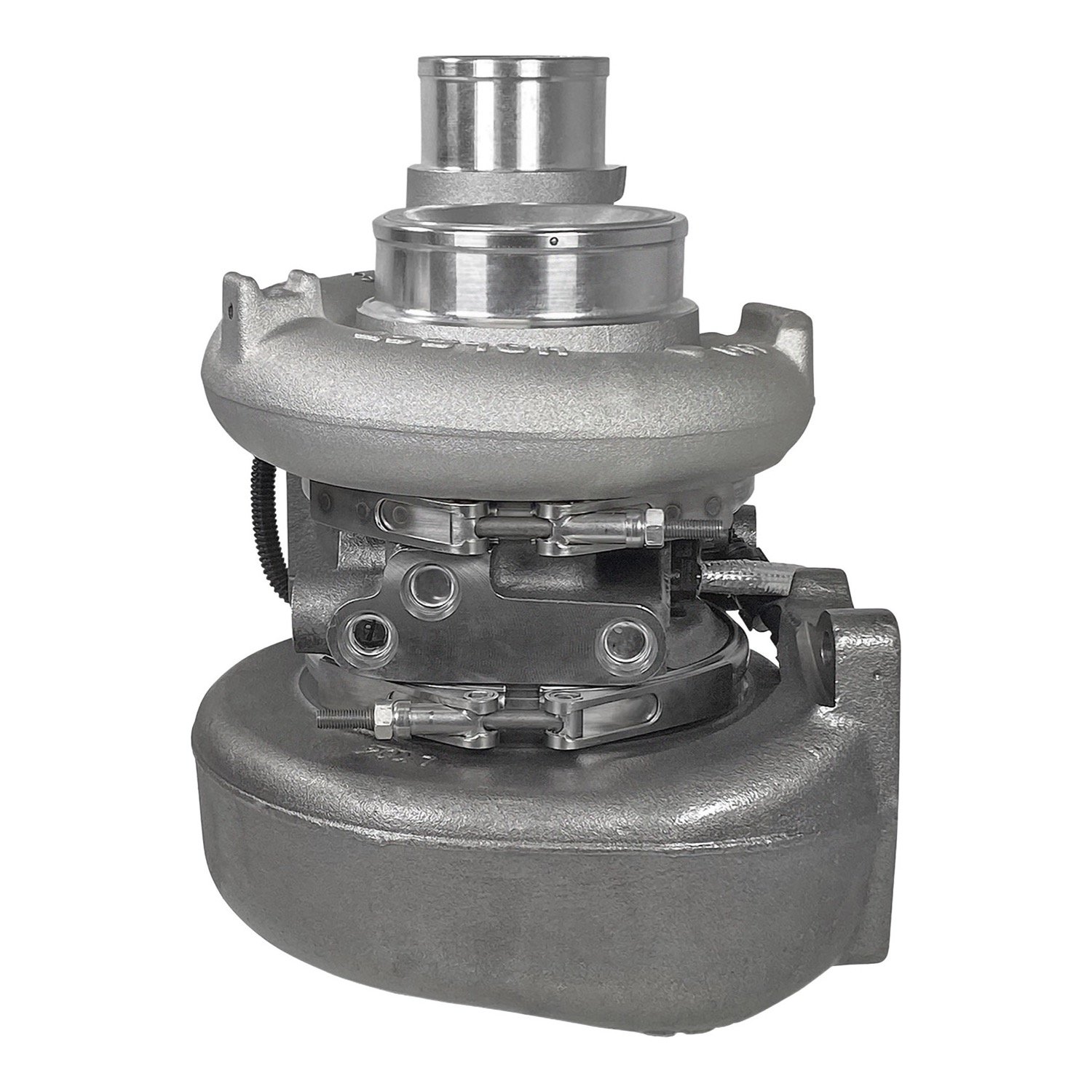

This is the Holset 5325950HX, a Holset variable geometry turbocharger remanufactured by Holset (Cummins Turbo Technologies), the company that built it. It fits 2007.5 to 2012 Dodge Ram trucks with the 6.7L Cummins: 2500 and 3500 pickups and 3500, 4500 and 5500 cab and chassis trucks. The electronic actuator comes fitted to the turbo, so there is no separate actuator to buy or match. It takes the place of Holset 5322344, 4046837, 3799840 and 3799833, Cummins 3770973 and 2882075, and Mopar 68048234. The new version of the same turbo is Holset 5325950H.

These turbos usually come off for a sticking sliding nozzle from soot, a weak or dead exhaust brake, low boost, a failed actuator or shaft play with oil in the intake. The variable geometry section also works the exhaust brake, so a turbo that sticks often shows up first as a brake that does not hold. Find out why the old turbo failed before the replacement goes on: check the oil feed and drain, the air filter and intake piping, and look for heavy soot from EGR or short-trip use.

Confirm Fitment Before You Order

This turbo covers 2007.5 to 2012 Dodge Ram trucks with the 6.7L Cummins, pickup and cab and chassis. The 2013 and later trucks take a different turbo. Have your VIN and the Holset number from the data plate on your old turbo ready. Call 530-668-0818 and we will confirm the exact match at no charge before anything ships.

Specifications

Part number5325950HX
BrandHolset
ConditionRemanufactured
TypeVariable geometry turbocharger (VGT), sliding nozzle
EngineCummins 6.7L ISB
TrucksDodge Ram 2500 and 3500 pickups; 3500, 4500 and 5500 cab and chassis
Model years2007.5 to 2012 (4500 and 5500 from 2008)
ActuatorElectronic actuator included, fitted to the turbo
Made byHolset (Cummins Turbo Technologies), factory remanufactured
Core chargeRefundable in full when we receive your rebuildable core
Shipping weight59 lb

Fits / Applications

  • 2007.5 to 2012 Dodge Ram 2500 6.7L Cummins
  • 2007.5 to 2012 Dodge Ram 3500 6.7L Cummins, pickup and cab and chassis
  • 2008 to 2012 Dodge Ram 4500 and 5500 cab and chassis 6.7L Cummins
  • Holset variable geometry turbo, electronic actuator included
  • Not for 2013 and later Ram 6.7L trucks, which take a different turbo

Change the engine oil and filter, and make sure the oil feed line and drain are clean and clear before the first start. Use new gaskets at the exhaust manifold, oil drain and coolant connections. Prime the turbo with clean oil through the feed port and let the engine idle before it sees load. Clean the charge air cooler and piping if the old turbo passed oil or broke up.

Part Numbers & Cross Reference

Holset 5325950HX  Â·  Holset new version 5325950H  Â·  Holset (earlier number) 5322344  Â·  Holset (earlier number) 4046837  Â·  Holset (earlier number) 3799840  Â·  Holset (earlier number) 3799833  Â·  Cummins 3770973  Â·  Cummins 2882075  Â·  Cummins and Holset (superseded numbers) 2835911, 2835909, 2837647, 2837665, 2837666, 2839682, 2881755, 2834644, 2834228, 2834229, 3770974  Â·  Mopar 68048234 (suffixes AA to AG)  Â·  Mopar remanufactured R8048234 (suffix to AI)  Â·  Mopar (earlier numbers) 68027068AA, 68003401AA, 68031095AA

3768087
3768088
3770975
3770978
3790480
3790481
3790482
3790483
4042034
4042035
4043136
4043137
4044965
4046264
4046836
4955361
4955361RX
4955447
4955447RX
4955876
4955876RX
4956088
4956088RX
100-008-000
100TBC521
100TBC521S
1700320296
1700321399
1700322851
2834603
2834900
2834955
2835910
2837649
2838190
2838191
2839681
2842406
2842407
286TC2110400
286TC21104000
286TC2110410
286TC21104100
286TC2356600
286TC23566000
2880275NX
2881683
2881755NX
2881847
2881847NX
2881847RX
2882013
2882013RX
2882075NX
2T314
377093RX
3770973NX
379984000
379984000HX
3799840H
3799840HX
433520
4955361NX
4955447NX
4955876NX
4956088NX
532234400
532234400HX
5322344HX
5322344NX
5325947
5325950
532595000
532595000H
532595000HX
5325957
5325957NX
5325957RX
5608776
57709900000
68002428
68002428A
68002428AA
68003401
68027068
68031095
68032290
68032290AA
68032290AB
68032290AC
68038167
68038167AA
68048234AA
68048234AB
68048234AC
68048234AD
68048234AE
68048234AF
68048234AG
68048234AH
68048234AI
8002428
8003401
8027068
8031095
8032290
8038167
8048234
8048234AA
8048234AB
8048234AC
8048234AD
8048234AE
8048234AF
8048234AG
8048234AH
8048234AI
829-957-974
8299579704
8668PP
BBBD2013
CUM2882075
D2013
DA2251178
DT670003
DT670003R
H8350112N
H8350112R
HOL3770973
HOL3770973RX
HOL5322344HX
R8002428AA
R8003401AA
R8027068AA
R8031095AA
R8032290AA
R8032290AB
R8032290AC
R8038167AA
R8048234AA
R8048234AB
R8048234AC
R8048234AD
R8048234AE
R8048234AF
R8048234AG
R8048234AH
R8048234AI
R8048234AL
RL048234AA
T2009
TBC521
TBC521S
TRA3770973NX
TRA3770973RX
TRA4046264
TS3770973
TS3770973R
TUR0367212R

Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.

Frequently Asked Questions

Does the 5325950HX come with the actuator?

Yes. The electronic actuator is fitted to the turbo, so the unit arrives complete and you do not reuse the actuator from your old turbo.

Which trucks does the 5325950HX fit?

2007.5 to 2012 Dodge Ram 2500 and 3500 pickups and 3500, 4500 and 5500 cab and chassis trucks with the 6.7L Cummins. It does not fit 2013 and later trucks, which take a different turbo.

Who remanufactured it, and is there a core?

Holset, the original maker, remanufactured it. A refundable core applies, and the core deposit comes back when we receive your old turbo. The new version of the same turbo is Holset 5325950H.

What numbers does the 5325950HX replace?

Holset 5322344, 4046837, 3799840 and 3799833, Cummins 3770973 and 2882075, and Mopar 68048234 and R8048234. If your old turbo carries a different number, call 530-668-0818 with your VIN and we will check it.

Related Parts

Why Buy From Valley Fuel Injection

We are a diesel fuel-injection and turbocharger shop in Woodland, CA, rebuilding pumps, injectors and turbos on our own benches since 1993, not a drop-ship storefront. When you call, you talk to the people who test these units. We verify fitment against your engine serial, VIN or build date before anything ships, so the right part arrives the first time.

Shipping:
UPS to all 50 states, including Alaska and Hawaii. Your rate shows at checkout. A refundable core deposit is added at checkout and refunded in full when we receive your rebuildable core. Questions on fitment? Call 530-668-0818.

Pricing covers the unit itself. Any applicable sales tax and the refundable core charge are additional; shipping is calculated at checkout. Buying tax-exempt? Qualifying diesel repair shops, fleets, farms, and agricultural operations can purchase tax-free. Set up tax-exempt purchasing once and every qualifying order is tax-free going forward.
