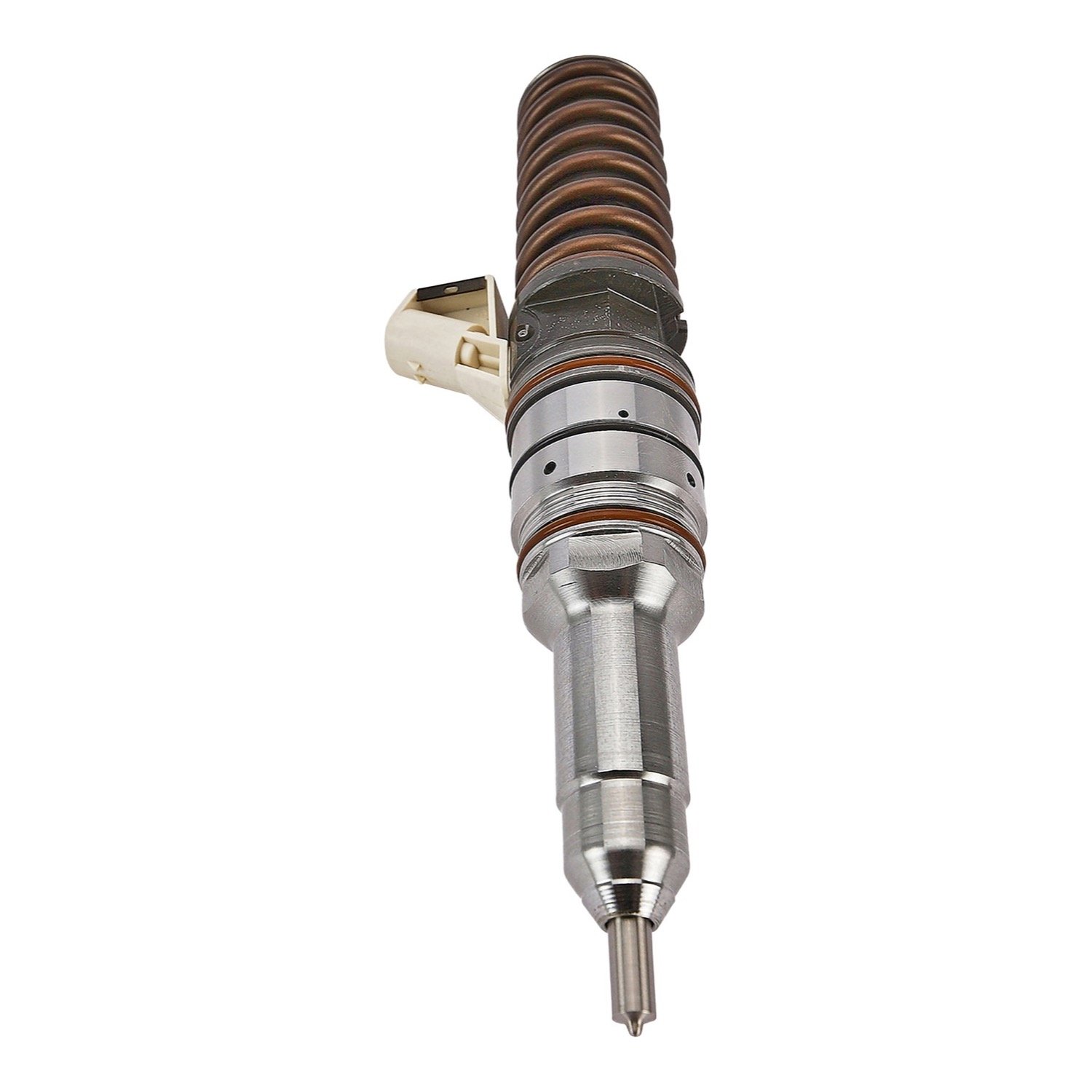

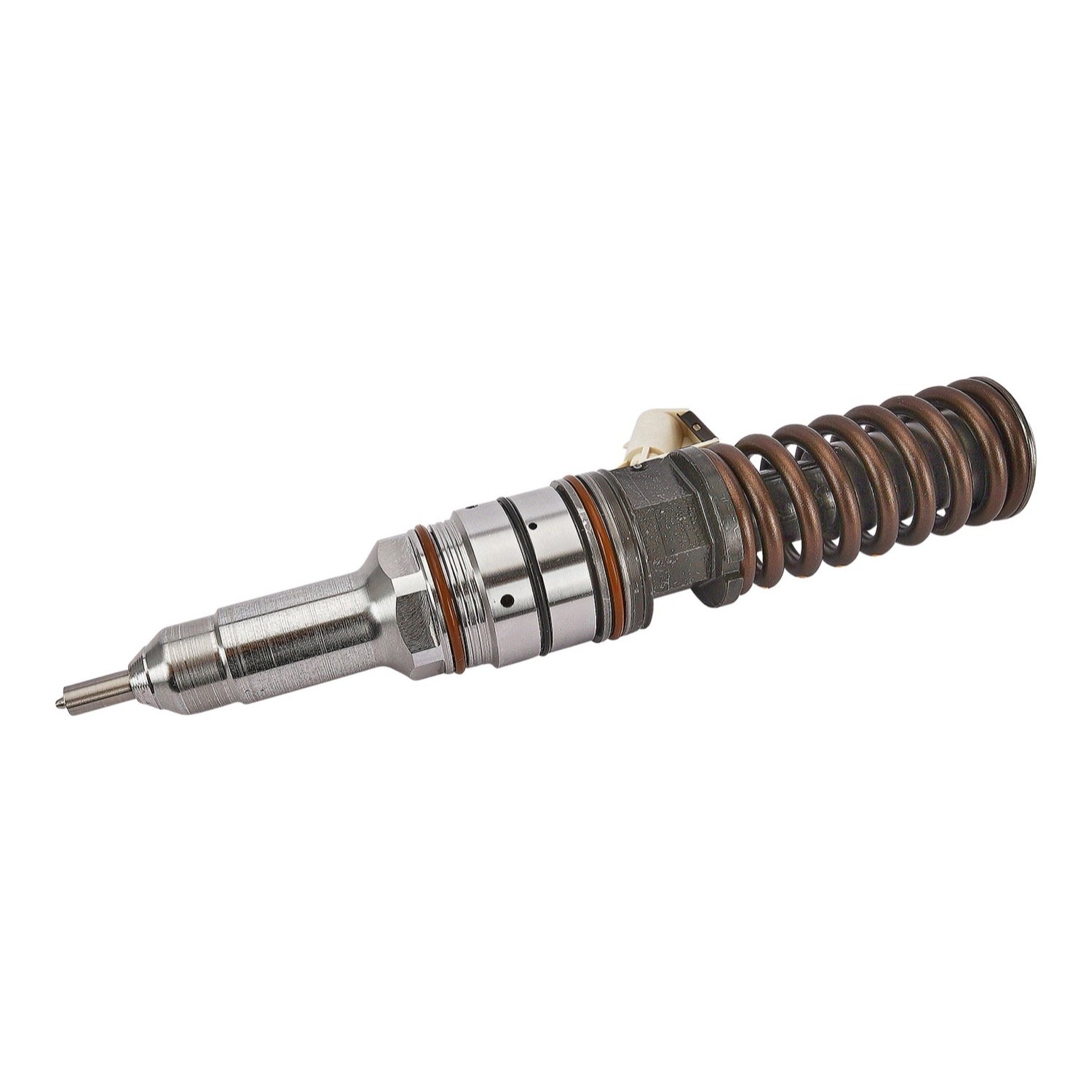

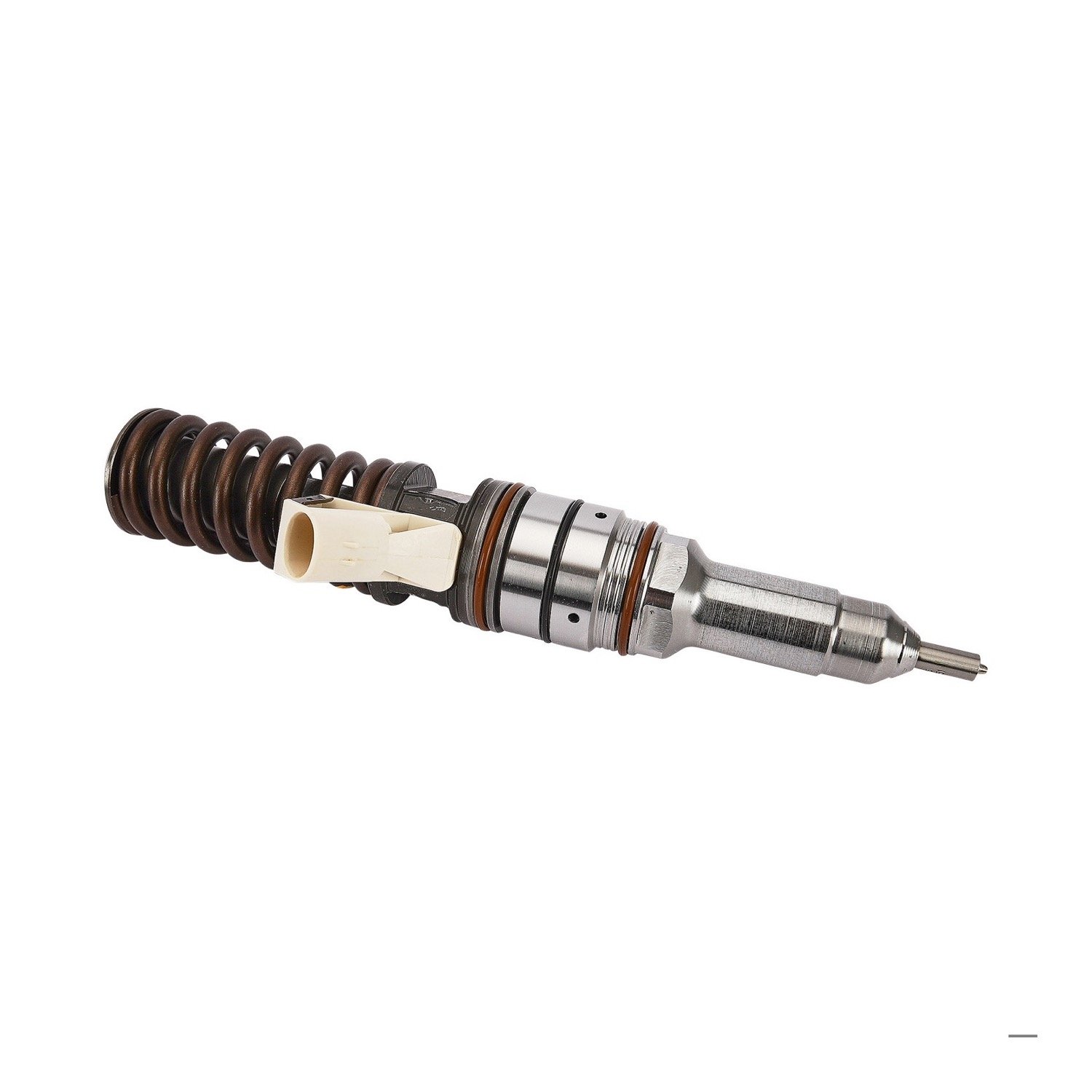

This is the Bosch 0414703009, a new electronic unit injector, not a rebuild. CNH sells it as 504287106 for the Tier 3 FPT / Iveco Cursor 10 (10.3L) and Cursor 13 (12.9L) engines. Catalogs list it for Case IH Axial-Flow 8010, 8120 and 9120 combines, Steiger 380, 385, 430 and 435 and STX380 and STX430 tractors, New Holland CR9070 and Tier 3 CR8090 combines, New Holland TJ380, TJ430, T9030 and T9040 tractors and Case 327B, 330B and 335B articulated dump trucks. It also takes the place of the earlier CNH numbers 504128354, 504154922 and 504099014, and the Bosch remanufactured version is 0986441027. It is a unit injector: the pumping element and the nozzle are one piece, driven by the camshaft, one per cylinder.

A miss under load, a cylinder that will not carry its share, fuel in the oil, hard starting or black smoke all point at a worn unit injector. Check the injector harness and the fuel supply pressure first, since both cause the same complaints. Two things to watch. The 8010 was built with two different unit injectors, this one and CNH 504062436, so read the number on yours. And the later Tier 4 machines (Steiger 400, 450 and 500, Axial-Flow 8230 and 9230) take Bosch 0414703008, CNH 504287070, which is a different part.

Specifications

Fits / Applications

• Case IH Axial-Flow 8010 (AFX8010), 8120 and 9120 combines
• Case IH Steiger 380, 385, 430 and 435 tractors
• Case IH STX380 and STX430 tractors
• New Holland CR9070 combine and Tier 3 CR8090 combine
• New Holland TJ380, TJ430, T9030 and T9040 tractors
• Case 327B, 330B and 335B articulated dump trucks (Tier 3)
• FPT / Iveco Cursor 10 (10.3L) and Cursor 13 (12.9L) Tier 3 engines that list CNH 504287106
• Six injectors per engine

Unit injectors sit under the valve cover and are worked by the camshaft, so set the injector rocker adjustment to the engine maker’s figure after fitting. Use new seals, keep everything clean and change the fuel filters at the same time.

Part Numbers & Cross Reference

Bosch 0414703009  ·  CNH / FPT 504287106  ·  CNH / FPT (earlier number) 504128354  ·  CNH / Iveco 504154922  ·  Iveco / CNH (earlier number) 504099014  ·  CNH remanufactured 504287106R  ·  Bosch remanufactured version 0986441027  ·  Bosch type number PDE100S4008

Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.

Frequently Asked Questions

Will the Bosch 0414703009 fit my Case IH 8120 combine?

Yes. Three catalogs list it for the Axial-Flow 8120, along with the 8010 and 9120. Check that your old injector reads 0414703009 or that your parts book shows CNH 504287106. The 8010 was built with two different injectors, so read the number on that one.

What numbers does it replace?

CNH 504287106 and the earlier CNH numbers 504128354, 504154922 and 504099014. The Bosch remanufactured version is 0986441027.

Is it the same as Bosch 0414703008?

No. The 0414703008 is CNH 504287070, the injector for the later Tier 4 machines such as the Steiger 400, 450 and 500 and the 8230 and 9230 combines. This one is for the Tier 3 engines. Order by the number on your old injector.

Does it fit New Holland machines too?

Yes. Catalogs list it for the New Holland CR9070 and Tier 3 CR8090 combines and the TJ380, TJ430, T9030 and T9040 tractors. Call 530-668-0818 with your engine serial number and we will check it.

Related Parts

• Case IH & New Holland FPT Cursor 13 Unit Fuel Injector | Bosch 0414703008 New (504287070)
• Case IH Steiger 420-620 & Axial-Flow 7240, 8240 Cursor 11 & 13 Fuel Injector | Bosch 0445124015 New
• Case 335 & 340 Articulated Truck Cursor 13 12.9L Unit Injector | Bosch 0414701083 New (500331074)

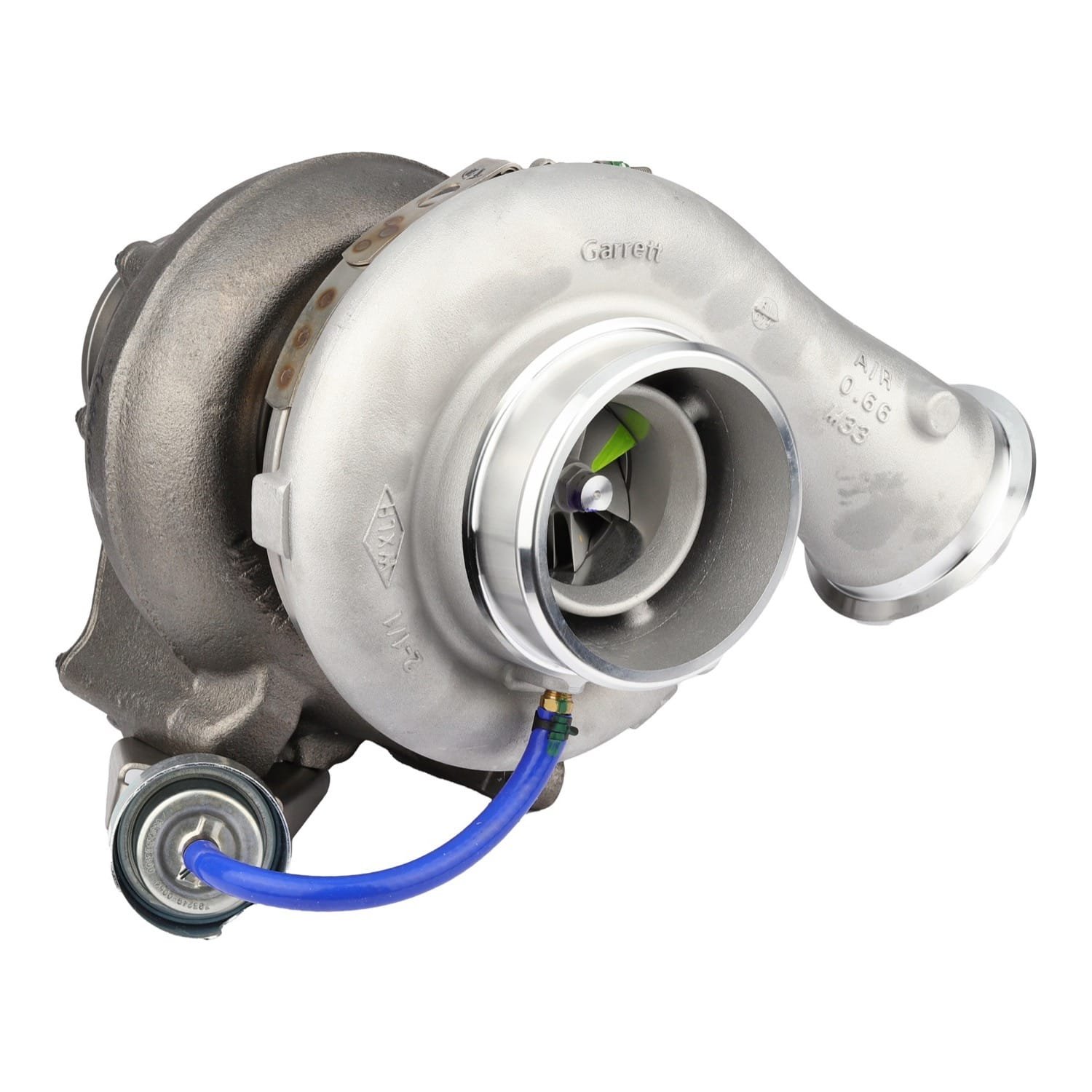

• Case IH Steiger 540/580/620 & New Holland T9 Cursor 13 High-Pressure Turbo | Garrett 897839-5002S New
