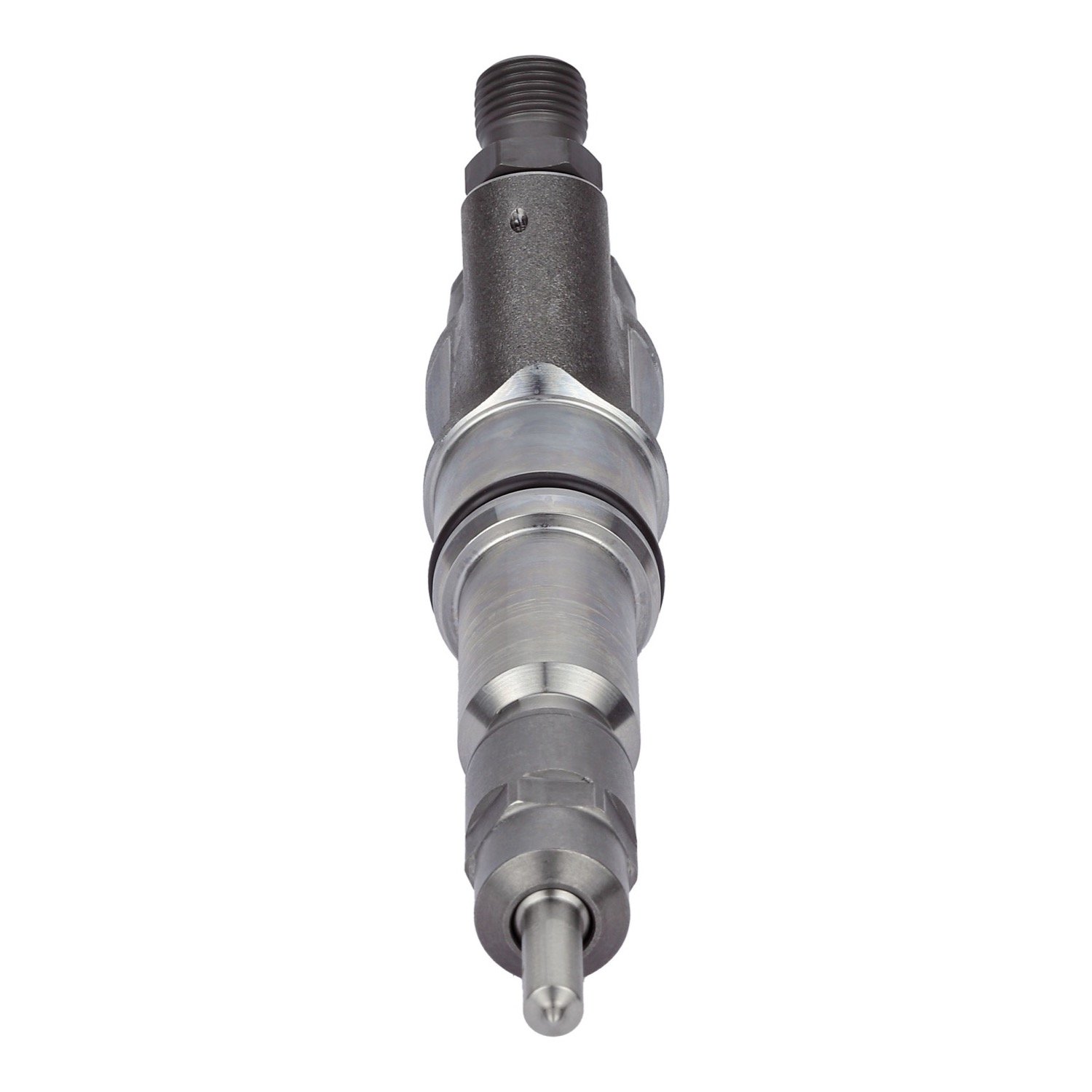

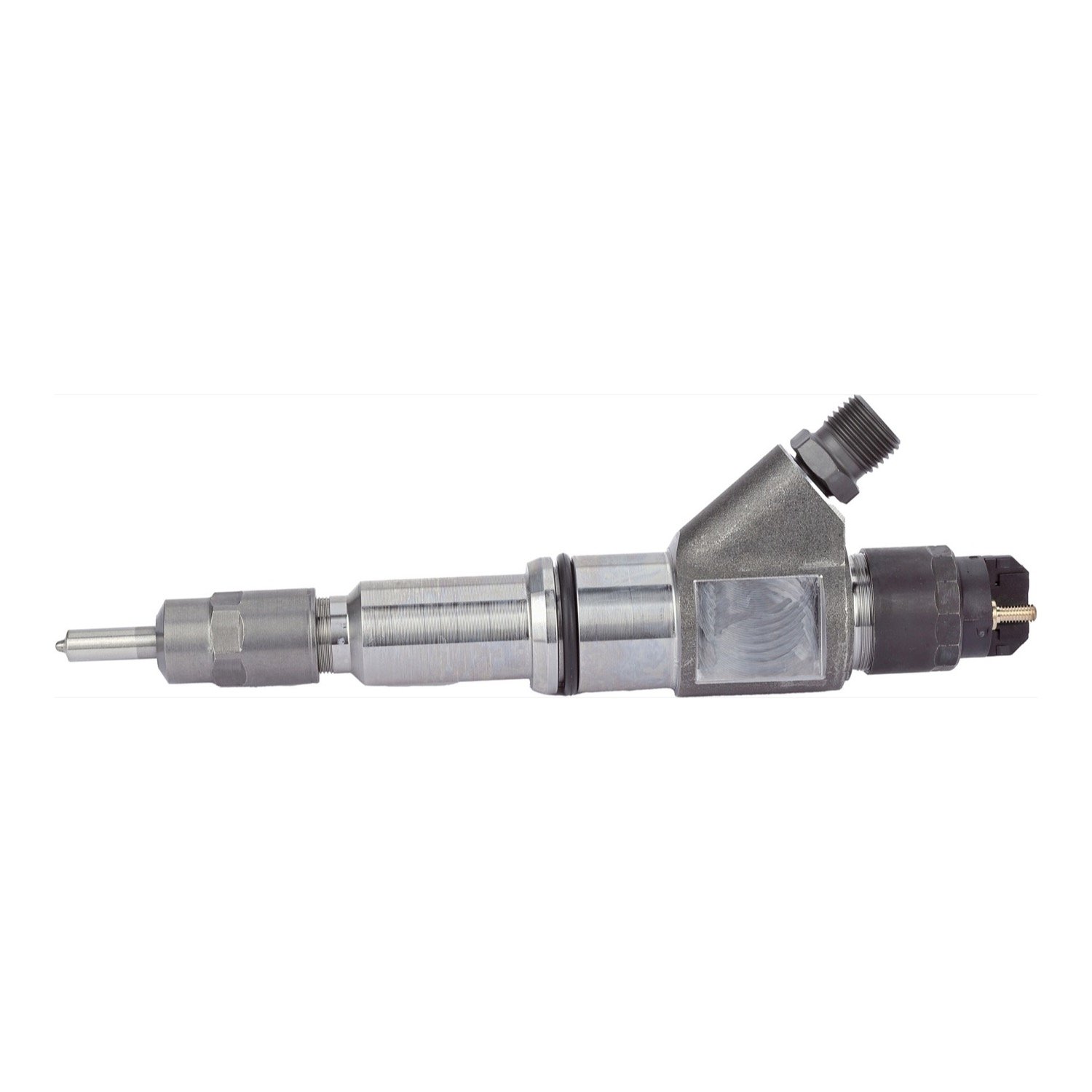

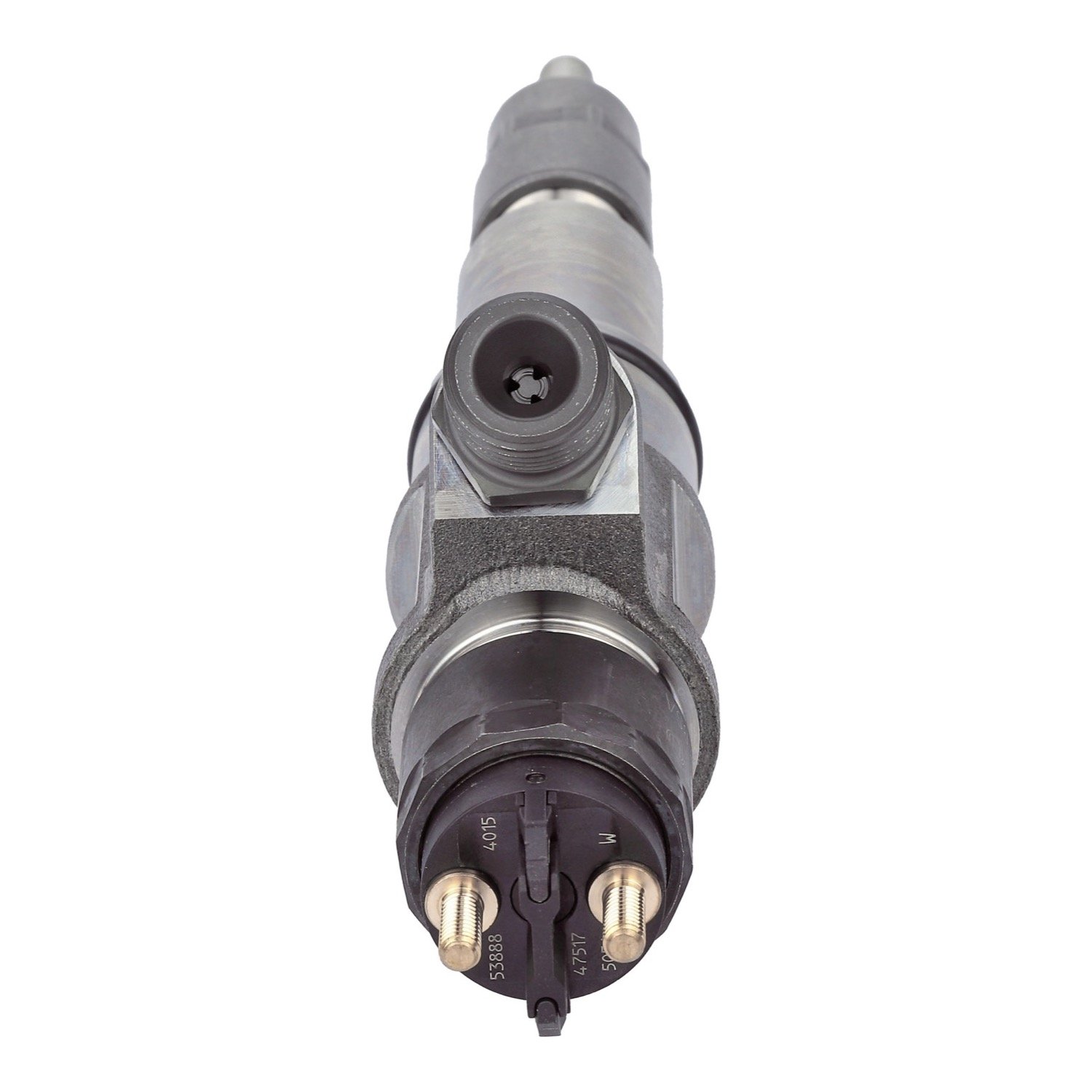

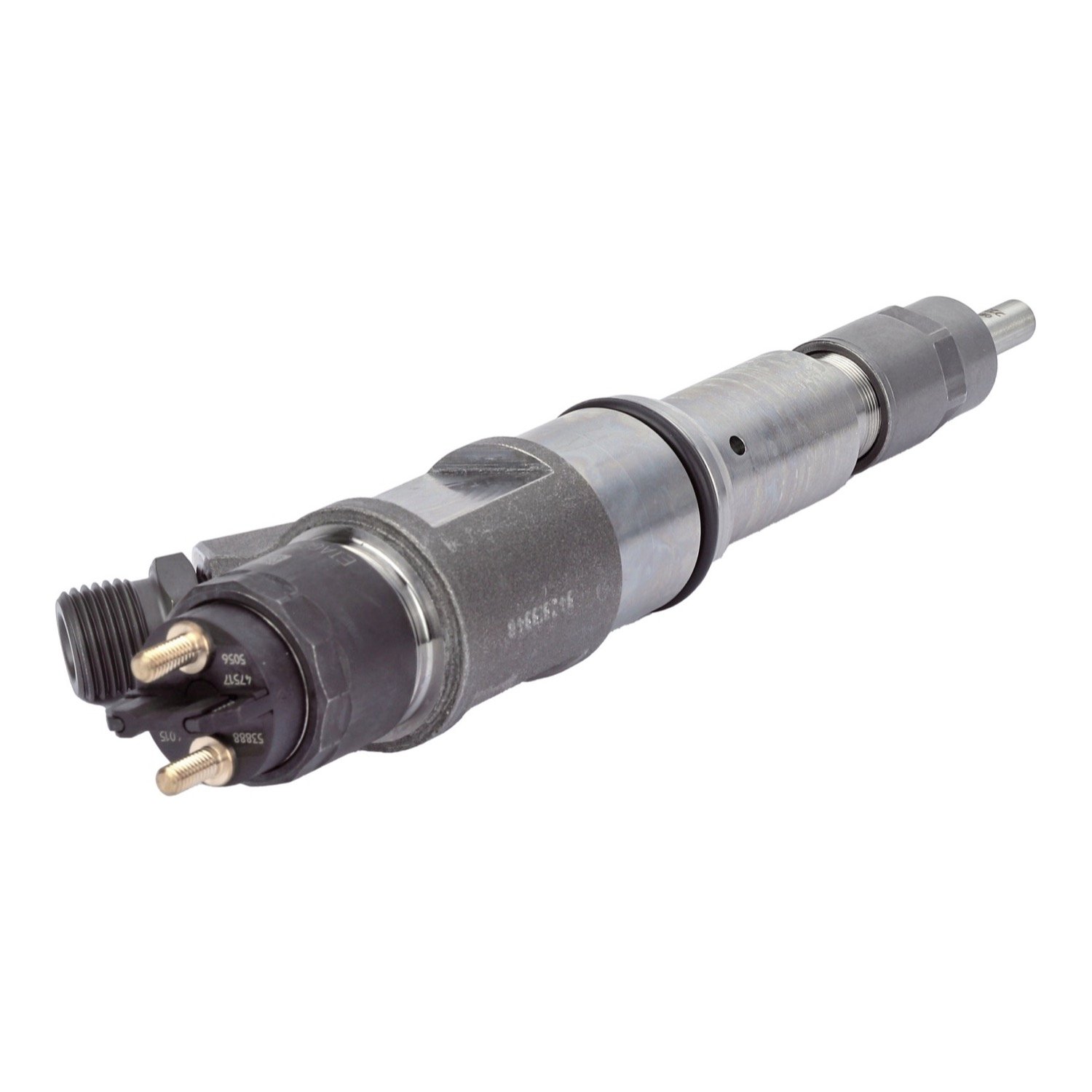

This is the Bosch 0445124015, a new common-rail fuel injector, not a rebuild. CNH sells it as 5801453888 for the Tier 4B common-rail FPT Cursor 13 (12.9L) and Cursor 11 engines. Catalogs list it for Case IH Steiger 420, 470, 500, 540, 580 and 620 tractors, including the Quadtrac 580 and 620, for Axial-Flow 7240 and 8240 combines and for the New Holland CR8.90 combine. The Bosch remanufactured version of the same injector is 0986435663.

Check the number before you order, because these machines were built with more than one injector. CNH 5801453888 is the injector for the earlier engines. Later engines in the same tractors and combines take CNH 5801906153, and the 7240 and 8240 list a third number, CNH 5801692383. The engine serial number decides it. Rough running, a rail pressure fault, hard starting, white or black smoke, fuel dilution in the oil or a cylinder that fails a cutout test are the usual reasons these get replaced. Rule out the fuel filters and supply pressure first.

Specifications

Fits / Applications

• Case IH Steiger 420, 470, 500, 540, 580 and 620 tractors, Tier 4B, earlier engines
• Case IH Quadtrac 580 and 620
• Case IH Axial-Flow 7240 and 8240 combines, Tier 4B
• New Holland CR8.90 combine, Tier 4B (Cursor 11)
• FPT Cursor 13 and Cursor 11 common-rail engines that list CNH 5801453888
• Not for later engines that list CNH 5801906153
• Six injectors per engine

Keep the fuel connections spotless and cap every open line. Fit new sealing washers at the nozzle seat, and follow the engine service manual for any injector code entry it calls for. Change the fuel filters at the same time.

Part Numbers & Cross Reference

Bosch 0445124015  ·  CNH / FPT 5801453888  ·  CNH (K prefix) K5801453888  ·  CNH remanufactured 5801453888R  ·  Bosch remanufactured version 0986435663  ·  Iveco 500060536

Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.

Frequently Asked Questions

Will the Bosch 0445124015 fit my Case IH Steiger 580?

It fits the earlier Tier 4B Steiger 420 to 620 engines, the ones that list CNH 5801453888. Later engines take CNH 5801906153, which is a different injector. Read the number on your old injector or call 530-668-0818 with the engine serial number.

What numbers does it replace?

CNH 5801453888, also written K5801453888, and Iveco 500060536. The Bosch remanufactured version is 0986435663.

Is it new or remanufactured?

It is a new Bosch injector. The remanufactured one carries its own Bosch number, 0986435663.

Does it fit the older Steiger 435 or the 8120 combine?

No. Those machines use cam-driven unit injectors such as Bosch 0414703009. This one is for the Tier 4B common-rail engines.
