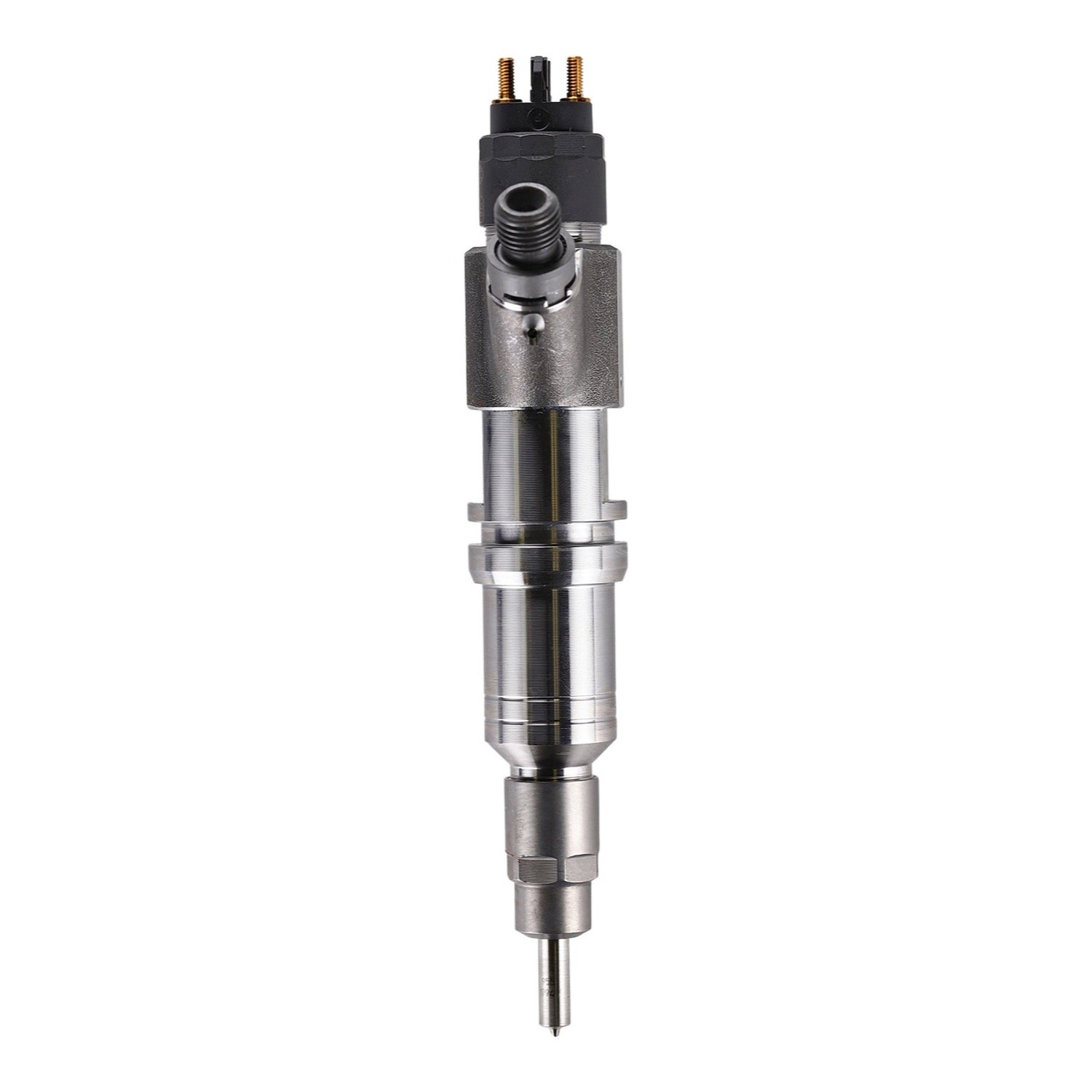

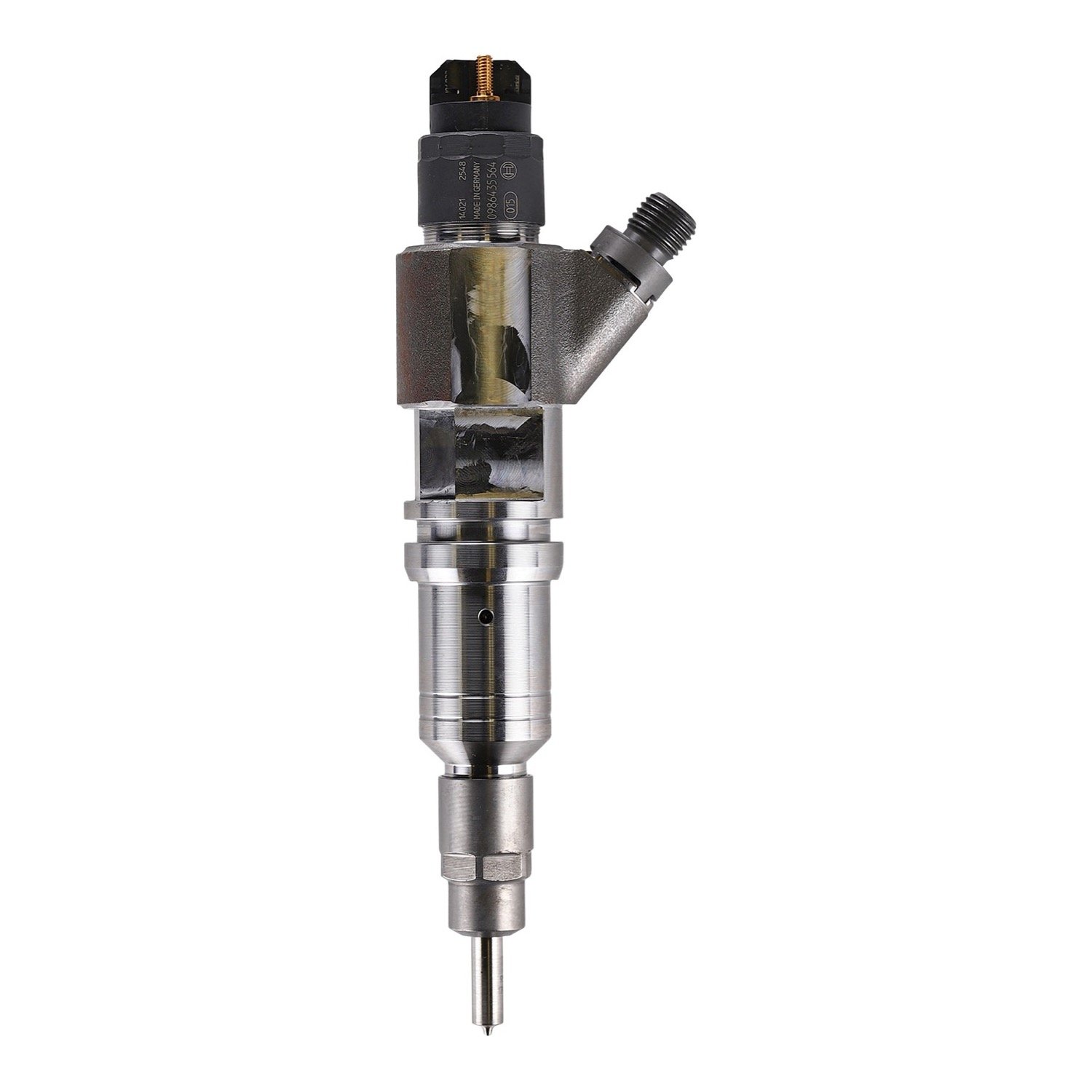

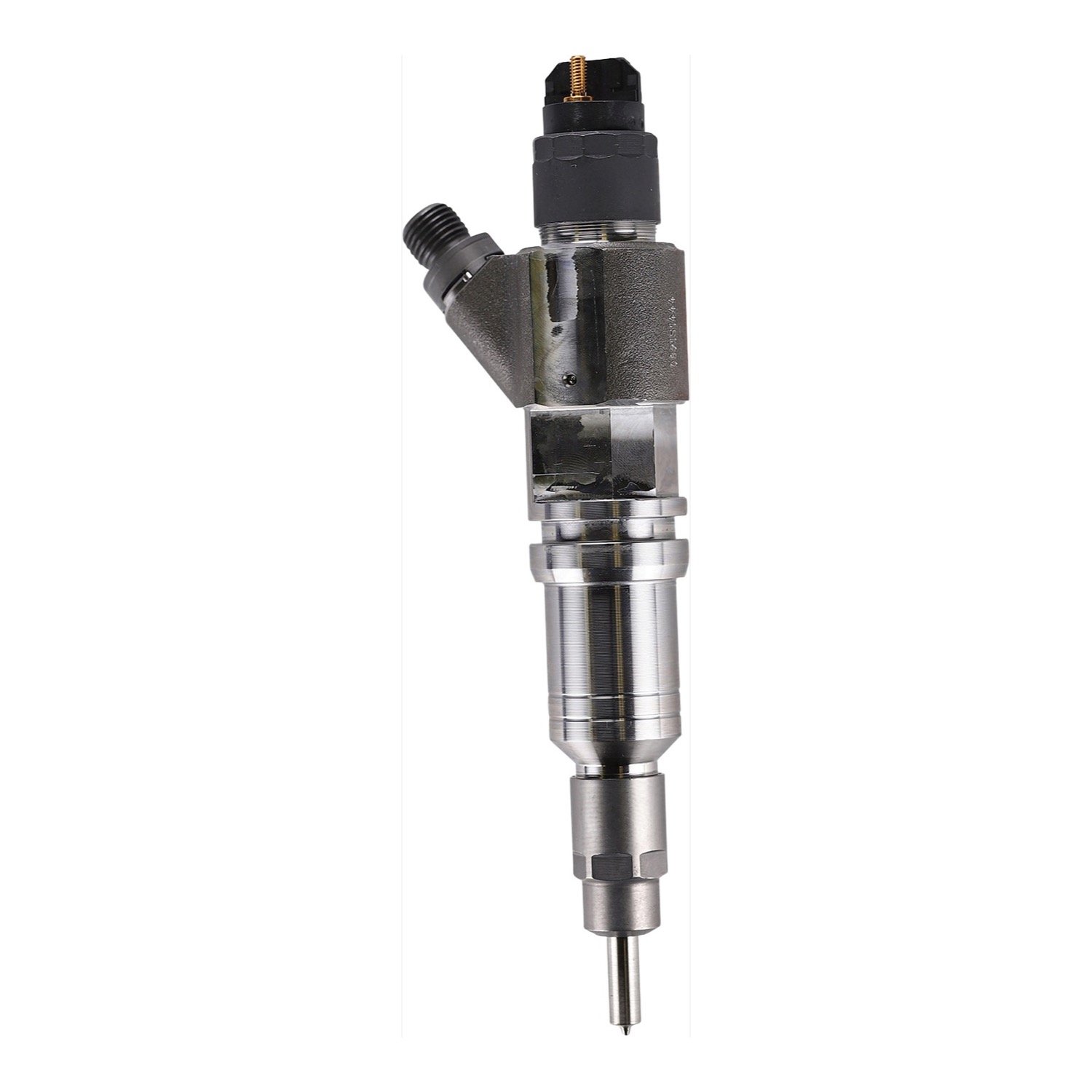

This is the Bosch 0986435564, a common-rail fuel injector remanufactured by Bosch for the FPT 8.7L six-cylinder engine used in Case IH, New Holland and Case machines. Catalogs list it for Case IH Magnum and Steiger tractors, Axial-Flow 6130, 7130 and 7230 combines, Titan floaters and the Patriot 4440 sprayer, for New Holland T8 and T9 tractors and CR7090 and CR7.90 combines, and for Case 1021F, 1021G and 1121F wheel loaders. The exact models are listed below. It takes the place of CNH 504255185 and the CNH remanufactured number 504255185R, plus Iveco 500060418 and 500061288. It is the remanufactured version of new Bosch 0445120157. The engine takes six injectors. A refundable core applies.

Low power under load, a miss, hard starting, smoke, fuel dilution of the oil or a cylinder balance fault are the usual reasons these get replaced. Water and dirt in the fuel kill common-rail injectors, so change the filters and drain the water separator when you fit them.

Specifications

Fits / Applications

• Case IH Magnum 235, 250, 260, 280, 290, 310, 315, 340, 370 and 380 tractors
• Case IH Steiger 350 and 370 tractors
• Case IH Axial-Flow 6130, 7130 and 7230 combines
• Case IH Titan 3030, 3530, 4530 and 4540 floaters and Patriot 4440 sprayer
• New Holland T8.275, T8.300, T8.320, T8.330, T8.350, T8.360, T8.380, T8.390, T8.410, T8.420 and T8.435 tractors
• New Holland T9.390 and T9.435 tractors
• New Holland CR7090 and CR7.90 combines
• Case 1021F, 1021G and 1121F wheel loaders
• Six injectors per engine

Change the fuel filters and keep every line and port capped until it is connected. Use a new sealing washer under the injector.

Part Numbers & Cross Reference

Bosch new version 0445120157  ·  Bosch remanufactured (also listed) 0986435690  ·  Case IH / New Holland 504255185  ·  Case IH / New Holland remanufactured 504255185R  ·  Iveco 500060418  ·  Iveco 500061288

Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.

Frequently Asked Questions

What CNH number does the 0986435564 replace?

Case IH and New Holland 504255185 and the CNH remanufactured number 504255185R. The new Bosch version is 0445120157.

Will it fit my Magnum or T8 tractor?

Catalogs list it for the Case IH Magnum 235, 250, 260, 280, 290, 310, 315, 340, 370 and 380 and for the New Holland T8.275 through T8.435, all with the FPT 8.7L engine. Call 530-668-0818 with the engine serial number and we will confirm the match before you order.

Which engine is it for?

The FPT 8.7L six-cylinder common-rail engine. The 4.5L and 6.7L NEF engines take a different Bosch injector.

Is it new or remanufactured, and is there a core?

It is remanufactured by Bosch. A refundable core applies, and it comes back when we receive your old injector.

Related Parts

• Case IH, Case & New Holland NEF 4.5L & 6.7L Common-Rail Fuel Injector | Bosch 0986435530 Remanufactured
• Case 721D & 1150K, New Holland TS125A & TS135A Fuel Injector | Bosch 0986435508 Remanufactured (CNH 2830957)
• Case IH & New Holland FPT Cursor 13 Unit Fuel Injector | Bosch 0414703008 New (504287070)
