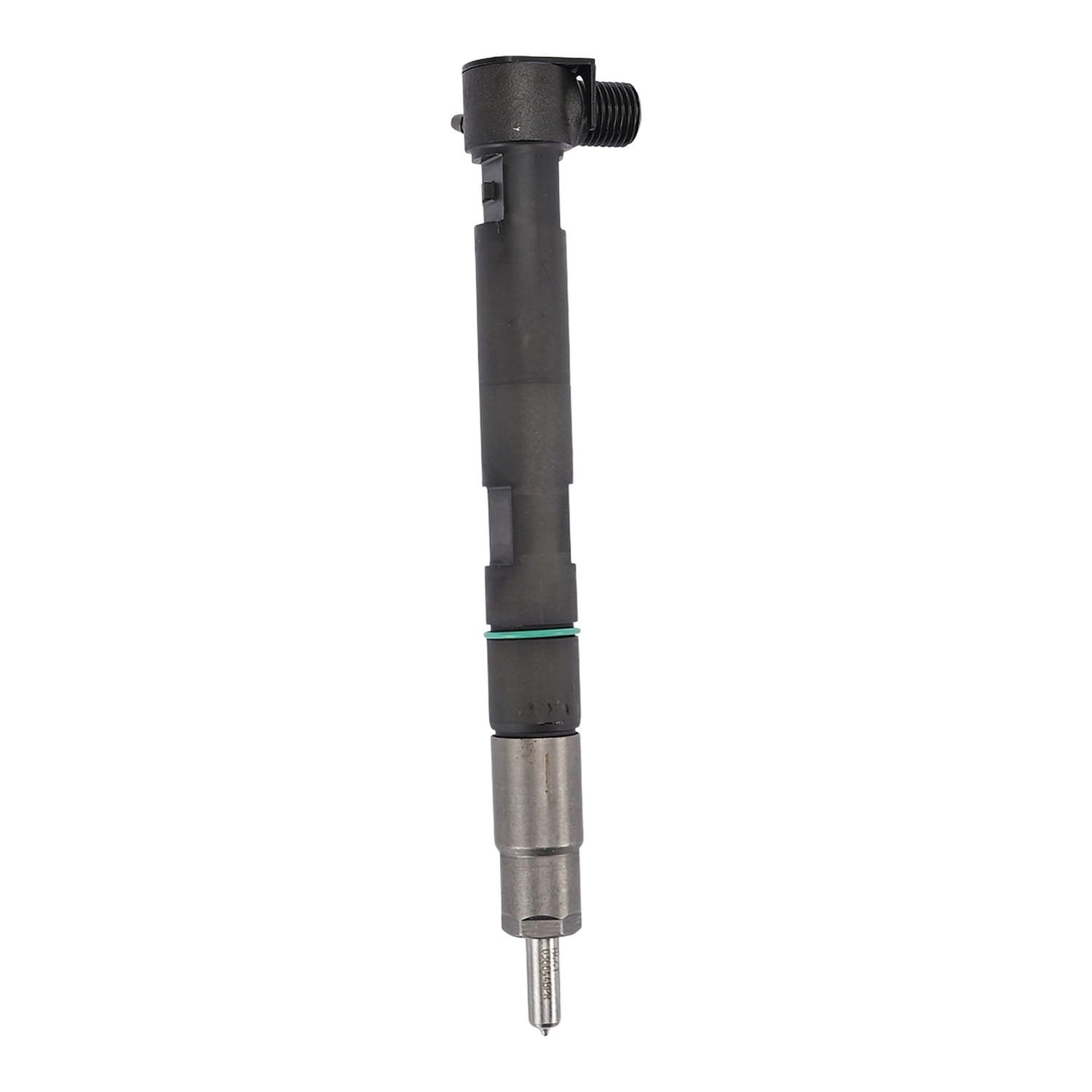

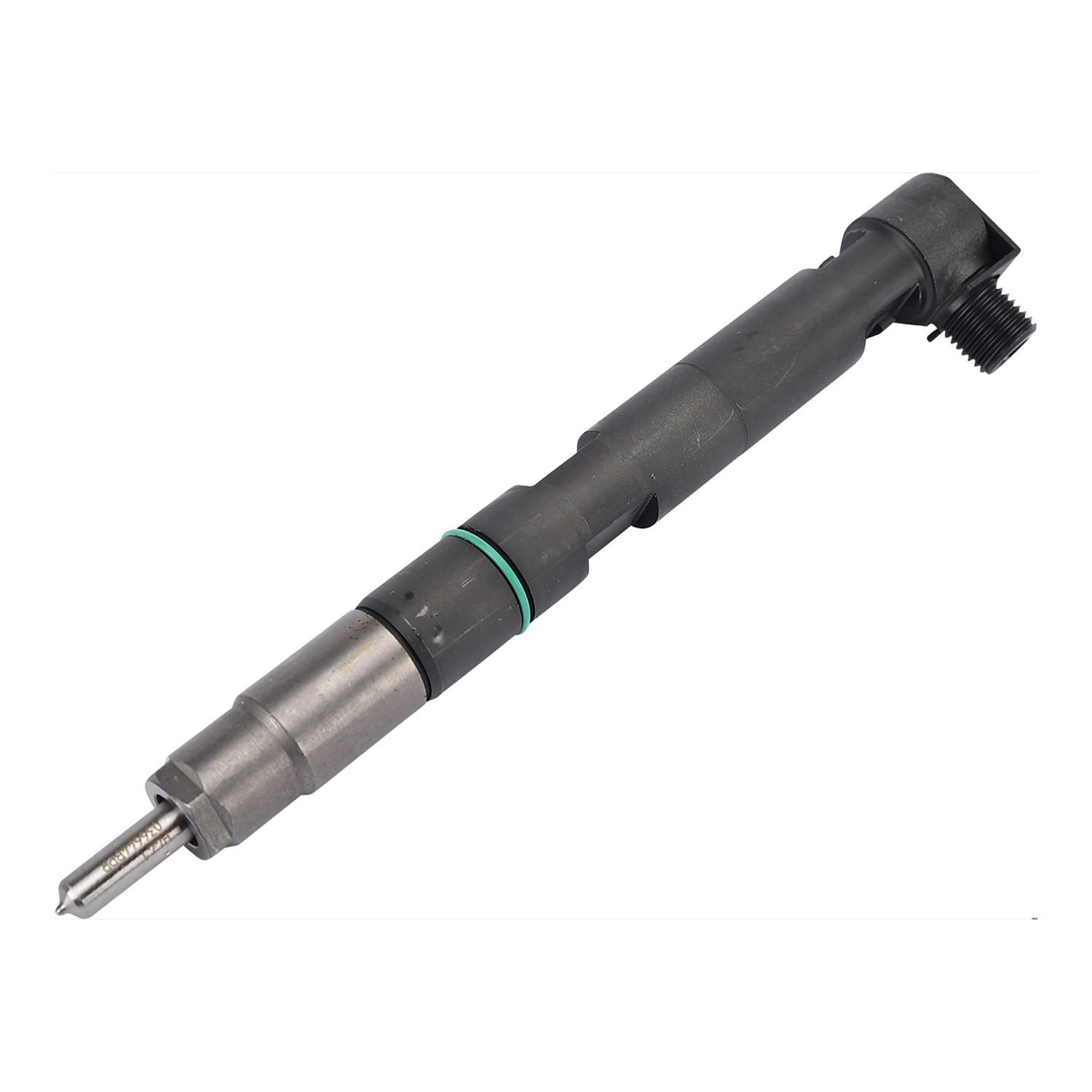

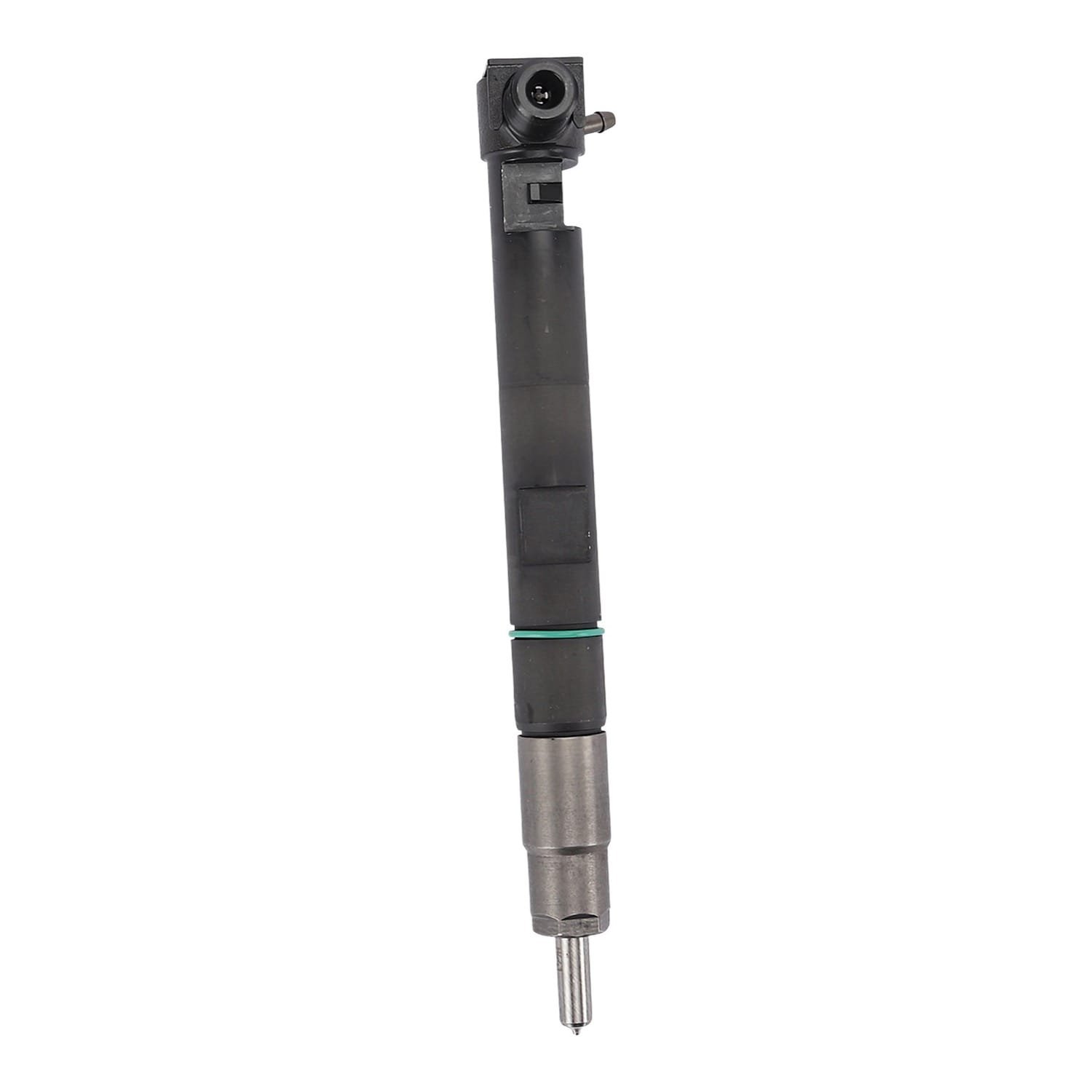

Delphi 28337917 is a new Delphi DFI 2.5 common-rail fuel injector for the Doosan-built D18 (1.8L) and D24 (2.4L) Tier 4 engines. Bobcat sells these as its own 1.8L and 2.4L ULPC engines and uses them in its 400, 500 and 600 frame loaders, Toolcat work machines and compact excavators. It matches Doosan 400903-00074D and Bobcat 7516848, which replaced Bobcat 7275454.

Common reasons to replace it: hard starting, rough idle, misfire, smoke, low power, injector fault codes, or damage from dirty or wet fuel. Each injector carries its own trim code, and that code must be programmed into the engine controller with a scan tool. Bobcat warns that skipping this step can damage the engine. If you want a remanufactured exchange unit instead, the Delphi number is EX631088.

Specifications

Fits / Applications

• Doosan / Bobcat D18 1.8L and D24 2.4L Tier 4 engines
• Bobcat skid-steer loaders S450, S510, S530, S550, S570, S590, S595, S630, S650 (Bobcat-engine versions)
• Bobcat compact track loaders T450, T550, T590, T595, T630, T650 (Bobcat-engine versions)
• Bobcat compact excavators E32, E35, E42, E45, E50, E55, E85 (Bobcat-engine versions)
• Bobcat Toolcat 5600 and 5610 utility work machines (Bobcat 2.4L engine)

Program the injector trim code into the engine ECU with a scan tool that supports the Bobcat/Doosan engine. Bobcat’s parts listing says the injector must be programmed after install and warns that skipping it may damage the engine. Use a new copper sealing washer and O-ring (Delphi seal kit HTK136, Bobcat 7030434). Flush the fuel system and change the filters first, because this Delphi system does not tolerate dirt or water in the fuel.

Part Numbers & Cross Reference

Doosan 400903-00074D  ·  Doosan (earlier revision) 400903-00074C  ·  Bobcat (current) 7516848  ·  Bobcat (superseded) 7275454  ·  Bobcat 7030364  ·  Bobcat 7334032  ·  Bobcat reman 7516848REM, 7275454REM, 7030364REM, 7334032REM  ·  Delphi reman exchange (North America) EX631088  ·  Delphi reman (Europe) HRD380

Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.

Frequently Asked Questions

Which Bobcat machines take Delphi 28337917?

Machines with the Doosan-built D18 1.8L or D24 2.4L Tier 4 engine: 400, 500 and 600 frame loaders, Toolcat 5600 and 5610, and compact excavators such as the E32, E35, E42, E45, E50, E55 and E85. Some of these models were also built with Kubota engines, which take a different injector.

Is 28337917 the same as the D34 3.4L injector?

No, the D34 3.4L engine uses Delphi 28347042. Delphi 28337917 matches Doosan 400903-00074D and Bobcat 7516848, which replaced Bobcat 7275454. Call 530-668-0818 with the machine serial number or the number on your old injector and we will confirm the match at no charge.

Is 28337917 a new injector, and is there a core charge?

It is a new Delphi DFI 2.5 injector in original packaging. A refundable core charge is added at checkout, and you get it back when we receive your rebuildable core. If you want a remanufactured exchange unit instead, the Delphi number is EX631088.

Does 28337917 need programming, and which seal kit does it use?

Yes. Each injector carries its own trim code that must be programmed into the engine ECU with a scan tool, and Bobcat warns that skipping this may damage the engine. Use a new copper sealing washer and O-ring: Delphi seal kit HTK136 (Bobcat 7030434), sold separately.
