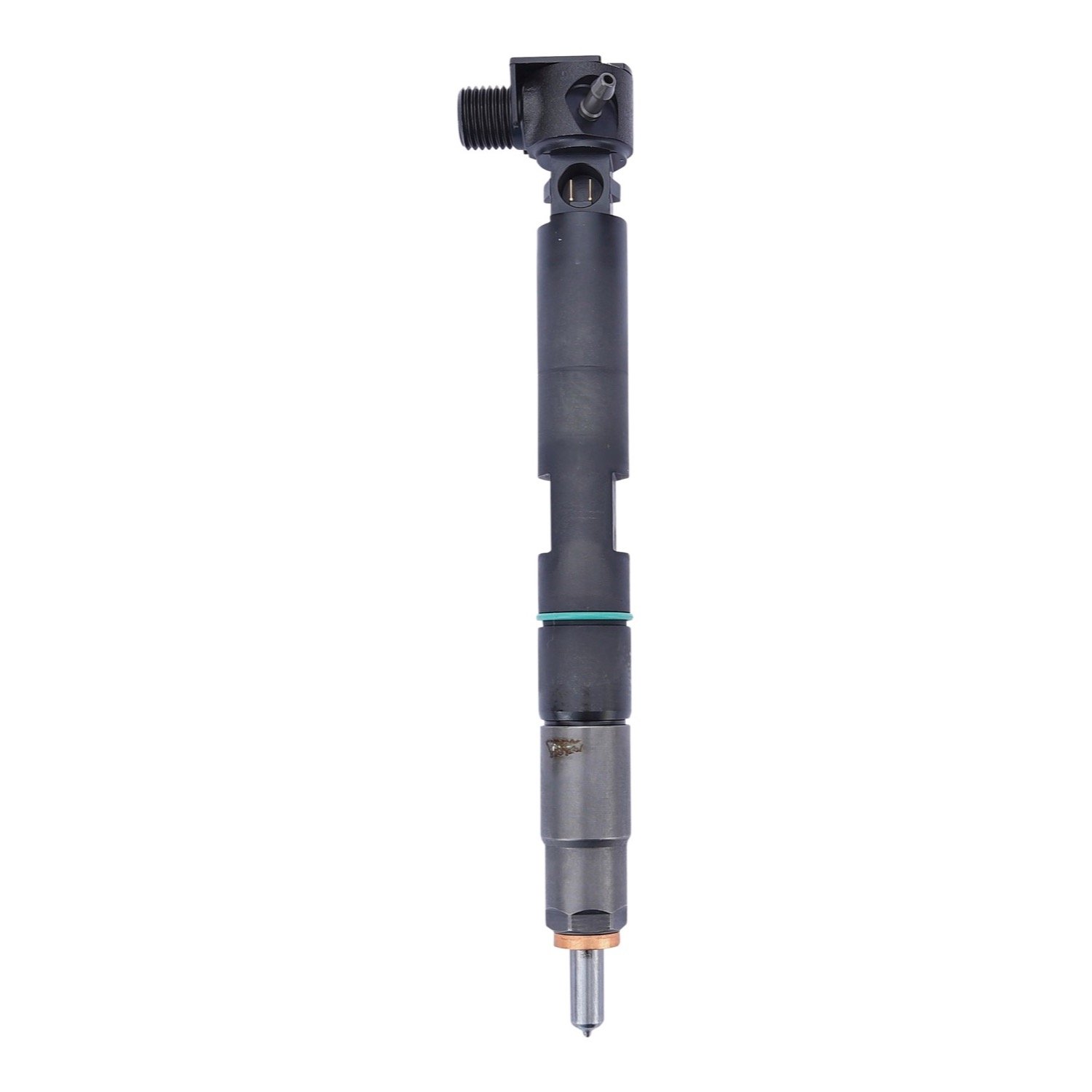

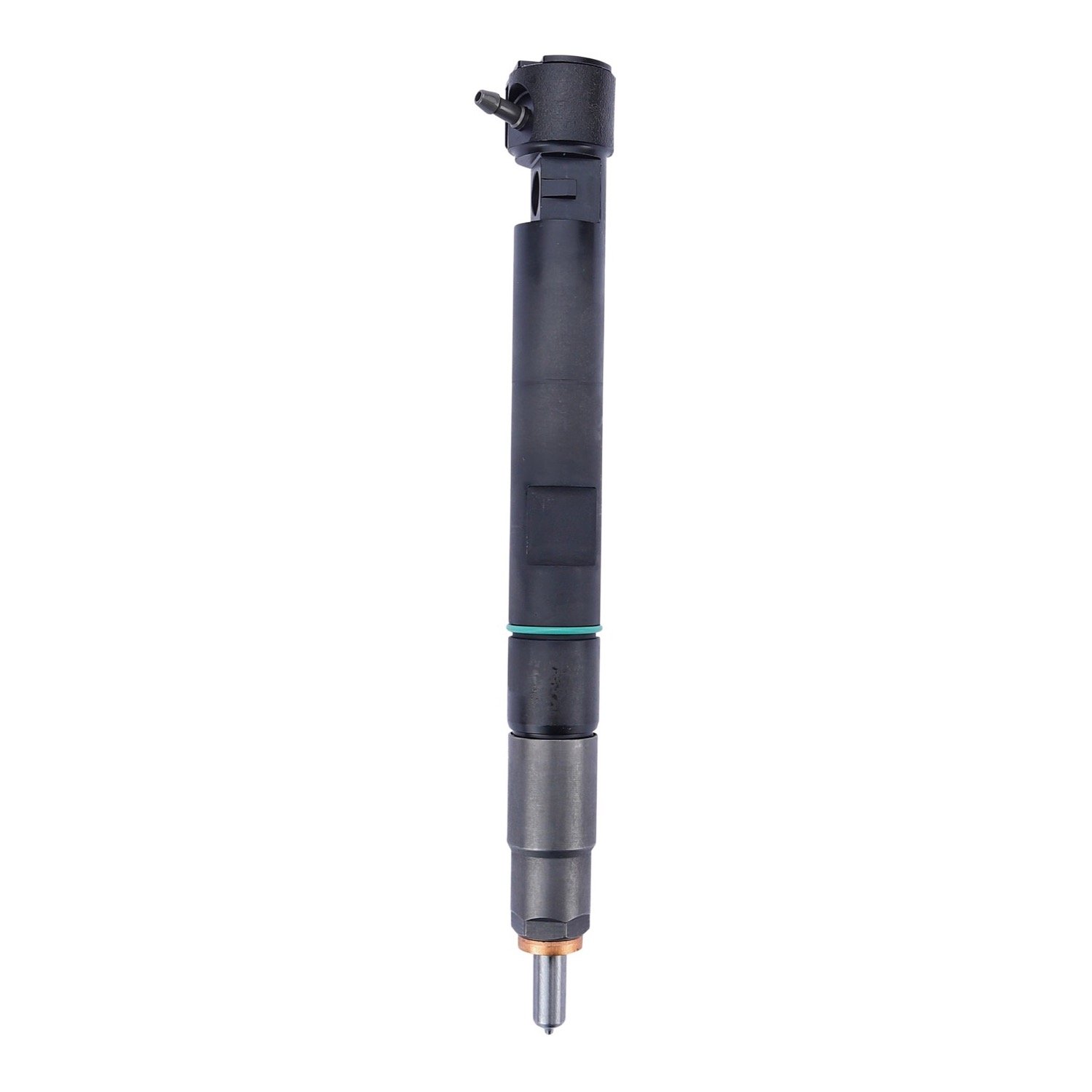

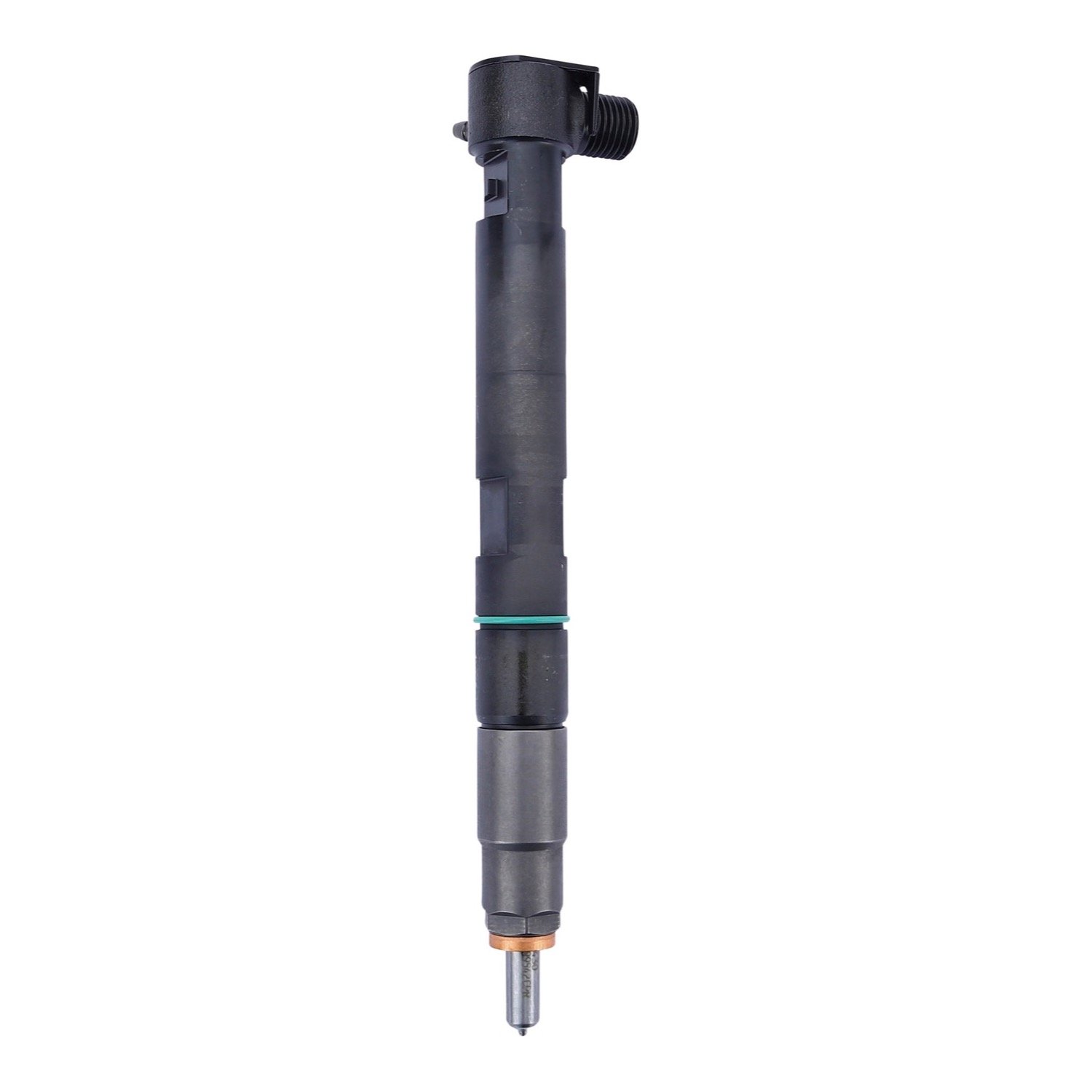

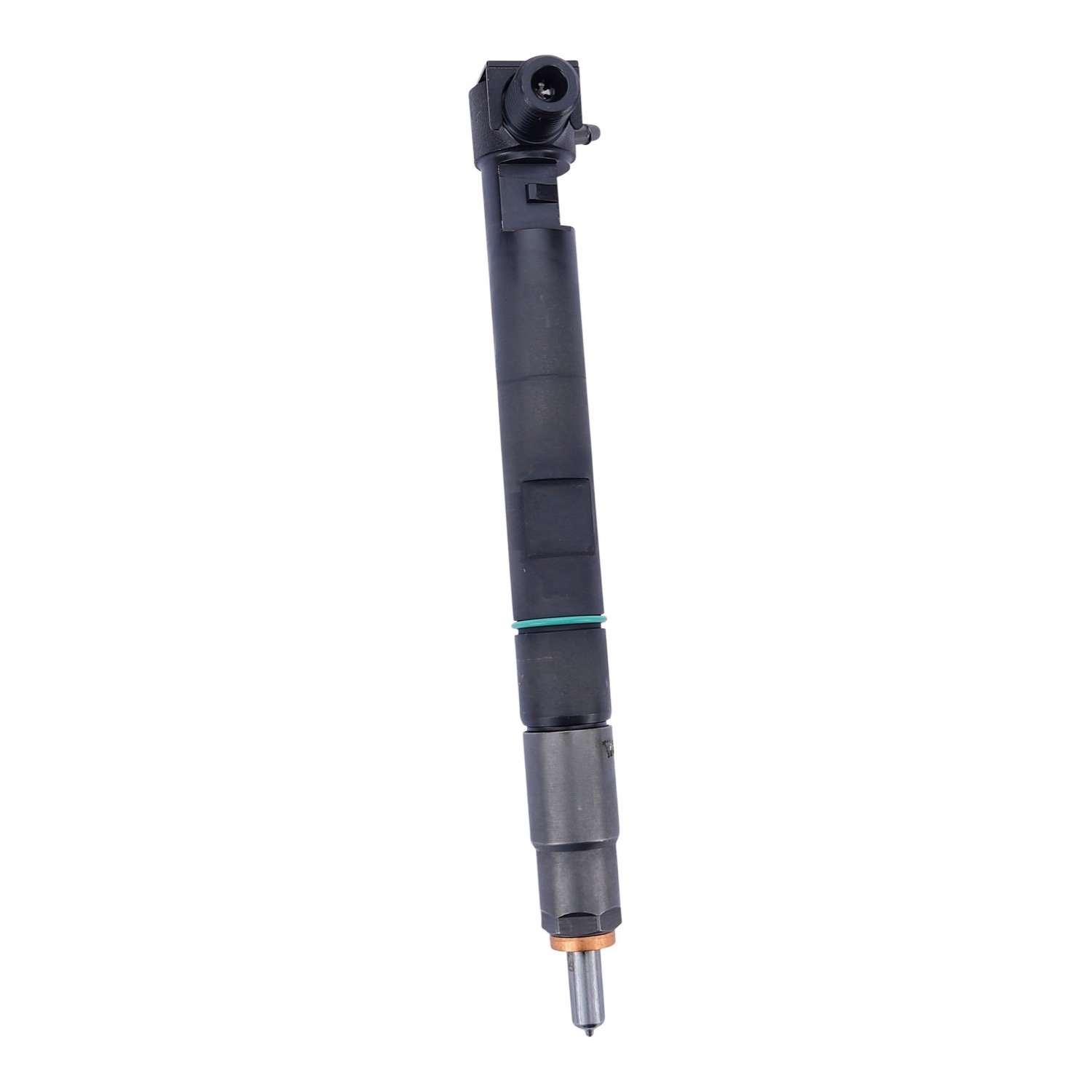

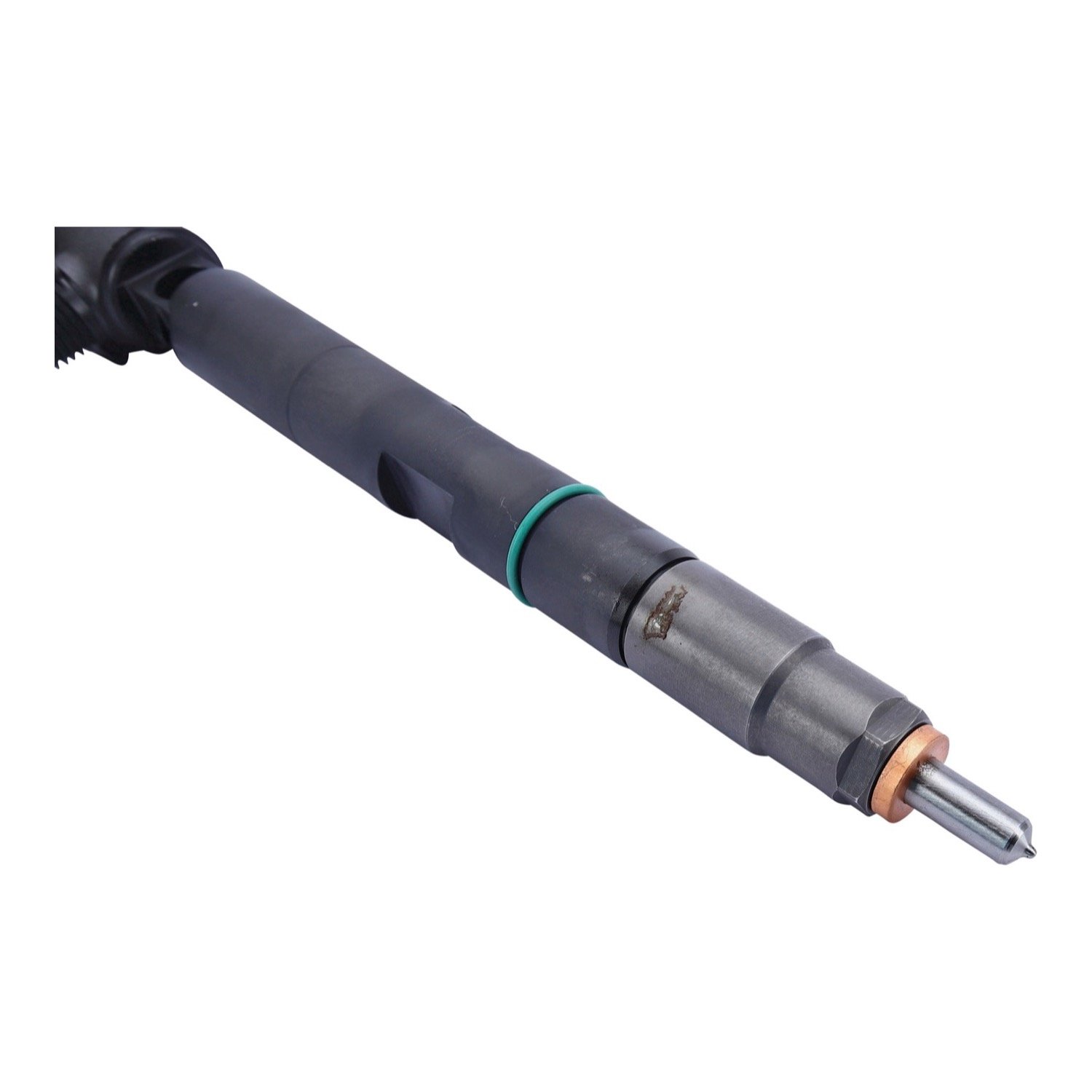

Delphi EX631089 is a Delphi remanufactured common-rail fuel injector for the Doosan-built D34 3.4L Tier 4 diesel, which Bobcat sells as its 3.4L engine. It is the remanufactured version of the new Delphi 28347042. It fits Bobcat 700 and 800 frame loaders such as the S740, S750, S770, S850, T740, T750, T770, T870 and A770, and the V519 and V723 VersaHandlers. It replaces Doosan 400903-00043E and Bobcat 7261663, 7334041 and 7516846, including the REM exchange numbers.

Each injector carries its own 20-character C3i trim code. Program it into the engine ECM with a scan tool, then run the injector reset. Skipping this can cause poor running or engine damage. Replace injectors for hard starting, rough idle, misfire, smoke, low power or injector fault codes. The D18 1.8L and D24 2.4L engines use a different injector (new Delphi 28337917, reman EX631088).

Specifications

Fits / Applications

• Doosan D34 3.4L Tier 4 engines (Bobcat 3.4L)
• Bobcat 700 frame skid-steer loaders S740, S750, S770 (Bobcat 3.4L versions)
• Bobcat 700 frame compact track loaders T740, T750, T770 (Bobcat 3.4L versions)
• Bobcat A770 all-wheel steer loader (Bobcat 3.4L versions)
• Bobcat 800 frame loaders S850 and T870 (Bobcat 3.4L versions)
• Bobcat V519 and V723 VersaHandler telehandlers (Bobcat 3.4L versions)

Clean the engine bay first so no dirt gets in. Clean carbon out of the injector bore and clean the hold-down bolt threads in the head; oil left in the bolt hole throws off the hold-down torque. Write down each injector’s 20-character C3i trim code and the cylinder it goes in (the code uses the numbers 1 and 0, never the letters I or O). Fit the new sealing washer and O-ring and torque the hold-down bolts to 43 Nm (32 ft-lb); head cover bolts 10 Nm (7 ft-lb). Fit new injection lines, pre-torque both ends to 18 Nm (13 ft-lb), then final torque 30 Nm (22 ft-lb). Program the C3i trim files with a suitable scan tool, then run the injector reset procedure; the engine must run at full throttle for 10 minutes to finish it.

Part Numbers & Cross Reference

Delphi new injector 28347042  ·  Delphi reman (Europe) HRD381  ·  Doosan 400903-00043, 400903-00043D, 400903-00043E  ·  Bobcat 7261663, 7261663REM  ·  Bobcat 7334041, 7334041REM  ·  Bobcat 7516846

Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.

Frequently Asked Questions

Which Bobcat machines take the Delphi EX631089 injector?

Bobcat 700 and 800 frame loaders with the Doosan-built D34 3.4L Tier 4 engine, such as the S740, S750, S770, S850, T740, T750, T770, T870 and A770, plus the V519 and V723 VersaHandlers. The D18 1.8L and D24 2.4L engines use a different injector.

What Doosan and Bobcat numbers does EX631089 replace?

Doosan 400903-00043, 400903-00043D and 400903-00043E, and Bobcat 7261663, 7334041 and 7516846, including the exchange numbers 7261663REM and 7334041REM. It is the remanufactured version of the new Delphi 28347042.

Does the EX631089 need to be coded to the machine?

Yes. Each injector carries its own 20-character C3i trim code, which is programmed into the engine ECM with a scan tool, followed by the injector reset. Skipping this can cause poor running or engine damage.

Is EX631089 new or remanufactured, and is there a core charge?

It is remanufactured by Delphi and comes with a new O-ring and a new chamber gasket. A refundable core charge is added at checkout and refunded when we receive your rebuildable core. Call 530-668-0818 with the machine model and serial number and we confirm the fit at no charge before anything ships.

Related Parts

• Bobcat / Doosan D34 3.4L Tier 4 Common-Rail Fuel Injection Pump | Delphi EX836100 Remanufactured
• Looking for new? Bobcat / Doosan D34 3.4L Tier 4 Common-Rail Fuel Injector | Delphi 28347042 New
• Or have yours tested and rebuilt: Common Rail Diesel Injector Testing & Rebuild Service
