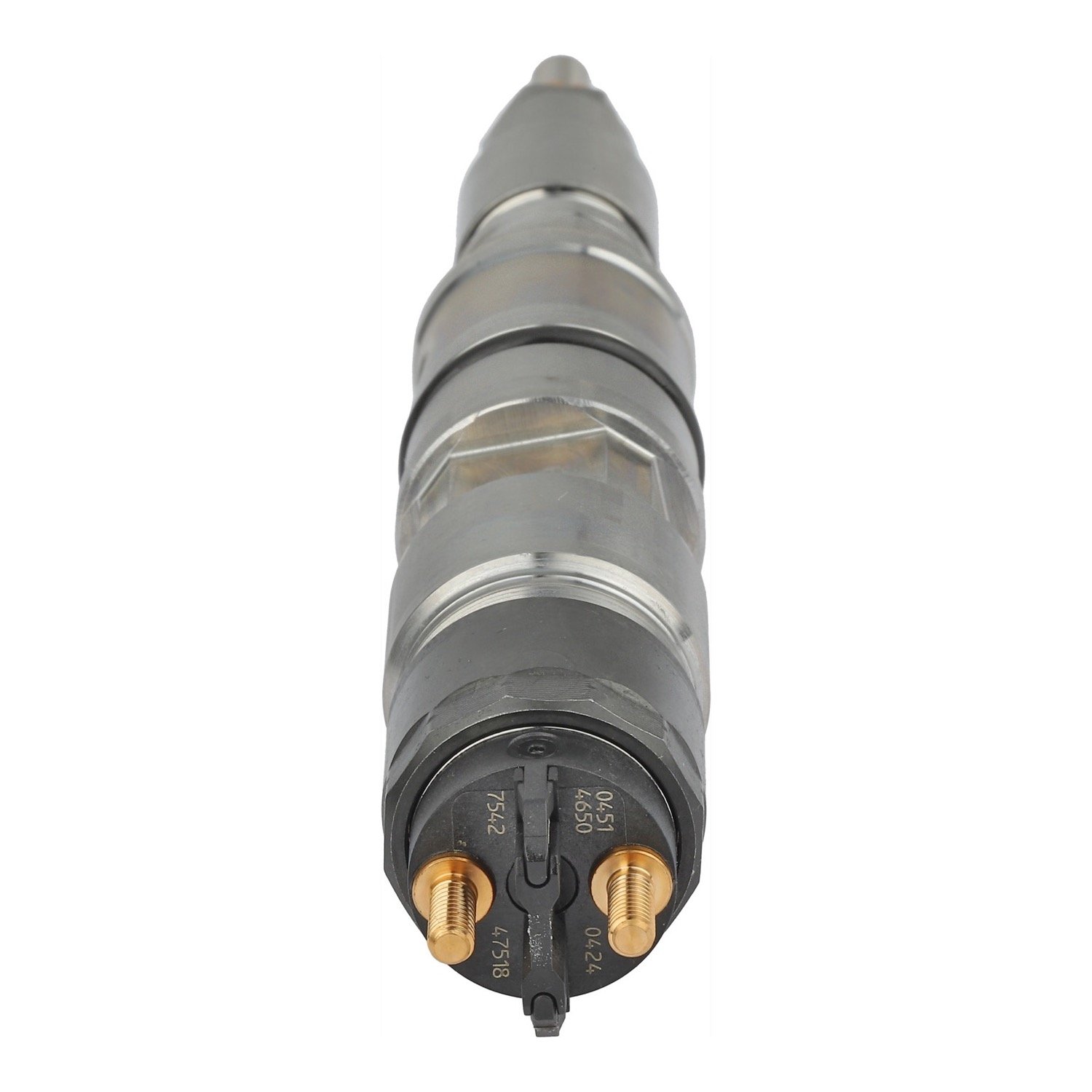

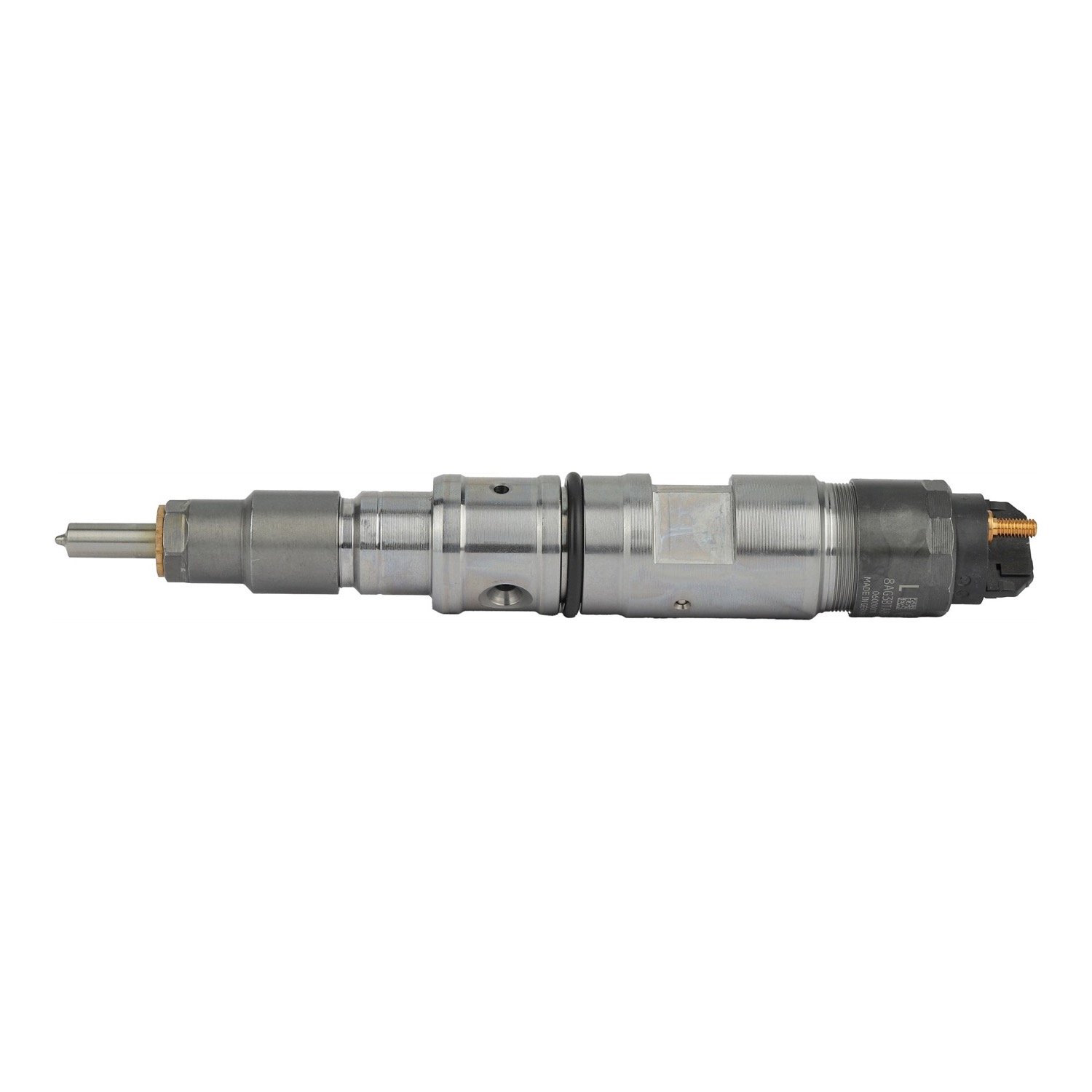

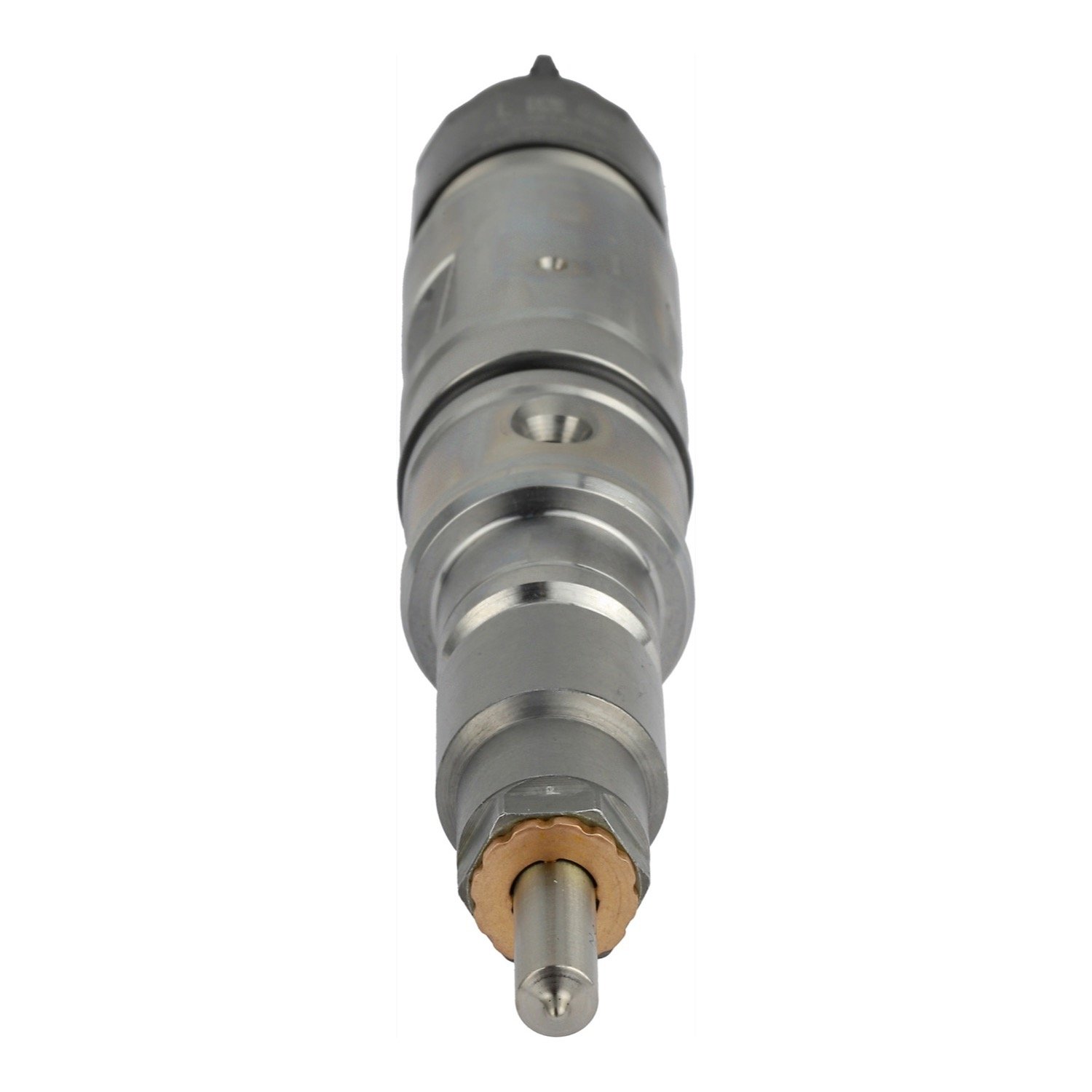

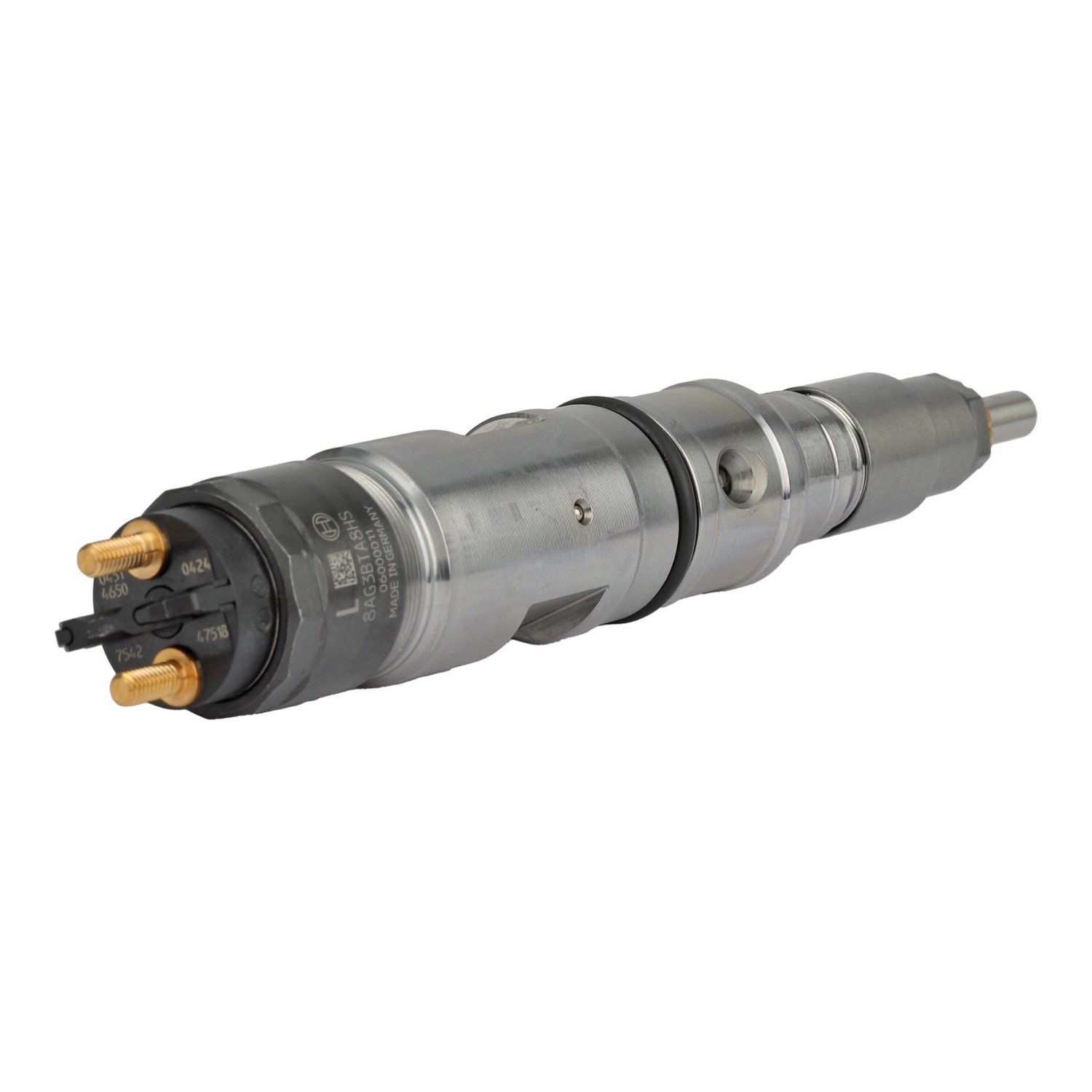

This is the Bosch 0445120424, a new Bosch common-rail fuel injector, not a rebuild. It is listed for the Deutz TCD 4.1 and TCD 6.1. Deutz sells it as 04511504 and 04514650, and Volvo sells the same injector as 22706138 for its own equipment. Catalogs also list it with Bosch 0445120362, and the Bosch remanufactured version is 0986435702.

Hard starting, rough idle, a miss under load, white or black smoke, fuel in the oil or a rail pressure fault all point at a worn or leaking common-rail injector. Check fuel filters, supply pressure and injector return flow first, so you only replace what has failed. The TCD 4.1 and TCD 6.1 were built with more than one injector, so order by the number on your old injector, not by engine model alone.

Specifications

Fits / Applications

• Deutz TCD 4.1 and TCD 6.1 engines built with Deutz injector 04511504 or 04514650
• Volvo equipment that uses Volvo injector 22706138
• Not the same part as Bosch 0445124023 (Deutz 04511509), which other TCD 6.1 engines use
• Match the Bosch number on your old injector or send us the engine serial number

Each injector carries its own code. Have the code for each cylinder entered into the engine controller with the engine maker’s diagnostic tool when the injectors are fitted. Fit new sealing washers and O-rings, keep everything spotless, and change the fuel filters before the first start.

Part Numbers & Cross Reference

Deutz 04511504  ·  Deutz 04514650  ·  Volvo 22706138  ·  Volvo 9022706138  ·  Bosch (listed together) 0445120362  ·  Bosch remanufactured version 0986435702

Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.

Frequently Asked Questions

What numbers does the Bosch 0445120424 replace?

Deutz 04511504 and 04514650 and Volvo 22706138. Catalogs also list it with Bosch 0445120362.

Which engines is the 0445120424 listed for?

The Deutz TCD 4.1 and TCD 6.1, and Volvo equipment that uses injector 22706138. Those engines were built with more than one injector, so match the Bosch or Deutz number on your old one.

Is the 0445120424 new or remanufactured?

It is a new Bosch injector. The Bosch remanufactured version of the same injector is 0986435702.

How do I make sure this is the right injector for my Deutz or Volvo engine?

Read the Bosch number on the body of your old injector, or call 530-668-0818 with the engine model and serial number and we will match it.
