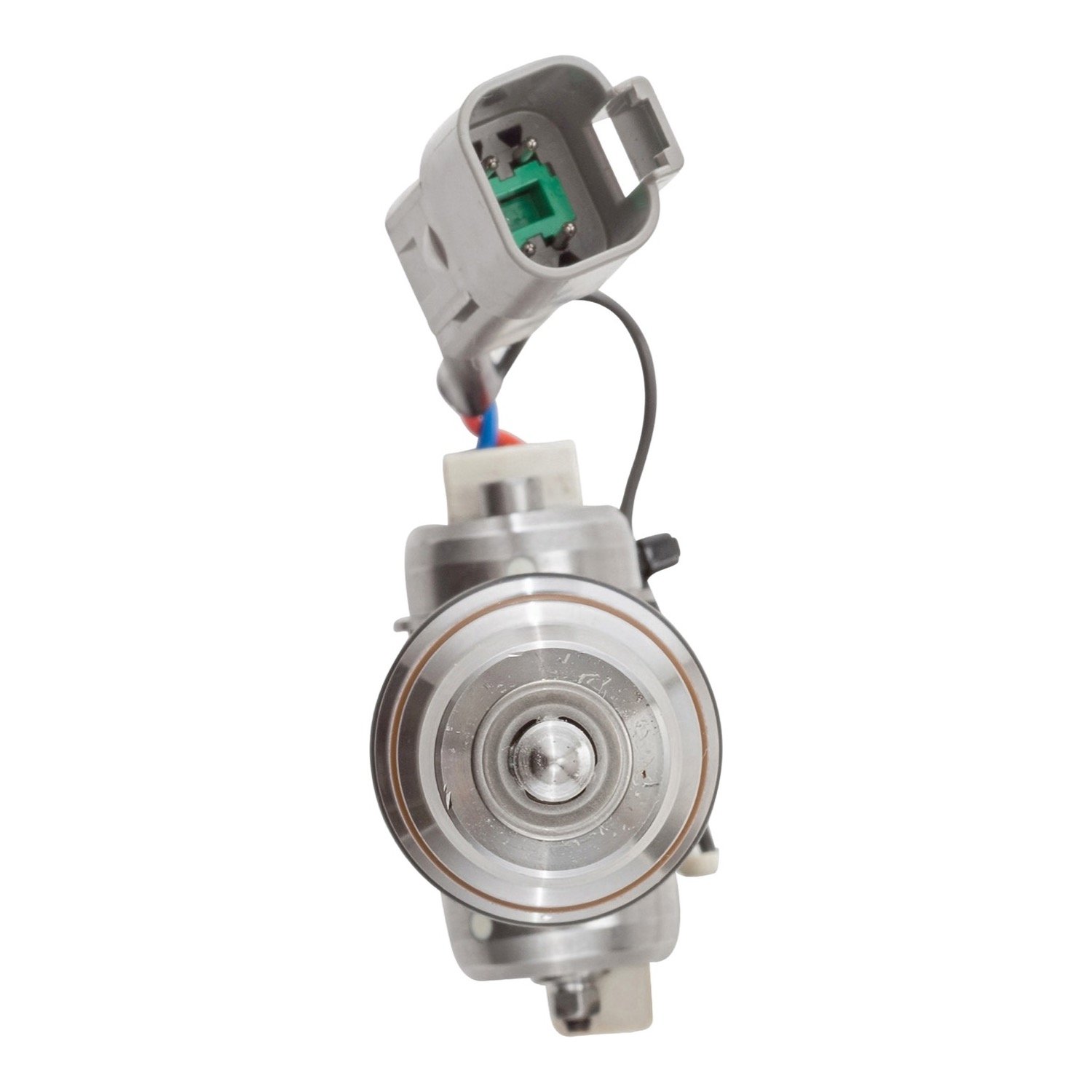

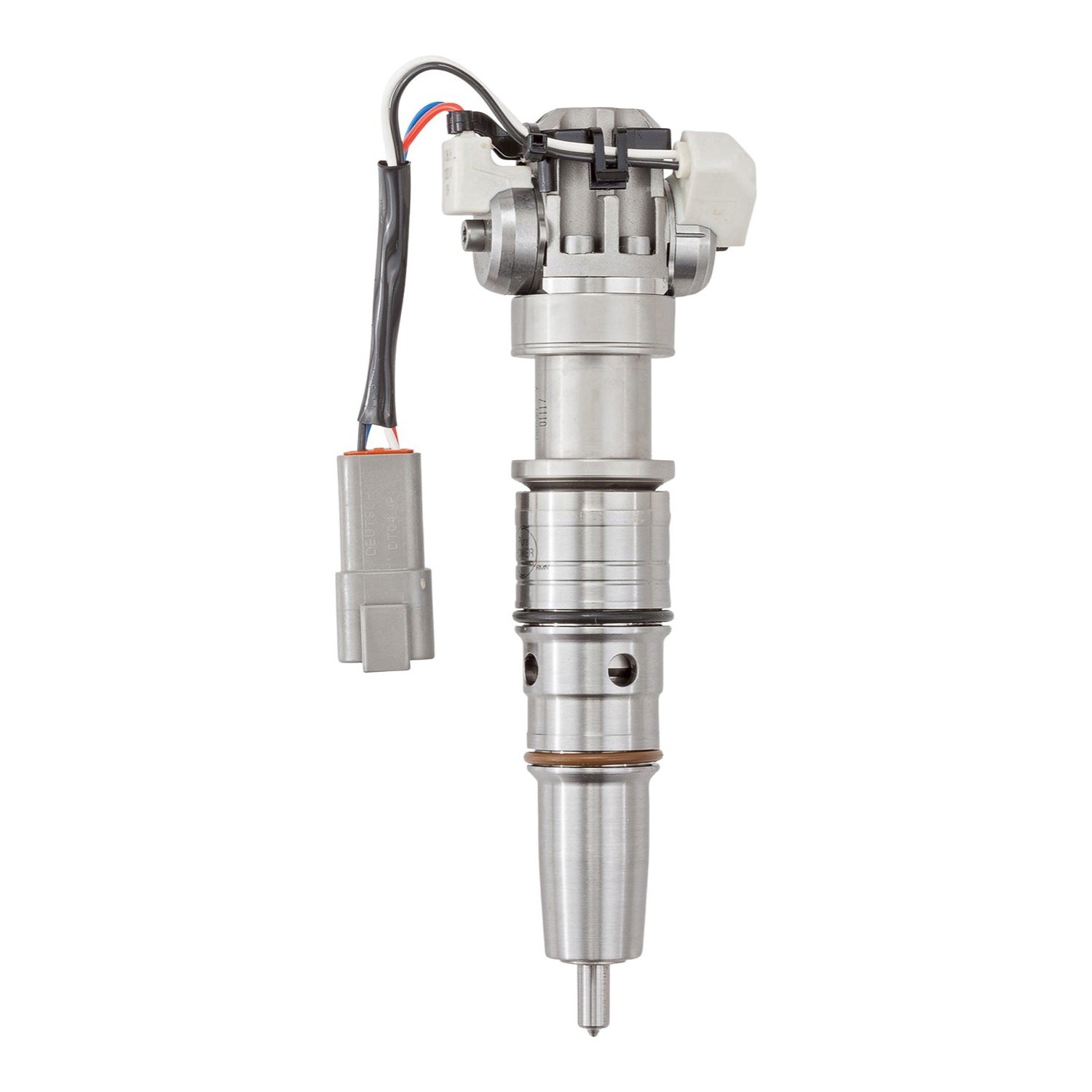

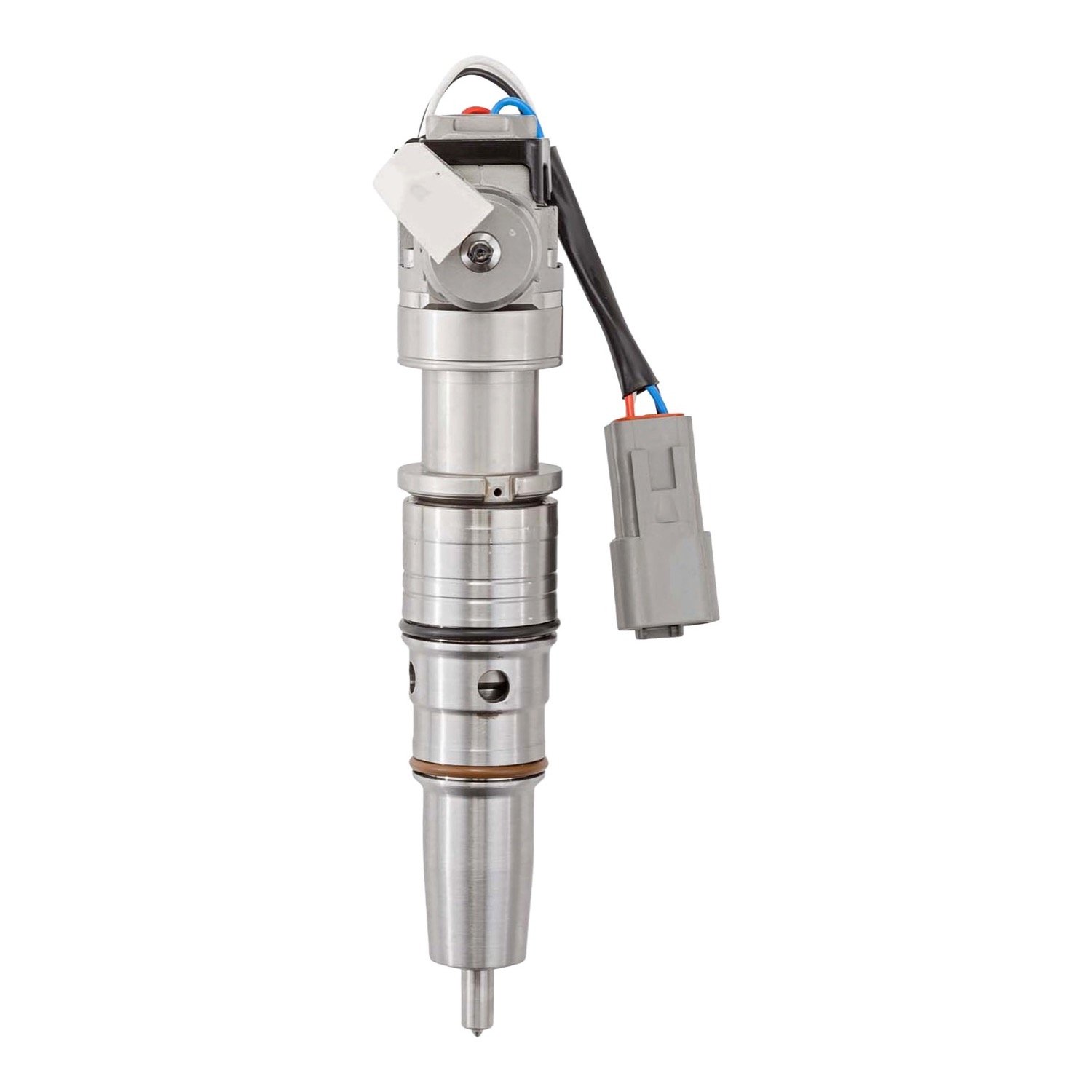

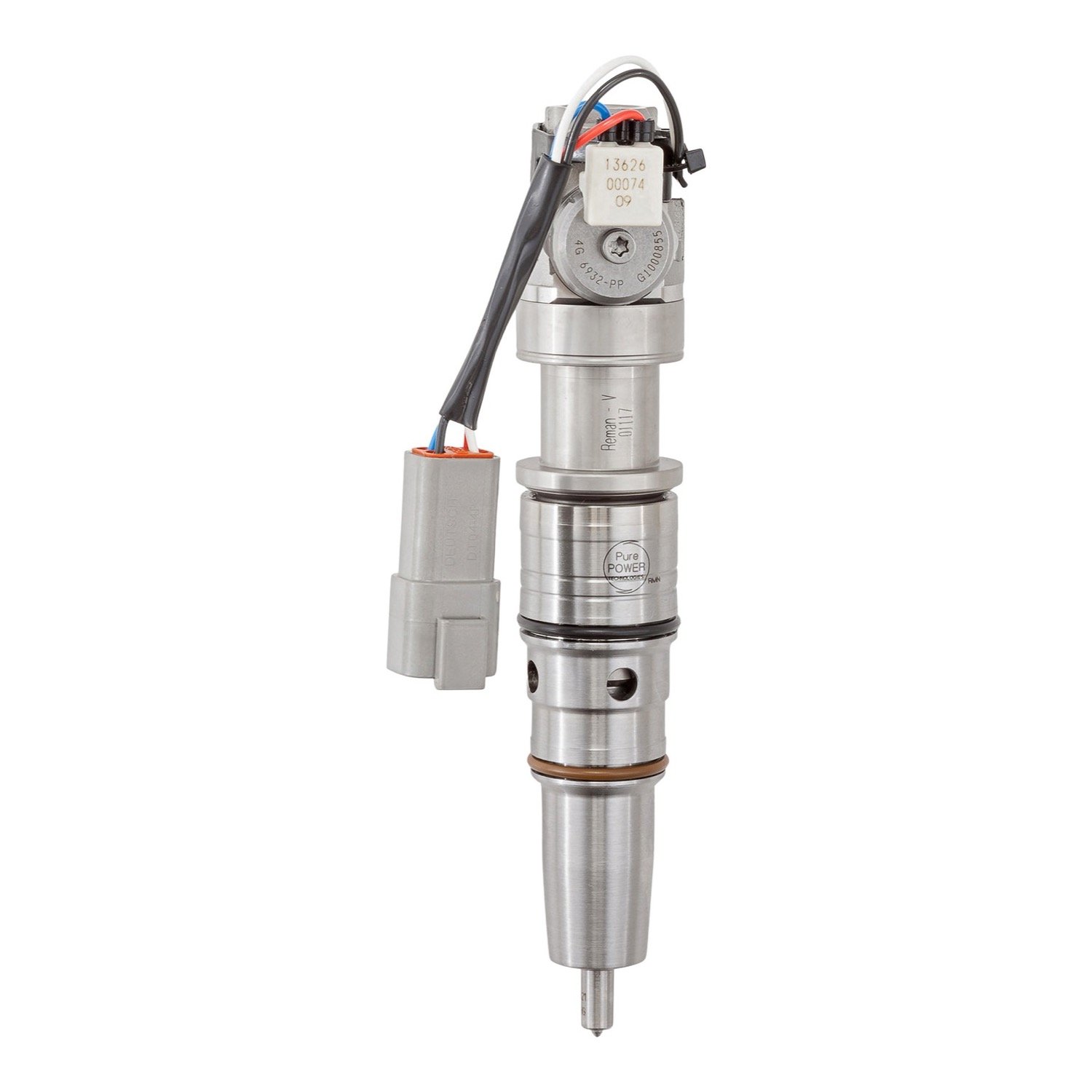

This is the Alliant Power AP66977, a remanufactured G2.9 fuel injector for the International DT466 7.6L with engine serial numbers 2,000,001 through 2,999,999. Catalogs list it for the 2004 high torque ratings, 245 to 285 hp, and for 2005 engines from 210 to 285 hp. PurePower Technologies remanufactures it for Alliant Power and calls it the 4H injector, 6923-PP, the high horsepower DT466 injector. It replaces Navistar 1842577C91 through 1842577C94, 1842224C91 and 5010657R92.

Two other DT466 injectors sit right next to this one. AP66976 is the low horsepower injector, listed for the 2004 engine at 210 to 225 hp, and AP66989 is the BANG injector for the 2006 engine. They carry different Navistar numbers, so go by the engine’s build date and rating, not the truck’s model year. Alliant Power lists new connectors, spool valve, coil and harness assemblies on these injectors and says the vented slot design is there to stop spool valve stiction and help cold weather performance. The engine takes six.

Specifications

Fits / Applications

• International DT466 7.6L, 2004 model year, high torque ratings, 245 to 285 hp
• International DT466 7.6L, 2005 model year, 210 to 285 hp
• Engine serial numbers 2,000,001 through 2,999,999
• Other DT466 injectors: AP66976 for the 2004 engine at 210 to 225 hp, AP66989 for the 2006 BANG engine, AP66918 for the 2007 to 2010 MaxxForce DT
• Six injectors per engine

The high-pressure oil rail has to come off to change a G2.9 injector. The injector inlet seals sit on the oil rail and must be replaced before the rail goes back on. Alliant Power kit AP0025 has those seals and backup rings, and it is not in the box with the injector. These injectors are fired by engine oil, so fresh oil and a new oil filter are good practice.

Part Numbers & Cross Reference

Alliant Power AP66977  ·  Navistar 1842577C93  ·  Navistar 1842577C94  ·  Navistar 1842577C92  ·  Navistar 1842577C91  ·  Navistar 1842224C91  ·  Navistar 5010657R92  ·  PurePower Technologies 6923-PP  ·  Alliant Power (same application) AP66877

Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.

Frequently Asked Questions

Will the AP66977 fit a 2004 DT466 rated at 210 hp?

Catalogs put the 2004 DT466 at 210 to 225 hp on AP66976, not this injector. AP66977 is listed for the 2004 high torque ratings, 245 to 285 hp, and 2005 engines from 210 to 285 hp. Call 530-668-0818 with the engine serial number if you are not sure.

What numbers does the AP66977 replace?

Navistar 1842577C91 through 1842577C94, 1842224C91 and 5010657R92, and PurePower 6923-PP. Catalogs also interchange it with Alliant Power AP66877.

Is the AP66977 new or remanufactured, and is there a core?

It is remanufactured, not new. PurePower Technologies does the work for Alliant Power, with new connectors, spool valve, coil and harness assemblies. A refundable core charge applies, and it is refunded in full when we receive your rebuildable core.

My truck is a 2006 with a DT466. Is the AP66977 the right injector?

Go by the engine, not the truck. Catalogs list the 2006 DT466 on the BANG injector, AP66989, and PurePower dates that change to model year 2005.5. Send us the engine serial number and the engine build date and we will confirm.
