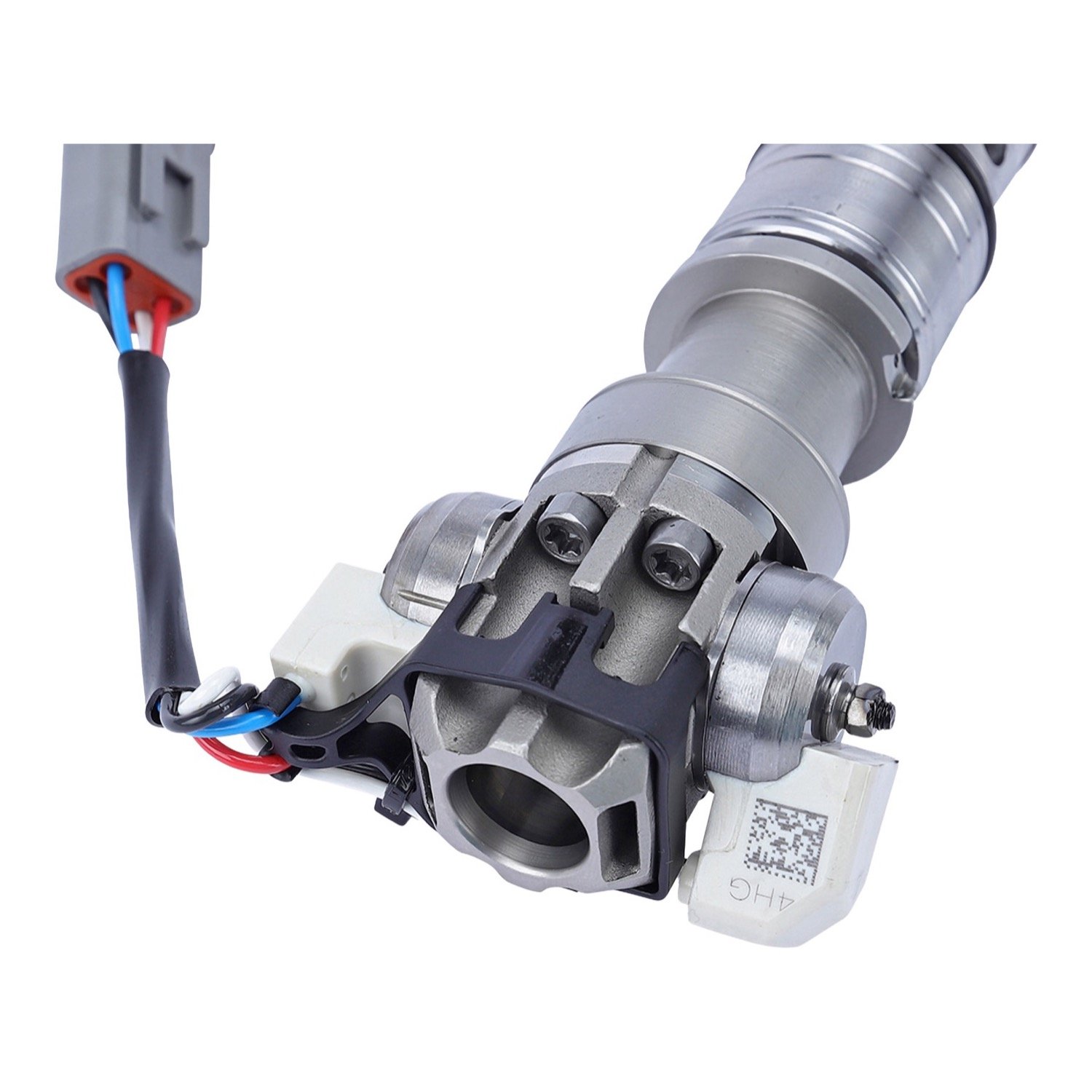

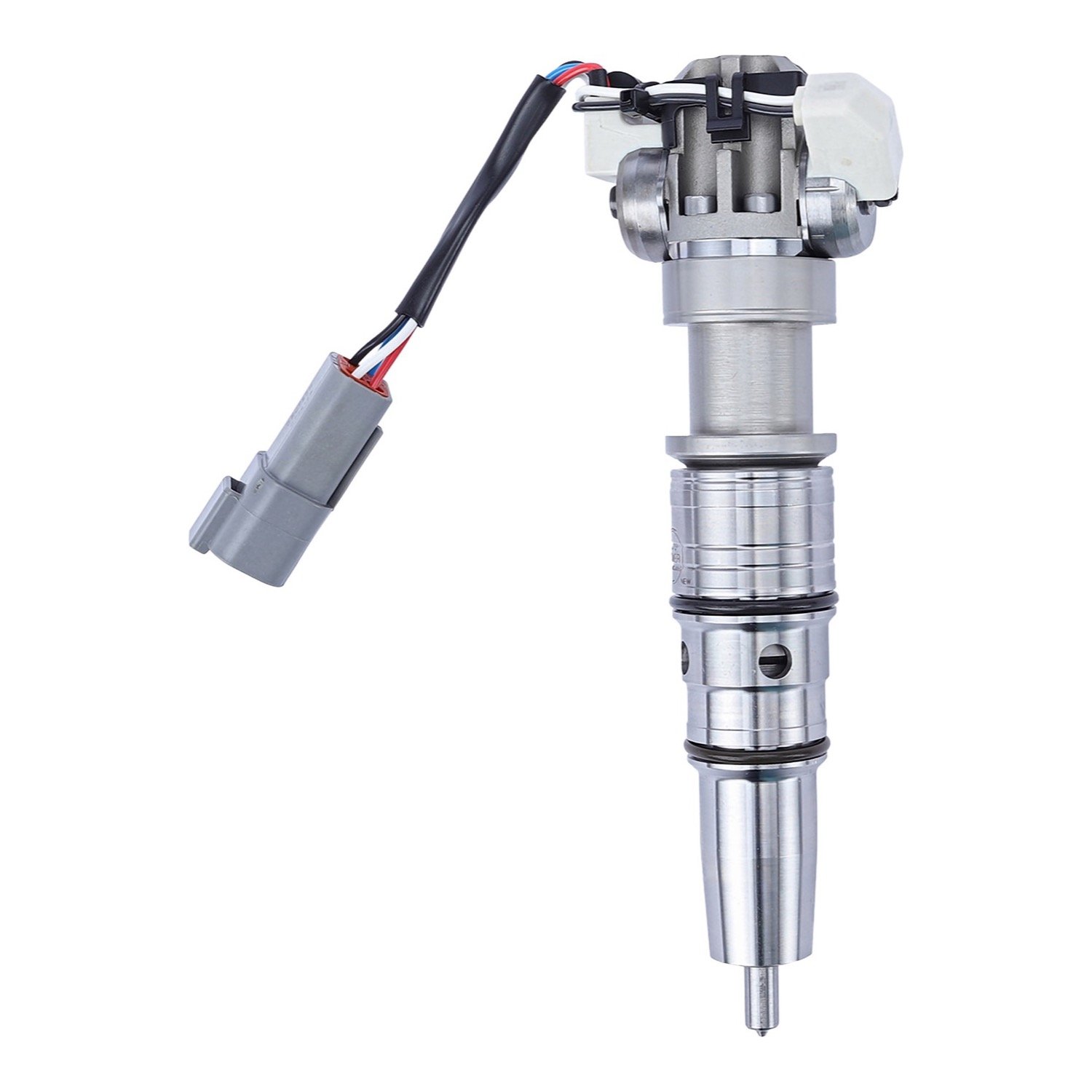

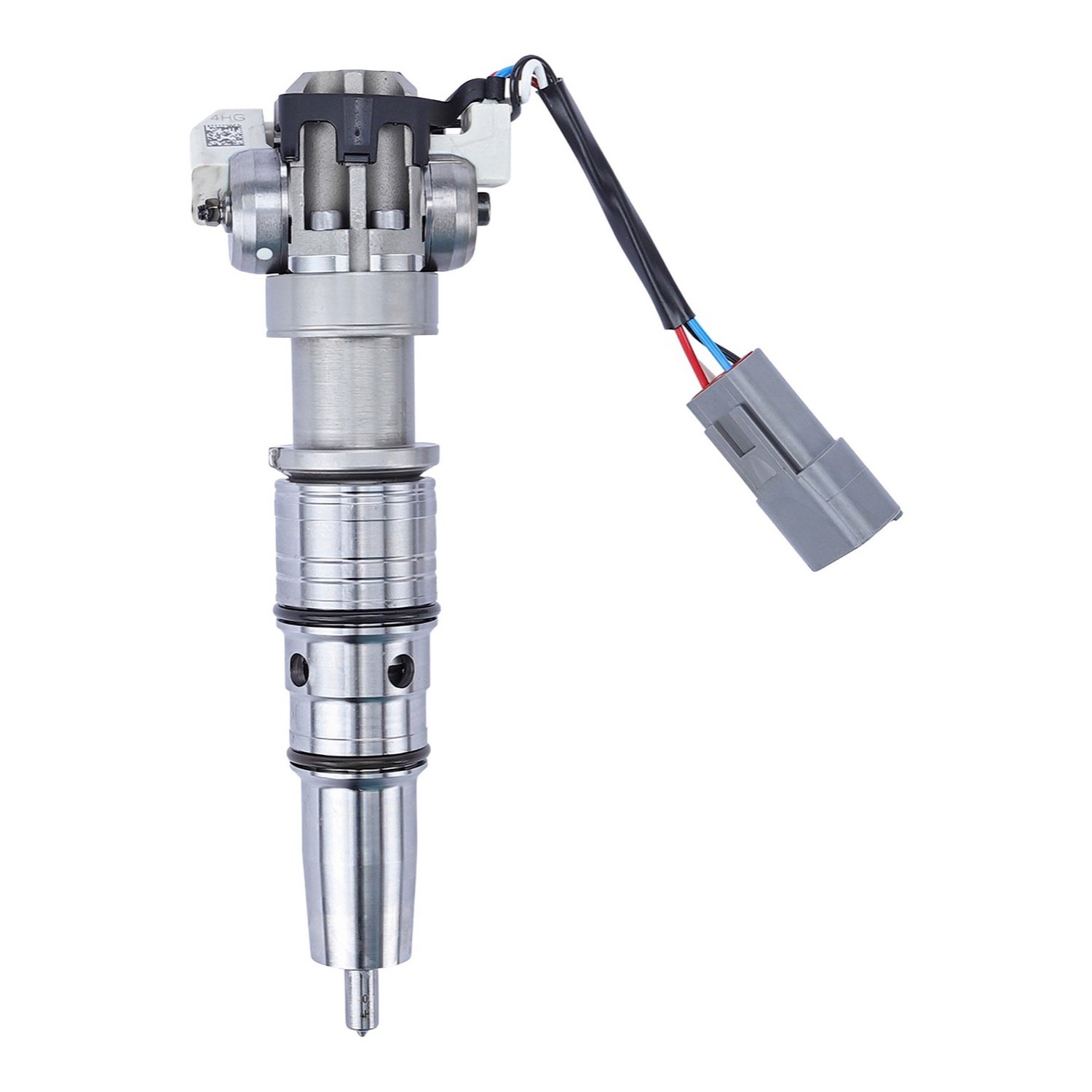

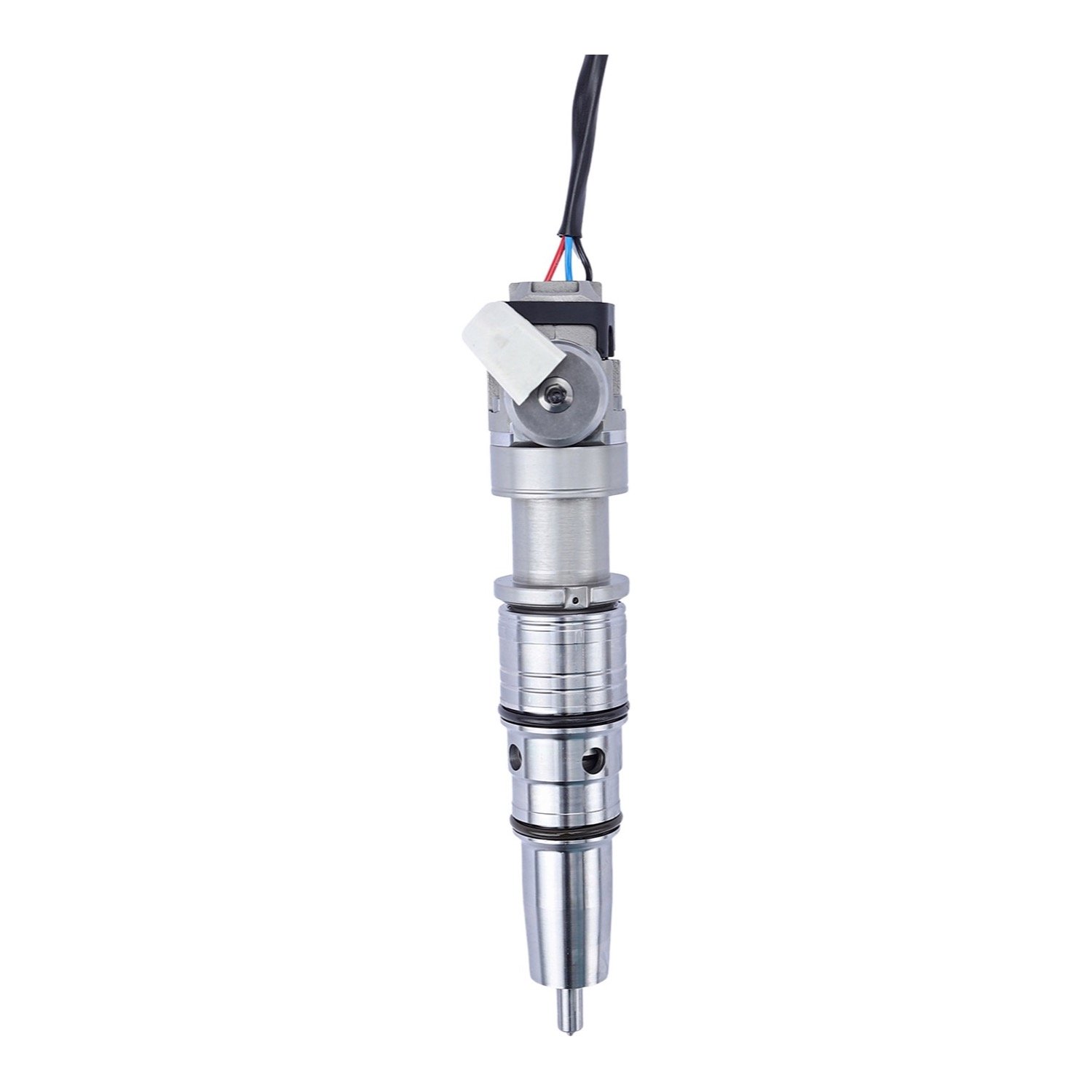

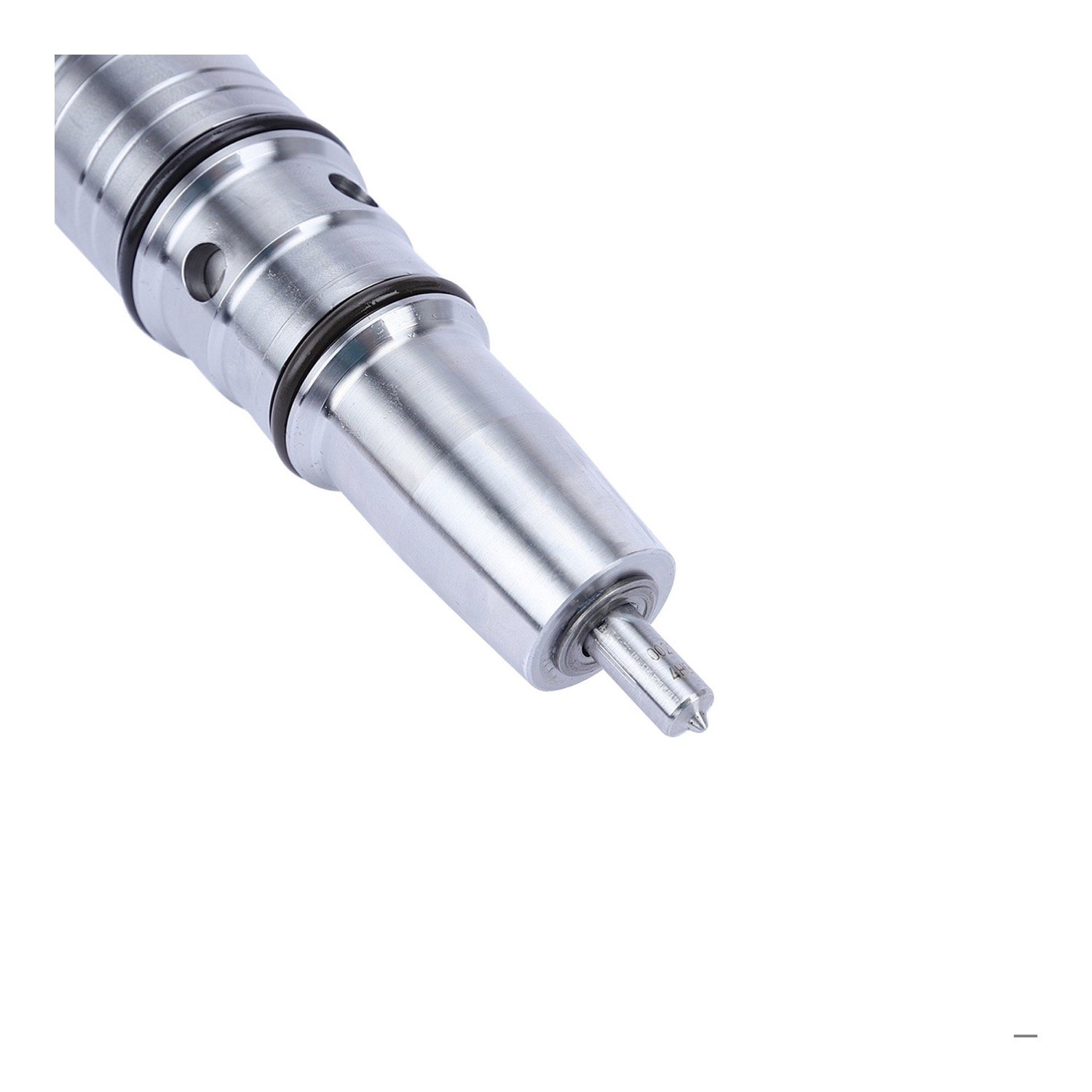

This is the Alliant Power AP66976, a remanufactured G2.9 fuel injector for the International DT466 7.6L. It is the low horsepower injector, listed for the 2004 model year engine at 210 to 225 hp, engine serial numbers 2,000,001 through 2,999,999. PurePower Technologies remanufactures it for Alliant Power and calls it the 4L injector, 6922-PP. It replaces Navistar 1842576C91 through 1842576C94, 1841491C91, 1842223C91 and 5010656R92.

The 2004 to 2005 DT466 used two G2.9 injectors. The other one, AP66977, is the high horsepower injector, listed for the 2004 high torque ratings and the 2005 engines, and the 2006 engine moved to the BANG injector, AP66989. Each carries its own Navistar number. Alliant Power lists new connectors, spool valve, coil and harness assemblies on every remanufactured G2.9 injector, and this one comes with its chamber gasket fitted and two injector seal rings. G2.9 injectors are fired by high-pressure engine oil, so hard starting, a rough idle or low power can come from low or dirty oil or leaking oil rail seals as easily as from a worn injector. Rule those out first. The engine takes six.

Specifications

Fits / Applications

• International DT466 7.6L, 2004 model year, 210 to 225 hp, engine serial 2,000,001 through 2,999,999
• Low horsepower build only (PurePower type 4L, Navistar 1842576C91 through 1842576C94)
• Other DT466 injectors: AP66977 for the 2004 high torque ratings and the 2005 engines, AP66989 for the 2006 BANG engine, AP66918 for the 2007 to 2010 MaxxForce DT
• Six injectors per engine

The high-pressure oil rail has to come off to change a G2.9 injector. The injector inlet seals sit on the oil rail and must be replaced before the rail goes back on. Alliant Power kit AP0025 has those seals and backup rings, and it is not in the box with the injector. Use the chamber gasket and seal rings supplied with the injector. These injectors are fired by engine oil, so fresh oil and a new oil filter are good practice.

Part Numbers & Cross Reference

Alliant Power AP66976  ·  Navistar 1842576C93  ·  Navistar 1842576C94  ·  Navistar 1842576C92  ·  Navistar 1842576C91  ·  Navistar 1841491C91  ·  Navistar 1842223C91  ·  Navistar 5010656R92  ·  PurePower Technologies 6922-PP  ·  Alliant Power (same application) AP66876

Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.

Frequently Asked Questions

Will the AP66976 fit my 2005 DT466?

Maybe. Several catalogs list AP66976 for the 2004 engine only and put 2005 engines on AP66977, while others list AP66976 into 2005. Call 530-668-0818 with your engine serial number and build date and we will match the injector.

What numbers does the AP66976 replace?

Navistar 1842576C91 through 1842576C94, 1841491C91, 1842223C91 and 5010656R92, and PurePower 6922-PP. Catalogs also interchange it with Alliant Power AP66876.

Is the AP66976 new or remanufactured, and is there a core?

It is remanufactured, not new. PurePower Technologies does the work for Alliant Power, with new connectors, spool valve, coil and harness assemblies. A refundable core charge applies, and it is refunded in full when we receive your rebuildable core.

What else do I need to install the AP66976?

It comes with its chamber gasket fitted and two injector seal rings. The high-pressure oil rail has to come off, and its injector inlet seals must be replaced before it goes back on. Alliant Power’s kit for that is AP0025, which is not in the box.
