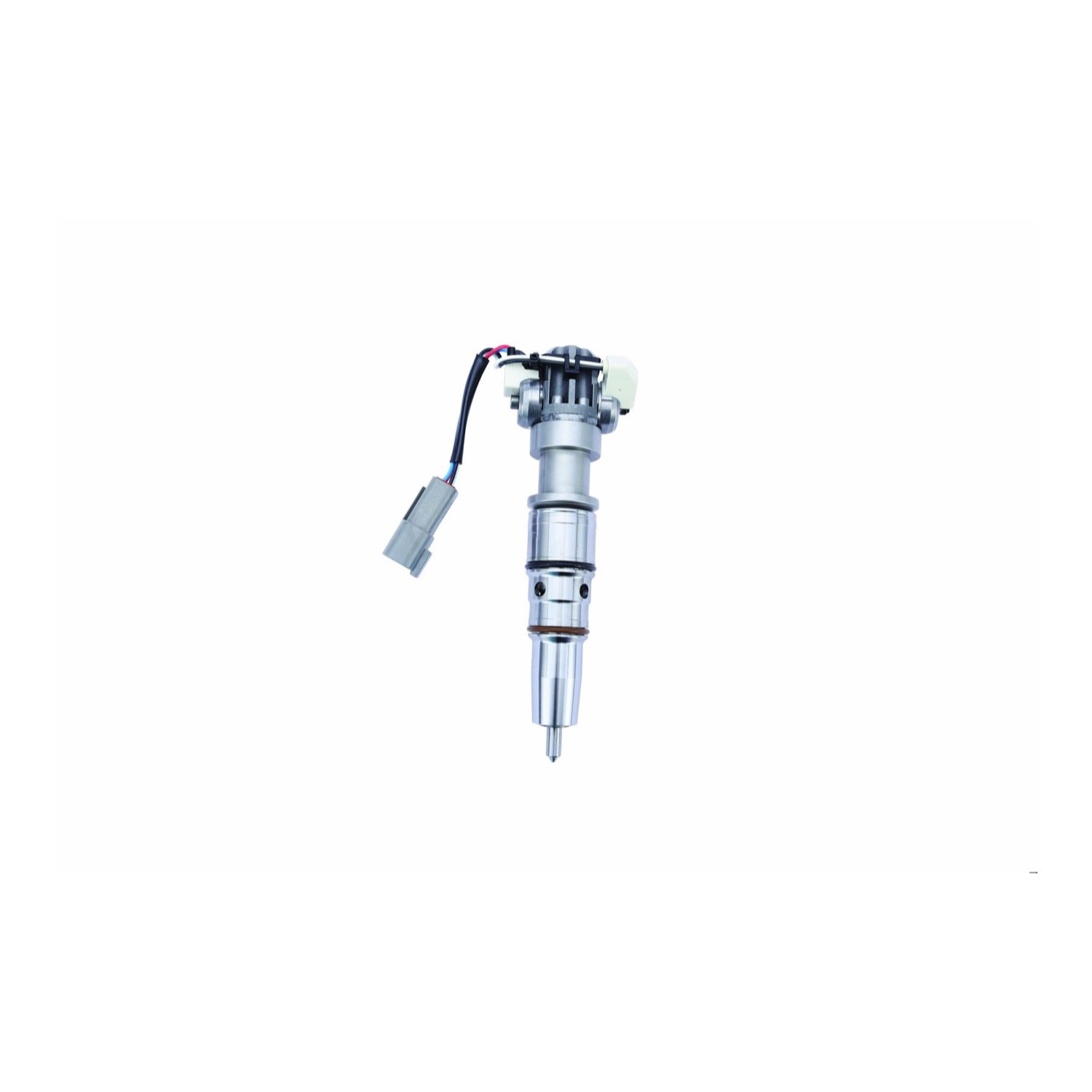

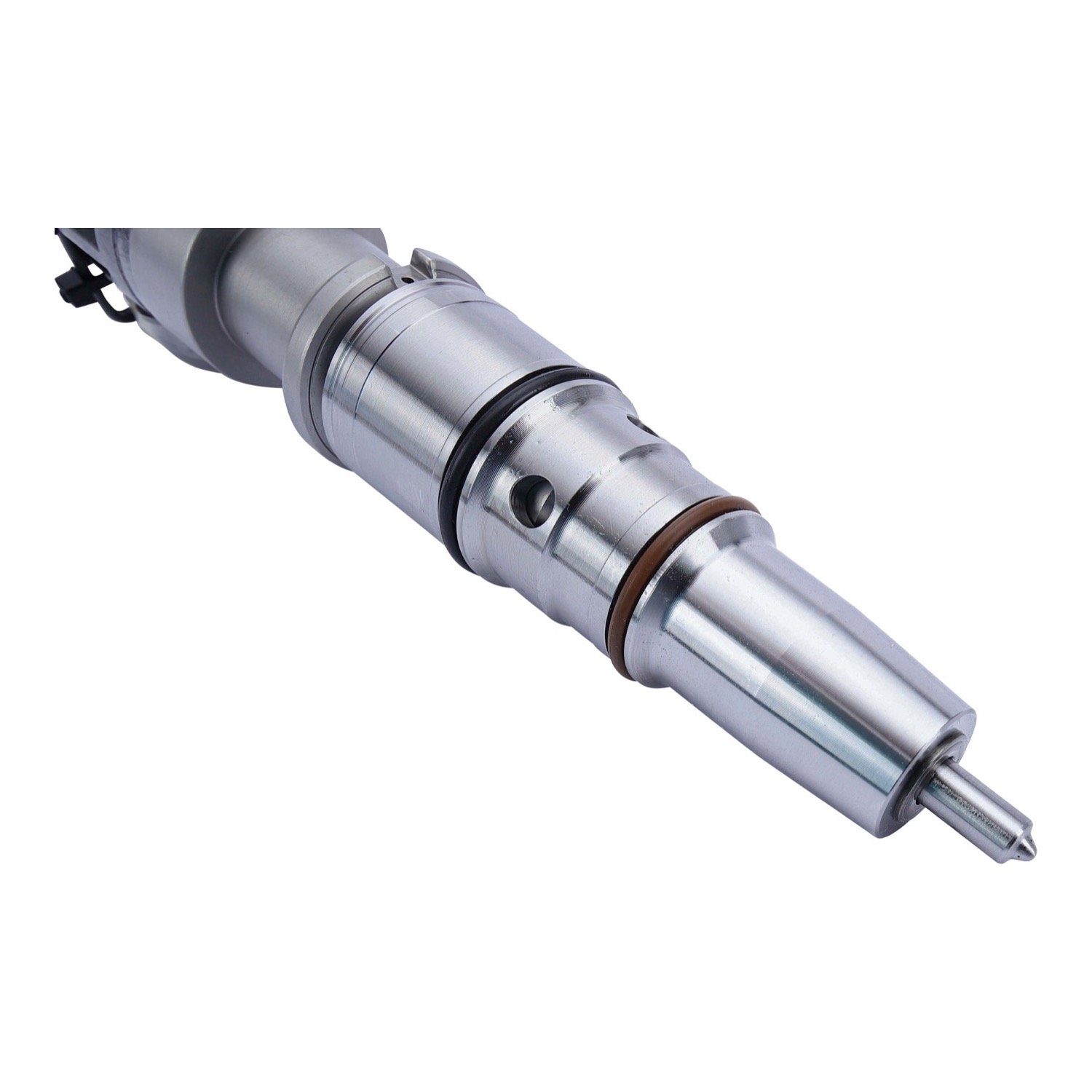

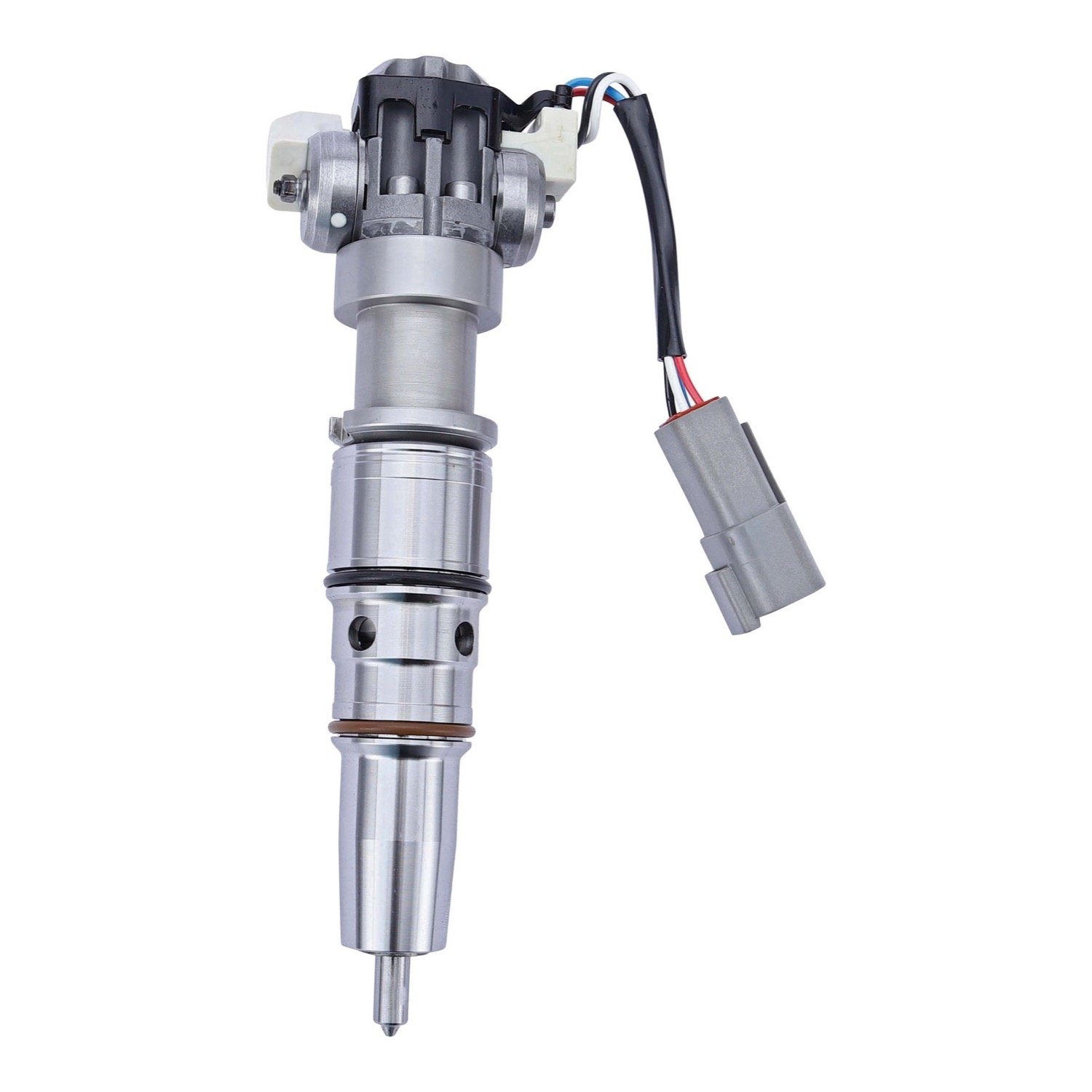

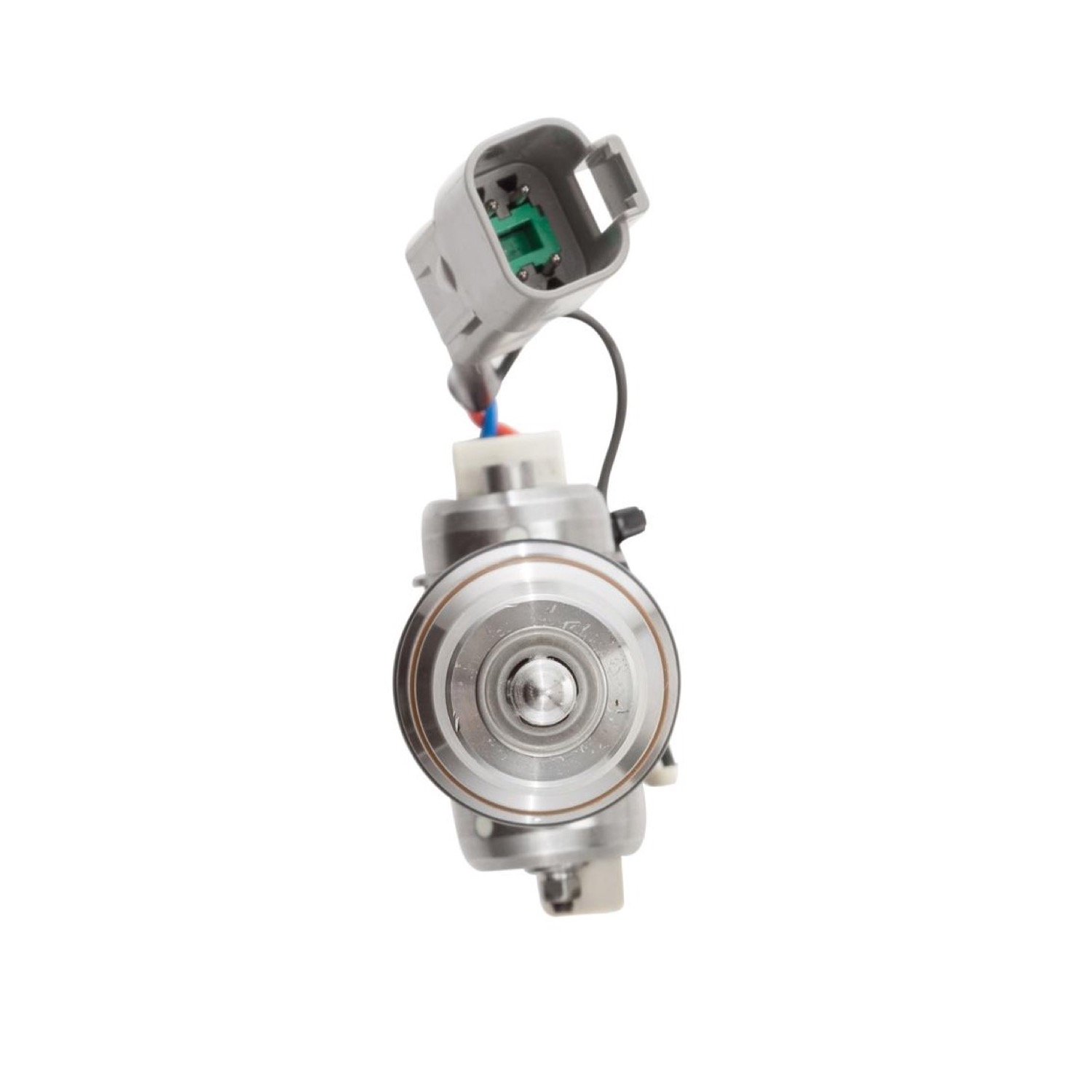

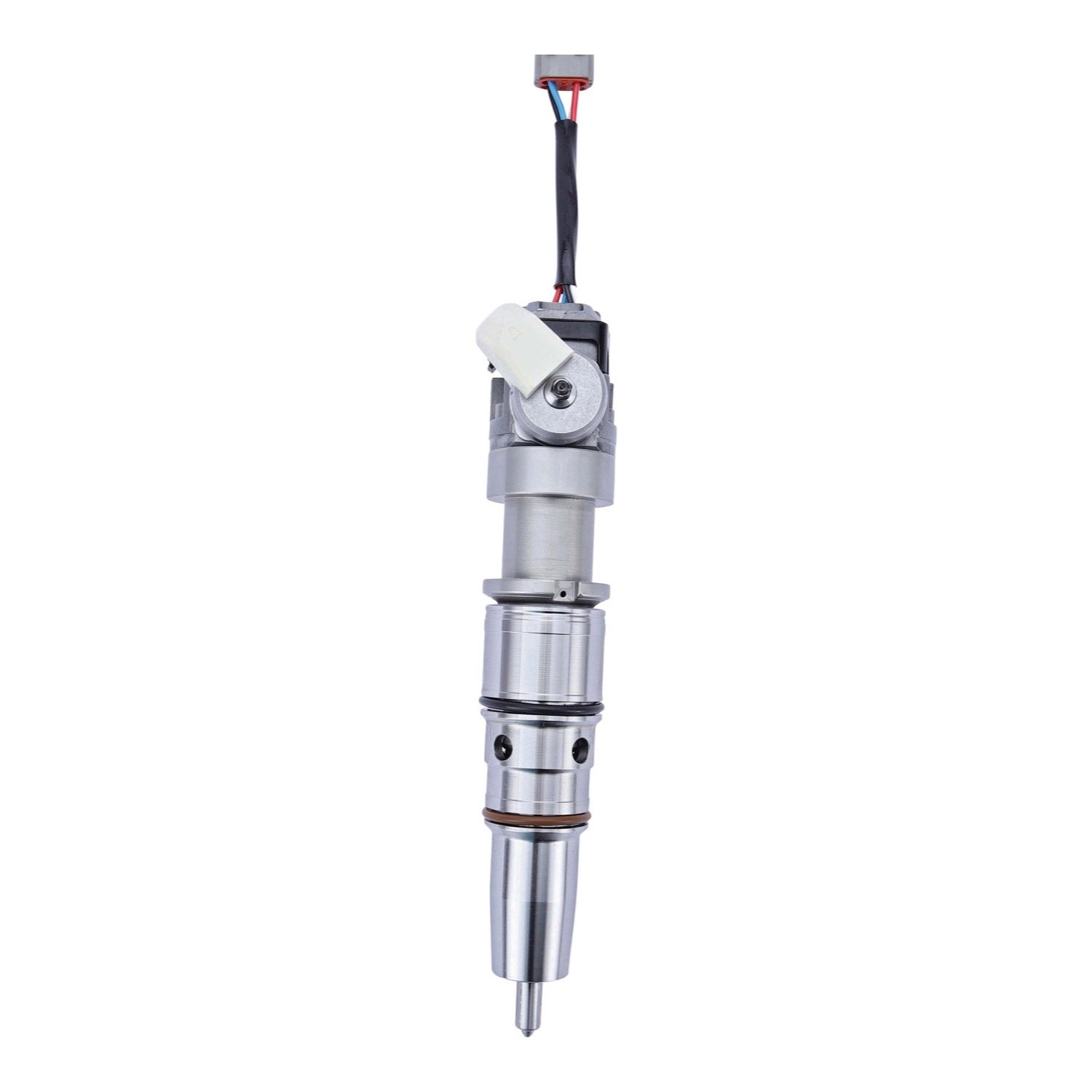

This is the Alliant Power AP66995, a remanufactured G2.9 BANG fuel injector for the International HT570 9.3L, the high torque 570. Catalogs list it for the 2006 model year engine at 295 to 340 hp. PurePower Technologies, which remanufactures it for Alliant Power, calls it the 5HB injector, 6928-PP, the high horsepower injector of model year 2005.5 to 2007. It replaces Navistar 1848495C91, 1848495C92 and 5010985R91.

BANG is the name catalogs use for the later G2.9 injector that took over from the 2004 to 2005 injectors partway through 2005. On the 9.3L engines there are two: AP66992 for the DT570 at 285 to 330 hp, and this one for the HT570. The ratings overlap, so go by the engine model, not the rating alone. The earlier 2004 to 2005 HT570 takes AP66979, and the 2007 to 2010 MaxxForce 9 and 10 take AP66921. Alliant Power lists new connectors, spool valve, coil and harness assemblies on this injector. The engine takes six.

Specifications

Fits / Applications

• International HT570 9.3L high torque engine, 2006 model year, 295 to 340 hp
• PurePower gives the build range for this injector as model year 2005.5 to 2007
• Other 2006 injectors: AP66992 for the DT570 and AP66989 for the DT466. The 2004 to 2005 HT570 takes AP66979 and the 2007 to 2010 MaxxForce 9 and 10 take AP66921
• Six injectors per engine

The high-pressure oil rail has to come off to change a G2.9 injector. The injector inlet seals sit on the oil rail and must be replaced before the rail goes back on. Alliant Power kit AP0025 has those seals and backup rings, and it is not in the box with the injector. These injectors are fired by engine oil, so fresh oil and a new oil filter are good practice.

Part Numbers & Cross Reference

Alliant Power AP66995  ·  Navistar 1848495C91  ·  Navistar 1848495C92  ·  Navistar 5010985R91  ·  PurePower Technologies 6928-PP  ·  Alliant Power (same application) AP66895

Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.

Frequently Asked Questions

Is the AP66995 for a DT466 or an HT570?

The application listings we checked put AP66995 on the 2006 HT570 at 295 to 340 hp, even though some catalogs title it DT466 BANG. The 2006 DT466 is listed on AP66989. Call 530-668-0818 with your engine serial number and we will match it.

What numbers does the AP66995 replace?

Navistar 1848495C91, 1848495C92 and 5010985R91, and PurePower 6928-PP. Catalogs also interchange it with Alliant Power AP66895.

Is the AP66995 new or remanufactured, and is there a core?

It is remanufactured, not new. PurePower Technologies does the work for Alliant Power, with new connectors, spool valve, coil and harness assemblies. A refundable core charge applies, and it is refunded in full when we receive your rebuildable core.

How is the AP66995 different from the AP66992?

Both are 2006 BANG injectors for the 9.3L. AP66992 is listed for the DT570 at 285 to 330 hp and AP66995 for the HT570 at 295 to 340 hp. The ratings overlap, so go by the engine model or the Navistar number, 1848492 or 1848495.
