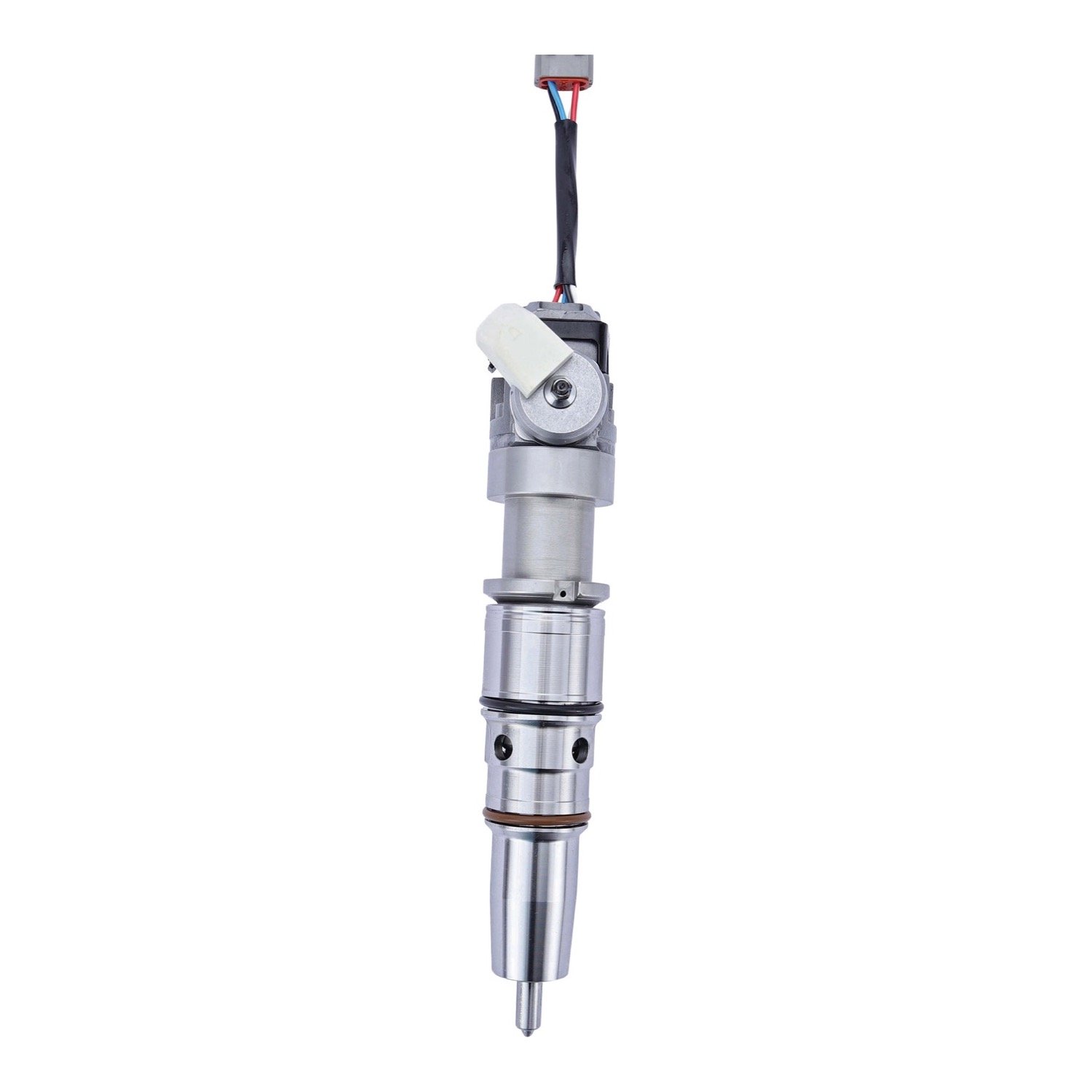

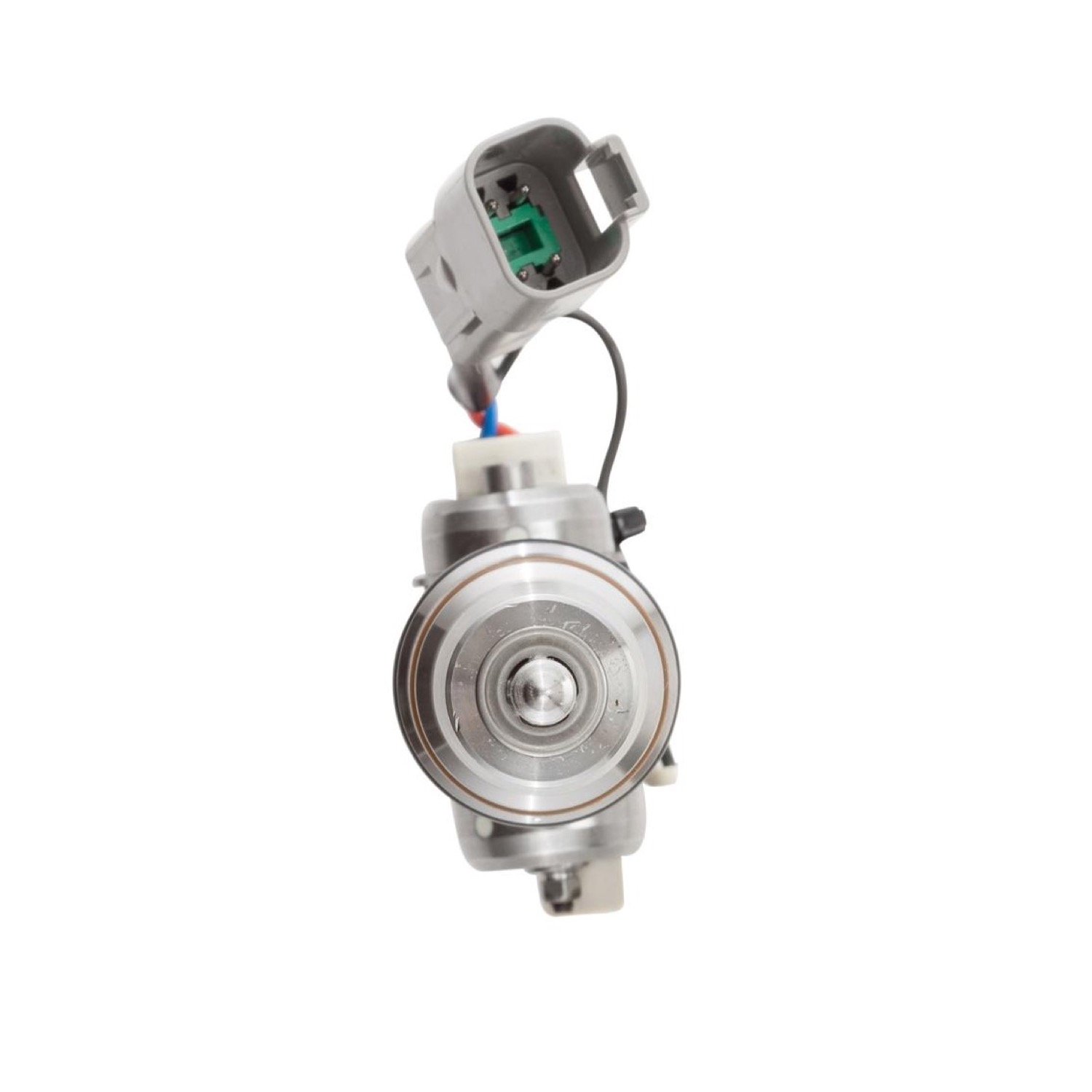

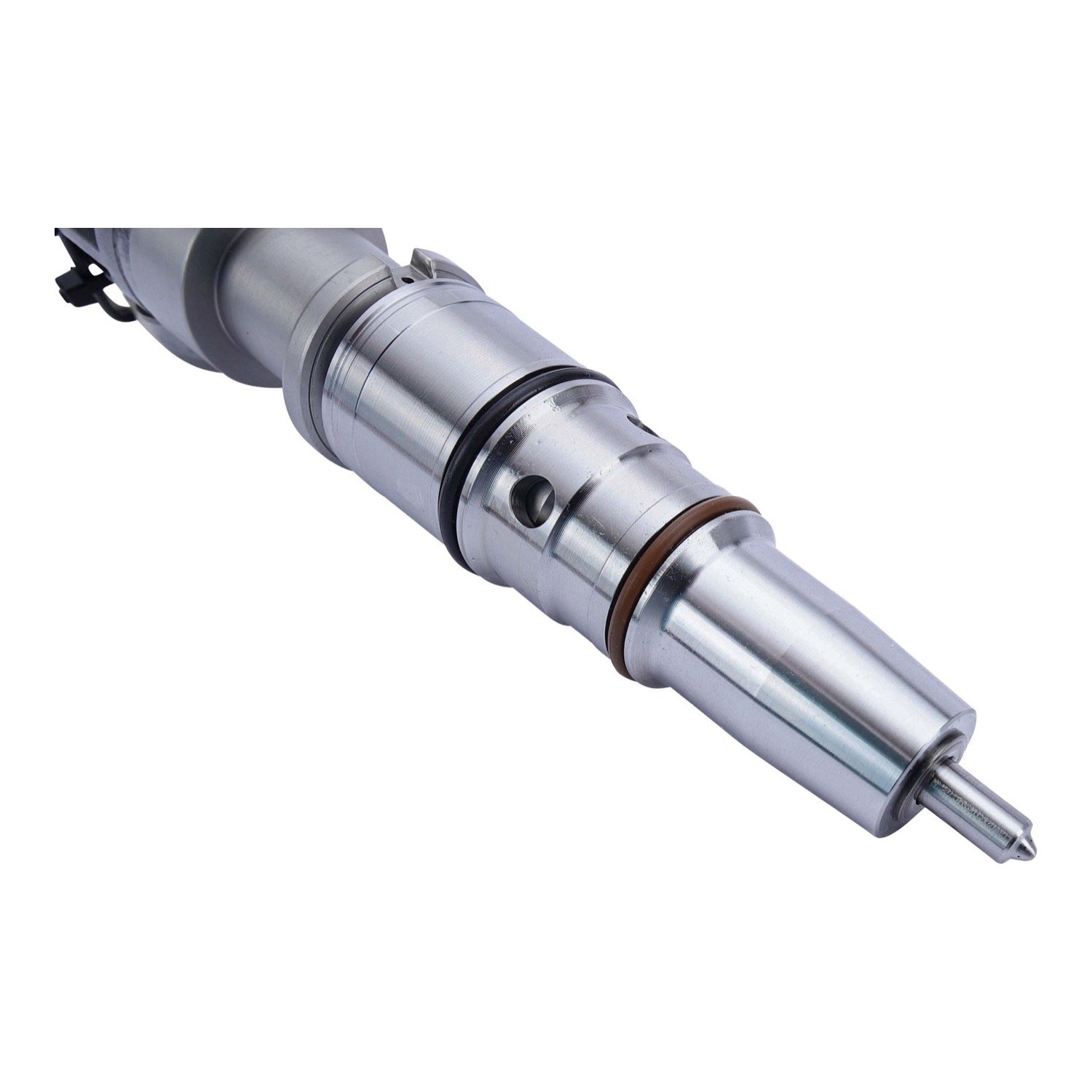

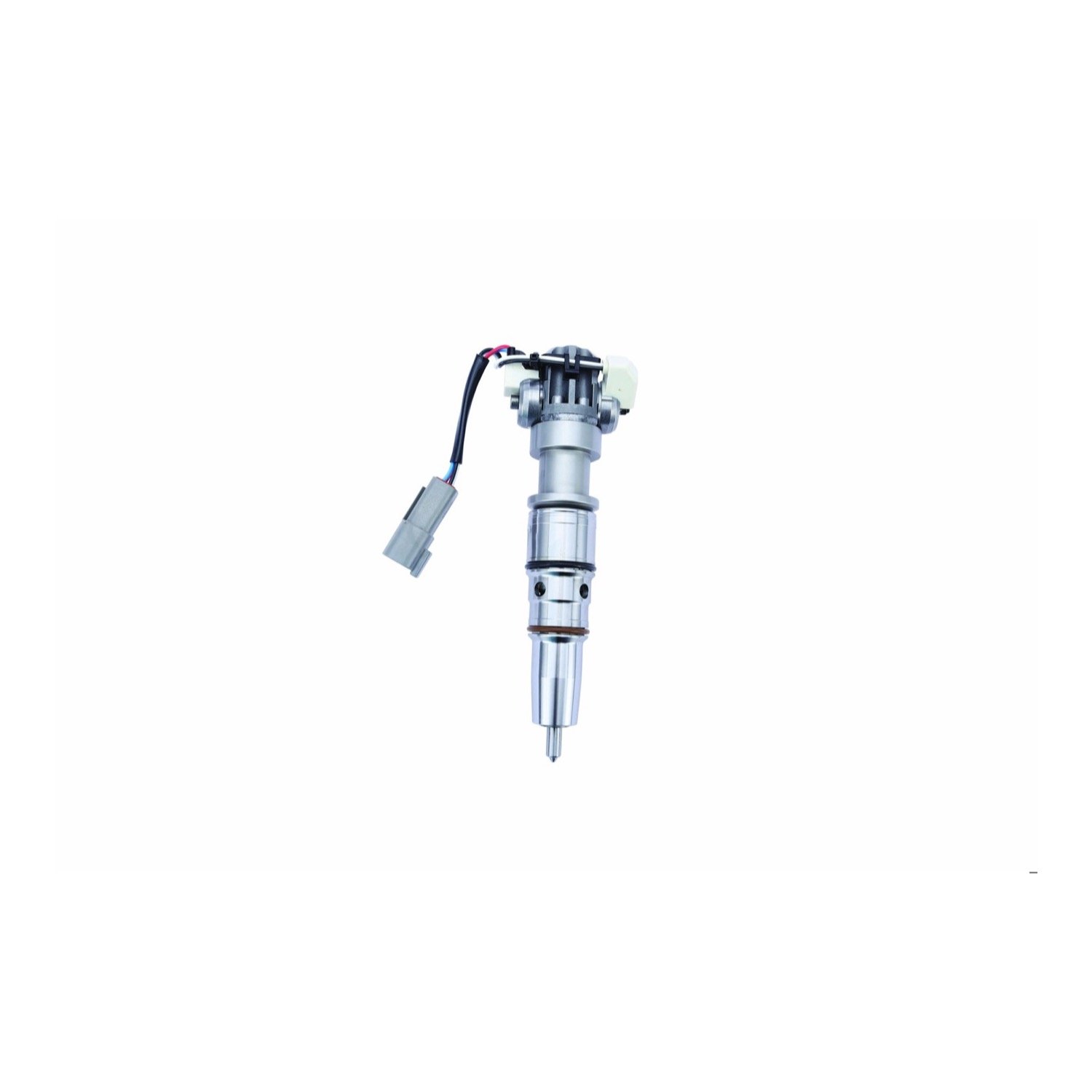

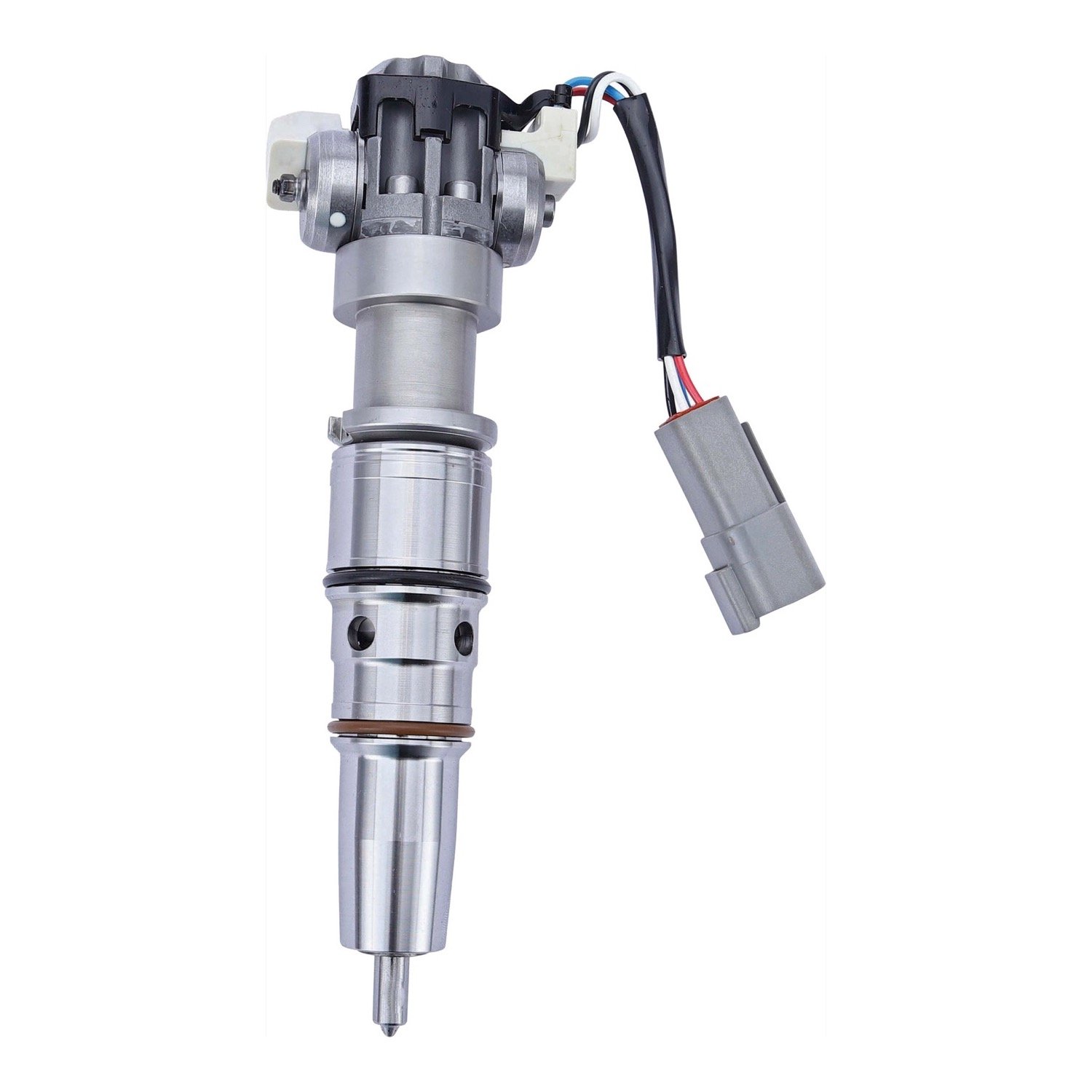

This is the Alliant Power AP66979, a remanufactured G2.9 fuel injector for the International HT570 9.3L, the high torque 570, of the 2004 and 2005 model years at 295 to 340 hp, engine serial numbers 2,000,001 through 2,999,999. PurePower Technologies remanufactures it for Alliant Power and calls it the 5H injector, 6925-PP, the high horsepower injector for the 570 engines. It replaces Navistar 1842579C91 through 1842579C95, 1842226C91 and 5010659R92.

Do not pick this one by horsepower alone. The DT570 of the same years, 285 to 330 hp, is listed on a different injector, AP66978, and the two ranges overlap. Go by the engine model and the Navistar number. The 2006 HT570 moved to the BANG injector, AP66995. Alliant Power lists new connectors, spool valve, coil and harness assemblies on every remanufactured G2.9 injector. Like every G2.9, it is fired by high-pressure engine oil, so check oil level, oil condition and the oil rail seals before you replace a set. The engine takes six.

Specifications

Fits / Applications

• International HT570 9.3L high torque engine, 2004 and 2005 model years, 295 to 340 hp, engine serial 2,000,001 through 2,999,999
• Other 9.3L injectors: AP66978 for the 2004 to 2005 DT570, AP66995 and AP66992 for the 2006 BANG engines, AP66921 for the 2007 to 2010 MaxxForce 9 and 10
• Six injectors per engine

The high-pressure oil rail has to come off to change a G2.9 injector. The injector inlet seals sit on the oil rail and must be replaced before the rail goes back on. Alliant Power kit AP0025 has those seals and backup rings, and it is not in the box with the injector. These injectors are fired by engine oil, so fresh oil and a new oil filter are good practice.

Part Numbers & Cross Reference

Alliant Power AP66979  ·  Navistar 1842579C94  ·  Navistar 1842579C95  ·  Navistar 1842579C93  ·  Navistar 1842579C92  ·  Navistar 1842579C91  ·  Navistar 1842226C91  ·  Navistar 5010659R92  ·  PurePower Technologies 6925-PP  ·  Alliant Power (same application) AP66879

Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.

Frequently Asked Questions

Will the AP66979 fit a DT570 instead of an HT570?

Catalogs list the 2004 to 2005 DT570, 285 to 330 hp, on a different injector, AP66978. AP66979 is listed for the HT570 at 295 to 340 hp. If you are not sure which engine you have, call 530-668-0818 with the engine serial number.

What numbers does the AP66979 replace?

Navistar 1842579C91 through 1842579C95, 1842226C91 and 5010659R92, and PurePower 6925-PP. Catalogs also interchange it with Alliant Power AP66879.

Is the AP66979 new or remanufactured, and is there a core?

It is remanufactured, not new. PurePower Technologies does the work for Alliant Power, with new connectors, spool valve, coil and harness assemblies. A refundable core charge applies, and it is refunded in full when we receive your rebuildable core.

What else do I need to install the AP66979?

The high-pressure oil rail has to come off, and its injector inlet seals must be replaced before it goes back on. Alliant Power’s kit for that is AP0025, which is not in the box with the injector.

Related Parts

• International DT570 G2.9 Fuel Injector, 2004-2005 (285-330 hp) | Alliant Power AP66978 Remanufactured
• International HT570 G2.9 BANG Fuel Injector, 2006 (295-340 hp) | Alliant Power AP66995 Remanufactured
• International DT570 G2.9 BANG Fuel Injector, 2006 (285-330 hp) | Alliant Power AP66992 Remanufactured
• International DT530 & HT530 HEUI Fuel Injector | Alliant Power AP63813BN New (BN Code)
