Kubota B1750, B2150, B6100, B7100, L2550 & M5030 Mechanical Fuel Lift Pump | Genuine Kubota 15263-52030

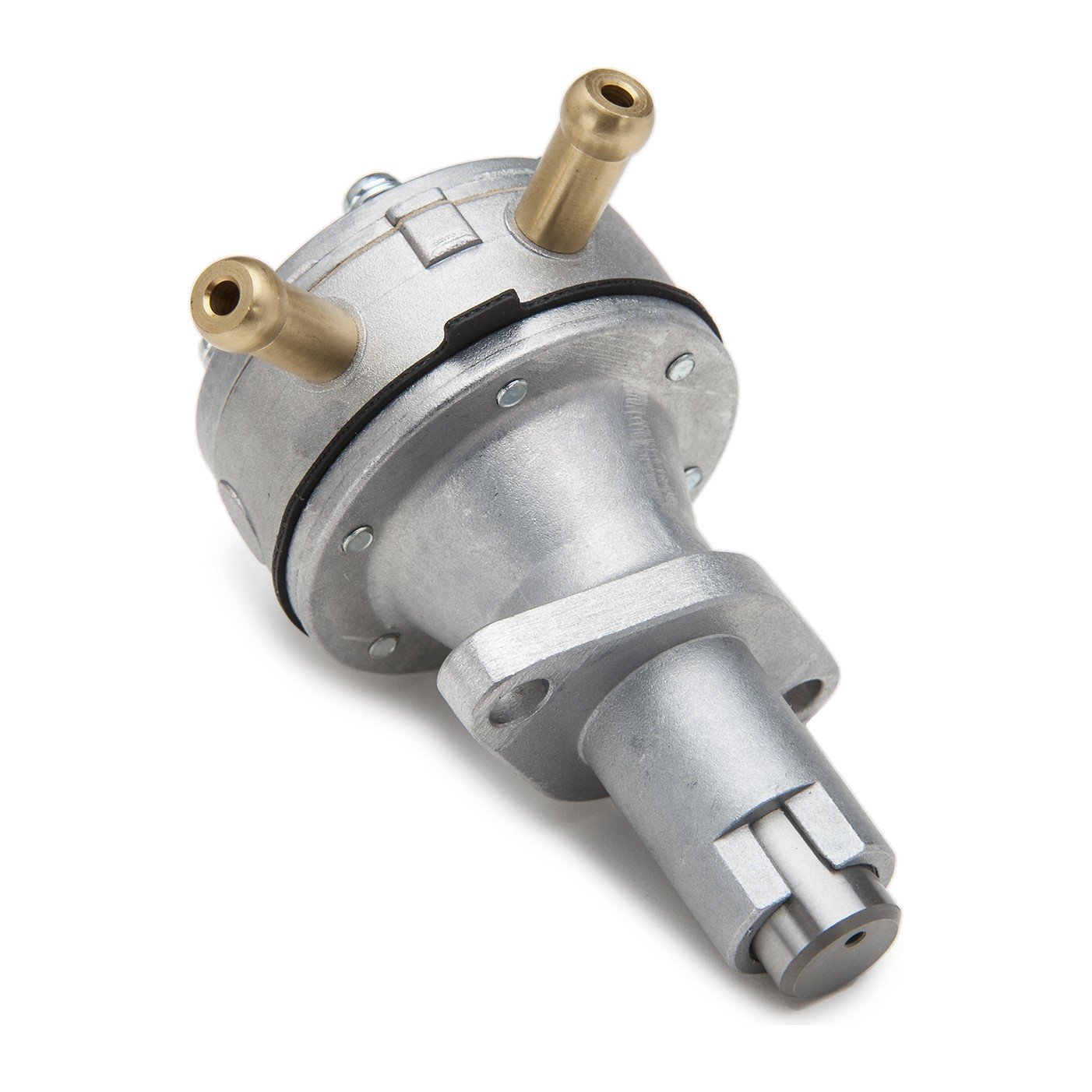

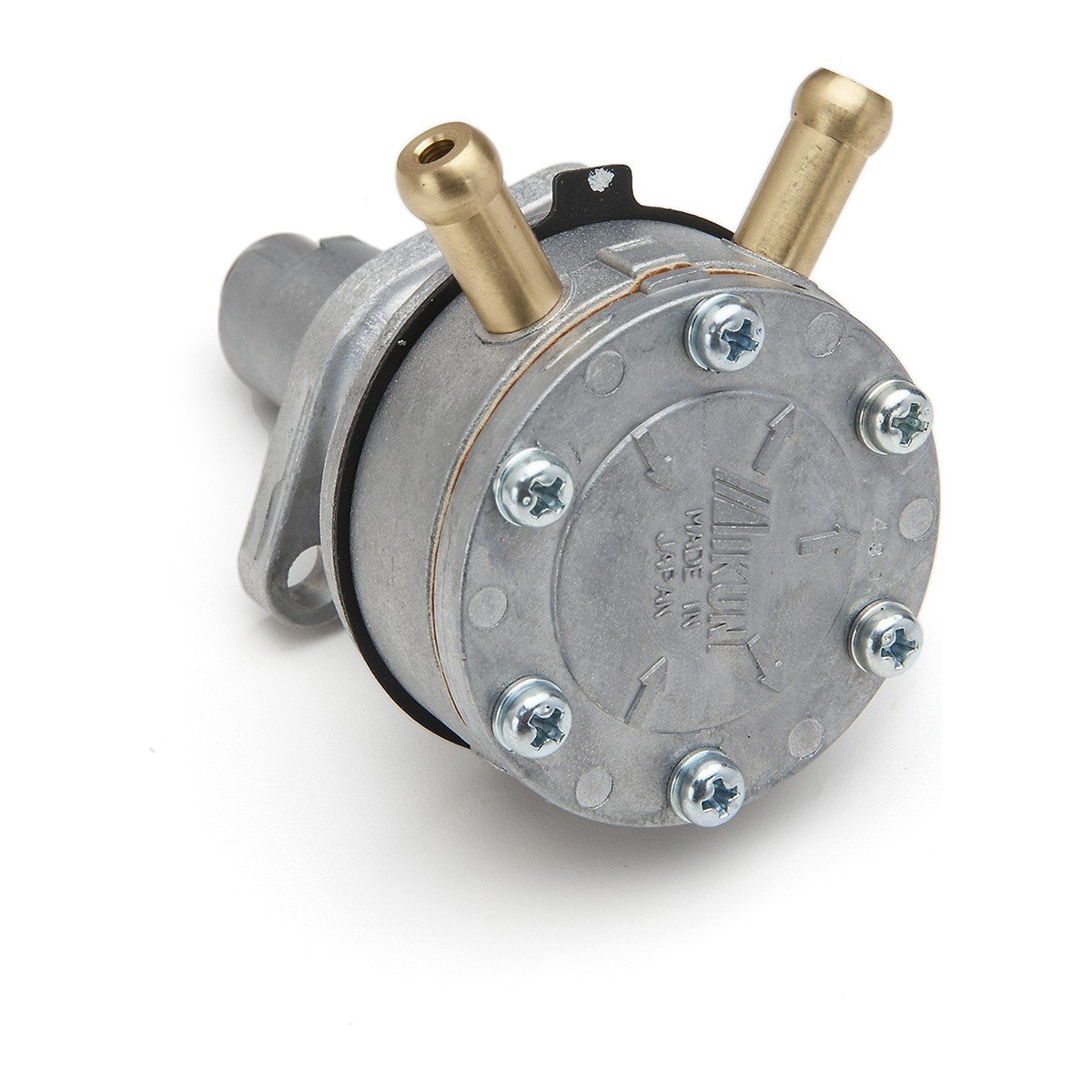

Kubota 15263-52030 is a new, genuine Kubota mechanical fuel lift pump. Kubota describes it as the fuel pump assembly without primer lever: a diaphragm pump on a two-bolt flange, driven by a plunger off the engine, with two hose fittings. Kubota lists it for the B1550, B1750 and B2150 tractors, the F2100 front mower and the M4030 and M5030. It is also the current number for the older 15381-52030, which Kubota used on the B5100, B6100, B7100, B8200 and B9200 families, on L series tractors from the L2250 and L2550 up to the L3750 and L4150, and on the M4050, M4500 and M4950. It crosses to Bobcat 6666850.
A weak lift pump starves the injection pump. Look for hard starting, surging, loss of power under load or an engine that dies once it is warm. A torn diaphragm can also leak fuel at the pump or let fuel into the engine oil. Rule out a plugged filter, a blocked tank vent and air leaks in the suction hose before you replace it.
Confirm Fitment Before You Order
This pump has no primer lever. Kubota sells fuel pumps with a primer under other numbers, such as 16604-52032 and 19844-52030, and they are not the same part. Send us the tractor model and serial number, or the engine model and serial number, with the number on your old pump, and we will confirm the match before you order. Call 530-668-0818 and we will confirm the exact match at no charge before anything ships.
Specifications
| Part number | 15263-52030 |
| Brand | Kubota |
| Condition | New, genuine, in original packaging |
| Warranty | Kubota genuine parts warranty: 1 year against defects in materials or workmanship. |
| Type | Mechanical fuel lift pump, engine-driven, diaphragm type |
| Primer lever | None. Kubota describes it as the fuel pump assembly without primer lever |
| Mounting | Two-bolt flange, plunger driven |
| Fuel connections | Two hose barbs |
| Machines | Older Kubota B, L and M series tractors, F2000 and F2100 front mowers |
| Replaces | 15381-52030 |
| Bobcat number | 6666850 |
| Shipping weight | 3 lb |
Fits / Applications
- Kubota B1550, B1750 and B2150 tractors (D, E and HST versions)
- Kubota B5100, B5200, B6100, B6200, B7100, B7200, B8200 and B9200 tractors
- Kubota B20 and B4200D tractors
- Kubota L2250, L2550, L2650, L2850, L2950, L3250, L3350, L345, L3450, L355SS, L3650, L3750 and L4150 tractors
- Kubota M4030, M4050, M4500, M4950 and M5030 tractors
- Kubota F2000, F2100 and F2100E front mowers
- Kubota GV-3240 generator
- Replaces Kubota fuel pump 15381-52030
- Crosses to Bobcat fuel pump 6666850
Fit a new mounting gasket and seat the pump plunger squarely on its drive before you tighten the two flange bolts. There is no primer lever on this pump, so bleed the fuel system the way the tractor or engine manual describes. Then check both hose connections for leaks and for air being drawn in.
Part Numbers & Cross Reference
Kubota 15263-52030 · Kubota (superseded) 15381-52030 · Bobcat 6666850
Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.
Frequently Asked Questions
Will the 15263-52030 fit my Kubota B7100?
Kubota’s parts list puts the older pump 15381-52030 on the B7100D-P and the B7100HST, and 15263-52030 is the number that replaces it. Send us the tractor serial number and the number on your old pump if you want it checked first.
Does the 15263-52030 have a hand primer lever?
No. Kubota describes it as the fuel pump assembly without primer lever. Kubota sells a fuel pump with primer under a separate number, 19844-52030.
What numbers does the 15263-52030 replace?
It replaces Kubota 15381-52030, and it crosses to Bobcat 6666850.
Is the 15263-52030 new or remanufactured?
It is a new, genuine Kubota pump assembly, not a rebuilt one.
