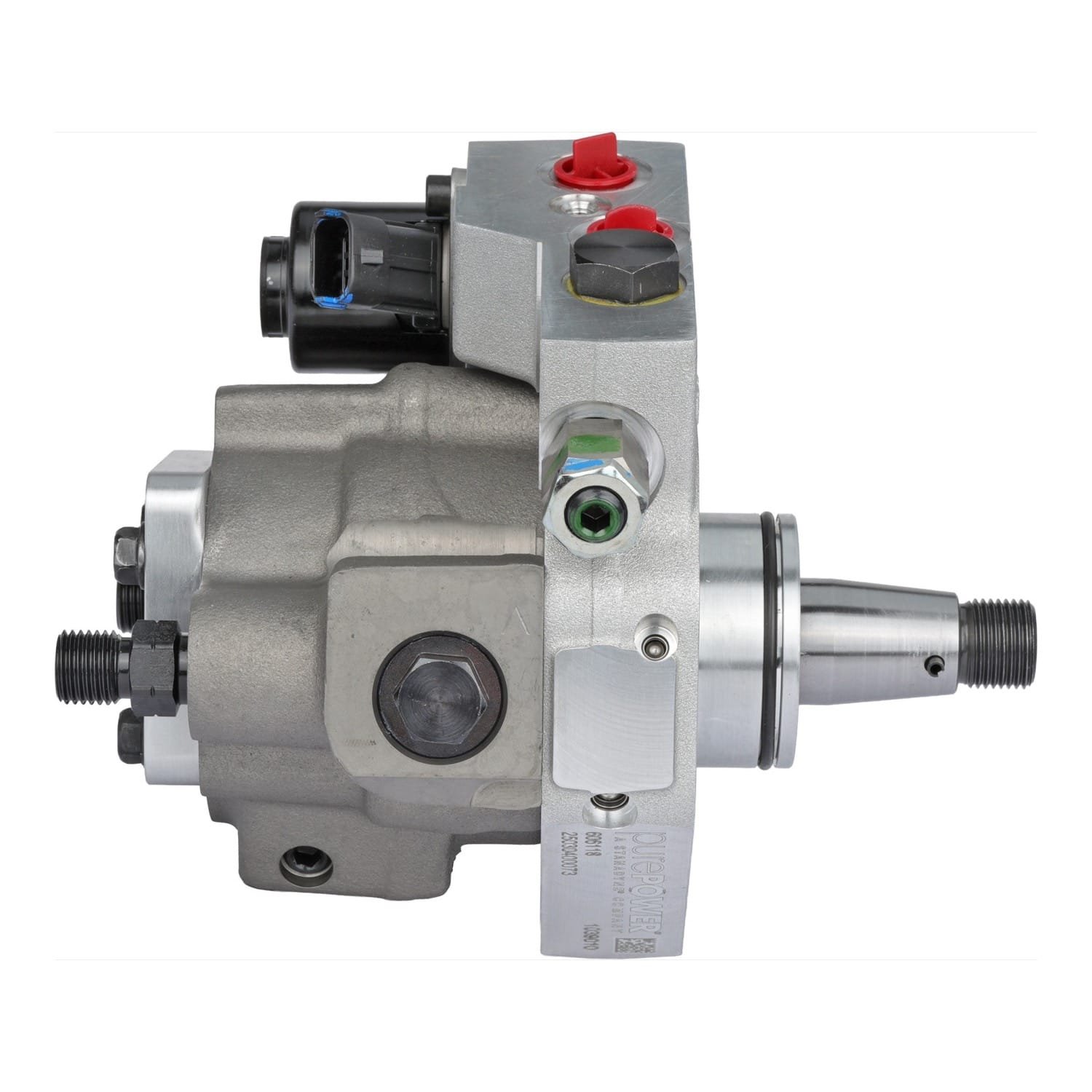

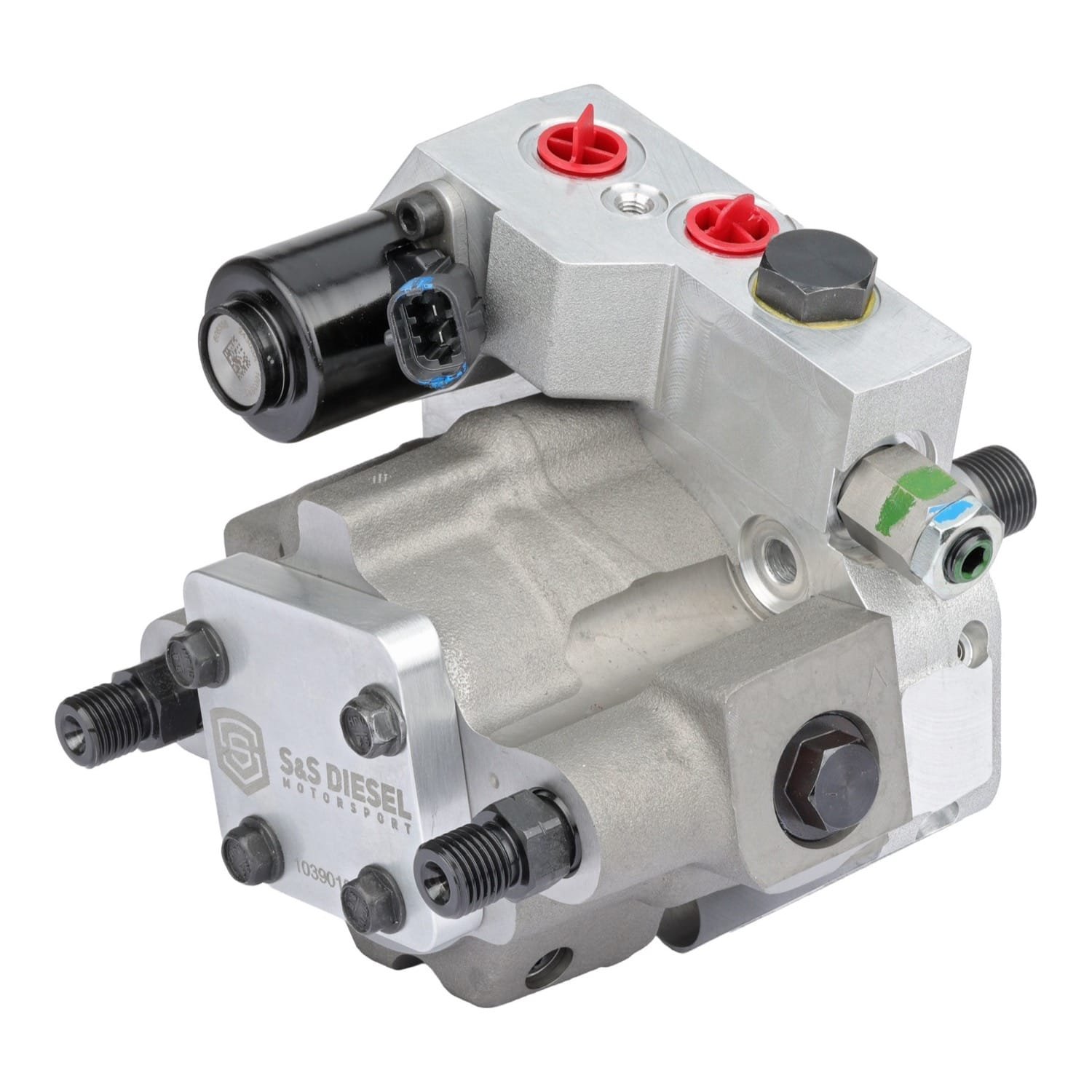

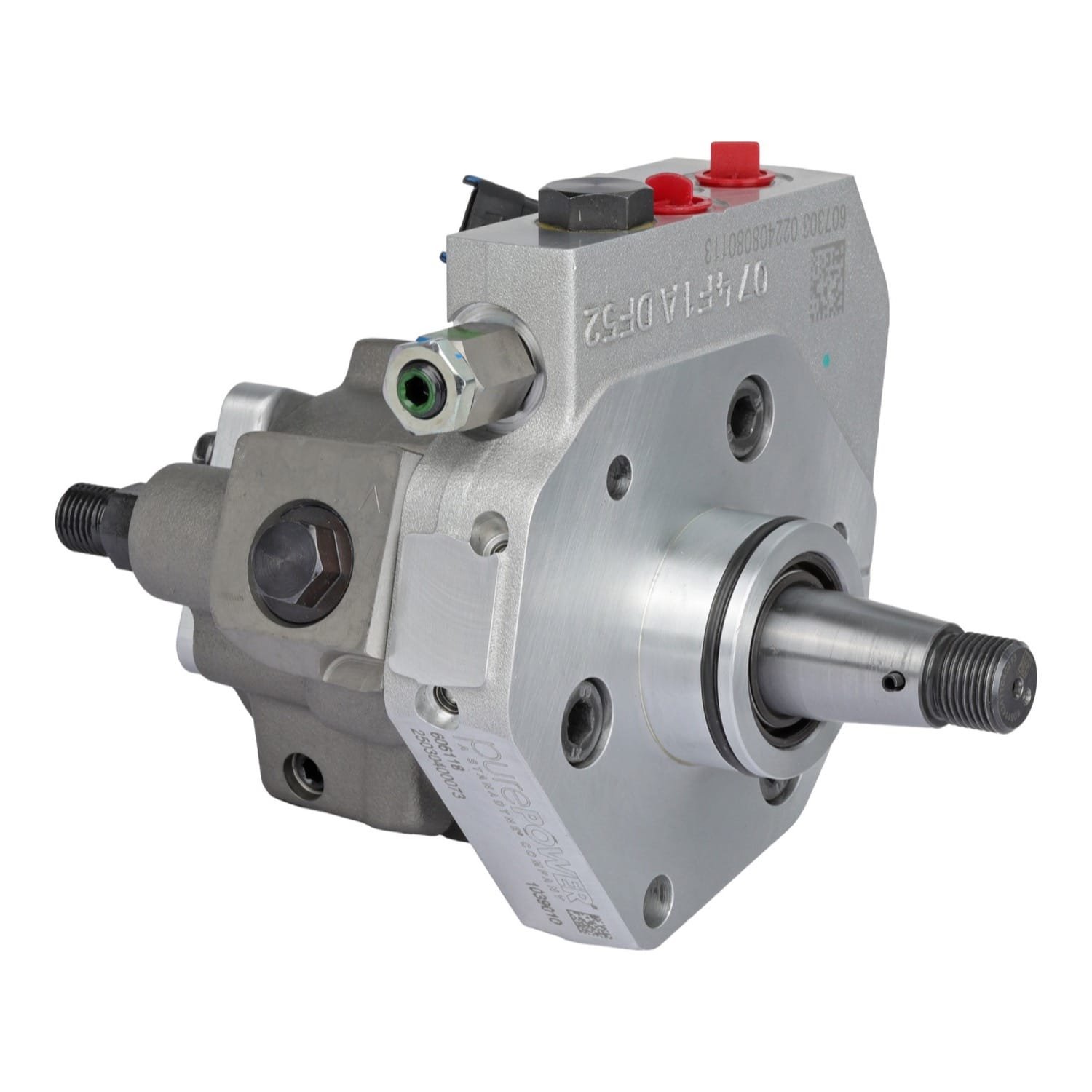

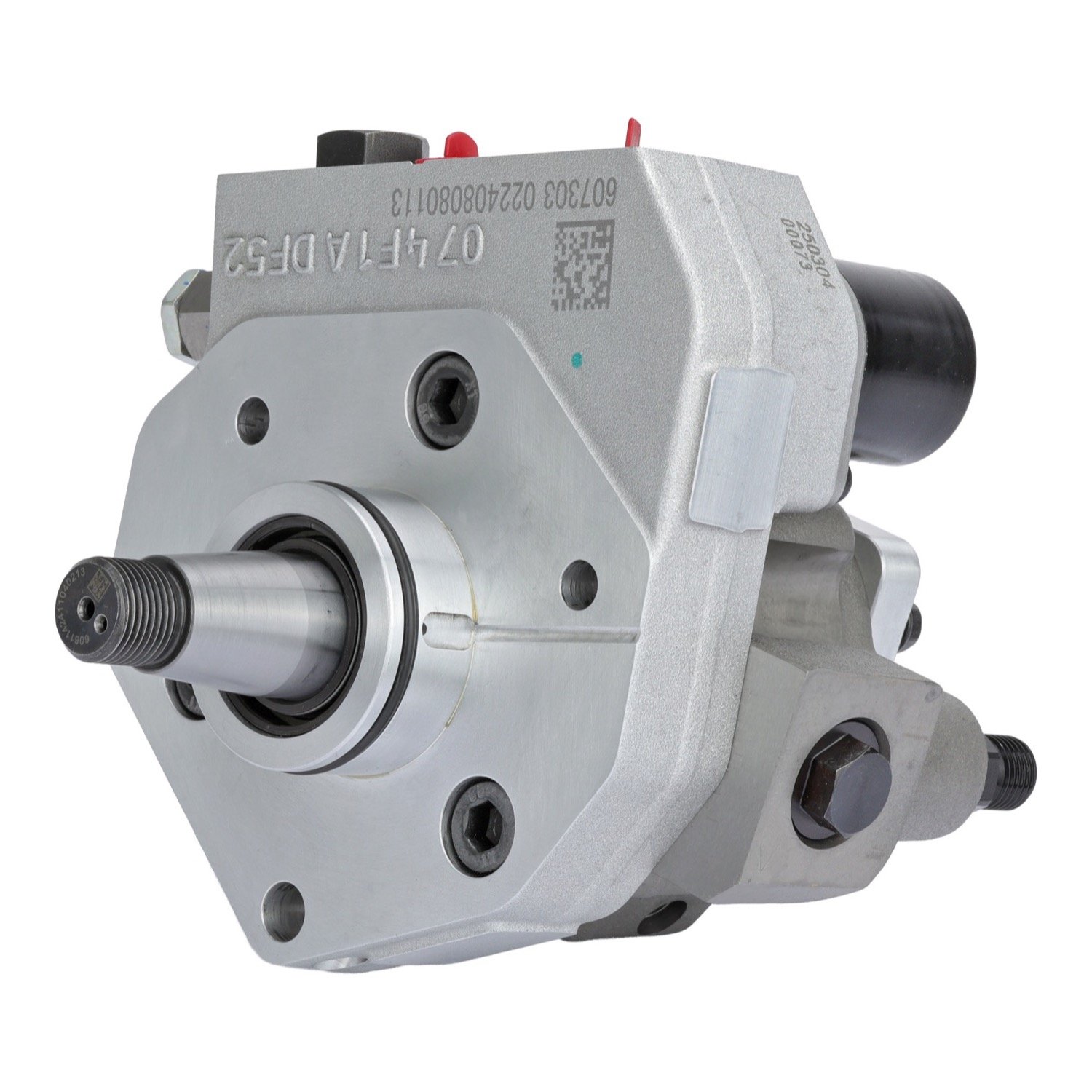

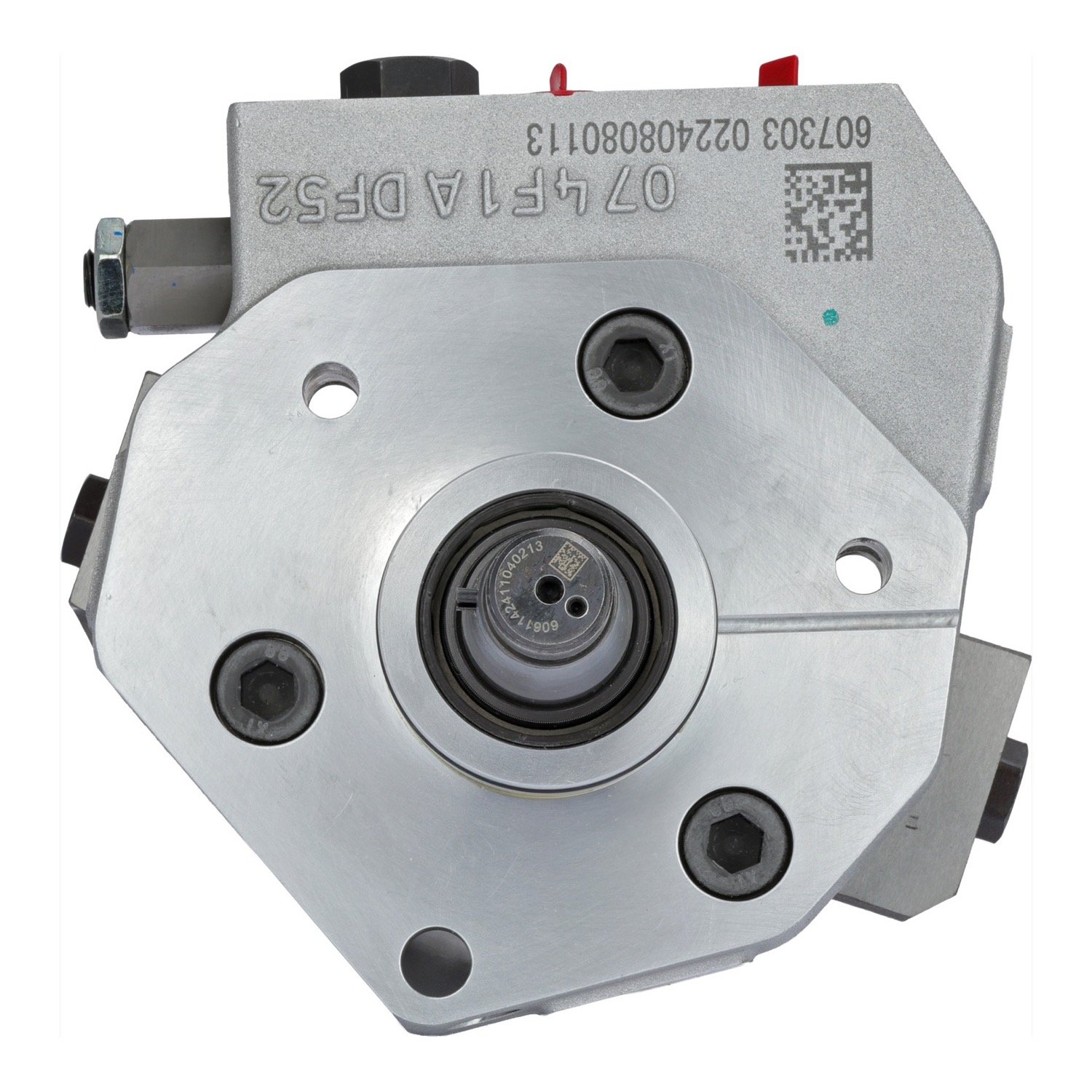

This is the S&S Diesel Motorsport CP4 to DCR pump conversion kit, part number 6.7F-DCR-1. It removes the factory Bosch CP4.2 high-pressure pump on the Ford 6.7L Power Stroke and installs a new S&S two-piston DCR pump, with new pump-to-rail high-pressure lines, a new low-pressure supply and return line assembly, an engine adapter plate and mounting hardware. S&S lists it for 2011 to 2026 Ford trucks with the 6.7L Power Stroke, from the F-250 Super Duty up to the F-650 and F-750 trucks that use this engine.

Owners and fleets fit it to get away from the CP4.2, which can fail and send metal through the whole high-pressure system. The DCR pump displaces 1,250 mm3 per revolution, about 25% more than the CP4.2, and S&S states it needs no ECU calibration or tuning. The kit carries CARB EO D-756-7 and SEMA certificate SC-SDM01-0034. If the CP4 has already failed and shed metal, this kit does not clean the system: the rails, lines, injectors and tank still need to be inspected and cleaned or replaced.

Specifications

Fits / Applications

• Ford F-250 and F-350 Super Duty with the 6.7L Power Stroke, 2011 to 2026
• Ford F-450 and F-550 Super Duty with the 6.7L Power Stroke, 2011 to 2026
• Ford F-650 and F-750 with the 6.7L Power Stroke, within S&S’s 2011 to 2026 range

Follow the S&S instructions step by step. The pump must be timed: roll the engine until the single mark on the camshaft gear is at 12 o’clock, set the DCR roll pin at 12 o’clock, and refit the OEM pump gear with its double marks straddling the cam gear mark (S&S says either Ford gear width works). The OEM pump gear, rail-to-rail crossover line, fuel sensors and metal line bracket are reused. On 2011 to 2016 trucks, fit a new vacuum pump gasket (S&S lists Ford BC3Z-2A572-A, Mahle B32630 or S&S 6.7F-VAC-GASKET). S&S recommends new engine and chassis fuel filters. Before the first start, prime the system by cycling the key on for 30 seconds and off, five times, then check every fitting for leaks. Ford fan tools 205-036 and 303-214 (or a 47 mm fan wrench) are needed, plus a 5/16 in fuel line disconnect tool on 2017 and newer trucks.

Part Numbers & Cross Reference

S&S Diesel Motorsport 6.7F-DCR-1  ·  CARB EO D-756-7  ·  SEMA certificate SC-SDM01-0034  ·  S&S vacuum pump gasket (2011 to 2016, sold separately) 6.7F-VAC-GASKET

Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.

Frequently Asked Questions

Which Ford trucks does the S&S 6.7F-DCR-1 kit fit?

S&S lists it for 2011 to 2026 Ford trucks with the 6.7L Power Stroke, from the F-250 Super Duty up to the F-650 and F-750 that use this engine. Call 530-668-0818 with the VIN or model year and we confirm the match at no charge before anything ships.

What is in the 6.7F-DCR-1 kit, and what is not included?

The kit has the S&S DCR pump, both pump-to-rail high-pressure lines, the low-pressure supply and return line assembly, the engine adapter plate with hardware and the pump tail support bracket. Fuel filters and the vacuum pump gasket (S&S 6.7F-VAC-GASKET, called for on 2011 to 2016 trucks) are not in the kit.

Does the 6.7F-DCR-1 need a tune, and does it carry a CARB EO?

S&S states the kit needs no ECU calibration or tuning. It carries CARB EO D-756-7, and S&S’s instructions say that EO covers 2011 to 2023 model years only.

Is the 6.7F-DCR-1 kit enough on its own if the CP4.2 has already failed?

No. If the CP4 has already failed and shed metal, this kit does not clean the system. The rails, lines, injectors and tank still need to be inspected and cleaned or replaced.
