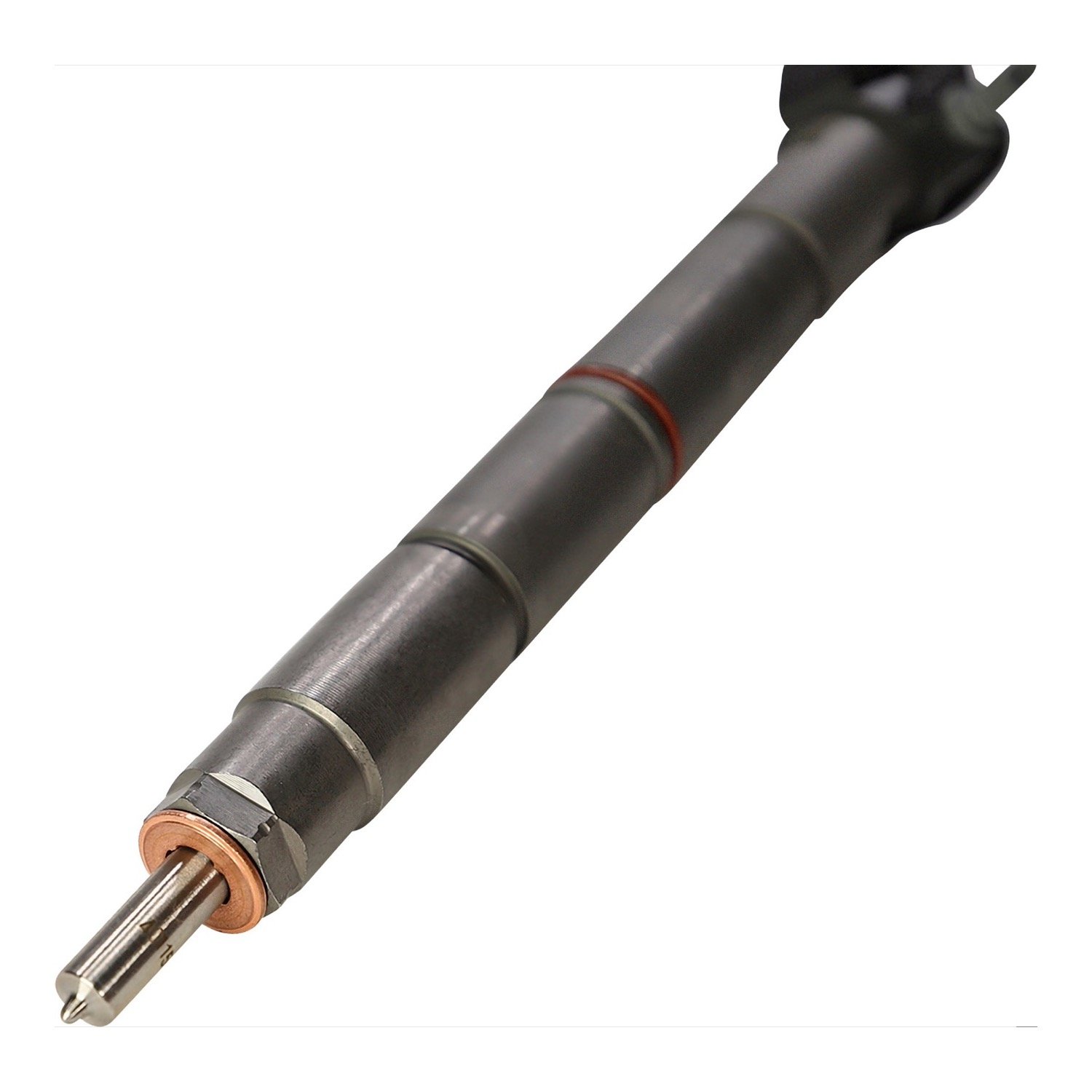

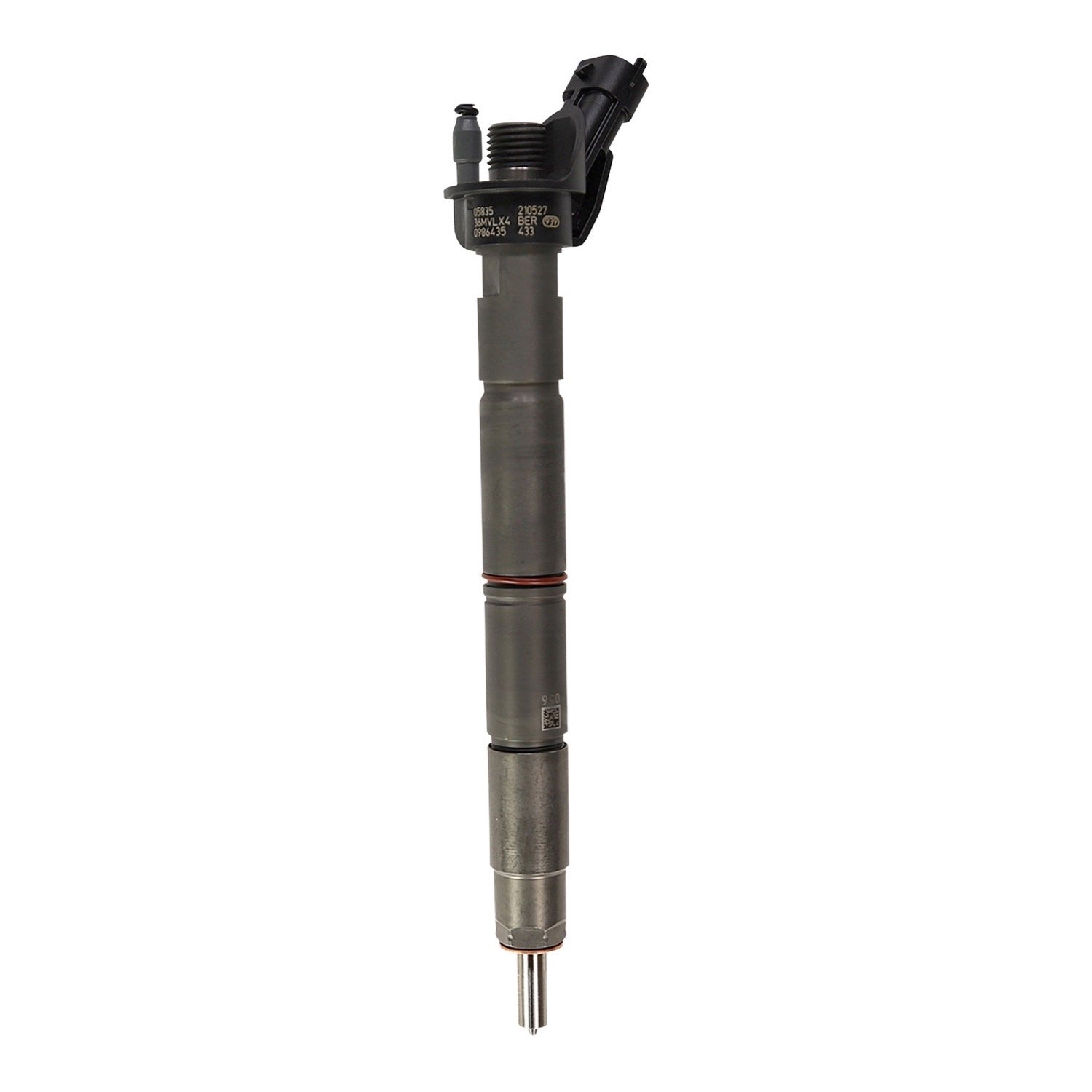

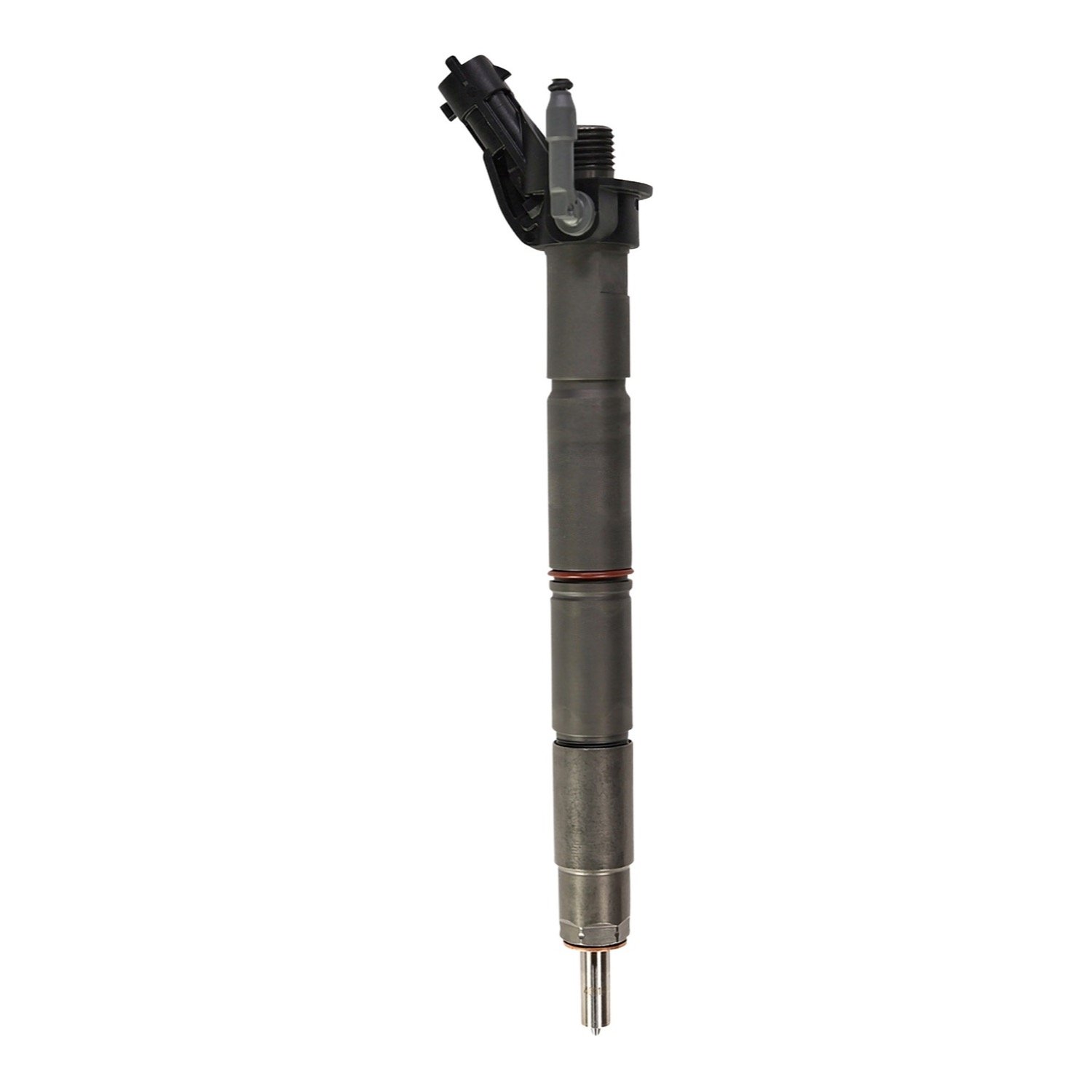

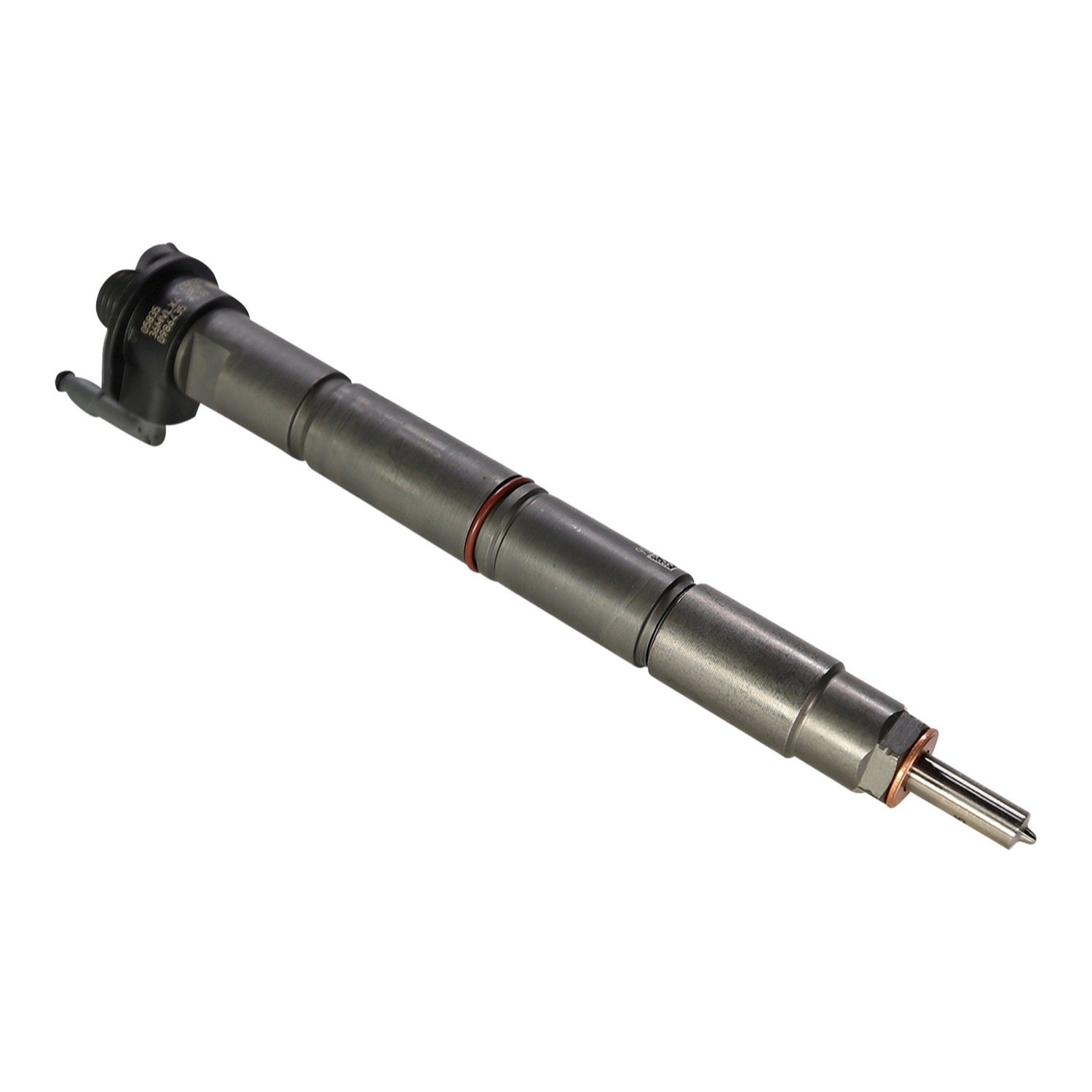

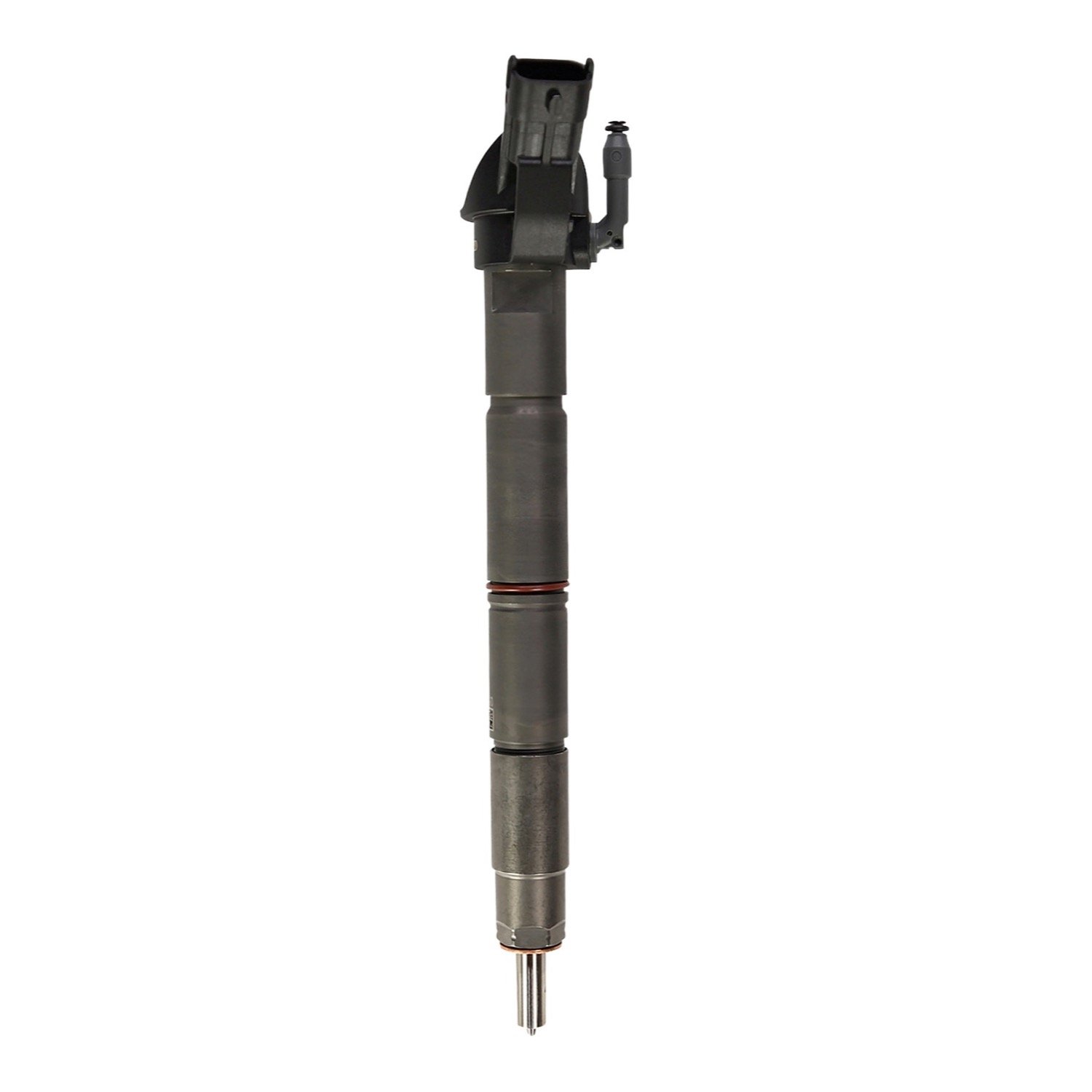

Bosch 0986435433 is a Bosch remanufactured piezo common-rail injector for the Ford 6.7L Power Stroke. Bosch supplies the factory injection system on this engine and remanufactures these injectors to its original-equipment test specs. It fits 2015-2019 F-250, F-350 and F-450 Super Duty pickups, and 2017-2019 F-350, F-450 and F-550 Super Duty chassis cabs. It is also listed for 2017-2019 F-650 and F-750 trucks with the 6.7L. The engine takes eight injectors, and this one Bosch number covers all eight cylinders.

Common reasons to replace one: hard starting, white smoke, rough running or misfire codes. Most 6.7L injector failures trace back to fuel: water, dirt, or metal from a failed CP4 high-pressure pump. If the pump has failed, plan on cleaning or replacing the whole fuel system, because debris left behind can ruin new injectors. Watch the split: 2015-2016 chassis cabs and all 2011-2014 trucks take Bosch 0986435415 instead.

Specifications

Fits / Applications

• 2015-2019 Ford F-250 Super Duty pickup, 6.7L Power Stroke
• 2015-2019 Ford F-350 Super Duty pickup, 6.7L Power Stroke
• 2015-2019 Ford F-450 Super Duty pickup, 6.7L Power Stroke
• 2017-2019 Ford F-350 Super Duty chassis cab, 6.7L Power Stroke
• 2017-2019 Ford F-450 Super Duty chassis cab, 6.7L Power Stroke
• 2017-2019 Ford F-550 Super Duty chassis cab, 6.7L Power Stroke
• 2017-2019 Ford F-650 and F-750 with the 6.7L Power Stroke

Program each injector’s IQA code into the PCM for the cylinder it goes in, using Ford’s diagnostic software or a scan tool that can write injector codes. The high-pressure feed line and hold-down bolt are not included. The lines are cylinder-specific and sold in two groups (cylinders 1, 2, 7, 8 and 3, 4, 5, 6). Use a new nozzle washer and O-ring on every injector, keep all fuel openings capped, and start with new fuel filters. If the CP4 pump has failed, clean or replace the full fuel system before the injectors go in.

Part Numbers & Cross Reference

Bosch new equivalent 0445117094  ·  Bosch new (earlier number) 0445117043  ·  Bosch new (earlier number) 0445117040  ·  Ford injector number (on part) FC3Q-9K546-AA  ·  Ford service kit FC3Z-9H529-E  ·  Ford service kit FC3Z-9H529-F  ·  Ford service kit (earlier) FC3Z-9H529-A  ·  Ford service kit (earlier) FC3Z-9H529-B  ·  Ford service kit (earlier) FC3Z-9H529-C  ·  Ford service kit (earlier) FC3Z-9H529-D  ·  Motorcraft CN-6019  ·  Motorcraft CN-6020  ·  Motorcraft CN-6027  ·  Motorcraft CN-6028  ·  Motorcraft CN-6037  ·  Motorcraft CN-6038  ·  Ford reman service kit KC3Z-9H529-CRM  ·  Ford reman service kit KC3Z-9H529-DRM  ·  Motorcraft reman CN6050RM

Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.

Frequently Asked Questions

Which Ford trucks take the Bosch 0986435433?

2015 to 2019 F-250, F-350 and F-450 Super Duty pickups and 2017 to 2019 F-350, F-450 and F-550 Super Duty chassis cabs with the 6.7L Power Stroke. It is also listed for 2017 to 2019 F-650 and F-750 trucks with the 6.7L.

Will the 0986435433 fit a 2015 or 2016 chassis cab?

No. 2015 and 2016 chassis cabs take Bosch 0986435415, like all 2011 to 2014 trucks, and 2020 and newer 6.7L trucks use a different injector. Call 530-668-0818 with your VIN, or the model year and whether it is a pickup or a chassis cab, and we will confirm the match at no charge.

What comes with the 0986435433, and what is not included?

One injector with a nozzle sealing washer and O-ring. The high-pressure feed line and hold-down bolt are not included. Each injector’s IQA code has to be programmed into the PCM for the cylinder it goes in.

Is the 0986435433 remanufactured, and how does the core work?

Yes, it is a Bosch remanufactured piezo injector; the Bosch new equivalent is 0445117094 and the Ford service kits are FC3Z-9H529-E and FC3Z-9H529-F. Each injector carries a refundable core charge, added at checkout and refunded when we receive the rebuildable core.
