This is the new Bosch high-pressure fuel rail for the right bank (passenger side) of the Ford 6.7L Power Stroke V8. It fits 2011 through 2019 F-250, F-350, F-450 and F-550 Super Duty trucks and replaces Ford BC3Z-9D280-A. Bosch is the original maker of this rail. The factory Ford rail label carries the same Bosch number, 0 445 218 015, next to Ford’s engineering number BC3Q-9D280-AC.

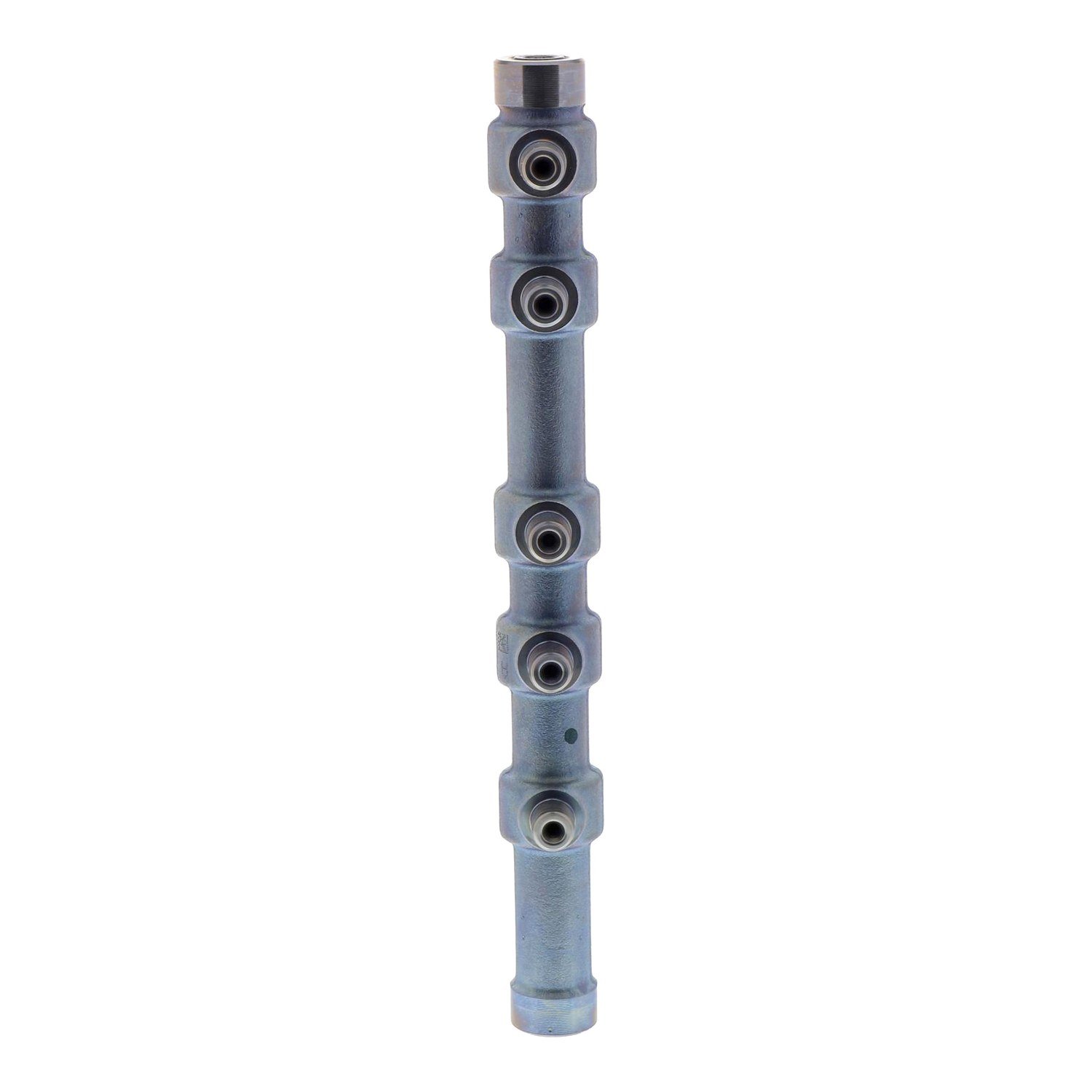

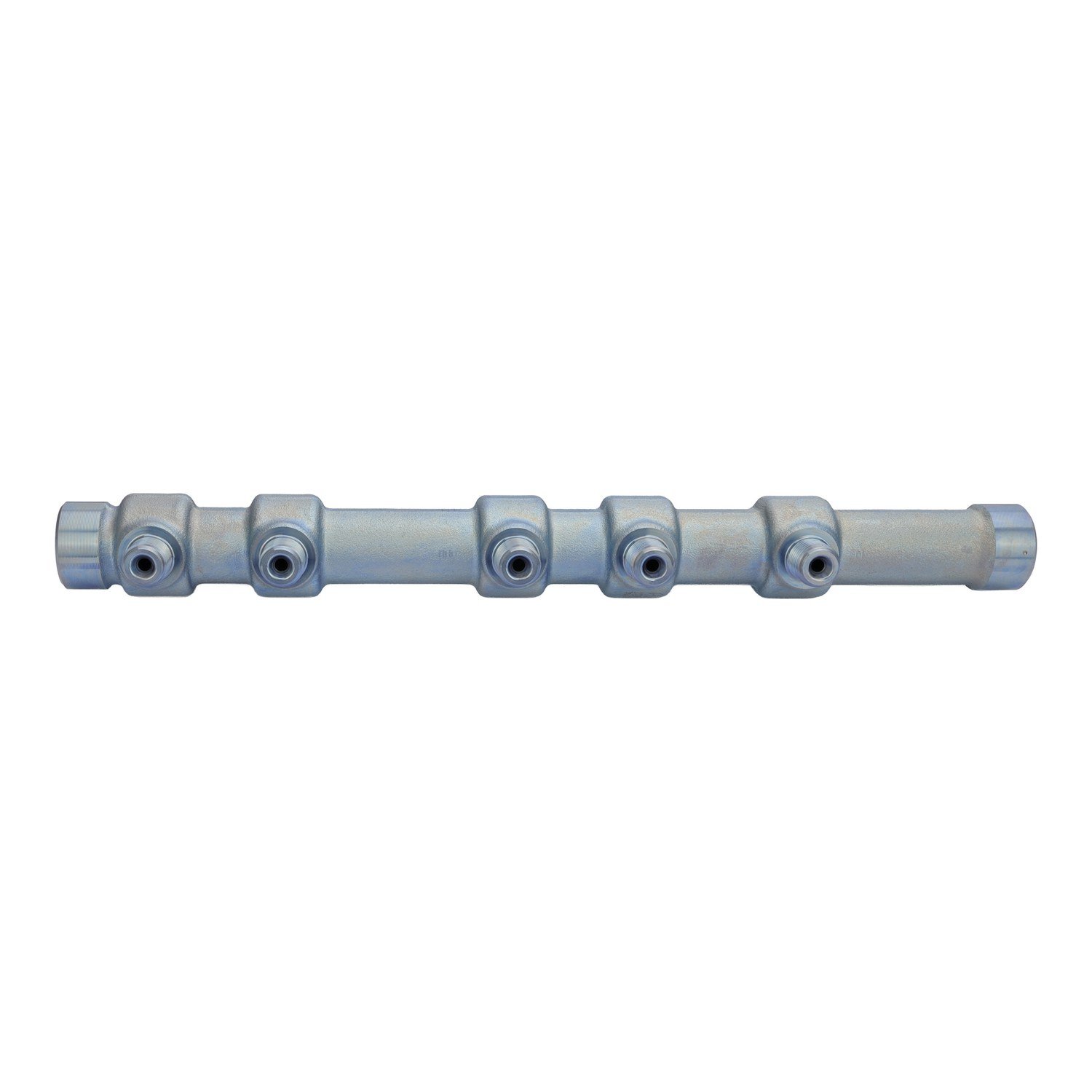

The right rail is a bare rail with five threaded line ports. It has no sensor and no valve. On this engine the rail pressure sensor and the fuel pressure regulator sit on the left rail, which is sold separately as Bosch 0445218017. Rails are commonly replaced as a pair during a fuel system contamination repair after a high-pressure pump failure, together with the injectors and lines.

Specifications

Fits / Applications

• 2011-2019 Ford F-250 Super Duty, 6.7L Power Stroke, right (passenger side) rail
• 2011-2019 Ford F-350 Super Duty, 6.7L Power Stroke, right (passenger side) rail
• 2011-2019 Ford F-450 Super Duty, 6.7L Power Stroke, right (passenger side) rail
• 2011-2019 Ford F-550 Super Duty, 6.7L Power Stroke, right (passenger side) rail

This rail only fits the right bank. Keep every port capped until the lines go on and keep dirt out of the system. If the rail is being replaced because the high-pressure pump failed, deal with the rest of the high-pressure side at the same time (left rail, injectors, lines), or leftover debris can damage the new parts. Use the Ford service procedure for line torque and for which lines may be reused, then check for leaks before the truck goes back on the road.

Part Numbers & Cross Reference

Bosch 0445218015 (0 445 218 015)  ·  Ford BC3Z-9D280-A (BC3Z9D280A)  ·  Ford engineering number on the rail BC3Q-9D280-AC  ·  Left rail for the same engine Bosch 0445218017, Ford BC3Z-9D280-B

Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.

Frequently Asked Questions

Does Bosch 0445218015 come with a rail pressure sensor?

No. The right rail is a bare rail with five line ports. On the 6.7L Power Stroke the rail pressure sensor and the fuel pressure regulator are on the left rail, Bosch 0445218017.

What Ford number does Bosch 0445218015 replace?

It replaces Ford BC3Z-9D280-A, the right (passenger side) fuel rail for the 6.7L Power Stroke. If your old rail still has its label, look for 0 445 218 015 or the Ford engineering number BC3Q-9D280-AC.

Will this rail fit a 2020 or newer 6.7L Power Stroke?

We list it for 2011 through 2019 only. Ford’s catalog ends this rail at 2019 for F-250, F-350, F-450 and F-550 Super Duty and shows a different right rail, LC3Z-9D280-C, for 2020 and newer trucks.

Is it new or remanufactured, and how do I confirm it is the right rail?

It is a new Bosch rail, so there is no core to send back. The right rail is the shorter one with five line ports and no sensor. If you are not sure, call 530-668-0818 with your VIN.
