1999-2003 International DT466E & DT466 HEUI Fuel Injector | Alliant Power AP63811BI New (BI Code)

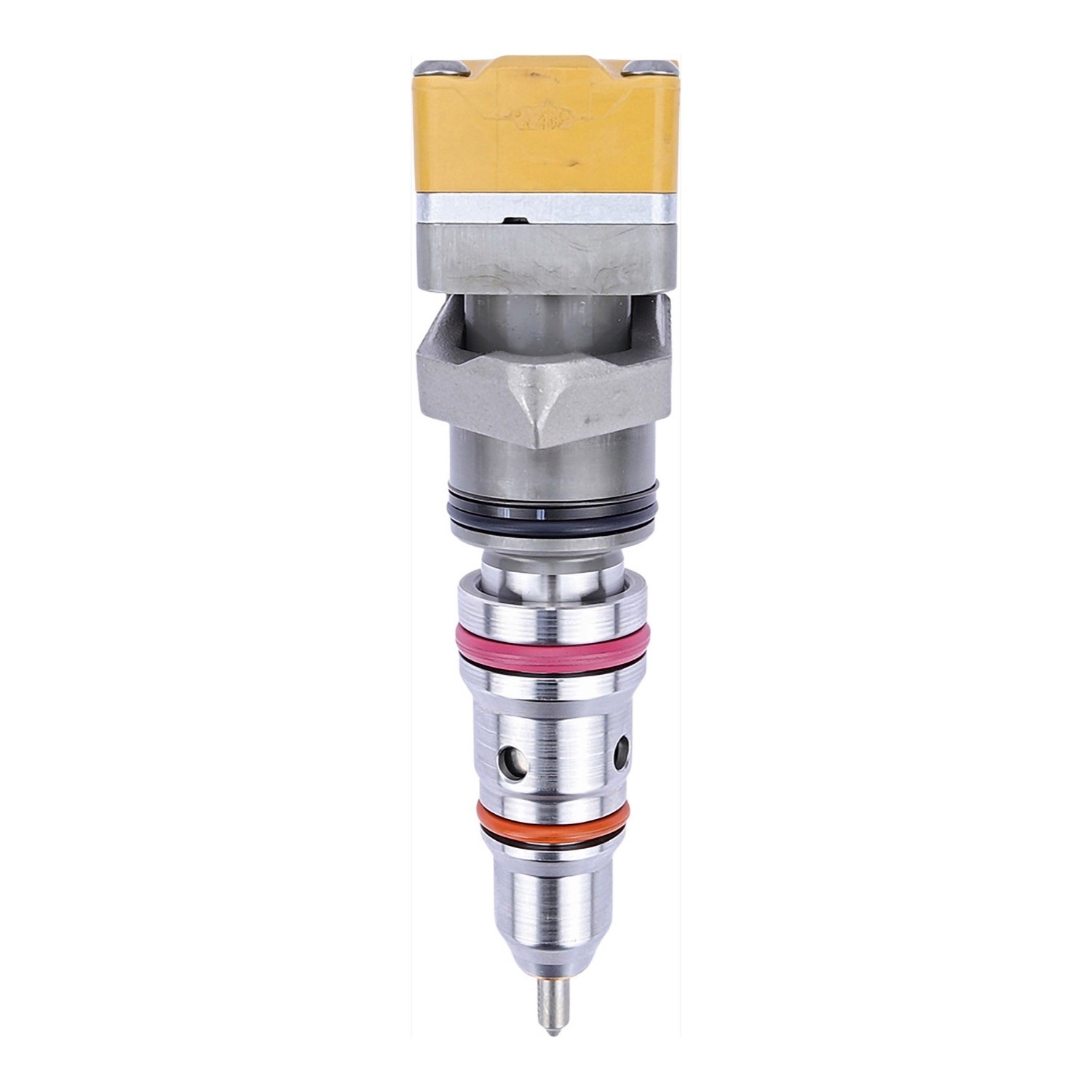

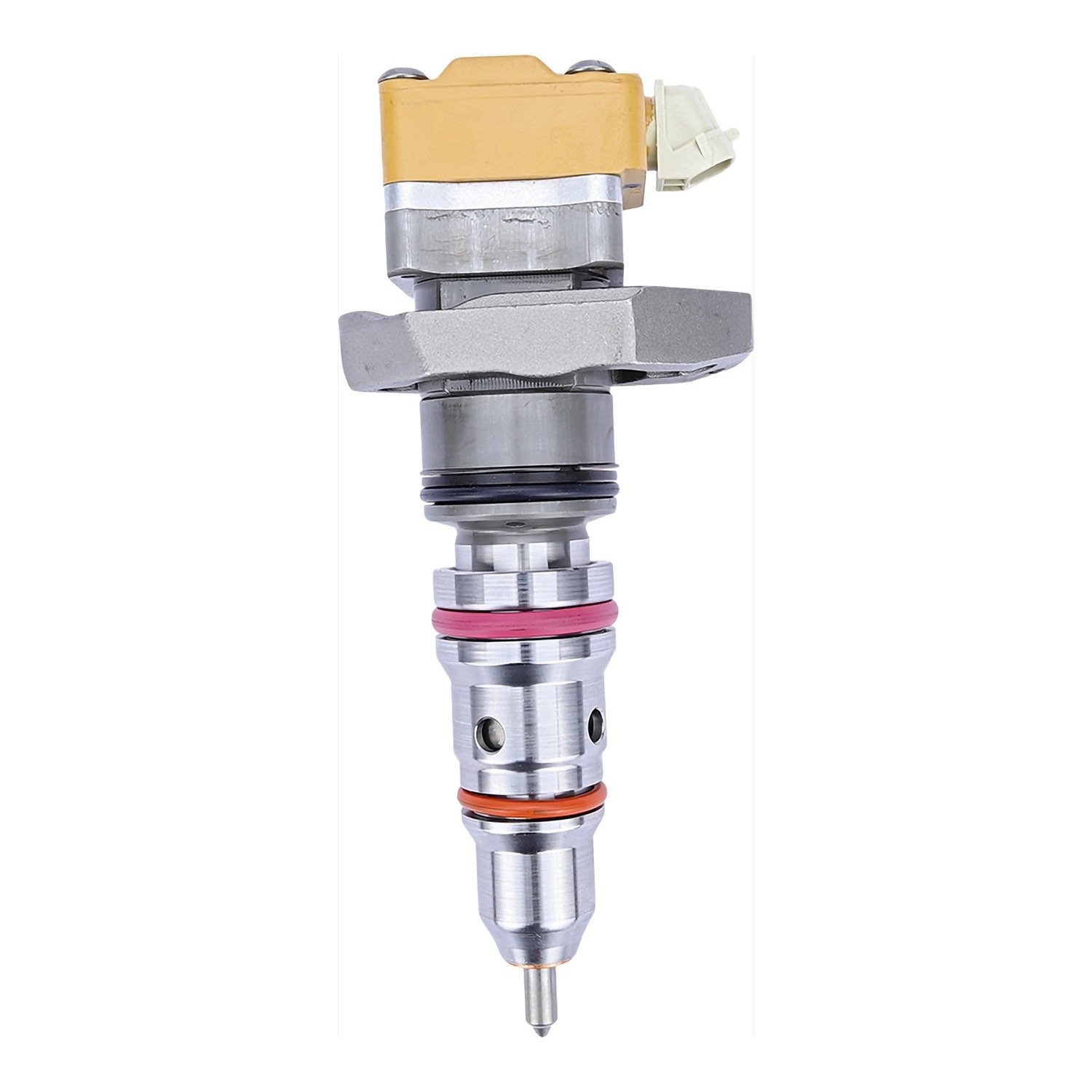

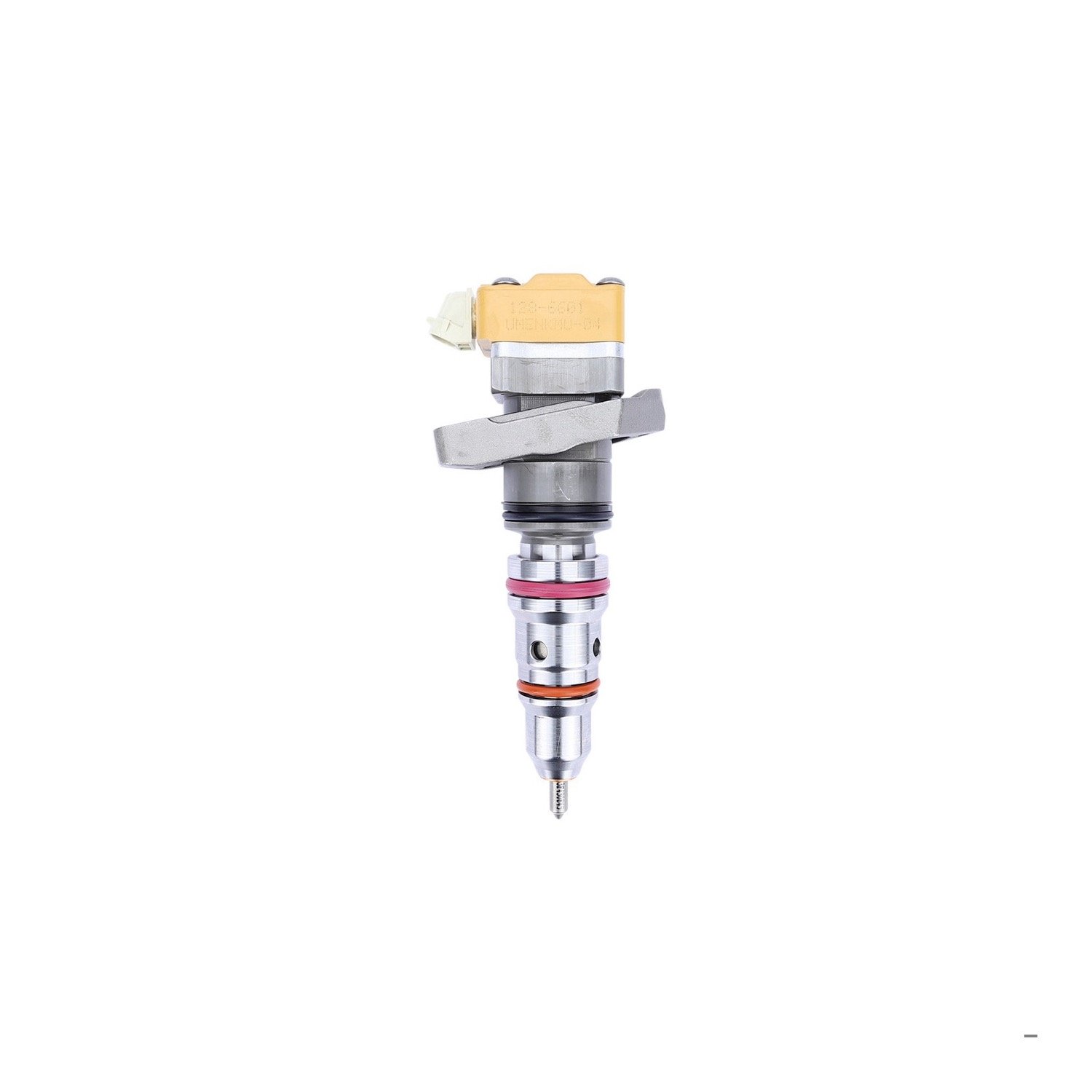

This is the Alliant Power AP63811BI, a new HEUI fuel injector, not a rebuild, for BI code engines: the International DT466 of 2000 to 2003 at 175 to 250 hp and the 1999 DT466E at 250 hp, engine serial numbers 1,125,228 through 1,999,999. The same injector is used on the Perkins 1300 Series EDi 7.6L of 1999 to 2003. It replaces Navistar 1830559C91, 1830560C2, 1830561C92, 1830562C2, 1830740C92, 1830741C92, 2593594C91 and 2593595C91, and it comes with new seals plus both a stainless steel and a copper chamber gasket.
BI came in at engine serial 1,125,228 as the 250 hp injector on the 1999 DT466E. From the 2000 model year it covers the DT466 at 175 to 250 hp through 2003. Hard starting, a miss that does not clear with a new fuel filter, white smoke on a cold start, low power under load or a cylinder contribution fault all point at a tired injector. HEUI injectors are fired by engine oil pressure, so low or dirty oil and a weak high-pressure oil system cause the same complaints. Rule those out before you replace a set. The engine takes six injectors.
Confirm Fitment Before You Order
BI starts at engine serial 1,125,228 on the 250 hp DT466E. 1999 engines at 175 to 230 hp, up to serial 1,194,038, are cataloged under BE (AP63809BE), so do not go by serial number alone on a 1999 engine. The DT466E Transit takes BP (AP63814BP), and the 8.7L DT530 and HT530 take BN (AP63813BN). Go by the two letters, not the digits: Delphi numbers its BI injector EX63813BI and its BE injector EX63811BE. Send us your engine serial number, the rating and the code on your old injector. Call 530-668-0818 and we will confirm the exact match at no charge before anything ships.
Specifications
| Part number | AP63811BI |
| Brand | Alliant Power |
| Condition | New, genuine, in original packaging |
| Warranty | Manufacturer’s own warranty applies. Call us and we handle the claim. |
| Type | HEUI fuel injector, fired by engine oil pressure |
| Injector code | BI |
| Engines | International DT466E and DT466 7.6L, Perkins 1300 Series EDi 7.6L |
| Model years | 1999 to 2003 |
| Rating | 175 to 250 hp on the 2000 to 2003 DT466, 250 hp on the 1999 DT466E |
| Engine serial numbers | 1,125,228 through 1,999,999 |
| Injectors per engine | 6 |
| Included | New seals, stainless steel and copper chamber gaskets |
| Core charge | Refundable in full when we receive your rebuildable core |
| Shipping weight | 4 lb |
Fits / Applications
- International DT466, 2000 to 2003, 175 to 250 hp, engine serial up to 1,999,999
- International DT466E, 1999, 250 hp, from engine serial 1,125,228
- Perkins 1300 Series EDi 7.6L, 1999 to 2003
- BI code injectors only. Check the code on your old injector.
- Six injectors per engine
HEUI injectors are fired by engine oil pressure, so change the engine oil and oil filter when you fit them. Each injector comes with a stainless steel and a copper chamber gasket. If you are not sure which one your engine takes, call us with the engine serial number.
Part Numbers & Cross Reference
Alliant Power AP63811BI · Navistar 1830559C91 · Navistar 1830560C2 · Navistar 1830561C92 · Navistar 1830562C2 · Navistar 1830740C92 · Navistar 1830741C92 · Navistar 1830741C93 · Navistar 2593594C91 · Navistar 2593595C91 · Navistar 2593595C92 · Alliant Power remanufactured version AP63911BI · Delphi remanufactured EX63813BI
Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.
Frequently Asked Questions
Will the AP63811BI fit my 2001 DT466?
Yes, if the engine carries BI code injectors. BI covers the 2000 to 2003 DT466 at 175 to 250 hp. The DT466E Transit takes the BP code, AP63814BP, so check the code on your old injector or call 530-668-0818 with the engine serial number.
Does the AP63811BI fit a 1999 DT466E?
It fits the 250 hp engine from serial 1,125,228. 1999 engines at 175 to 230 hp, up to serial 1,194,038, are cataloged under the BE code, AP63809BE. Check the two-letter code on your old injector before you order.
What numbers does the AP63811BI replace?
Navistar 1830559C91, 1830560C2, 1830561C92, 1830562C2, 1830740C92, 1830741C92, 2593594C91 and 2593595C91. The remanufactured version of the same injector is Alliant Power AP63911BI.
Is the AP63811BI new or remanufactured, and is there a core?
It is a new injector, not a rebuild. A refundable core charge applies, and it comes back in full when we receive your rebuildable old injector.
