2011-2016 Ford 6.7L Power Stroke Cab & Chassis (Narrow Frame) Turbocharger | Garrett 854572-5001S New

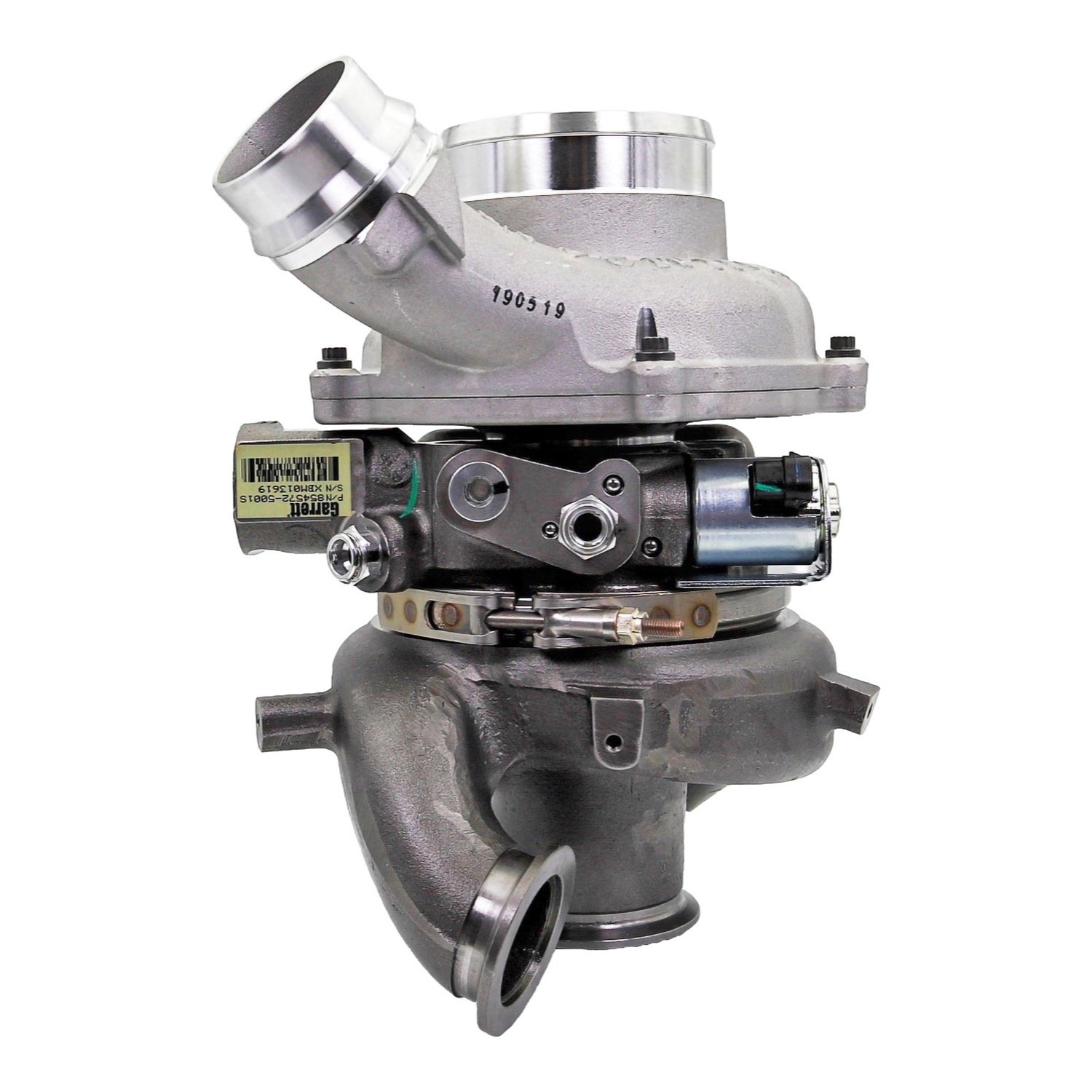

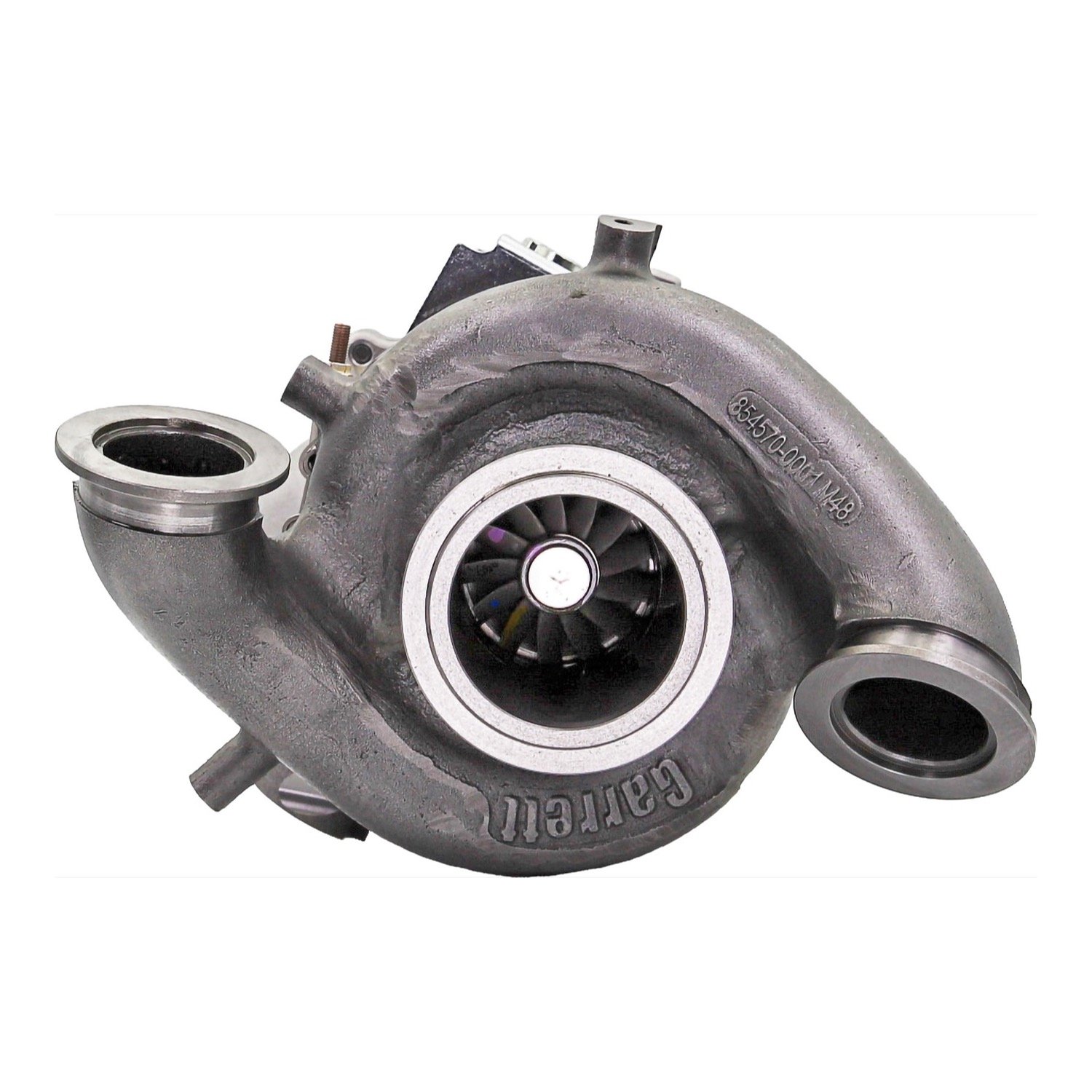

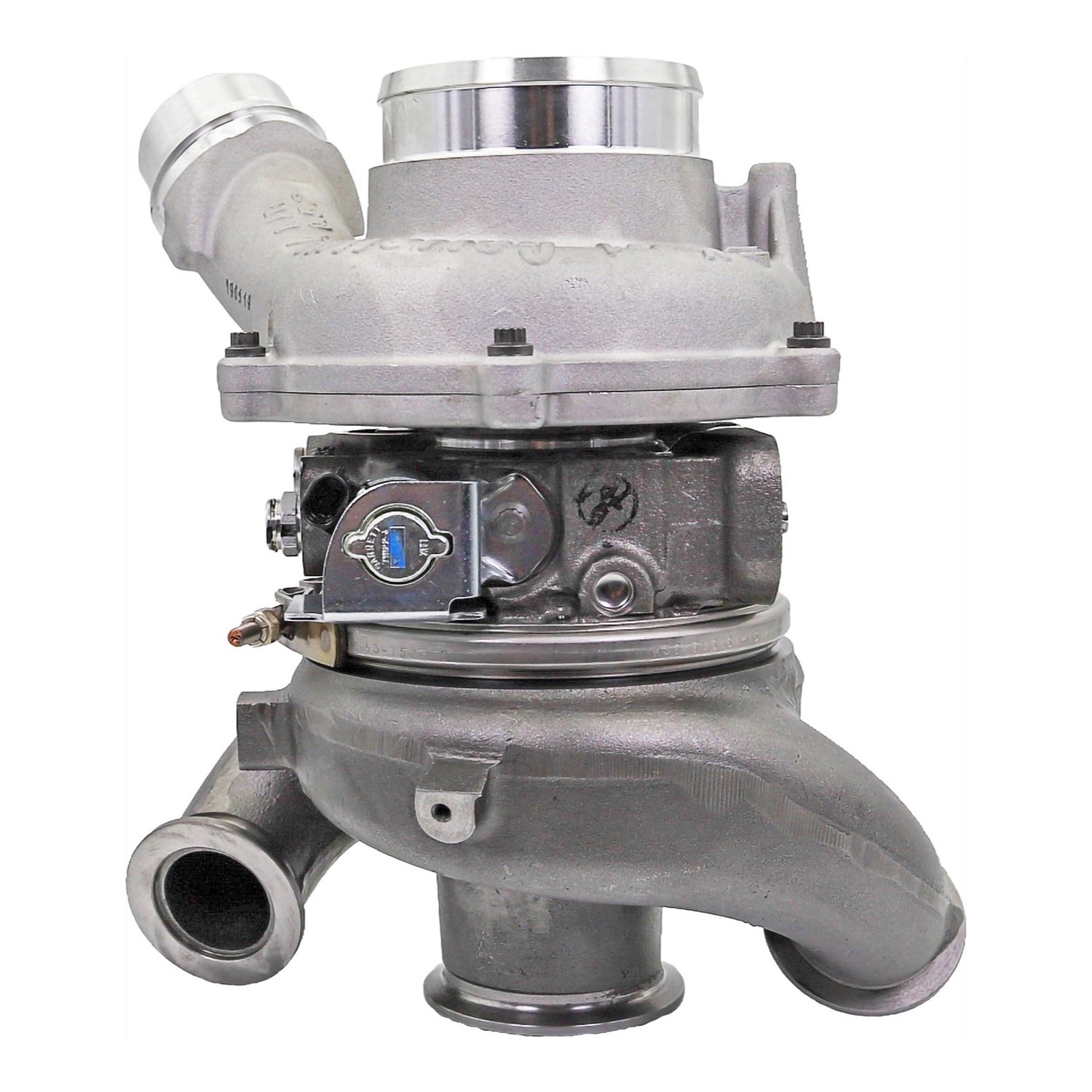

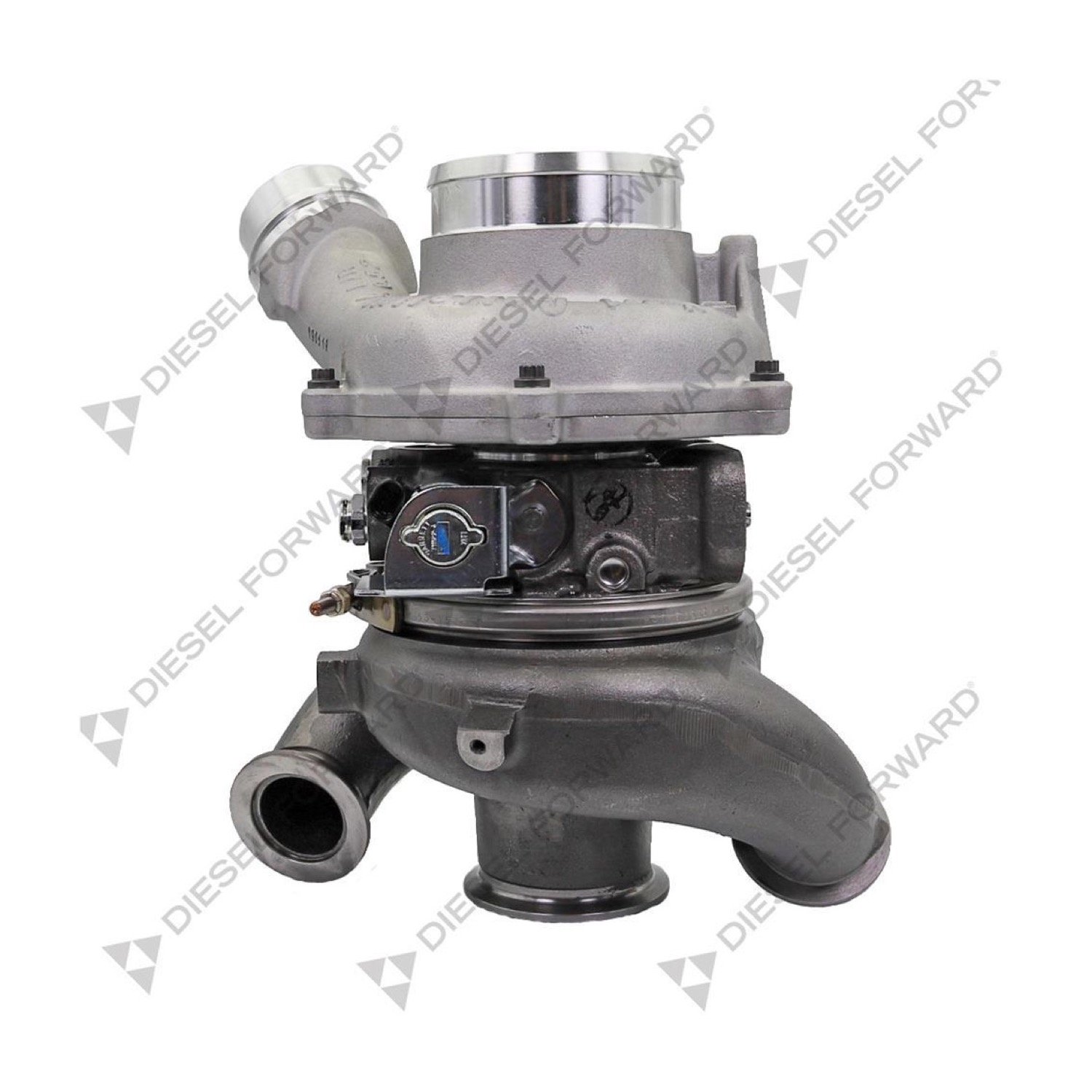

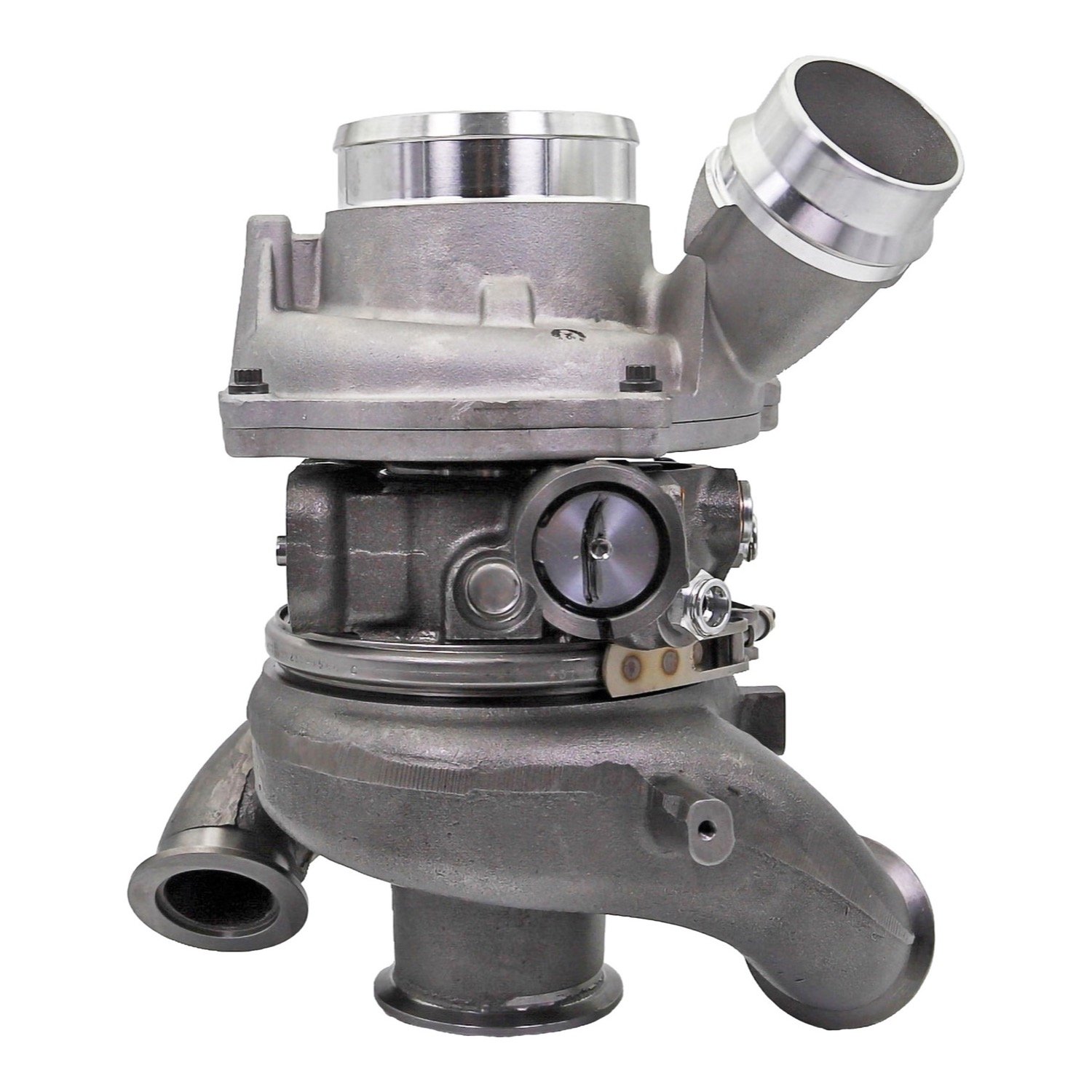

This is the Garrett 854572-5001S, a new turbocharger, not a rebuild. It is the stock variable geometry turbo for 2011 to 2016 Ford Super Duty cab and chassis trucks, the narrow frame F-350, F-450 and F-550, with the 6.7L Power Stroke. It replaces Ford BC3Z-6K682-B and crosses to Ford’s remanufactured number G2MZ-6K682-BRM. It does not fit pickups.
Work trucks put long hours and heavy loads on this turbo. It is replaced for shaft play, oil in the charge pipes, sticking vanes, noise under boost and low boost codes. Find the cause first: check the oil feed and drain, the intake for debris and the charge air cooler for oil and metal. Installation gaskets are not in the box.
Confirm Fitment Before You Order
The cab and chassis turbo and the pickup turbo are different parts and do not interchange. This one is for 2011 to 2016 cab and chassis trucks. Pickups from 2011 to 2014 take Garrett 851824-5001S, and 2017 to 2019 cab and chassis trucks take Garrett 888142. F-350 and F-450 owners: both came as a pickup and as a cab and chassis, so check your old turbo tag. This turbo replaces tags that start with 854572 or 795657. Send us your VIN and that number. Call 530-668-0818. We will confirm the exact match at no charge before anything ships.
Specifications
| Part number | 854572-5001S |
| Brand | Garrett |
| Condition | New, genuine, in original packaging |
| Warranty | Manufacturer’s own warranty applies. Call us and we handle the claim. |
| Type | Variable geometry turbocharger |
| Engine | Ford 6.7L Power Stroke V8 diesel |
| Model years | 2011 to 2016 |
| Trucks | F-350, F-450 and F-550 cab and chassis (narrow frame) |
| Does not fit | Pickup trucks |
| Not included | Installation gaskets |
| Shipping weight | 38 lb |
Fits / Applications
- 2011 to 2016 Ford F-350 Super Duty cab and chassis, 6.7L Power Stroke
- 2011 to 2016 Ford F-450 Super Duty cab and chassis, 6.7L Power Stroke
- 2011 to 2016 Ford F-550 Super Duty cab and chassis, 6.7L Power Stroke
- Not for pickups. 2011 to 2014 pickups take Garrett 851824-5001S.
- Not for 2017 and later cab and chassis trucks. Those take Garrett 888142.
Order the installation gasket kit separately. Change the engine oil and filter, check the oil feed and drain for restriction, and clean the charge air cooler and pipes of oil and debris from the old turbo. Prime the turbo with clean oil before first start.
Part Numbers & Cross Reference
Garrett 854572-5001S · Ford BC3Z-6K682-B · Ford remanufactured number G2MZ-6K682-BRM · Garrett, base number 854572-0001 · Garrett, older series 795657 · Garrett, older number 795657-9006 · Garrett remanufactured version 854572-9001S
Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.
Frequently Asked Questions
Will the 854572-5001S fit my F-350 pickup?
No. It is for cab and chassis trucks only. The 2011 to 2014 pickup takes Garrett 851824-5001S, Ford BC3Z-6K682-A.
What Ford number does the 854572-5001S replace?
Ford BC3Z-6K682-B. Ford’s remanufactured number for the same turbo is G2MZ-6K682-BRM. It also takes the place of the older Garrett 795657 series, and the Garrett remanufactured version is 854572-9001S.
How do I know my truck is a cab and chassis?
Cab and chassis trucks left the factory with bare frame rails for a service body, flatbed or dump bed, and use the narrow frame. If you are not sure, call 530-668-0818 with your VIN.
Is it new, and does it come with gaskets?
It is a new Garrett turbocharger, not a rebuild. Installation gaskets and hardware are not included, so order the install kit with it.
