2017-2019 Ford 6.7L Power Stroke Pickup AVNT3788 Turbocharger | Garrett 888143-9001S Remanufactured

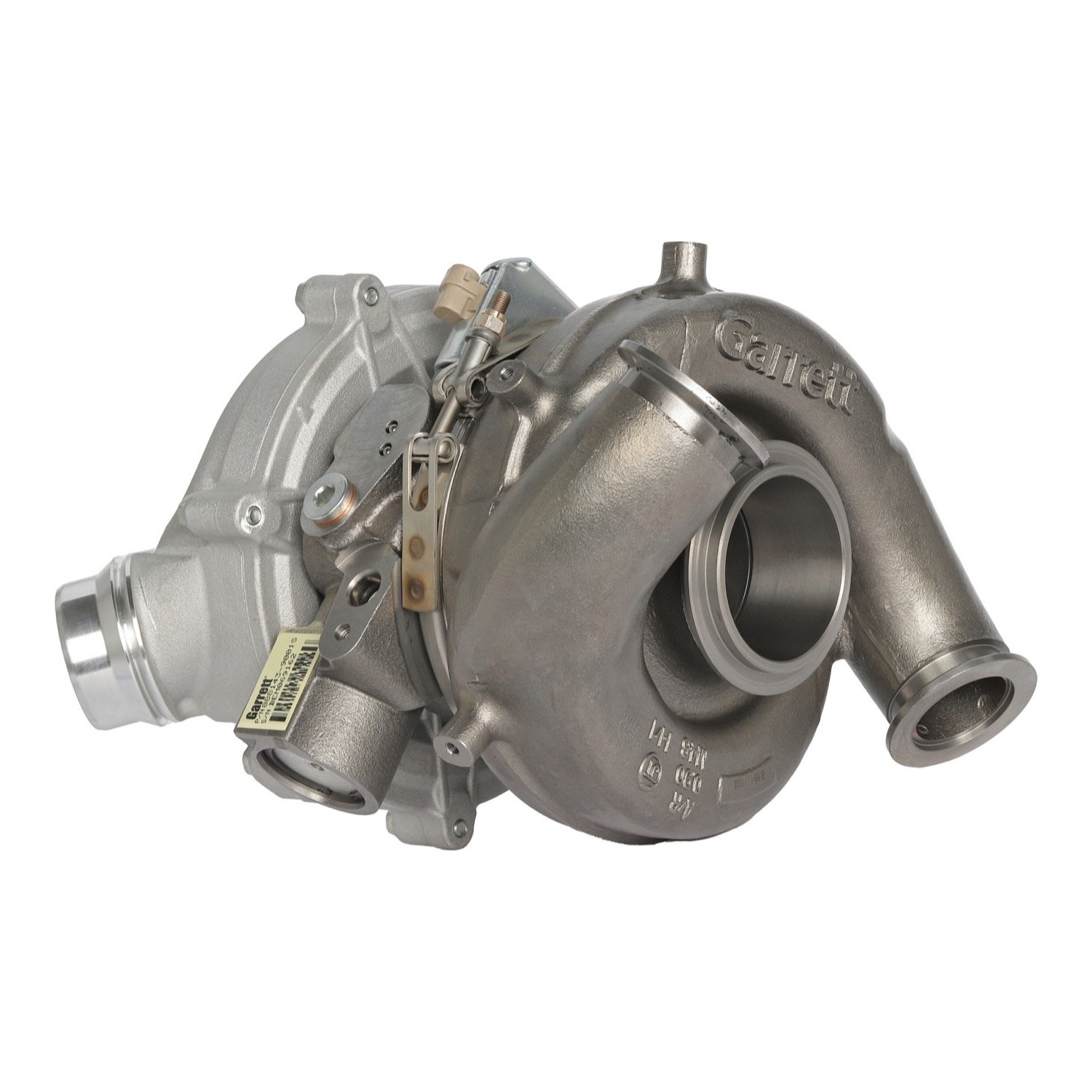

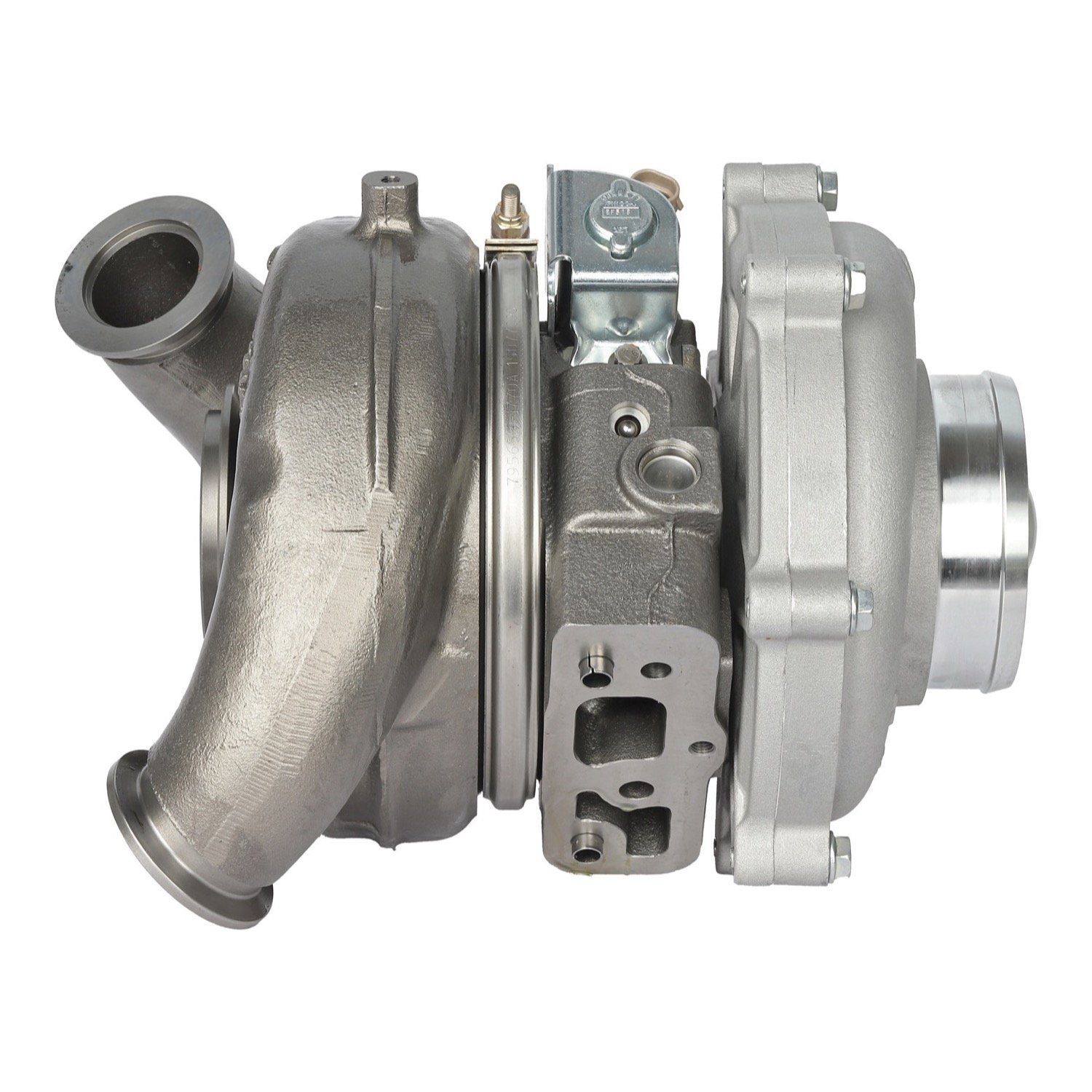

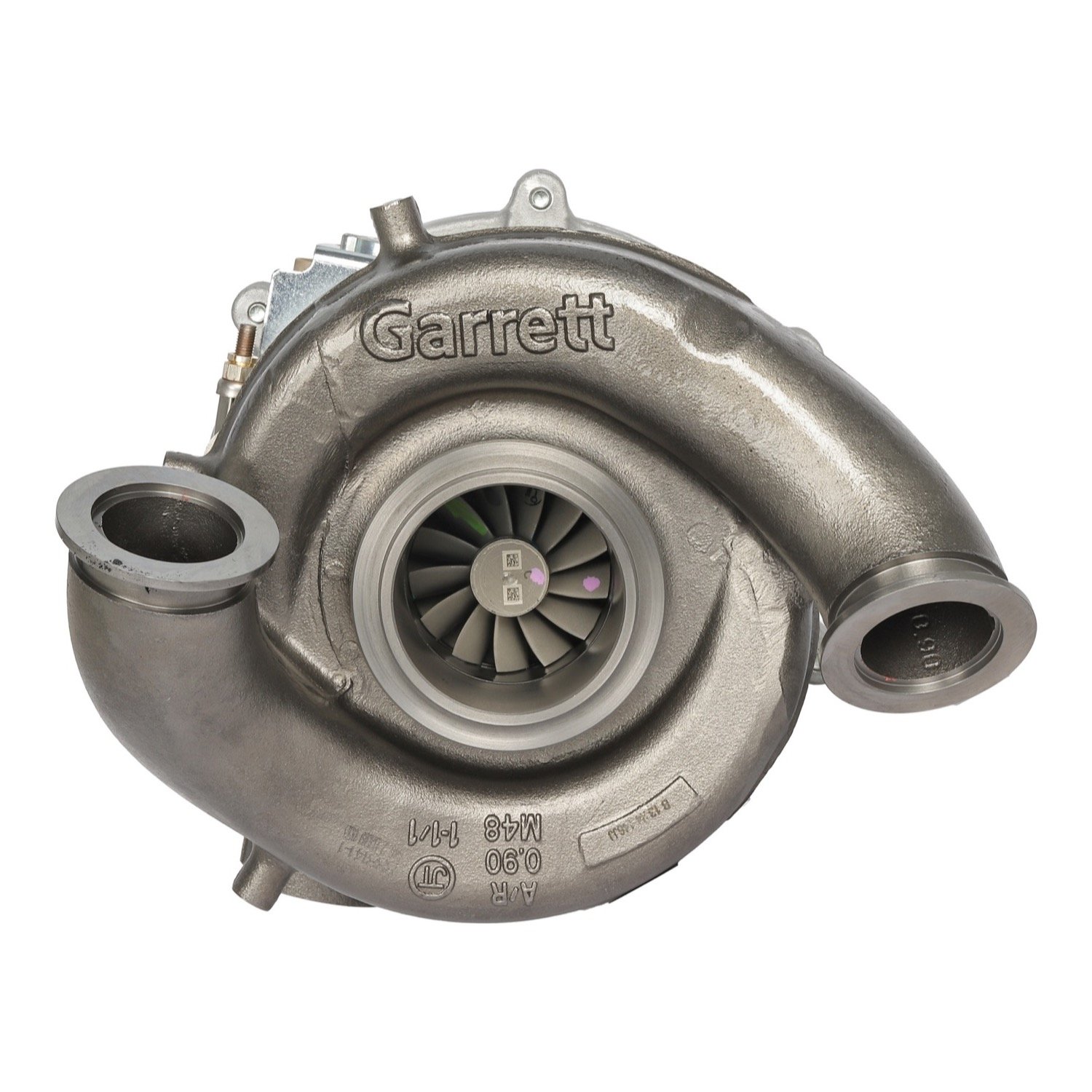

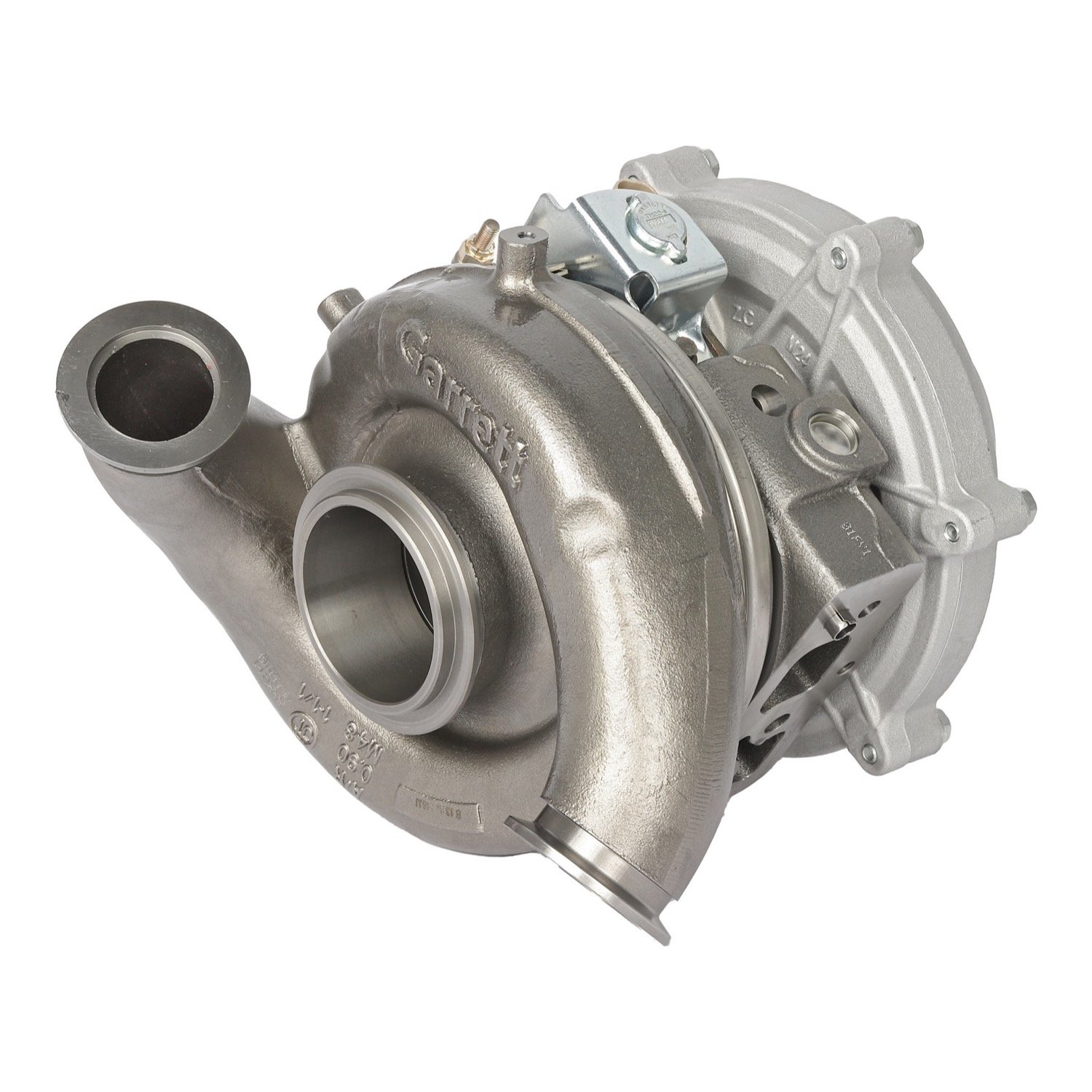

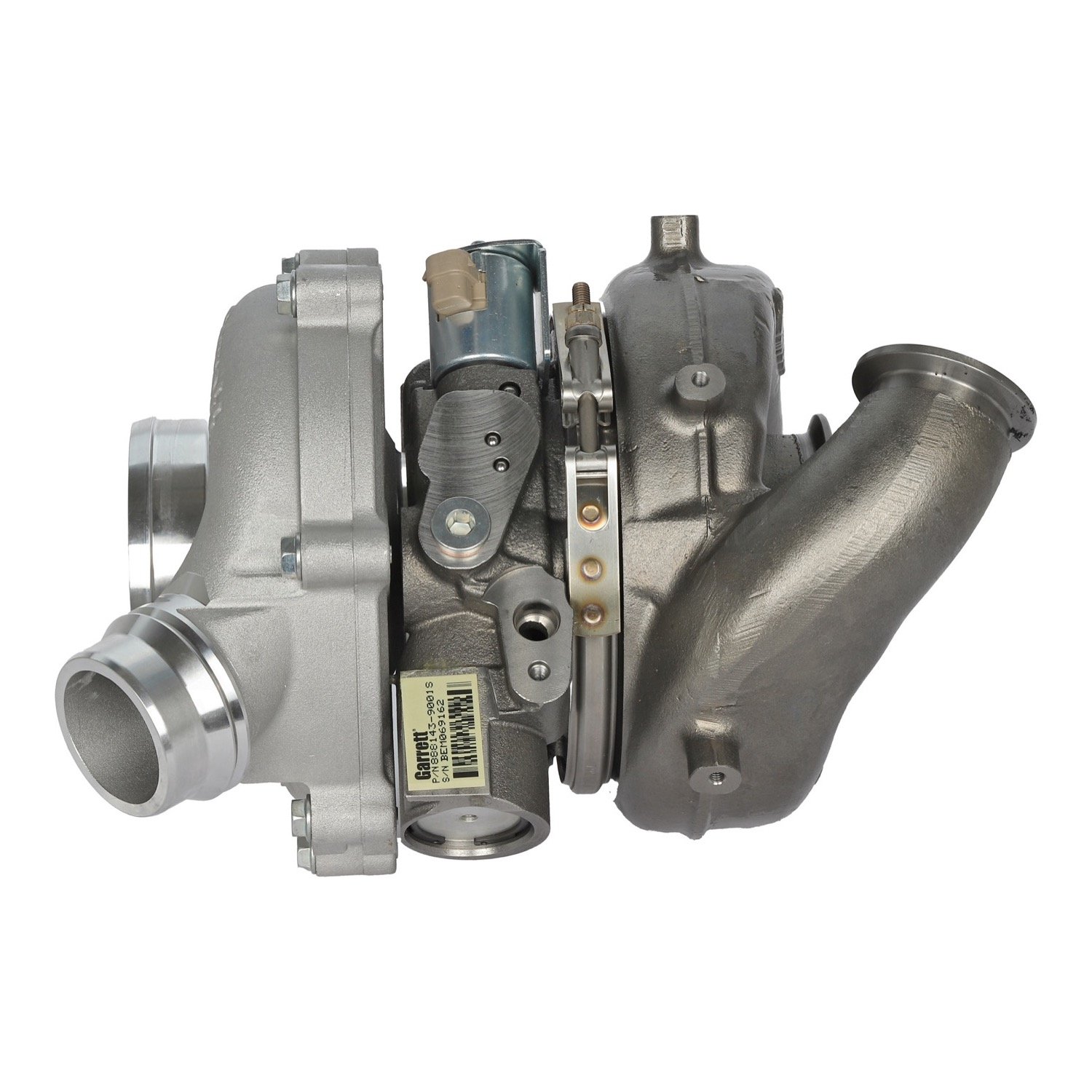

This is the Garrett 888143-9001S, an AVNT3788 variable geometry turbocharger remanufactured by Garrett, the maker of the original. It is a direct fit on 2017 to 2019 Ford F-250, F-350 and F-450 pickups with the 6.7L Power Stroke and replaces Ford HC3Z-6K682-A. It does not fit cab and chassis trucks. A refundable core applies.
It also goes on 2015 and 2016 pickups, with one condition. A 2015 or 2016 truck that has the external oil feed line to the turbo needs the pedestal update kit (Alliant Power AP0198) with it, because this turbo takes its oil through the pedestal. Common reasons to replace the turbo are shaft play, oil in the charge pipes, sticking vanes, a whine under boost and boost codes. Check the oil feed and drain, the intake and the charge air cooler before you fit the new one.
Confirm Fitment Before You Order
This turbo is a direct fit on 2017 to 2019 pickups. On 2015 and 2016 pickups it needs the pedestal update kit when the truck has the external turbo oil feed line; the turbo catalogs list for those years is Garrett 892147. The 2017 to 2019 cab and chassis takes Garrett 888142, and 2011 to 2014 pickups take 851824. Send us your VIN, the build date and the Garrett number on the old turbo tag. Call 530-668-0818. We will confirm the exact match at no charge before anything ships.
Specifications
| Part number | 888143-9001S |
| Brand | Garrett |
| Condition | Remanufactured |
| Warranty | Manufacturer’s own warranty applies. Call us and we handle the claim. |
| Type | Variable geometry turbocharger (Garrett AVNT) |
| Turbo model | AVNT3788 |
| Engine | Ford 6.7L Power Stroke V8 diesel |
| Model years | 2017 to 2019, direct fit |
| Trucks | F-250, F-350 and F-450 pickup (wide frame) |
| 2015 to 2016 pickups | Fits with the pedestal update kit (Alliant Power AP0198) on trucks with the external turbo oil feed line |
| Does not fit | Cab and chassis trucks |
| Remanufactured by | Garrett |
| Core charge | Refundable in full when we receive your rebuildable core |
| Shipping weight | 50 lb |
Fits / Applications
- 2017 to 2019 Ford F-250 Super Duty pickup, 6.7L Power Stroke
- 2017 to 2019 Ford F-350 Super Duty pickup, 6.7L Power Stroke
- 2017 to 2019 Ford F-450 Super Duty pickup, 6.7L Power Stroke
- 2015 and 2016 F-250, F-350 and F-450 pickups, 6.7L Power Stroke: trucks with the external turbo oil feed line need the pedestal update kit (Alliant Power AP0198)
- Not for cab and chassis trucks. Those take Garrett 888142.
On a 2015 or 2016 truck with the external turbo oil feed line, fit the pedestal update kit with this turbo. Change the engine oil and filter, check the oil feed and drain for restriction, and clean the charge air cooler and pipes of oil and debris from the old turbo. Use new gaskets and prime the turbo with clean oil before first start.
Part Numbers & Cross Reference
Garrett 888143-9001S · Ford HC3Z-6K682-A · Ford, 2015 to 2016 pickup turbo (fits with the pedestal update kit) FC3Z-6K682-A · Garrett, base number 888143-0001 · Garrett new version 888143-5001S
Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.
Frequently Asked Questions
Will the 888143-9001S fit a 2017 to 2019 F-450 or F-550 cab and chassis?
No. It is for pickups only. The 2017 to 2019 cab and chassis 6.7L takes a different Garrett turbo, number 888142.
What Ford number does the 888143-9001S replace?
Ford HC3Z-6K682-A. The new version of the same turbo is Garrett 888143-5001S.
Who remanufactured it, and is there a core?
Garrett remanufactured it, the same company that made the original turbo. A refundable core applies, and it comes back when we receive your old turbo.
Does it fit a 2015 or 2016 6.7L pickup?
Yes, with a condition. A 2015 or 2016 truck that has the external oil feed line to the turbo needs the pedestal update kit (Alliant Power AP0198) too, because this turbo is fed through the pedestal. Call 530-668-0818 with your VIN and build date and we will confirm what your truck needs.
