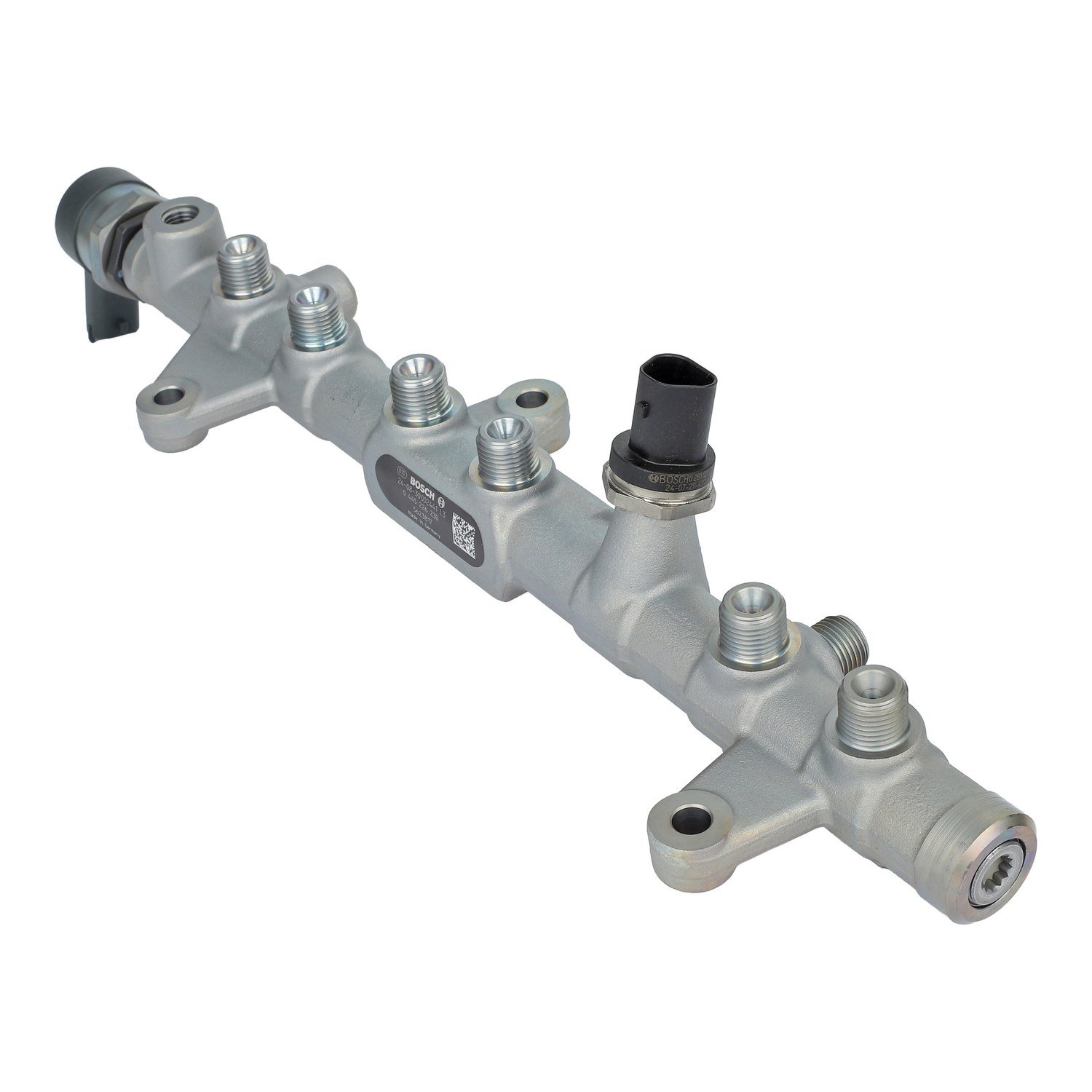

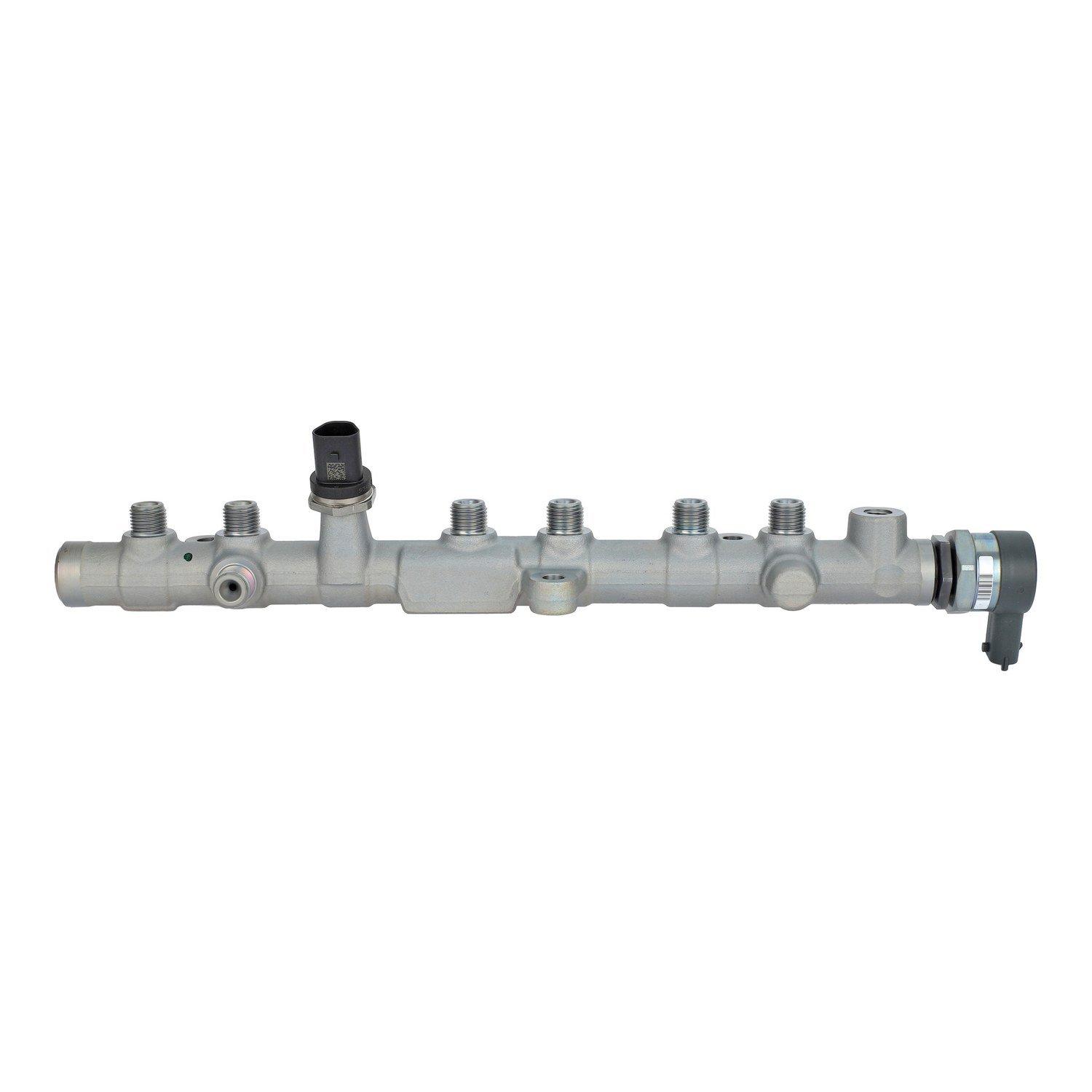

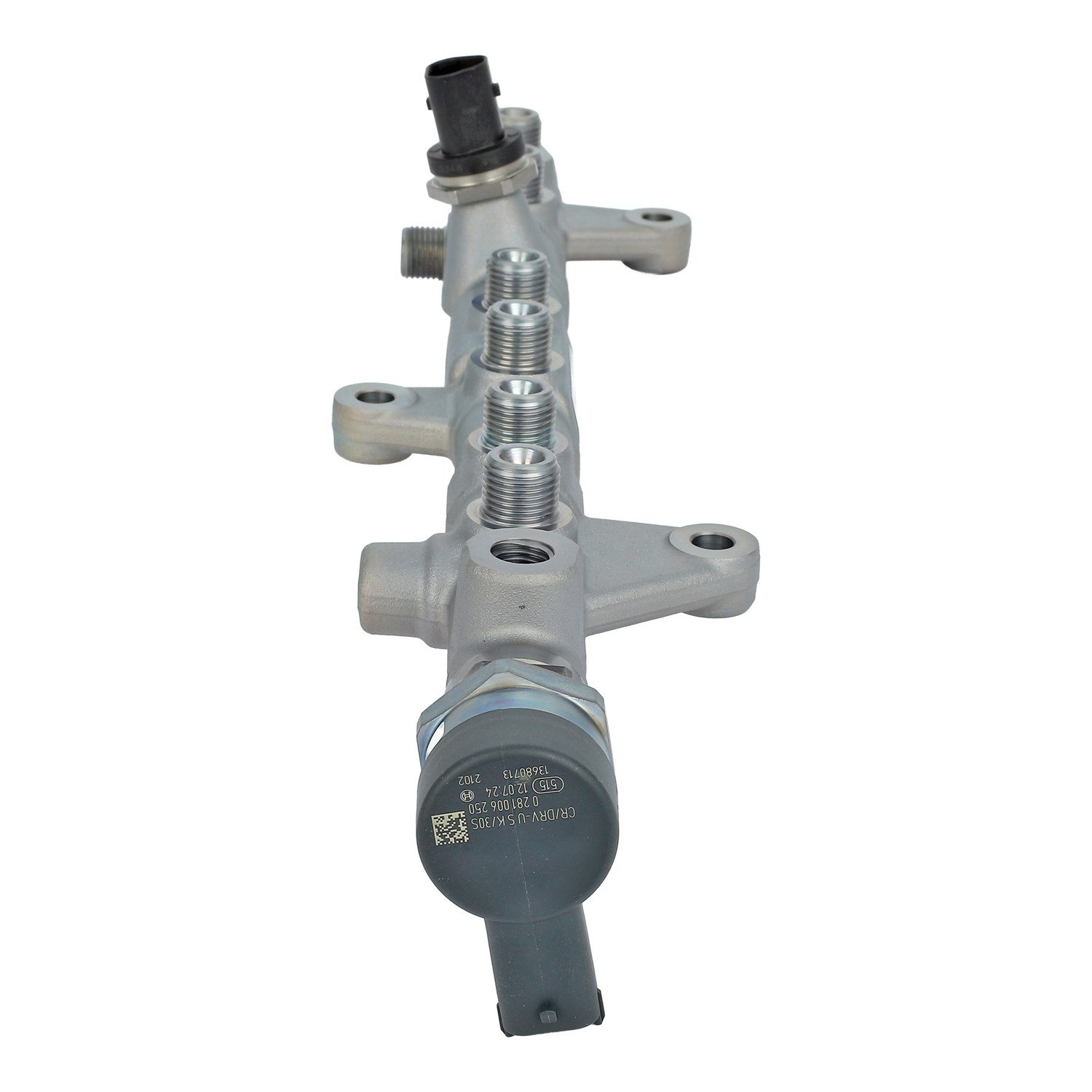

2021-2024 Ram 6.7L Cummins Single Feed Port Fuel Rail | Bosch 044522623D New
This is the new Bosch high-pressure fuel rail for the 6.7L Cummins in 2021 through 2024 Ram 2500 and 3500 pickups and Ram 3500, 4500 and 5500 cab and chassis trucks. It is the single feed port rail, with one supply port for the CP3 pump these trucks use. It replaces Cummins 5623817 and Mopar 68533289AA.
The rail comes with the rail pressure sensor and the electric fuel pressure regulator installed. The 2019-2020 rail looks almost the same but has two supply ports, so the two are easy to mix up. Replace the rail after a pump or injector failure has put debris through the high-pressure side, or when the rail itself is damaged or leaking.
Confirm Fitment Before You Order
Count the supply ports on your old rail: one port means this part, two ports means Bosch 0445226167. Bosch and the Ram parts catalog start this rail in 2021, but some sellers list it for 2022-2024 only, so check 2021 trucks before you order. 2019-2020 trucks keep the dual port rail even after the CP3 recall. Call 530-668-0818 with your VIN. We will confirm the exact match at no charge before anything ships.
Specifications
| Part number | 044522623D |
| Brand | Bosch |
| Condition | New, genuine, in original packaging |
| Warranty | Bosch limited warranty, parts only. Call us and we handle the claim. |
| Type | Common-Rail Fuel Rail, Single Feed Port (with Sensor and Pressure Regulator) |
| Part type | High-pressure common-rail fuel rail (fuel manifold) |
| Bosch part number | 044522623D (marked 0 445 226 23D) |
| Engine | Cummins 6.7L, inline 6 |
| Model years | 2021-2024 (2021: count the supply ports on the old rail first) |
| Supply ports from pump | 1 (single feed) |
| Injector line outlets | 6 |
| Rail pressure sensor | Included, installed (Bosch 0281006928) |
| Fuel pressure regulator | Included, installed (Bosch 0281006250) |
| Lookalike, different part | Bosch 0445226167 (dual feed port rail, 2019-2020) |
| Core | No core charge |
| Shipping weight | 7 lb |
Fits / Applications
- 2021-2024 Ram 2500 pickup, 6.7L Cummins
- 2021-2024 Ram 3500 pickup, 6.7L Cummins
- 2021-2024 Ram 3500, 4500 and 5500 cab and chassis, 6.7L Cummins
Keep every port capped until the lines go on and keep dirt out of the system. The sensor and pressure regulator are already fitted, so nothing needs to be moved over from the old rail. If the rail is being replaced after a pump or injector failure, deal with the injectors, connector tubes and high-pressure lines at the same time so debris does not reach the new parts.
Part Numbers & Cross Reference
Bosch 044522623D (0 445 226 23D) · Cummins 5623817 · Mopar 68533289AA
Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.
Frequently Asked Questions
Will Bosch 044522623D fit my 2022, 2023 or 2024 Ram 6.7L Cummins?
Yes. It is the rail for 2021 through 2024 Ram 2500 and 3500 pickups and 3500, 4500 and 5500 cab and chassis trucks with the 6.7L Cummins. It replaces Cummins 5623817 and Mopar 68533289AA.
Does it fit a 2021 Ram?
Bosch and the Ram parts catalog list this rail from 2021, but some catalogs still show the older dual feed port rail for 2021. If your rail has one supply port from the pump, this is the part. If it has two, you need Bosch 0445226167.
Can I use it on a 2019 or 2020 truck that had the CP3 recall?
It is not the listed part for those trucks. FCA’s recall keeps the dual port rail and blocks off the second port, and its recall parts kits call for the dual port rail, Mopar 68447760AA (Bosch 0445226167).
What comes on the rail, and is there a core?
The rail pressure sensor and the fuel pressure regulator are installed. It is a new Bosch rail, not remanufactured, and there is no core to send back.
