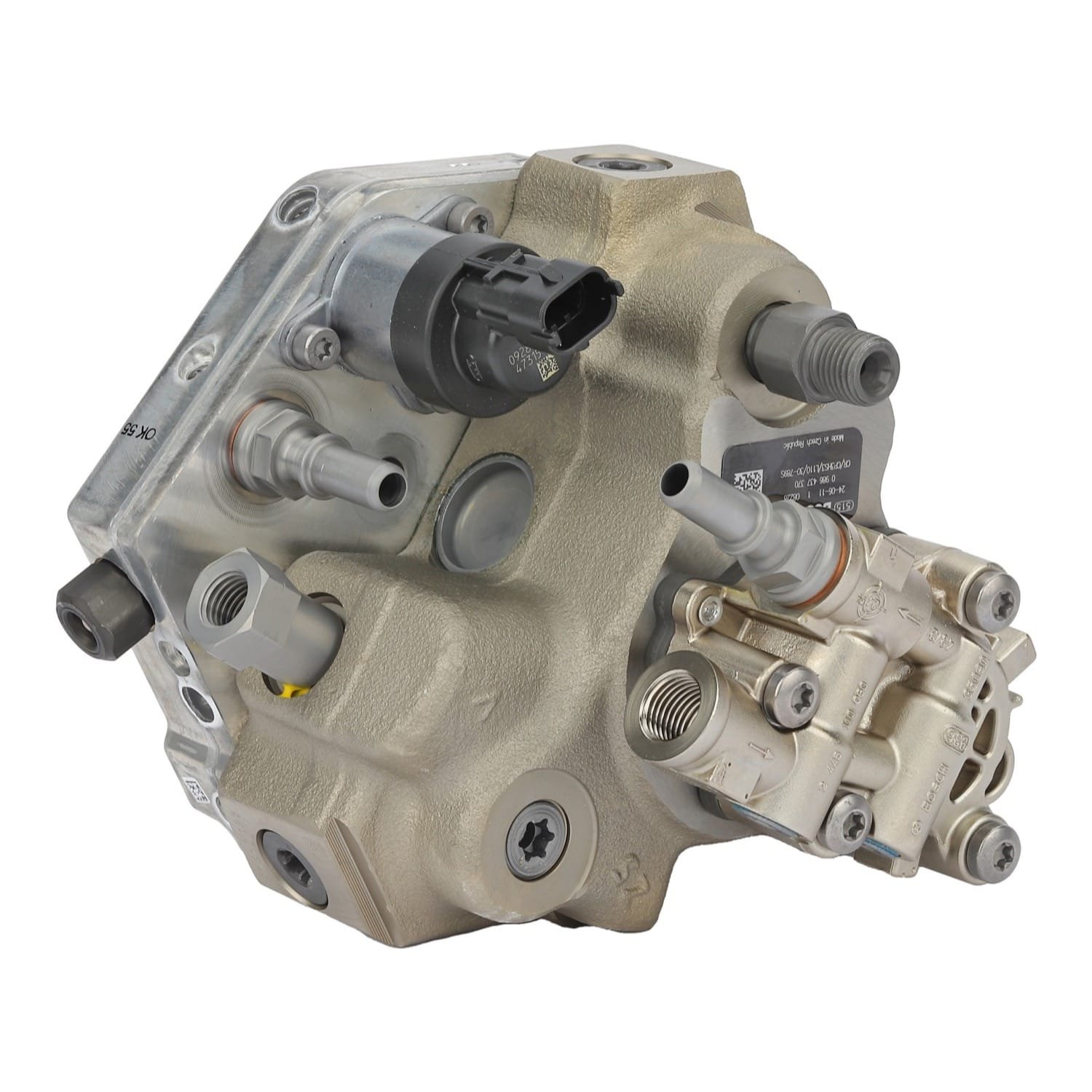

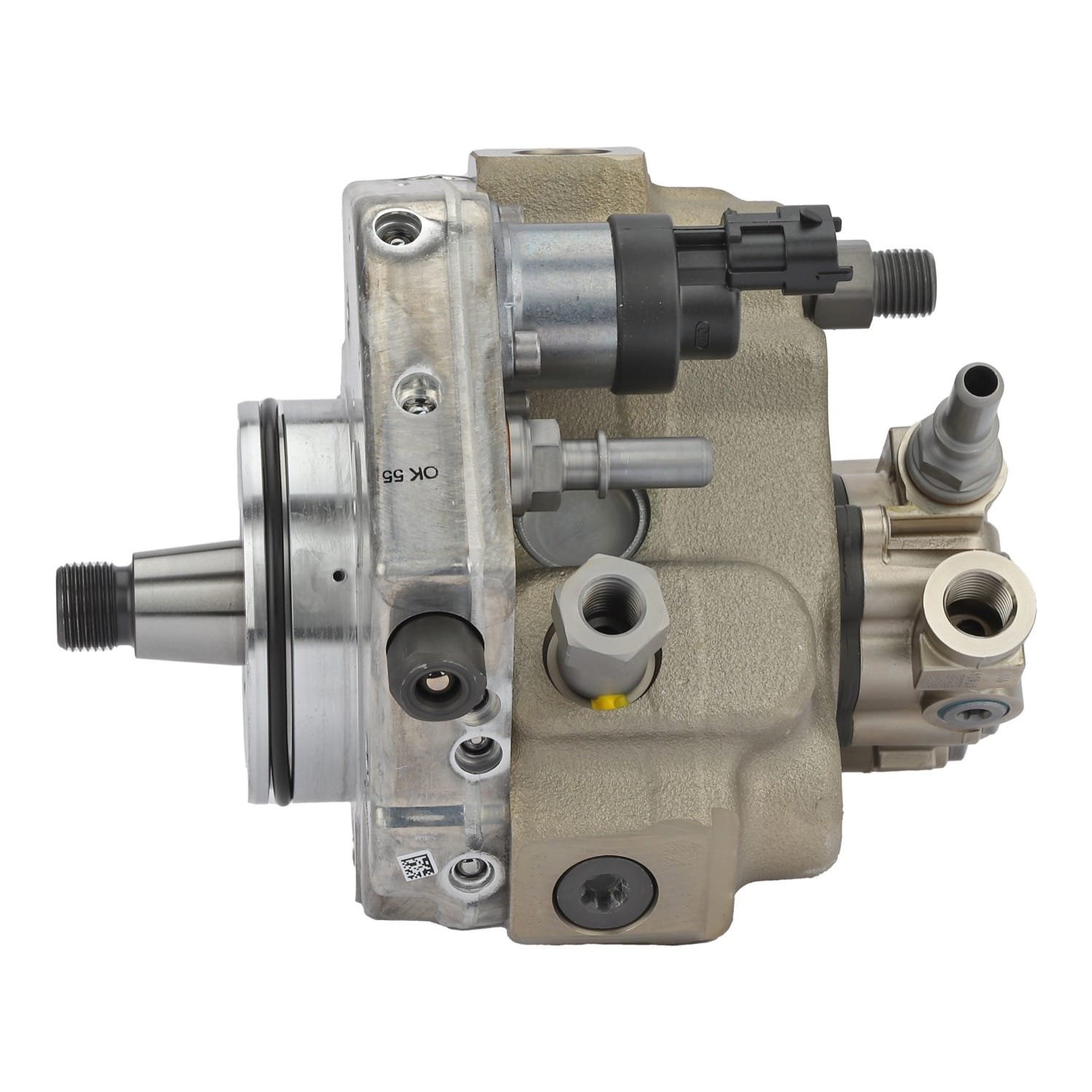

2010-2016 Cummins ISB 6.7 Midrange (Rear Gear) CP3 Injection Pump | Bosch 0986437370 Remanufactured
This is a Bosch remanufactured CP3 high-pressure common-rail pump, Bosch 0986437370. It is the reman version of new Bosch 0445020300 (earlier 0445020113) and matches Cummins 5398557 (earlier 4983416). It fits the 2010-2016 Cummins ISB 6.7 midrange engine used in medium-duty trucks and buses. On this engine the CP3 is driven off the rear gear train.
Do not mix it up with Bosch 0986437334. That pump fits 2007.5-2018 Ram 2500, 3500, 4500 and 5500 trucks (Mopar 68027022AC), where the CP3 is driven from the front of the engine. The midrange pump is a rear-drive build with its own Bosch and Cummins numbers, so the two do not swap. Common reasons to replace a CP3 are low rail pressure codes, hard starting, loss of power, or metal in the fuel filters after water or dirt got into the fuel.
Confirm Fitment Before You Order
Three Bosch reman CP3s look alike on the 6.7 Cummins: 0986437334 (Ram 2500 to 5500, 2007.5-2018, front drive), 0986437333 (2007-2010 ISB 6.7 midrange) and this 0986437370 (2010-2016 ISB 6.7 midrange, rear drive). Some sellers call this the ‘cab and chassis’ pump, but Ram 4500 and 5500 chassis cabs use 0986437334. Send us the engine serial number (ESN) and CPL from the engine dataplate, or the Bosch or Cummins number on your old pump. Call 530-668-0818 and we will confirm the exact match at no charge before anything ships.
Specifications
| Part number | 0986437370 |
| Brand | Bosch |
| Condition | Remanufactured |
| Type | Bosch CP3 high-pressure common-rail pump |
| Engine | Cummins ISB 6.7 midrange (on-highway), rear gear train |
| Model years | 2010-2016 |
| Pump drive | Rear gear train (rear drive) |
| New Bosch equivalent | 0445020300 (earlier 0445020113) |
| Cummins numbers | 5398557 (earlier 4983416) |
| Not for | Ram 2500 to 5500 pickups and chassis cabs (use 0986437334) |
| Price | $991.00 |
| Core charge | Refundable $200.00, refunded in full when we receive your rebuildable core |
| Shipping weight | 20 lb |
Fits / Applications
- Cummins ISB 6.7 midrange (on-highway) engine with rear gear train, 2010-2016 model years
- Medium-duty trucks and buses powered by that engine (confirm by ESN and CPL)
Replace the fuel filters and check fuel supply to the pump before fitting. If the old pump left metal in the filters, clean the tank, lines and rail and check the injectors, or the debris will damage the new pump. Move the drive gear over from the old pump if the replacement comes without one, torque the gear nut to the Cummins spec for your engine, and prime the fuel system before cranking.
Part Numbers & Cross Reference
Bosch new 0445020300 · Bosch new (earlier) 0445020113 · Cummins 5398557 · Cummins reman 5398557RX · Cummins (earlier) 4983416
Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.
Why Buy From Valley Fuel Injection
We are a diesel fuel-injection and turbocharger shop in Woodland, CA, rebuilding pumps, injectors and turbos on our own benches since 1993, not a drop-ship storefront. When you call, you talk to the people who test these units. We verify fitment against your engine serial, VIN or build date before anything ships, so the right part arrives the first time.
Ships UPS Ground anywhere in the lower 48. A refundable $200.00 core deposit is added at checkout and refunded in full when we receive your rebuildable core. Questions on fitment? Call 530-668-0818.
Pricing covers the unit itself. Any applicable sales tax and the refundable core charge are additional; shipping is calculated at checkout. Buying tax-exempt? Qualifying diesel repair shops, fleets, farms, and agricultural operations can purchase tax-free. Set up tax-exempt purchasing once and every qualifying order is tax-free going forward.
