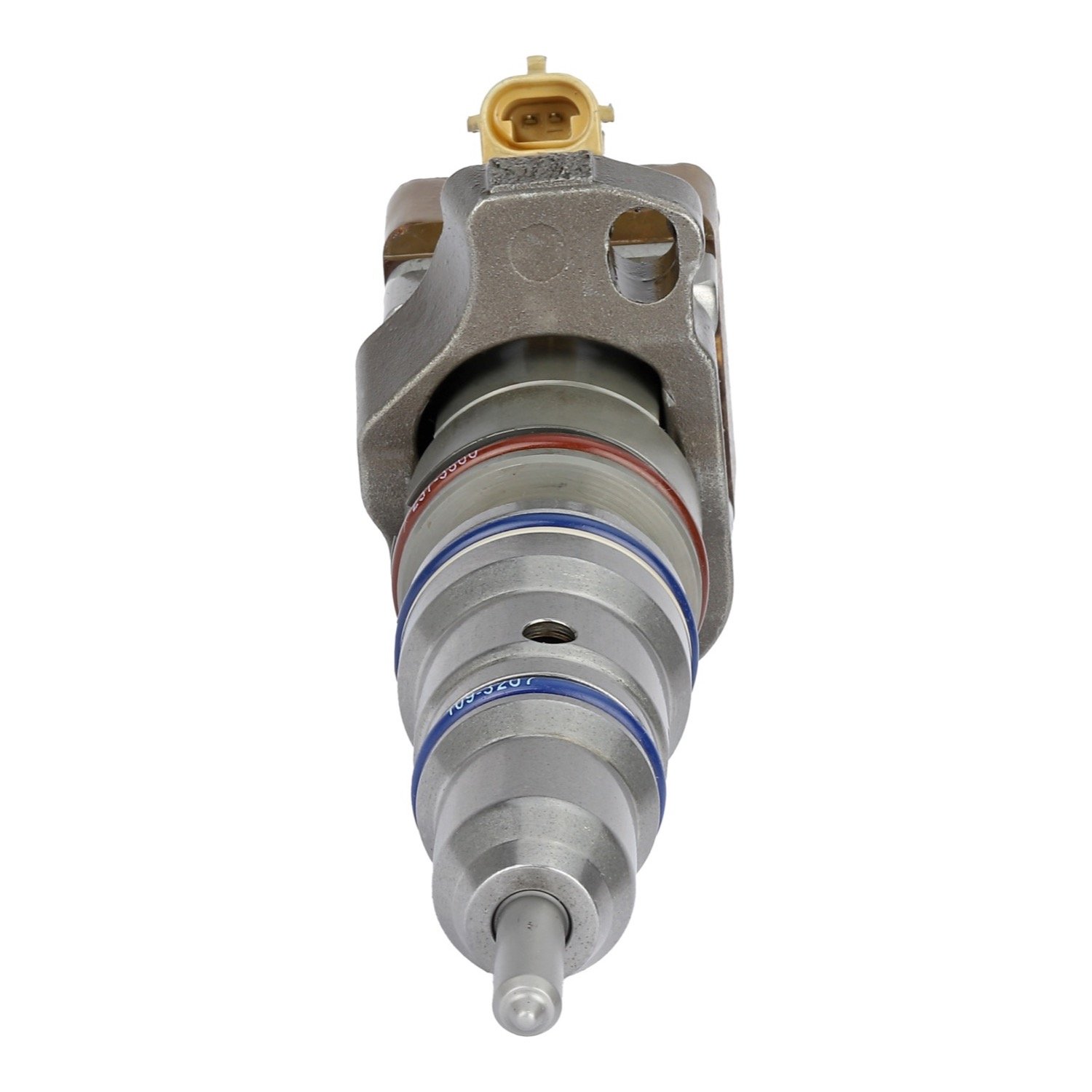

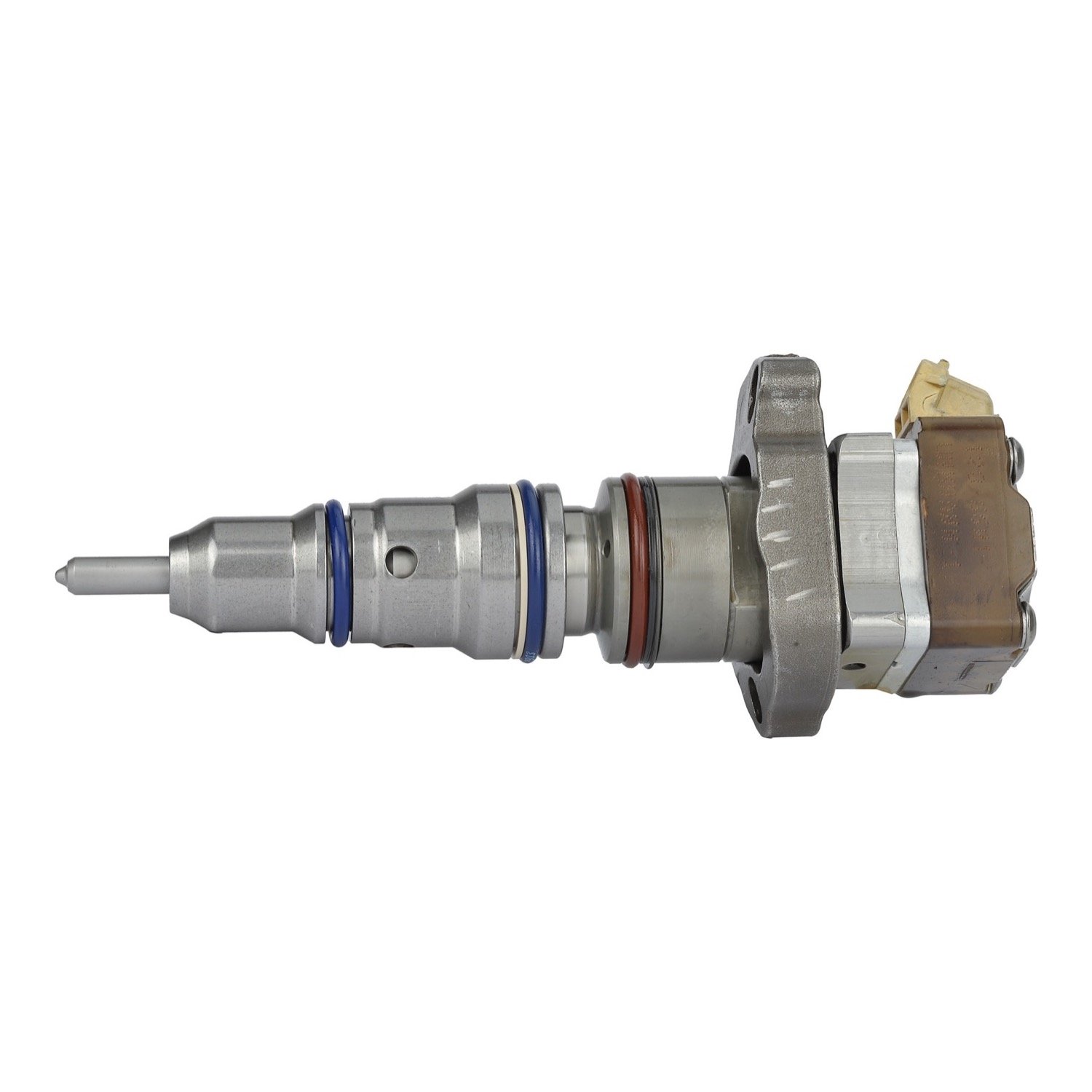

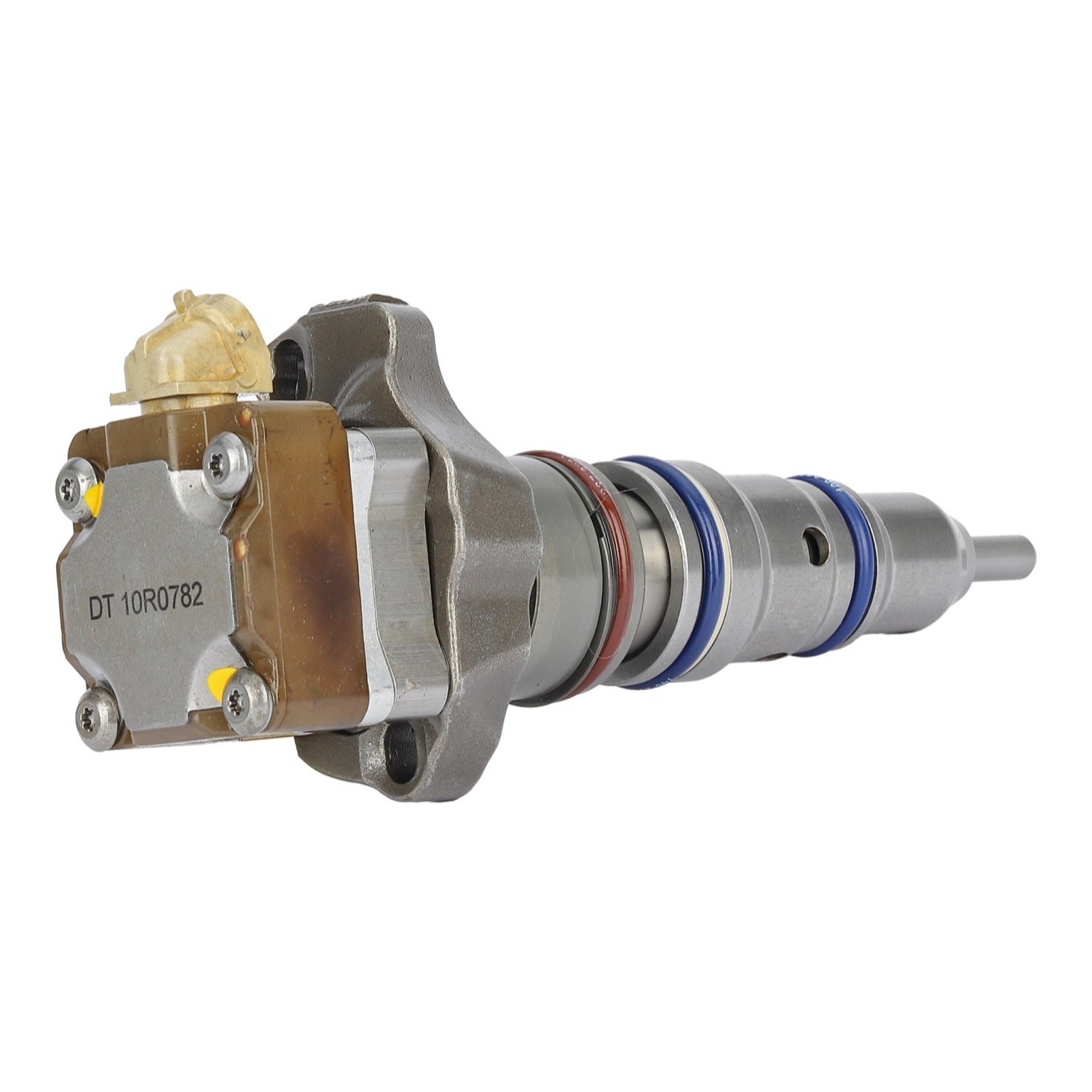

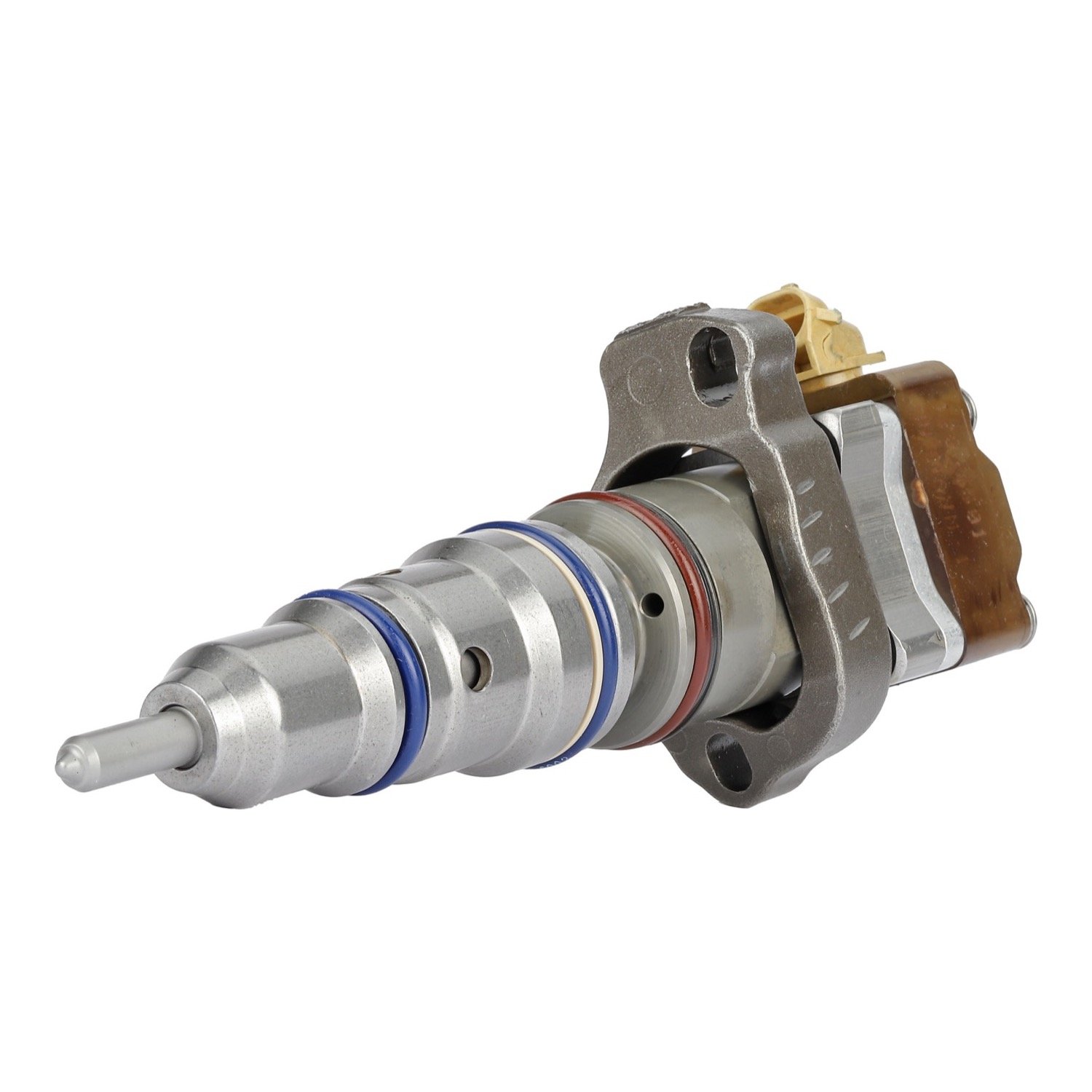

This is the Alliant Power DT10R0782, a HEUI fuel injector remanufactured by Alliant Power in its DTech line for the Caterpillar 3126B. It takes the place of the Cat remanufactured injector 10R-0782 and of Cat 177-4754, 205-1285. A refundable core applies, so your old injector comes back to us.

The 3126B used several injectors that look alike, and this is only one of them. The others in this family are Cat 0R-9350, 0R-9348, 0R-9349, 10R-1262. Order by the Cat part number on your old injector or by engine serial number, not by engine model alone. HEUI injectors are fired by engine oil pressure, so low or dirty oil and a weak high-pressure oil pump cause the same hard start, miss and low power complaints as a worn injector. Rule those out before you replace a set. The engine takes six injectors.

Specifications

Fits / Applications

• Caterpillar 3126B engines built with Cat injector 177-4754, 205-1285
• Replacement for Cat remanufactured injector 10R-0782
• Six injectors per engine
• Match by the Cat number on the old injector or by engine serial number

HEUI injectors are fired by engine oil pressure. Change the engine oil and oil filter when you fit them, fit new seals, and keep dirt out of the injector bores and the oil rail. Check high-pressure oil system pressure if the original complaint returns.

Part Numbers & Cross Reference

Caterpillar remanufactured 10R-0782  ·  Caterpillar 177-4754  ·  Caterpillar 205-1285

Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.

Frequently Asked Questions

Will the DT10R0782 fit my Cat 3126B?

Only if your engine uses Cat injector 10R-0782 or one of the numbers it replaces: 177-4754, 205-1285. The 3126B used several injectors, so check the number on your old one or call 530-668-0818 with the engine serial number.

What Cat numbers does the DT10R0782 replace?

It replaces Cat remanufactured injector 10R-0782 and Cat 177-4754, 205-1285.

Is it new or remanufactured, and is there a core?

It is remanufactured by Alliant Power in the DTech line. A refundable core applies, and it comes back to you when we receive your old injector in rebuildable shape.

Can I use 0R-9350 or another 3126B injector instead?

Do not swap numbers on a guess. 10R-0782 and 0R-9350, 0R-9348, 0R-9349, 10R-1262 are sold under separate Cat numbers, so stay with the number your engine was built with unless we confirm a change by serial number.
