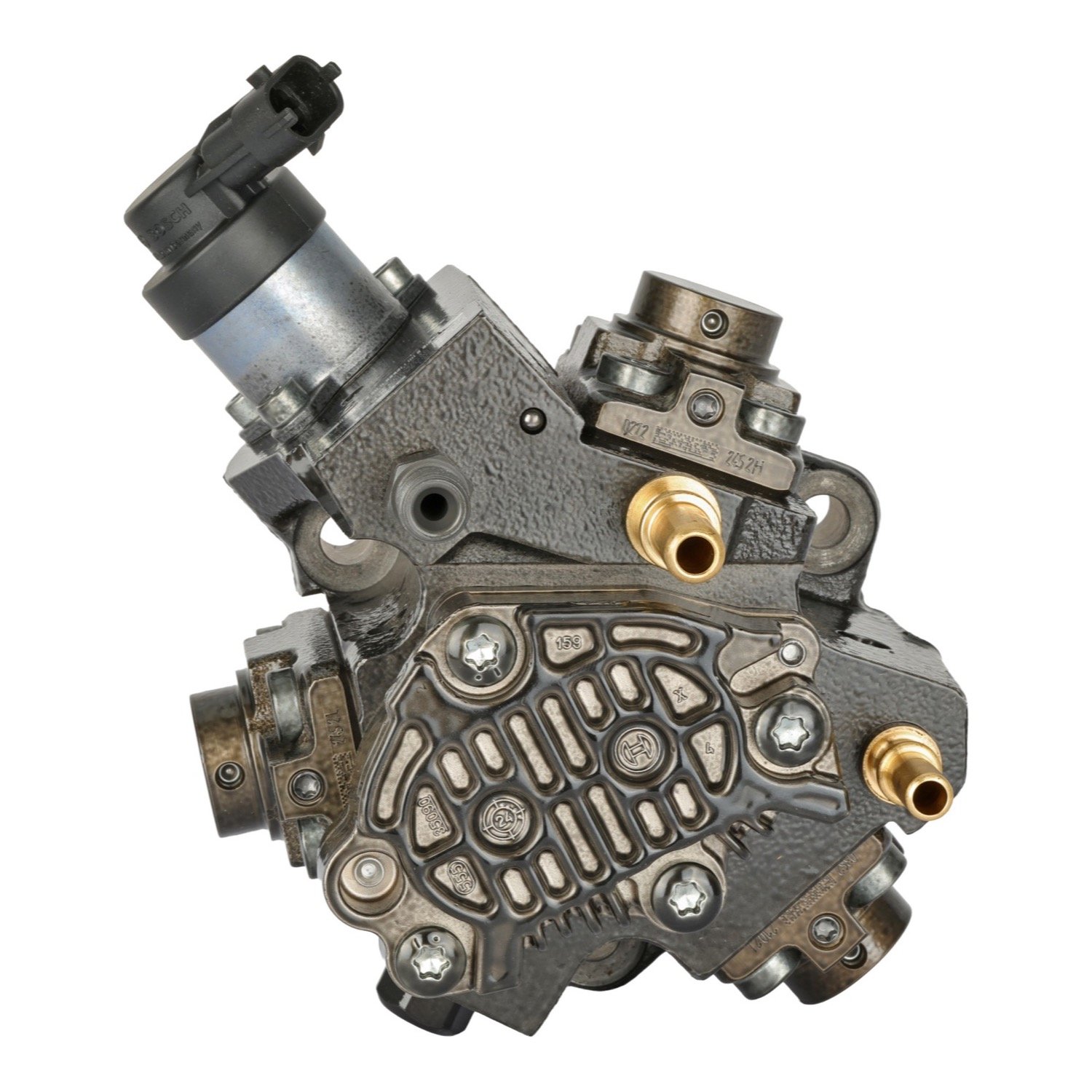

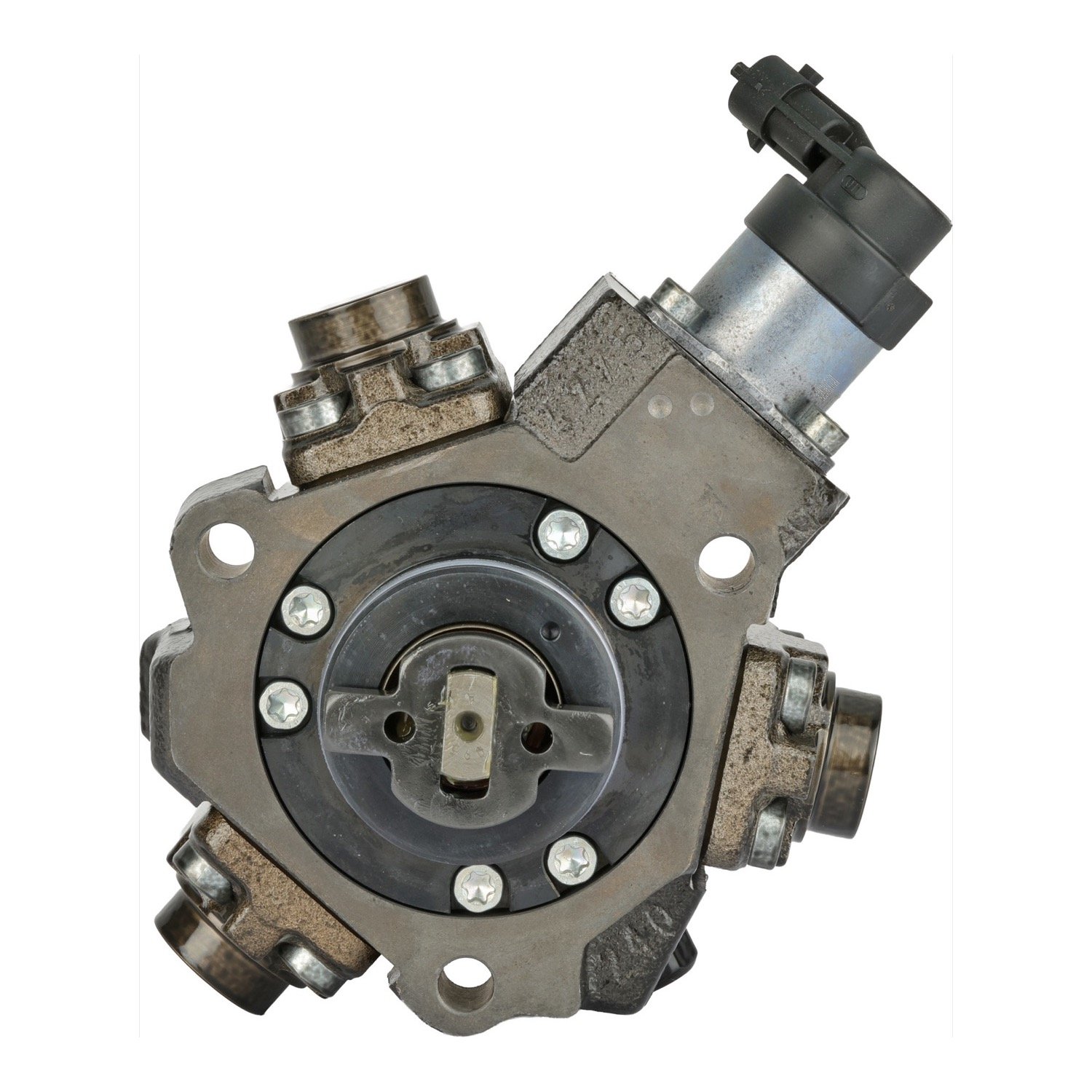

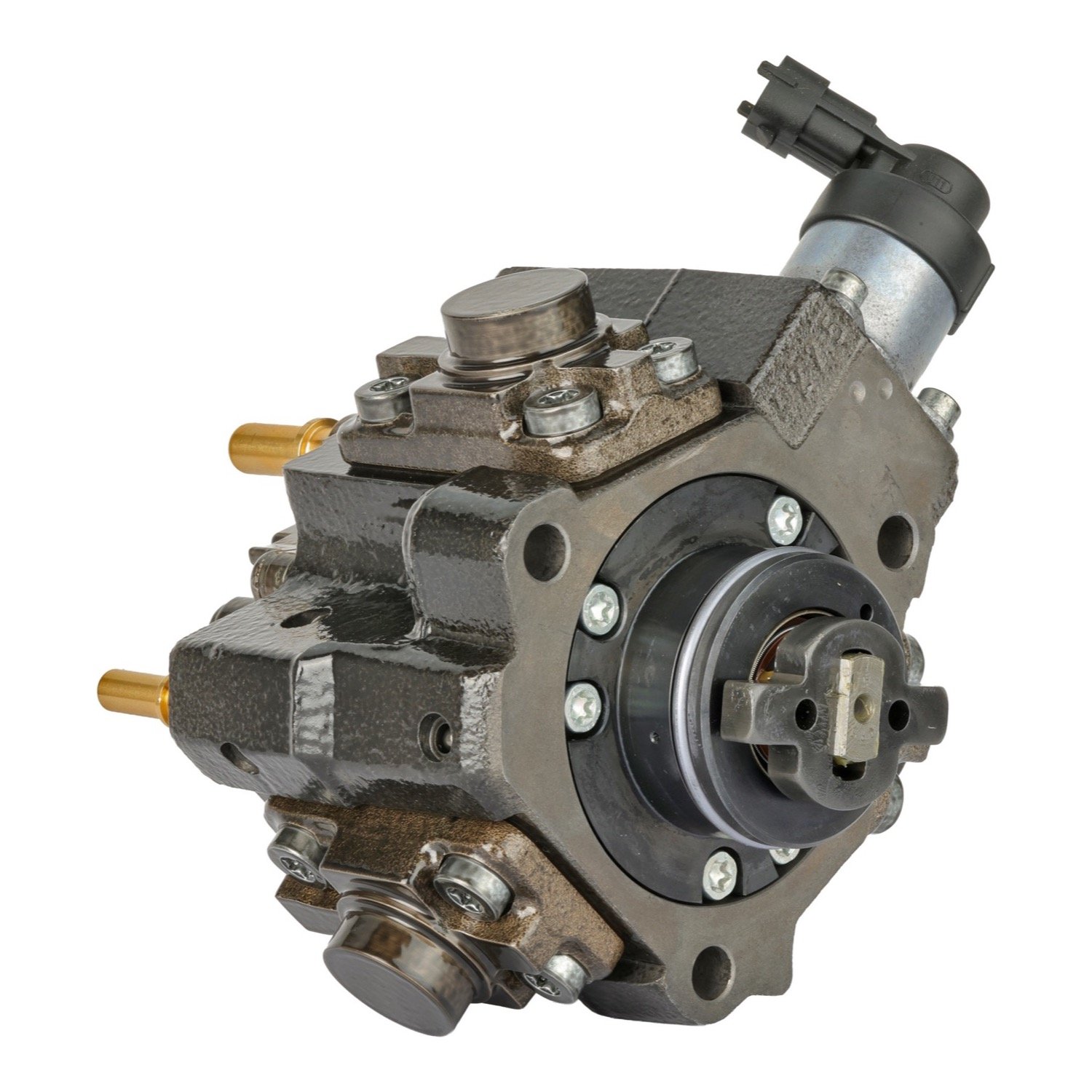

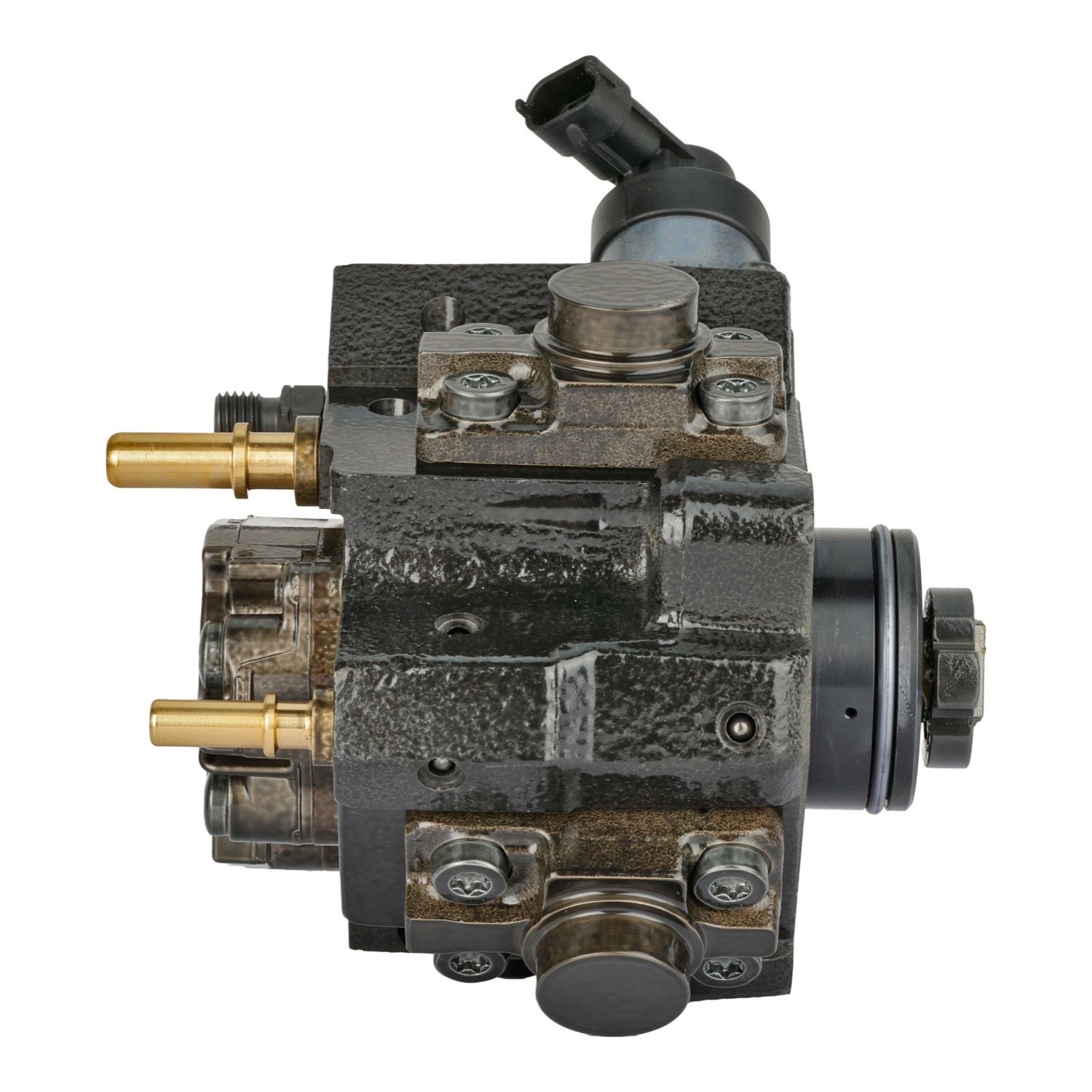

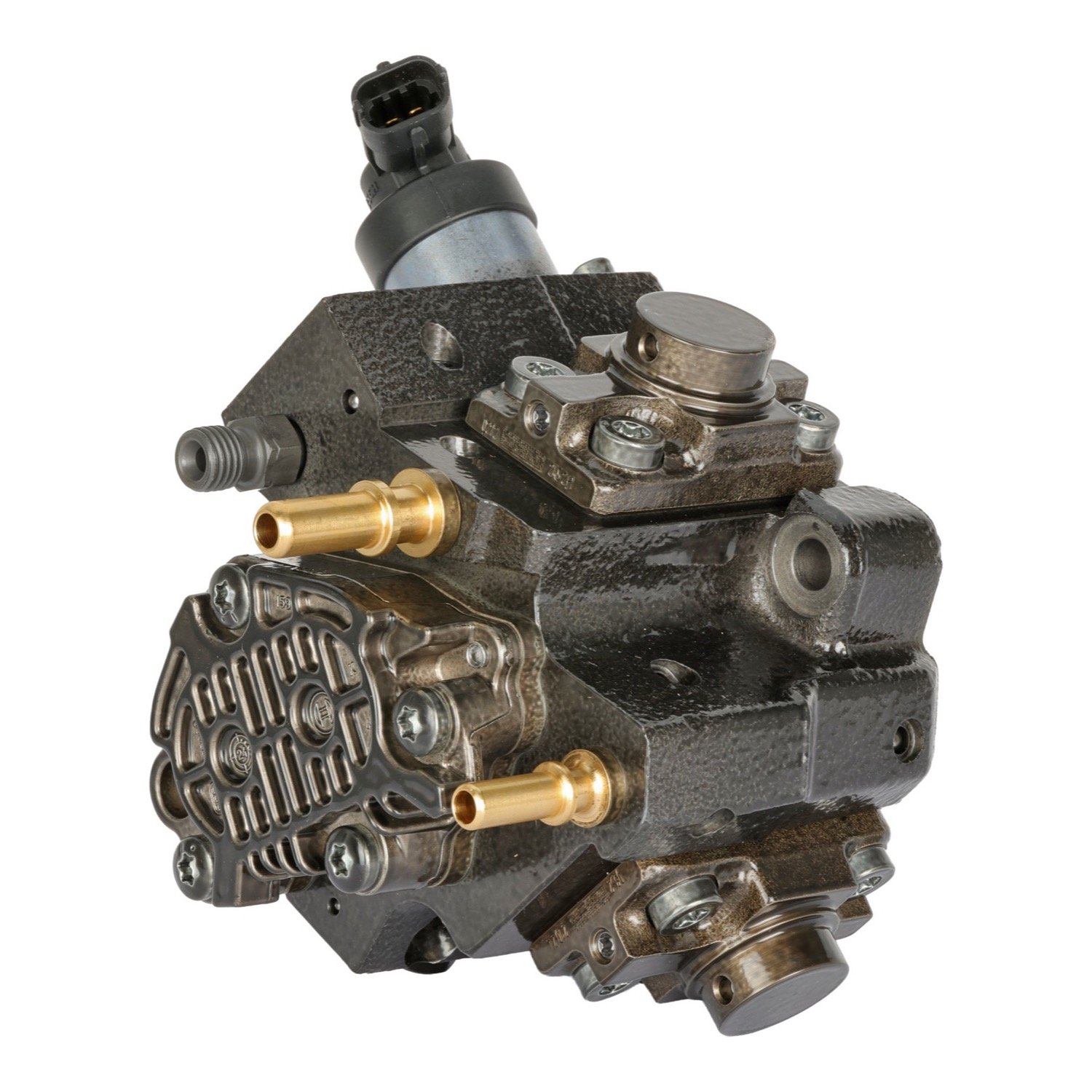

Cummins 5341063 is a new, genuine Cummins high-pressure fuel pump for the Cummins ISF2.8 and QSF2.8 2.8L diesels. Bosch builds this pump, and it carries Bosch number 0445020256. It supplies the common rail that feeds the injectors.

Common reasons to replace one: hard starting, low rail pressure codes, loss of power, or metal or water in the fuel. Cummins ties fuel system parts to each engine’s build list (CPL), so check the engine dataplate first. If the old pump failed from dirty or wet fuel, fix the fuel supply and clean the rail, lines and injectors before the new pump goes in.

Specifications

Fits / Applications

• Cummins ISF2.8 2.8L diesel engine
• Cummins QSF2.8 2.8L diesel engine

Confirm the pump against your engine’s ESN and CPL. Replace the fuel filters, drain water from the fuel system, and find out why the old pump failed. If metal or water got past the pump, clean or replace the rail, lines and injectors it reached. Prime the fuel system before cranking so the new pump does not run dry.

Part Numbers & Cross Reference

Bosch 0445020256  ·  Cummins (listed with this pump by aftermarket catalogs) 5321097  ·  Bosch type code CR/CP1H3/L85/10-789S

Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.

Frequently Asked Questions

Which engines does the Cummins 5341063 fuel pump fit?

The Cummins ISF2.8 and QSF2.8 2.8L diesel engines. Cummins ties fuel system parts to each engine’s build list (CPL), so check the engine dataplate before you order.

Is Cummins 5341063 the same pump as Bosch 0445020256?

Yes. Bosch builds this pump for Cummins, and it carries Bosch number 0445020256 and the type code CR/CP1H3/L85/10-789S on the pump label. Some catalogs also list Cummins 5321097 with this pump.

How do I confirm 5341063 is the right pump for my engine?

Call 530-668-0818 with the engine serial number (ESN) and CPL from the engine dataplate, or the numbers on your old pump. We confirm 5341063 against your build at no charge before anything ships.

Is there a core charge on the Cummins 5341063?

No. It is a new, genuine Cummins pump in original packaging, sold outright. There is nothing to send back.
