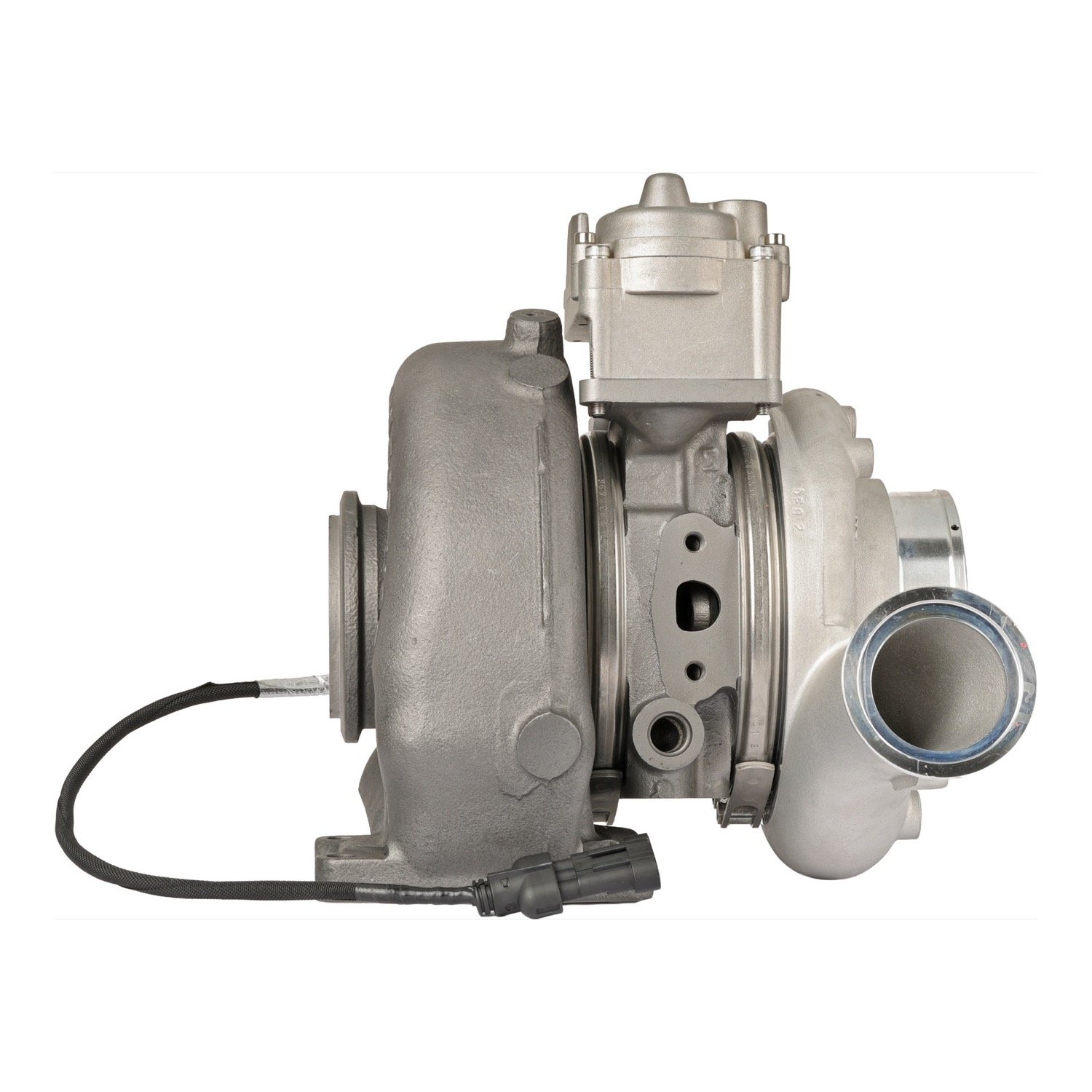

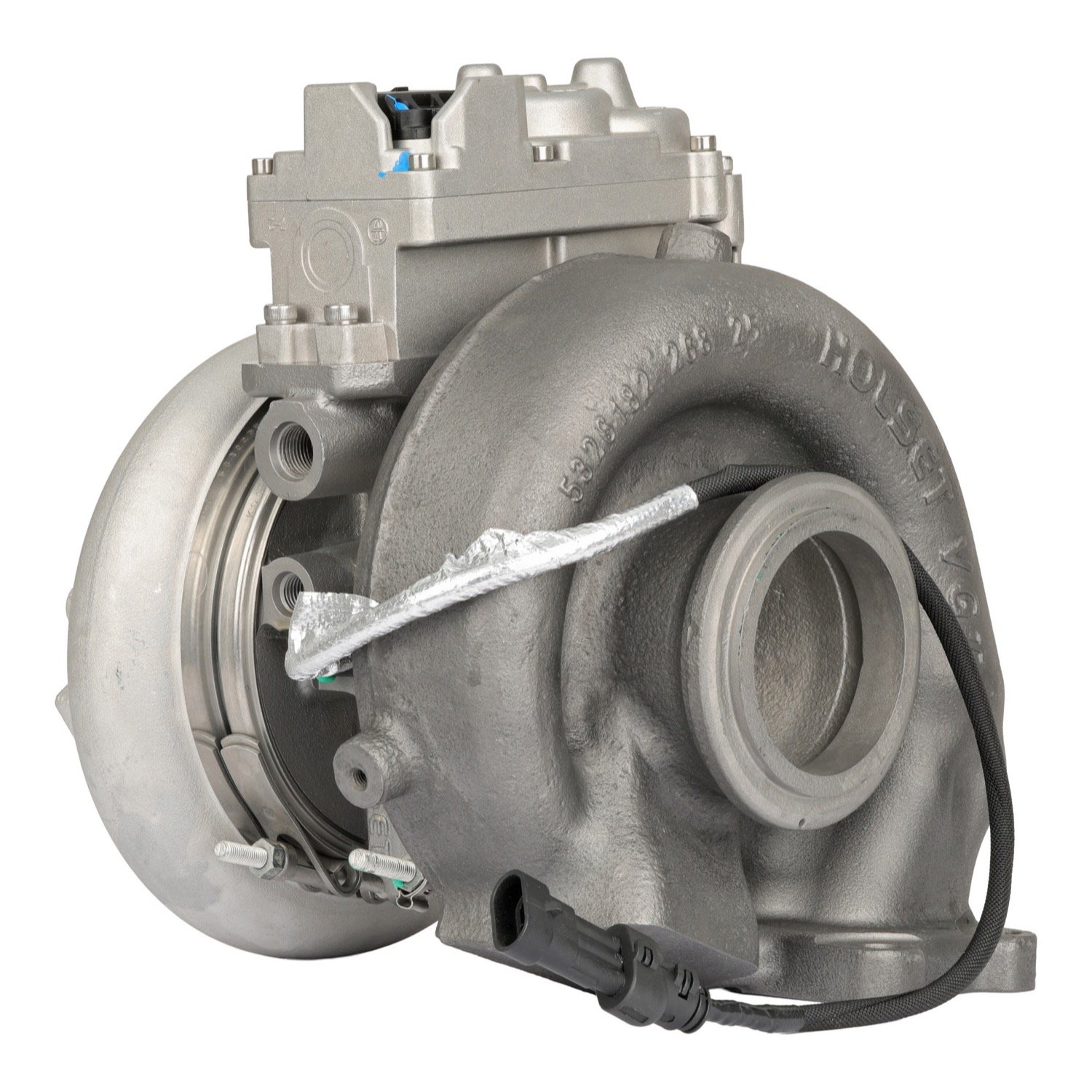

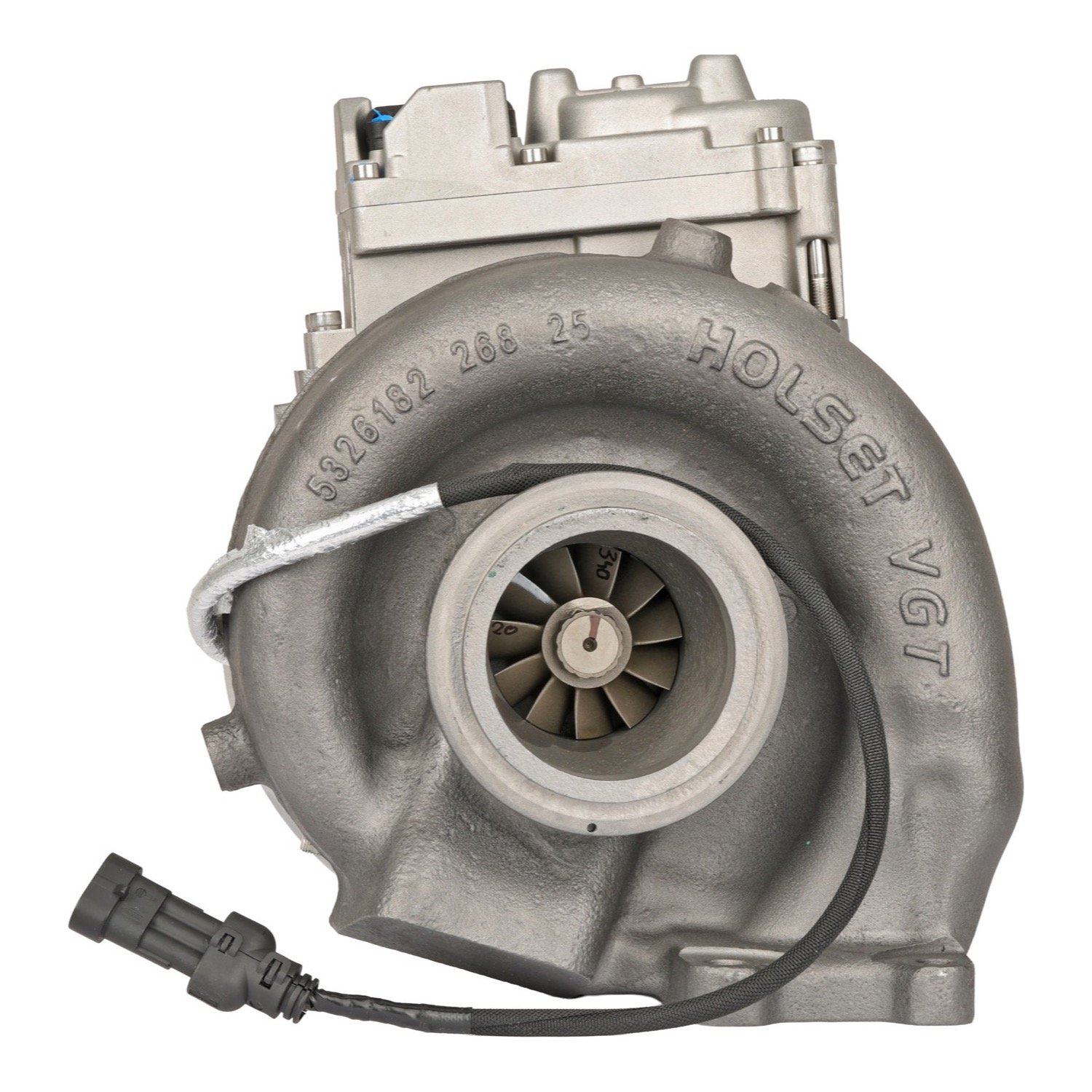

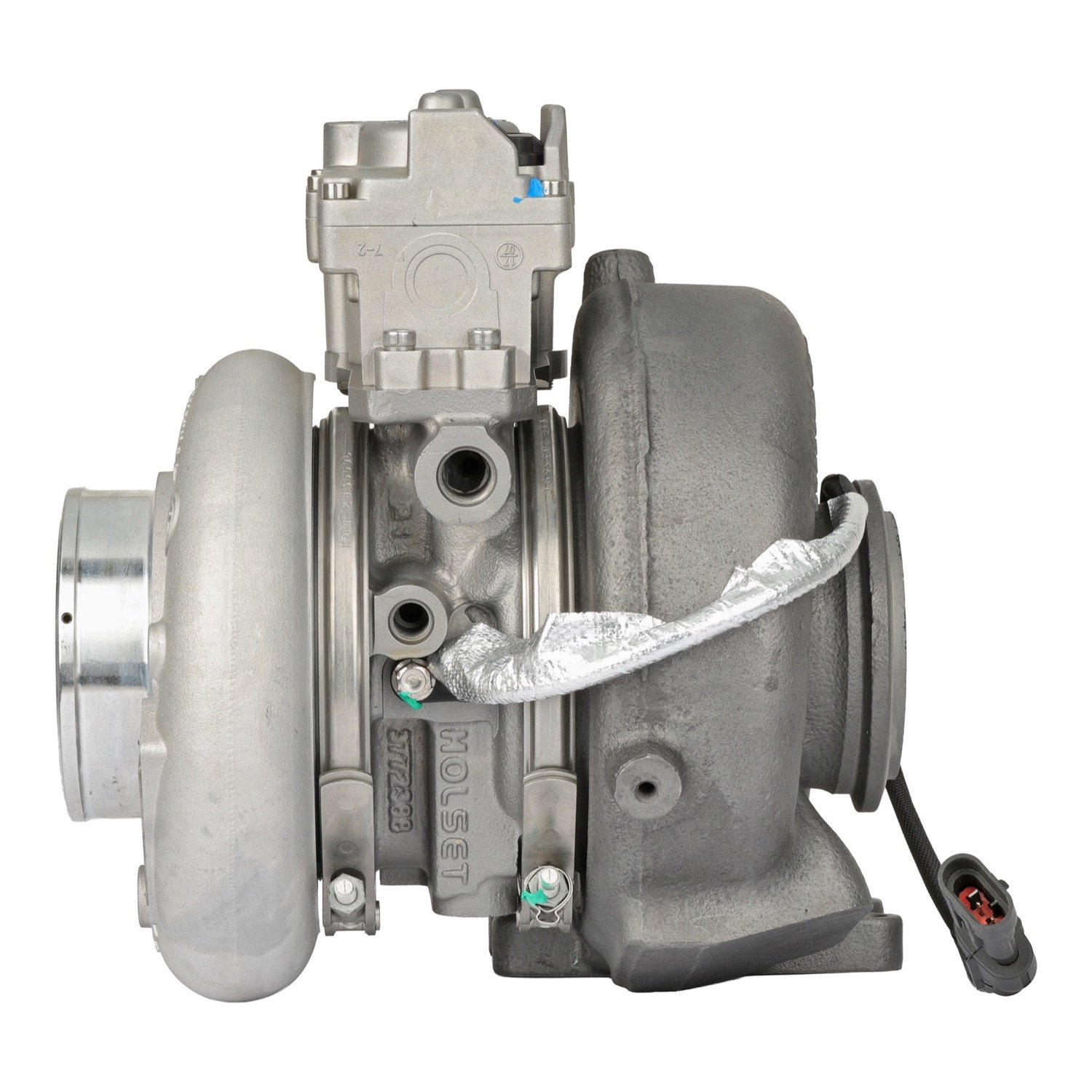

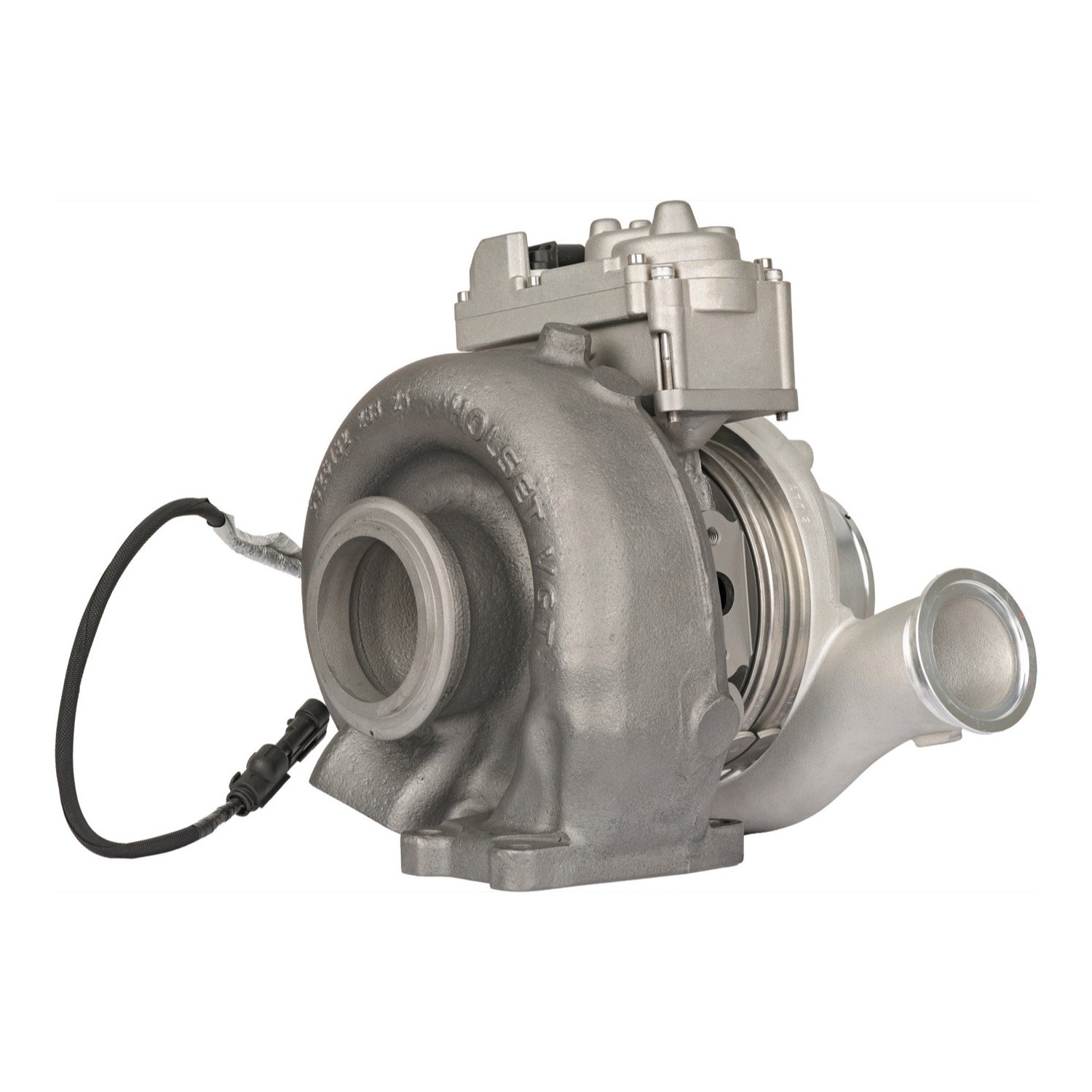

This is the Alliant Power AP90969, a Holset HE300VG variable geometry turbocharger remanufactured by Alliant Power for the Cummins ISB 6.7L at the EPA21 emissions level. It replaces Cummins 5603709, 5603691 and 5601460. It is a complete unit: the remanufactured electronic actuator is included, along with the turbo to manifold gasket, the oil drain gasket, four M10 double-ended studs and four flange nuts.

Low boost, turbo actuator or turbo speed fault codes, a sticking nozzle ring, oil in the charge air pipes and shaft play are the usual reasons these turbos come off. Alliant Power builds several HE300VG turbos for the 6.7 that look alike from the outside, so the emissions level and the Cummins number on your old turbo are what decide it.

Specifications

Fits / Applications

• Cummins ISB 6.7L, EPA21 emissions level
• Replaces Cummins turbo 5603709
• Complete turbo with actuator and installation kit
• Ram pickups take other turbo numbers. Check the engine serial number.

The actuator comes with the turbo. Do not lift the turbo by the actuator. Use the gaskets, studs and nuts supplied, check the oil feed and drain lines for restriction, and deal with the cause of the old failure before the engine is started.

Part Numbers & Cross Reference

Alliant Power AP90969  ·  Cummins 5603709  ·  Cummins ReCon 5603709RX  ·  Cummins 5603691  ·  Cummins 5601460  ·  Actuator in the box, Alliant Power AP63587  ·  Actuator in the box, Holset type 6382096  ·  Turbo to manifold gasket, Cummins 5339363  ·  Oil drain gasket, Cummins 5264568

Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.

Frequently Asked Questions

Which engine does the AP90969 fit?

The Cummins ISB 6.7L at the EPA21 emissions level, where the old turbo carries Cummins number 5603709, 5603691 or 5601460. Call 530-668-0818 with your engine serial number to confirm.

How is the AP90969 different from the AP90953?

Both are Alliant Power remanufactured HE300VG turbos with actuator for the EPA21 Cummins 6.7, but they replace different Cummins numbers: AP90969 replaces 5603709 and AP90953 replaces 5603711. Match the number on your old turbo.

What comes in the box?

The remanufactured turbo, the remanufactured actuator, the turbo to manifold gasket, the oil drain gasket, four M10 double-ended studs and four flange nuts.

Is it new or remanufactured, and is there a core?

It is remanufactured by Alliant Power. A refundable core applies, and it comes back when we receive your old turbo.
