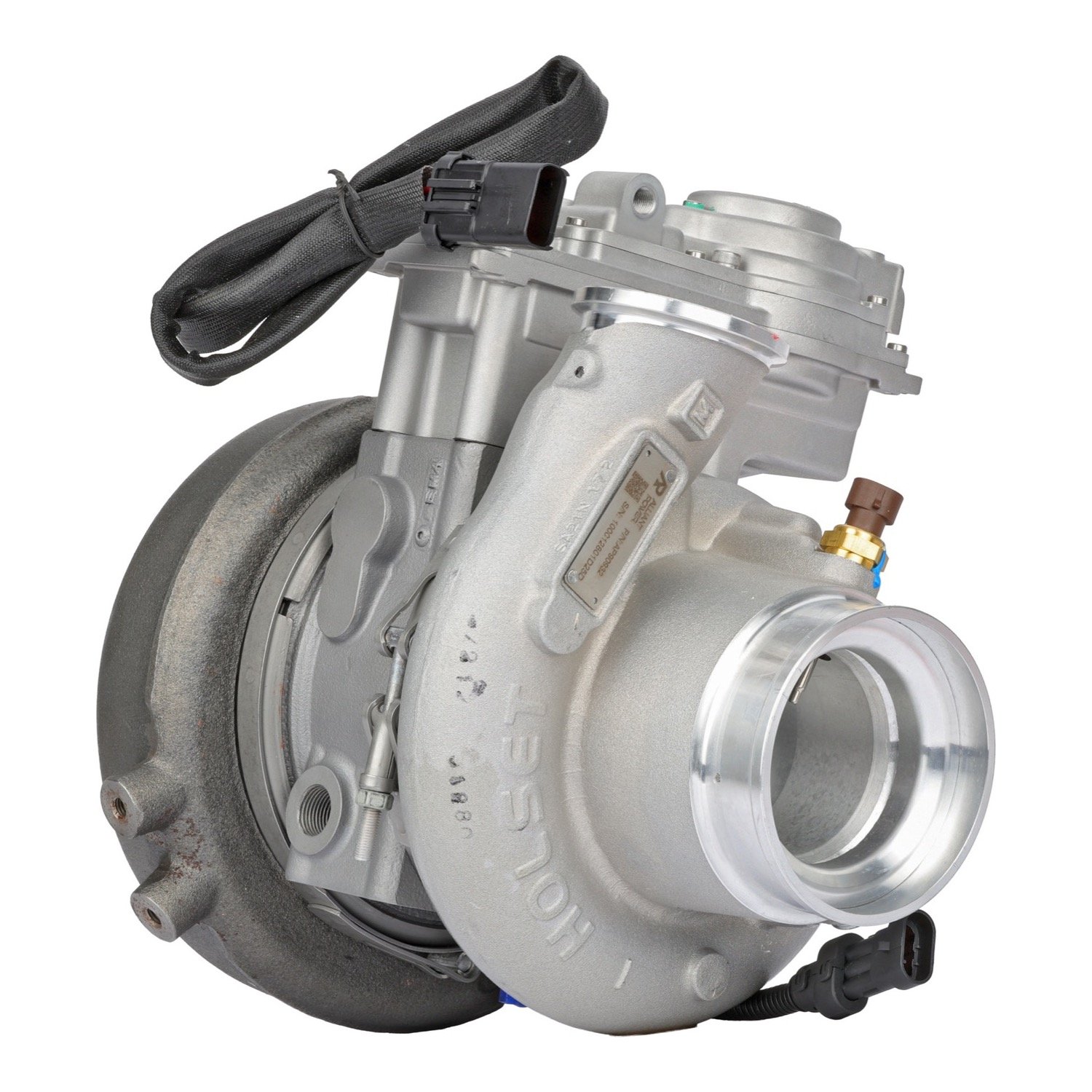

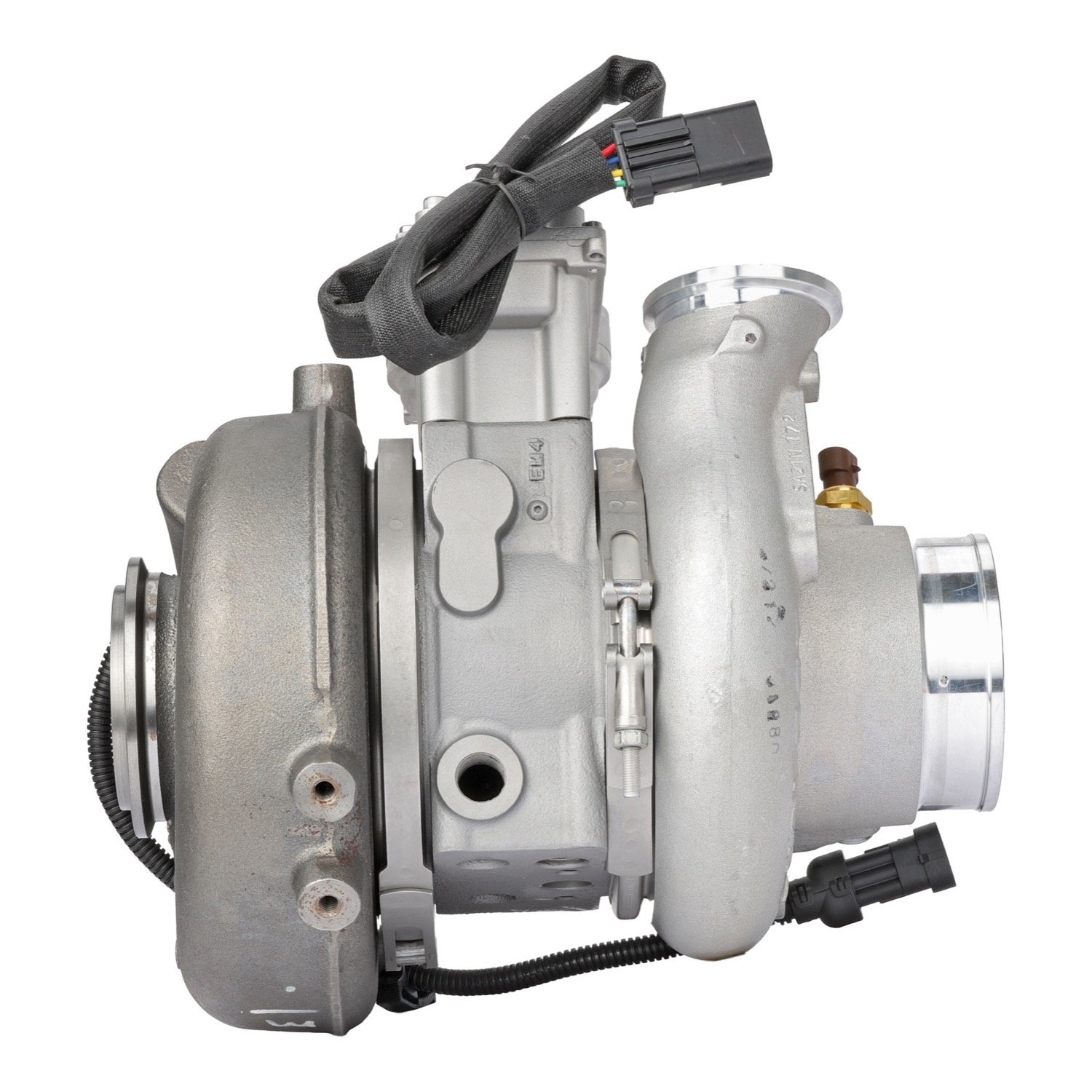

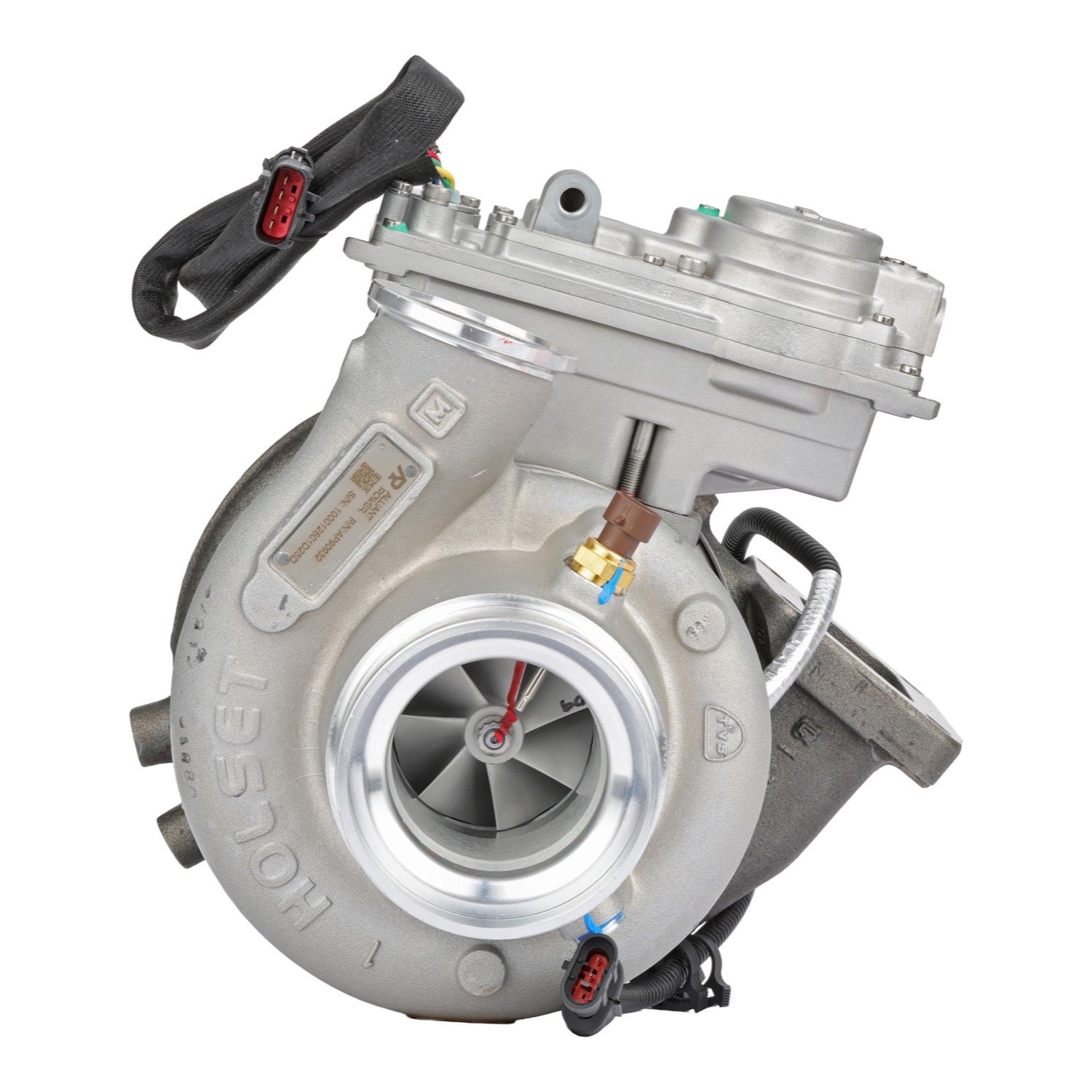

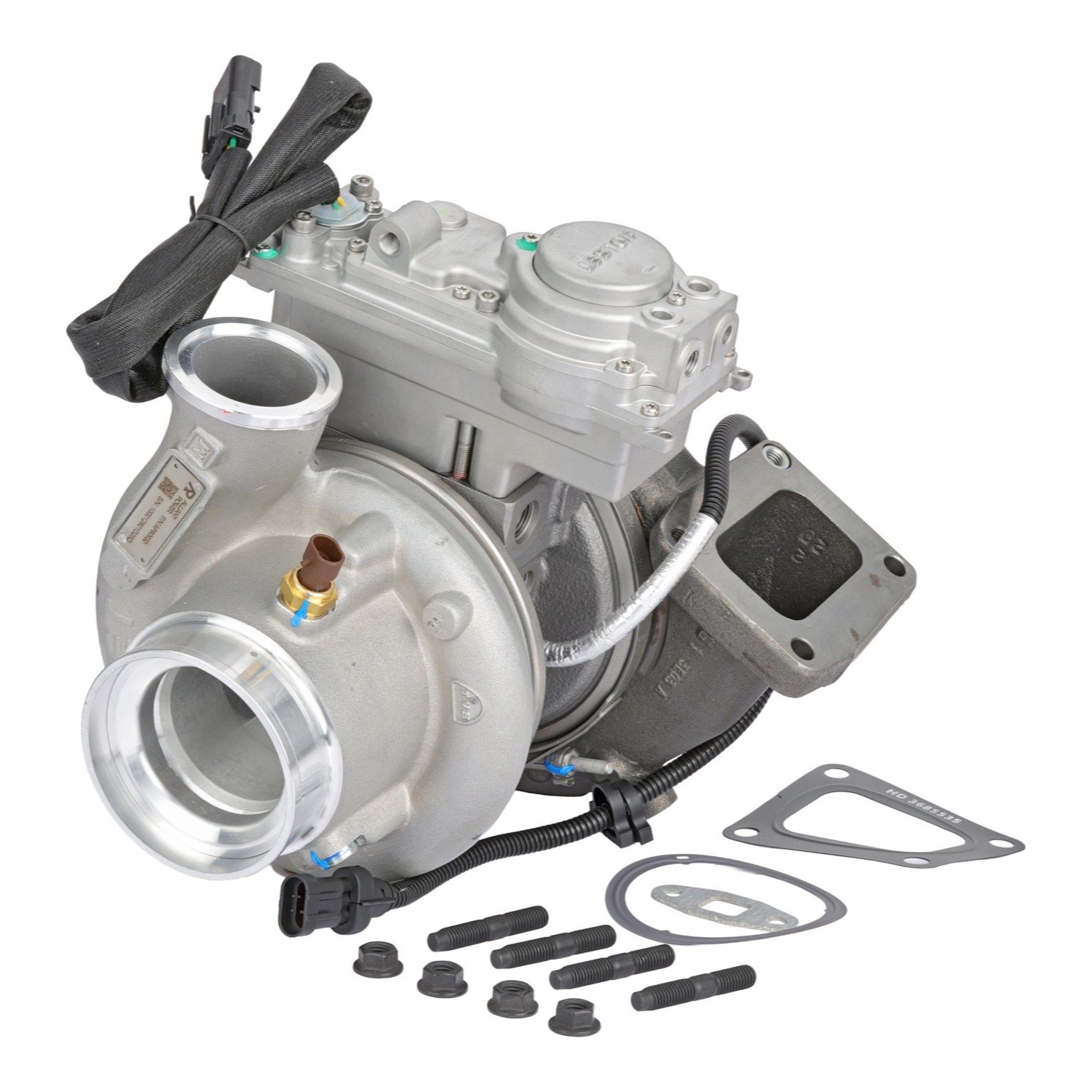

This is the Alliant Power AP90932, an HE451VE variable geometry turbocharger for the Cummins ISX15 with EPA 2010 emissions. Catalogs also list it for the QSX15 and also call this turbo the HE400VG. It is remanufactured by Alliant Power and supplied with the electronic actuator fitted. It replaces Cummins 5458503, 2882112, 2882015, 2843821 and 5359609 and Holset 5456845 and 5350411. A refundable core applies.

The actuator on it is Alliant Power AP91007, the Holset 6378270 type. The EPA 2010 ISX15 used two HE451VE turbos that look alike. This one replaces the Cummins 2882112 and 5458503 family. The other one replaces the 2882111 and 5502825 family: that is Alliant Power AP90924, or AP90024 without the actuator. Match the number on your old turbo before you order. Low boost, a turbo actuator or vane position fault, oil in the charge pipes or shaft play are the usual reasons these get replaced.

Specifications

Fits / Applications

• Cummins ISX15 with EPA 2010 emissions and the Holset HE451VE turbo, also catalogued as HE400VG
• Also listed for the Cummins QSX15
• Replaces Cummins 5458503, 2882112, 2882015, 2843821 and 5359609 and Holset 5456845
• Supplied with the actuator
• Call 530-668-0818 with your ESN and CPL before you order

Check the oil feed and drain lines and the charge air cooler for oil and debris before you fit the turbo.

Part Numbers & Cross Reference

Alliant Power AP90932  ·  Alliant Power, same turbo without actuator AP90032  ·  Cummins 5458503  ·  Cummins remanufactured 5458503RX  ·  Cummins 2882112  ·  Cummins 2882015  ·  Cummins 2843821  ·  Cummins 5359609  ·  Cummins, other numbers 5359590, 5359595, 3795142  ·  Holset 5456845  ·  Holset 5350411  ·  Holset, other numbers 3792576, 3792583, 3773489, 5350404, 5350499, 5350501, 3795122, 3795143

Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.

Frequently Asked Questions

Which Cummins ISX does the AP90932 fit?

The ISX15 with EPA 2010 emissions that uses the Cummins 2882112 or 5458503 turbo family. Catalogs also list it for the QSX15. Call 530-668-0818 with your engine serial number and CPL and we will confirm it for your engine.

Does the AP90932 come with the actuator?

Yes. The actuator (Alliant Power AP91007, the Holset 6378270 type) is fitted to the turbo. The same turbo without the actuator is Alliant Power AP90032.

Is it new or remanufactured, and is there a core?

It is remanufactured by Alliant Power. A refundable core applies and it comes back when we receive your old turbo.

How is the AP90932 different from the AP90924?

Both are HE451VE turbos with actuator for the EPA 2010 ISX15, but they replace different Cummins numbers. AP90932 replaces 2882112 and 5458503. AP90924 replaces 2882111 and 5502825. Check the number on your old turbo.
