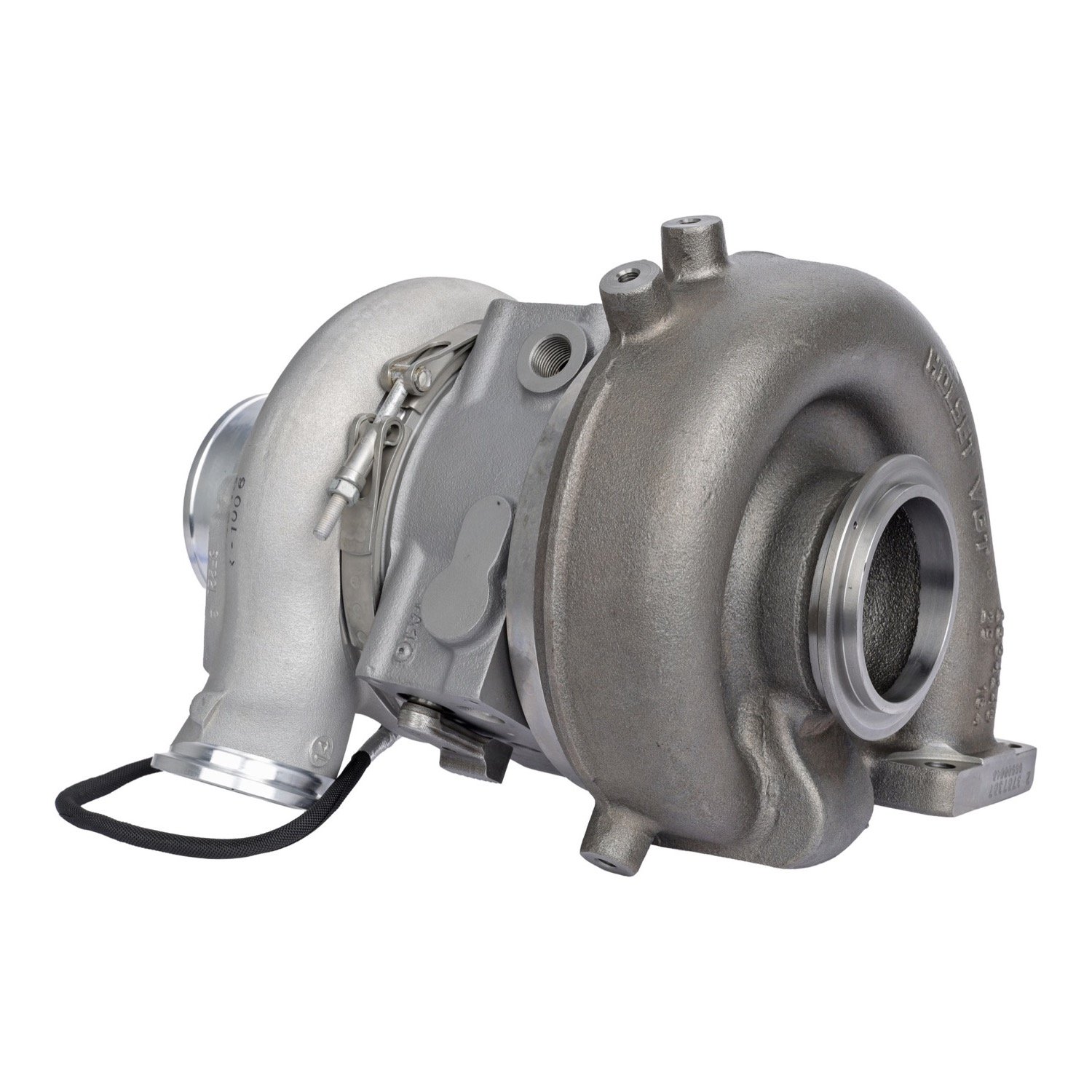

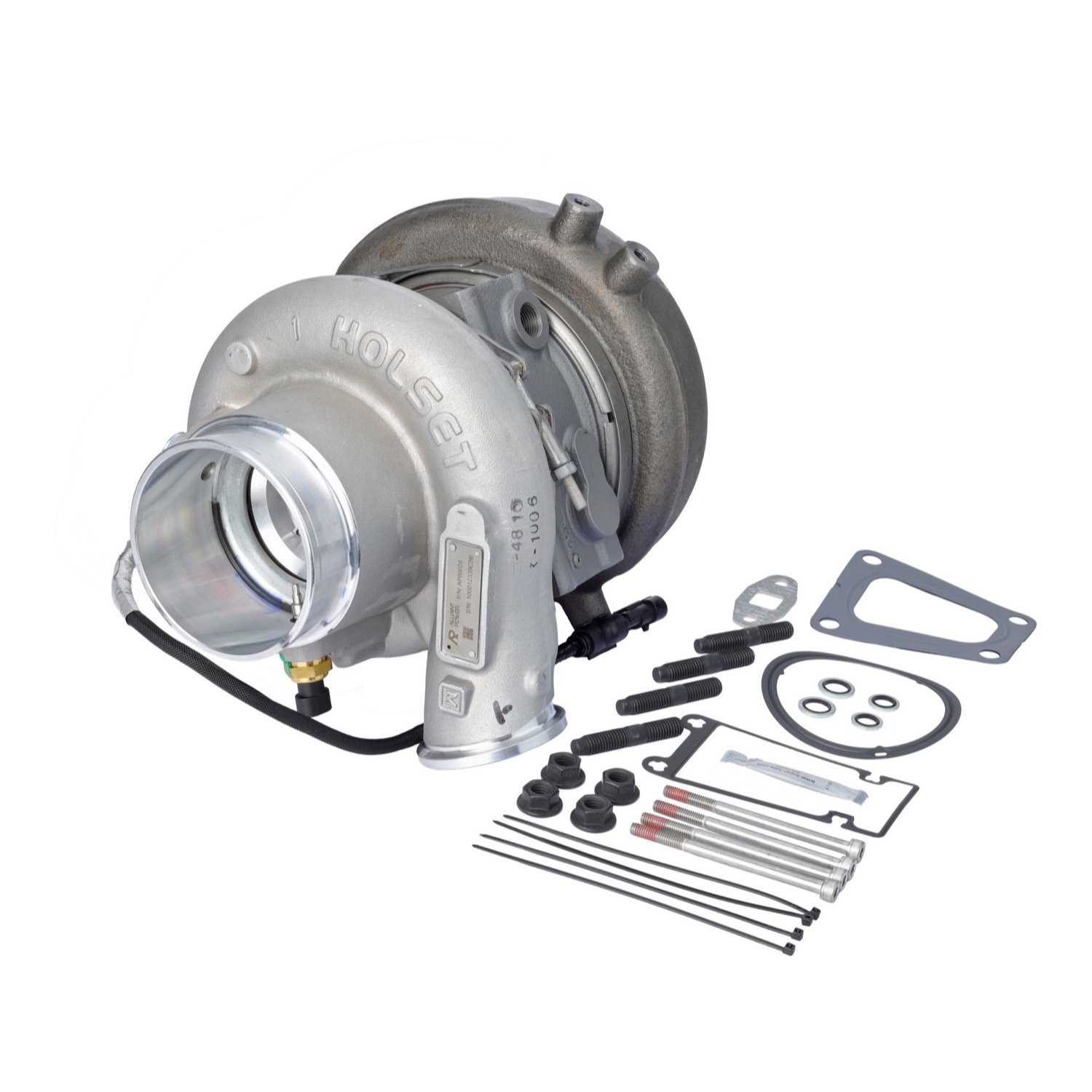

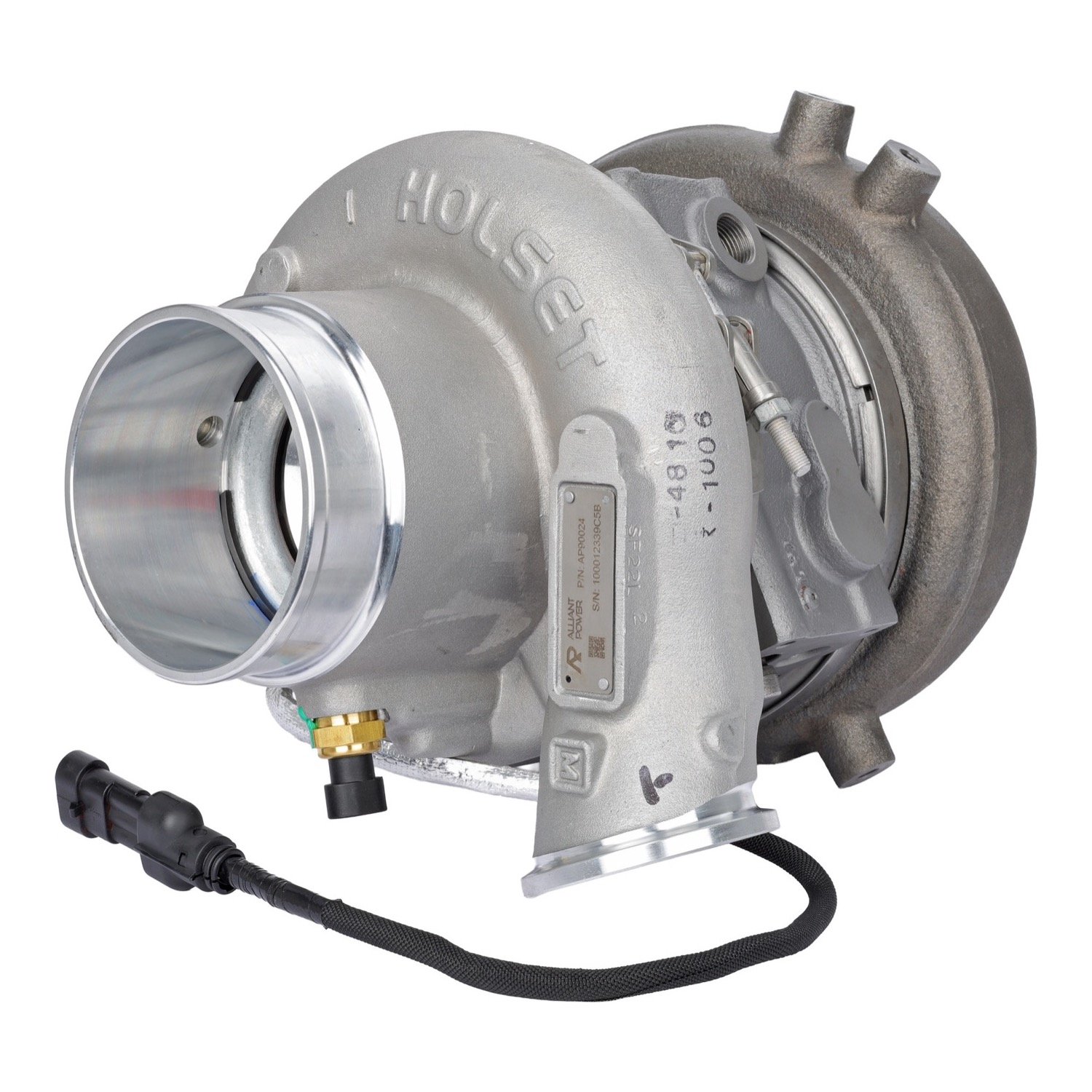

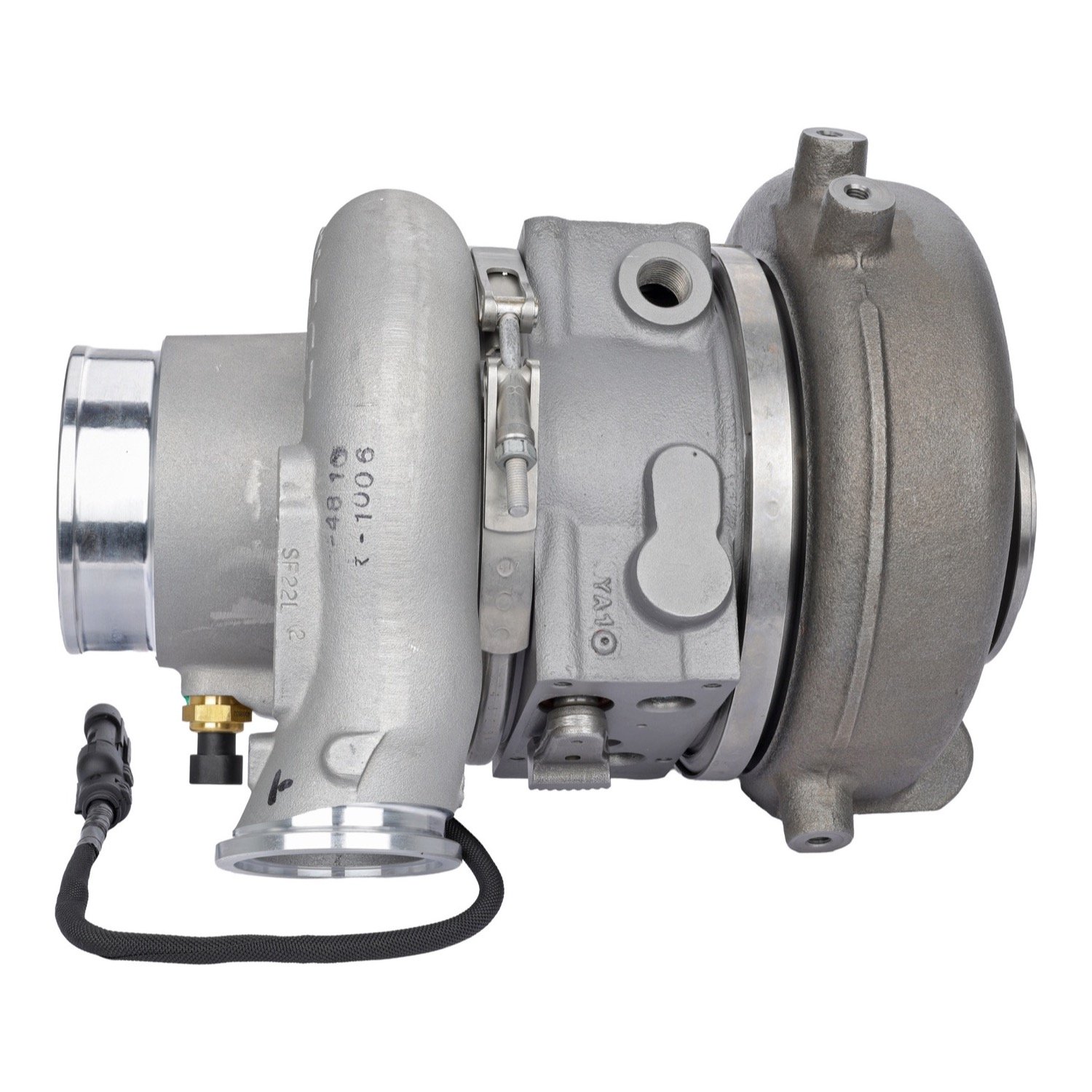

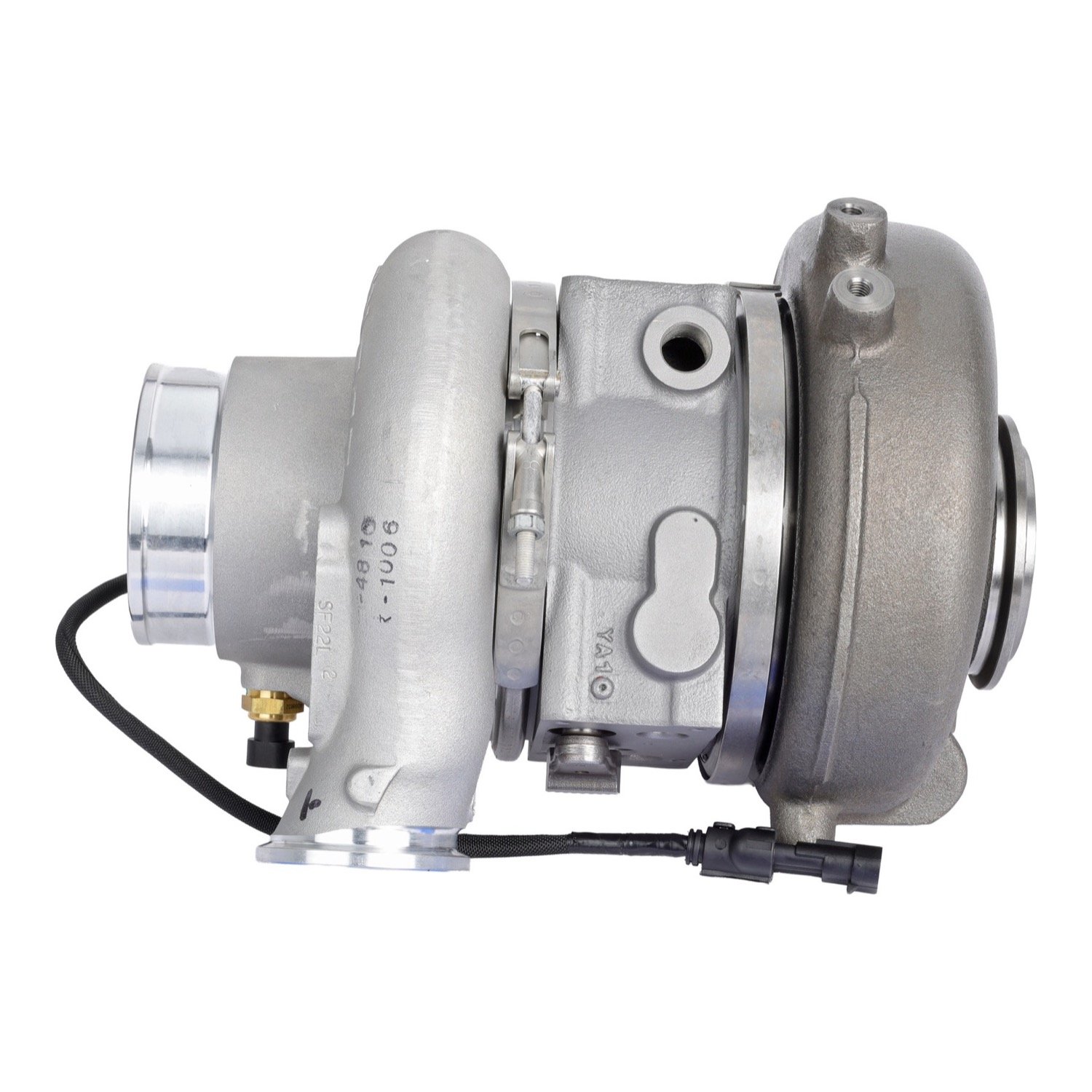

This is the Alliant Power AP90024, an HE451VE variable geometry turbocharger for the Cummins ISX15 with EPA 2010 emissions. Catalogs also call this turbo the HE400VG. It is remanufactured by Alliant Power and supplied without the actuator. It replaces the Cummins 2882111 and 5502825 turbo family, including 2881807, 2882004, 2841806, 5454764 and 5501313, and Holset 5501254. A refundable core applies.

This is the turbo on its own. You move your own actuator over or fit a replacement. Catalogs list the Holset 6378270 actuator for this turbo, which Alliant Power sells as AP91007, and two sellers note that the actuator may need to be calibrated to the turbo with a service tool when it is fitted. The same turbo with the actuator already on it is Alliant Power AP90924. The EPA 2010 ISX15 also used a second HE451VE under other Cummins numbers (the 2882112 and 5458503 family), so match the number on your old turbo before you order. Low boost, a turbo actuator or vane position fault, oil in the charge pipes or shaft play are the usual reasons these get replaced.

Specifications

Fits / Applications

• Cummins ISX15 with EPA 2010 emissions and the Holset HE451VE turbo, also catalogued as HE400VG
• Replaces the Cummins 2882111 and 5502825 turbo family: 2881807, 2882004, 2841806, 5454764 and 5501313
• Supplied without the actuator. The same turbo with the actuator fitted is Alliant Power AP90924
• Call 530-668-0818 with your ESN and CPL before you order

The actuator is not in the box. If you fit a replacement actuator, plan for it to be calibrated to the turbo with a service tool. Check the oil feed and drain lines and the charge air cooler for oil and debris before you fit the turbo.

Part Numbers & Cross Reference

Alliant Power AP90024  ·  Alliant Power, same turbo with actuator AP90924  ·  Cummins 2882111  ·  Cummins 5502825  ·  Cummins 2881807  ·  Cummins 2882004  ·  Cummins 2841806  ·  Cummins 5454764  ·  Cummins 5501313  ·  Cummins, other numbers 2840007, 2841220, 2841221, 3768193, 3773568, 3795123, 5350503  ·  Holset 5501254  ·  Holset 3792586

Cross-reference numbers can change with engine serial, build year and emissions tier, so treat this list as a starting point. Send us your engine serial number and we will confirm the exact match against your build before anything ships. That check is free and takes a few minutes.

Frequently Asked Questions

Which Cummins ISX does the AP90024 fit?

The ISX15 with EPA 2010 emissions that uses the Cummins 2882111 or 5502825 turbo family. Call 530-668-0818 with your engine serial number and CPL and we will confirm it for your engine.

Does the AP90024 come with the actuator?

No. It is the turbocharger on its own. You reuse your actuator or fit a replacement. The same turbo with the actuator fitted is Alliant Power AP90924.

Is it new or remanufactured, and is there a core?

It is remanufactured by Alliant Power. A refundable core applies and it comes back when we receive your old turbo.

What numbers does the AP90024 replace?

Cummins 2882111, 5502825, 2881807, 2882004, 2841806, 5454764 and 5501313, and Holset 5501254. The 2882112 and 5458503 numbers belong to a different ISX15 turbo, Alliant Power AP90932.
