If your diesel engine runs rough when warm but starts and idles fine when cold, you’re dealing with a specific failure mode that most generic troubleshooting guides miss entirely. Cold-start roughness and warm-engine roughness point to completely different root causes — and chasing the wrong one wastes time and money. The most common culprits behind heat-related rough running are injector tip wear, injection pump internal leakage, return line restriction, and fuel pressure drop under thermal load. This guide walks through all six causes and how to diagnose each one correctly.

Why Would a Diesel Run Fine When Cold but Rough Once It Reaches Operating Temperature?

Cold diesel fuel is thicker and more viscous, which temporarily compensates for worn injector nozzles, loose pump tolerances, and marginal fuel pressure — the same way a thicker oil masks worn engine bearings. Once the engine reaches operating temperature (typically 180–210°F coolant temp), fuel viscosity drops, system pressures change, and thermal expansion shifts component clearances. Any weakness in the fuel system that cold fuel was masking suddenly becomes a running problem.

There are also thermal expansion effects inside the injection pump itself. Worn pump components that hold acceptable tolerances at cold startup begin leaking internally once metal expands at operating temperature. The result: adequate fuel delivery when cold, insufficient or inconsistent delivery when hot. This is a classic sign of a pump that’s near the end of its service life but hasn’t failed completely yet.

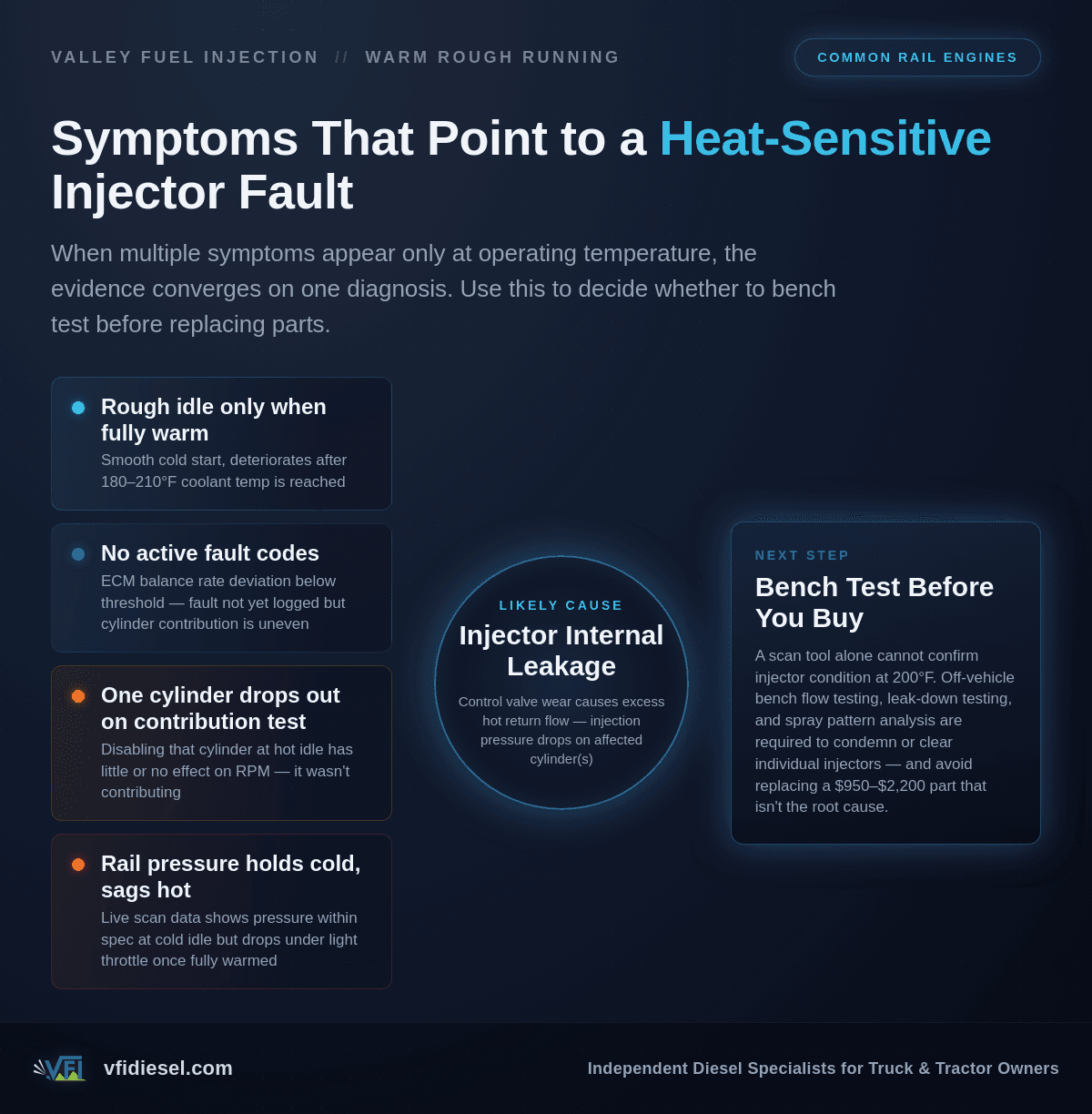

Could a Failing Injector Cause Rough Running Only When the Engine Is Hot?

Yes — and this is one of the most commonly misdiagnosed scenarios in diesel repair. Injector tip wear, coking, and nozzle erosion all behave differently depending on fuel temperature and pressure. Here’s why heat makes it worse:

Nozzle tip coking: Carbon deposits build up on injector tips over time. When the engine is cold, the fuel spray pattern is partially compensated by higher fuel viscosity. At operating temperature, the thinner hot fuel passes through a partially coked nozzle in an irregular spray pattern — producing incomplete combustion, rough running, and sometimes visible black smoke under load.

Worn nozzle needle and seat: The needle-to-seat interface in a diesel injector is machined to extremely tight tolerances. As wear accumulates, the needle no longer seals cleanly at operating pressure. Cold fuel’s higher viscosity helps maintain a marginal seal; hot, thin fuel leaks past the worn seat, causing dribble injection and misfires on the affected cylinder(s).

Common rail injector internal leakage: Modern common rail injectors use a control valve and return circuit to manage injection timing and duration. When the control valve wears, hot fuel leaks back through the return circuit faster than it should, reducing effective injection pressure on that injector. The ECM may not flag a fault code until the leak rate exceeds a programmed threshold — meaning you can have a rough-running engine with no active codes.

If you suspect injector issues, our Bosch diesel injector testing and repair service includes full bench flow testing, leak-down testing, and spray pattern analysis — the only reliable way to confirm injector condition.

How Does Injection Pump Wear Show Up Differently at Operating Temperature vs. Cold Start?

Injection pump wear is one of the most temperature-sensitive failure modes in diesel fuel systems, and it’s the reason a pump can pass a cold-start test but fail under real operating conditions. The physics are straightforward: metal expands when hot, and worn internal clearances that are marginal at cold temperatures become excessive once the pump reaches full operating temperature.

Rotary pump wear (VP44, VE, Stanadyne): The distributor rotor and housing in a rotary pump are machined to extremely tight clearances. As these surfaces wear, internal bypass leakage increases. Cold, viscous fuel partially seals these worn clearances — the pump delivers adequate pressure. Hot fuel flows right through the worn gaps, and rail pressure or injection pressure drops below what the engine needs for clean combustion. The result is rough running, power loss, and sometimes a hard-restart condition after a hot soak.

VP44 pump specifically: The VP44 used on 1998.5–2002 5.9L Cummins engines is notorious for this exact failure pattern. The pump’s internal solenoid and rotor wear produces adequate cold-start performance but deteriorating hot performance. Many VP44 failures are first noticed as warm rough running or hesitation before the pump fails completely. If you’re seeing this on a 24-valve Cummins, read our related post on diesel engines that won’t stay running — VP44 failure often progresses from rough running to stalling.

CP3 and high-pressure common rail pumps: The CP3 pump used on Duramax and Cummins common rail engines is more durable, but worn CP3 pumps show a similar pattern: adequate cold-start rail pressure, marginal hot rail pressure. The ECM will typically log a low rail pressure fault code eventually, but early-stage wear may only show up as warm rough running without codes.

What Role Do Return Lines, Check Valves, and Fuel Pressure Play in Heat-Related Rough Running?

Fuel return line restriction is one of the most overlooked causes of warm rough running — and it’s entirely separate from the injection pump or injectors themselves. Here’s how it works: every diesel injection system has a return circuit that routes excess fuel back to the tank. This return fuel is hot — it’s been pressurized, circulated through the injection system, and released. If the return circuit is restricted, back-pressure builds in the system, affecting injection timing, spray quality, and in severe cases, causing injector damage.

Why it’s worse when hot: Return line restrictions that are marginal at cold startup become critical at operating temperature because hot fuel expands and the volume of return flow increases. A partially kinked return line, a collapsed rubber section, or a clogged check valve that passes adequate flow when cold may create enough back-pressure when hot to cause rough running, misfires, or even injector failure over time.

Common rail return circuit: On common rail systems, each injector has its own return port. A restriction anywhere in the return rail — including a stuck check valve, a pinched banjo fitting, or a corroded return line — can cause uneven back-pressure across injectors, making one or more cylinders run rich or with degraded spray quality. This shows up as rough running that’s worse at idle and under light load.

Lift pump pressure and heat: Low lift pump pressure is another heat-sensitive issue. Many lift pumps — particularly the OEM in-tank units on Cummins and Duramax applications — deliver marginal pressure even when new. As they wear, pressure drops further. Cold fuel’s higher viscosity partially compensates; hot fuel at lower viscosity requires the lift pump to work harder to maintain adequate inlet pressure at the injection pump. A lift pump that delivers 8 PSI cold may only manage 4–5 PSI hot — right at or below the minimum threshold for proper VP44 or CP3 operation. Our detailed guide on diesel lift pumps covers this failure mode in depth.

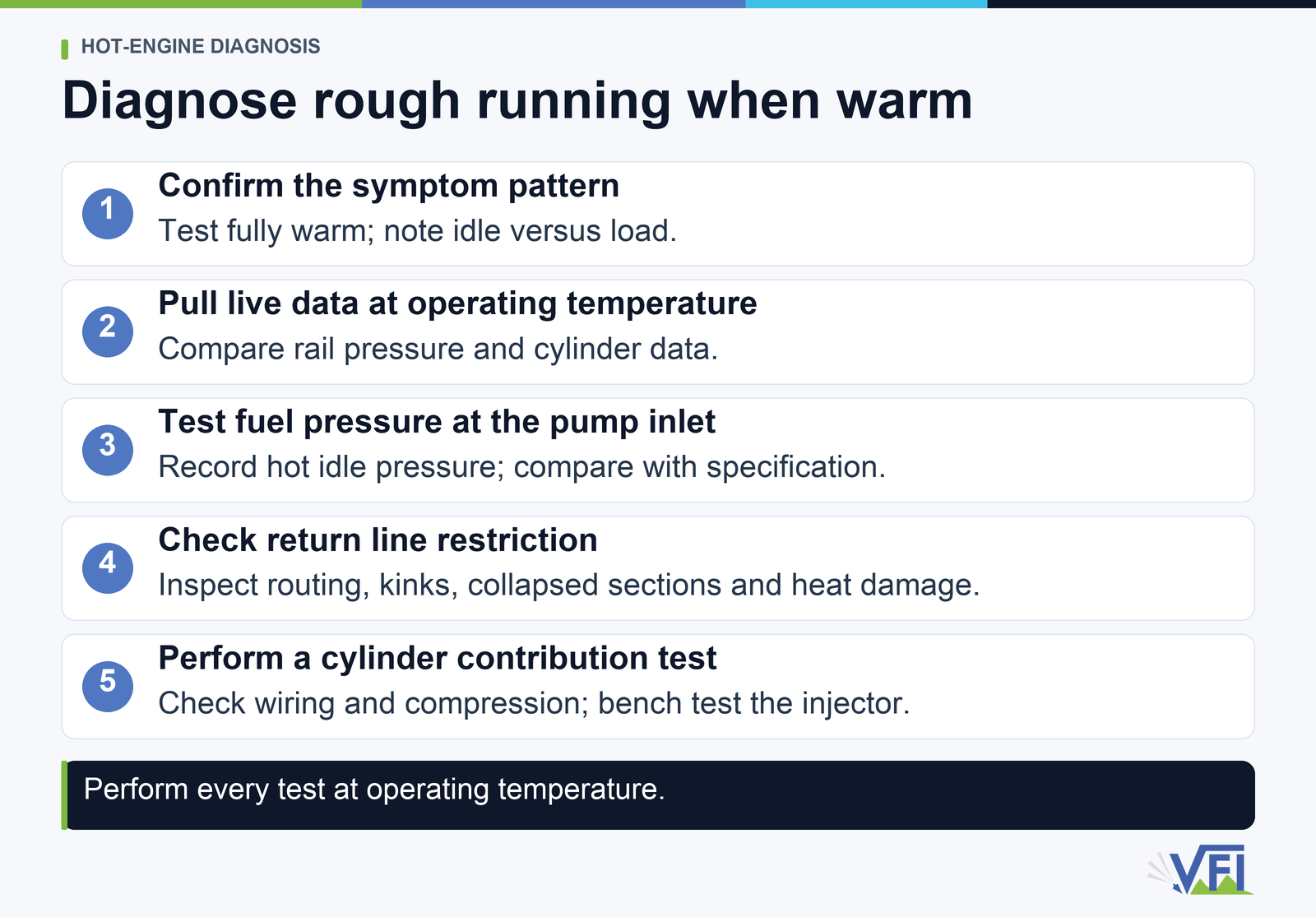

How Do You Diagnose Warm-Engine Roughness Without Misreading Cold-Start Symptoms?

The key to accurate diagnosis is performing every test at operating temperature — not during warmup and not after a cold soak. This sounds obvious, but it’s where most DIY diagnostics go wrong. Here’s a structured approach:

Step 1 — Confirm the symptom pattern. Drive the vehicle until fully warmed up (coolant temp stable at operating range, typically 180–210°F). Note exactly when roughness begins — at idle, under load, or both. A rough idle that smooths out under load points toward injectors or return circuit. Roughness that worsens under load points toward pump pressure or lift pump issues. Our post on diesel engines losing power in hot weather covers the load-related side of this diagnosis.

Step 2 — Pull live data at operating temperature. Connect a quality bidirectional scan tool and monitor: rail pressure (common rail engines), injector balance rates or contribution values, fuel trim data, and any pending or stored fault codes. Compare readings at idle vs. light throttle vs. moderate load — all while fully warmed up. A rail pressure that drops below spec only at operating temperature is a clear pump or return circuit indicator.

Step 3 — Fuel pressure test at the pump inlet (hot). Install a mechanical fuel pressure gauge at the injection pump inlet and record pressure at idle, at operating temperature. Compare to spec. For VP44 applications, minimum inlet pressure is typically 5–7 PSI at idle; anything below that under hot conditions points to a failing lift pump or a restricted supply line. For CP3 applications, inlet pressure requirements are similar.

Step 4 — Return line restriction test. With the engine at operating temperature, carefully check return line routing for kinks, collapsed sections, or heat damage. On common rail systems, a technician can perform a back-pressure test on the return circuit using a simple gauge adapter. Pressure above 10–15 PSI in the return circuit (specs vary by application) indicates restriction.

Step 5 — Cylinder contribution test. On engines with the capability (most common rail applications via scan tool, and mechanical engines via manual cut-out), disable cylinders one at a time at idle and note which cylinder(s) have the least effect on idle quality. A cylinder that makes no difference when cut out is the one not contributing — pointing directly at the injector or return circuit on that cylinder.

Pro Tip:

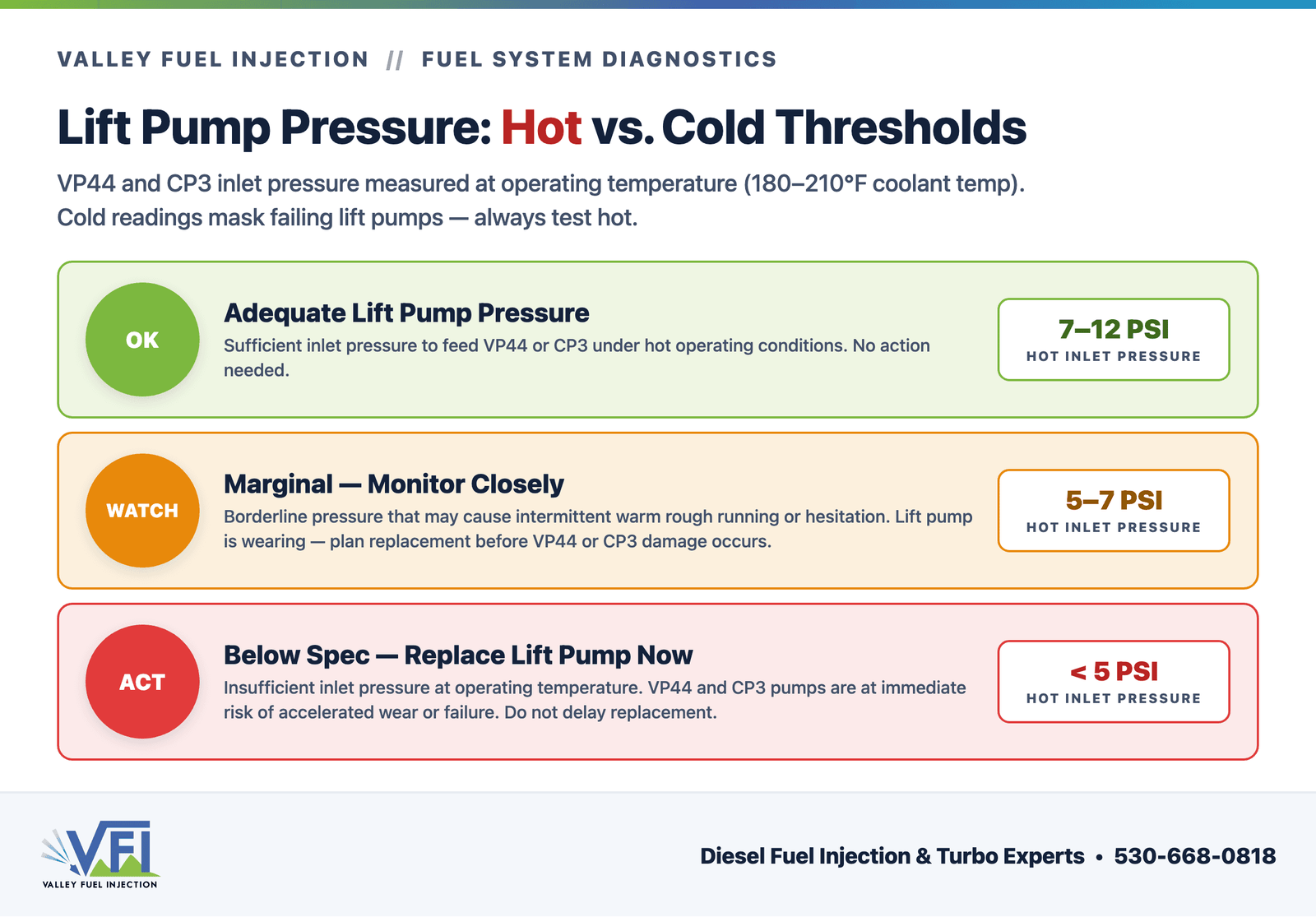

If you’re doing a fuel pressure test on a VP44-equipped Cummins, do it twice — once cold and once after a full warm-up drive. A pump that shows 10 PSI inlet pressure cold but only 4 PSI hot is telling you the lift pump is failing under thermal load. Replacing the lift pump before the VP44 fails can save you $2,200–$4,500 in pump replacement costs. See our diesel injection service guide for more on preventive fuel system maintenance.

When Does Warm Rough Running Require Professional Injection Testing vs. a DIY Fix?

Some warm rough running causes are genuinely DIY-accessible. Others require specialized equipment that simply isn’t available outside a certified injection shop. Knowing which is which saves you from either over-spending on professional service for a simple fix, or under-spending on a DIY attempt that misses the real problem.

DIY-accessible fixes:

• Replacing a failing lift pump (accessible with basic tools on most applications)
• Inspecting and replacing kinked or collapsed return lines
• Replacing a clogged fuel filter (always do this first — it’s the cheapest diagnostic step)
• Checking and replacing a faulty fuel pressure regulator
• Adding a quality fuel additive to address mild injector coking (Stanadyne Performance Formula or Power Service are our recommendations)

Requires professional injection testing:

Valley Fuel Injection // REPAIR DECISION GUIDE

WARM ROUGH RUNNING

DIY Fix vs. Professional Injection Testing

Some warm rough running causes are genuinely DIY-accessible. Others require calibrated bench equipment that doesn’t exist outside a certified injection shop. Know which path applies before spending money.

DIY

Owner-Serviceable Fixes

BASIC TOOLS REQUIRED

Start here before authorizing any injection work. These steps eliminate the cheap causes and are accessible with standard hand tools and a quality scan tool.

✓
Replace fuel filter (always do this first)

✓
Inspect and replace kinked or collapsed return lines

✓
Test and replace a failing lift pump

✓
Check fuel pressure regulator

✓
Add quality fuel additive for mild injector coking (Stanadyne Performance Formula or Power Service)

Read Our Lift Pump Guide →

PRO

Requires Bench Testing

CERTIFIED EQUIPMENT ONLY

If DIY steps don’t resolve the symptom, the fault is inside the pump or injectors. These tests require calibrated bench equipment and cannot be performed reliably with a scan tool alone.

✓
Injector flow testing, leak-down, and spray pattern analysis

✓
Injection pump internal wear diagnosis under simulated load

✓
Common rail injector trim code programming post-replacement

✓
VP44 / CP3 pressure testing at operating temperature

✓
Return circuit back-pressure testing with gauge adapters

Talk to a VFI Tech →

vfidiesel.com

Independent Diesel Specialists for Truck & Tractor Owners

• Any suspected injector internal leakage or nozzle wear — requires a calibrated bench test with flow measurement and spray pattern analysis
• Injection pump internal wear diagnosis — requires bench testing under load at operating temperature, not just a visual inspection
• Common rail injector trim code programming after replacement
• VP44 or CP3 pump pressure testing under simulated load conditions
• Return circuit back-pressure testing with proper gauge adapters

At Valley Fuel Injection, our common rail service and Bosch injector testing capabilities include full hot-test bench simulation — we can replicate operating temperature conditions on the bench and measure exactly what your pump or injectors are delivering. This is the only way to confirm whether a component is within spec or needs rebuilding. Diesel truck owners throughout Sacramento and Reno bring us pumps and injectors for this exact reason — because a scan tool alone can’t tell you what’s happening inside a worn injector at 200°F.

Summary: 6 Causes of Diesel Rough Running When Warm

1. Injector tip coking or nozzle wear — spray pattern degrades at operating temperature when fuel viscosity drops
2. Common rail injector internal leakage — control valve wear causes excess return flow and reduced injection pressure when hot
3. Injection pump internal wear — worn rotor/housing clearances leak past at operating temperature; cold viscosity masks the problem
4. Return line restriction or check valve failure — back-pressure in the return circuit disrupts injection timing and spray quality
5. Lift pump pressure drop under thermal load — marginal lift pumps deliver adequate cold pressure but fall below spec when hot
6. Fuel supply restriction — partially clogged filters, kinked supply lines, or a failing fuel pressure regulator that worsens under hot operating conditions

For authoritative technical background on diesel fuel injection system specifications and testing standards, see the Bosch Mobility diesel direct injection resource and SAE International’s research on diesel injector degradation. For California emissions compliance considerations related to fuel system repairs, the CARB in-use diesel regulations page is the authoritative reference.
