Kubota V2203 Diesel Engine: Injection Service, Overhaul Parts & Replacement Options

The Kubota V2203 is a 2.2 liter, four-cylinder, water-cooled diesel that powered a generation of Bobcat skid steers and mini excavators, Kubota tractors and excavators, portable generator sets, and Carrier Transicold refrigeration units. Valley Fuel Injection & Turbo is an authorized Kubota dealer in Woodland, California, and a Bosch-certified diesel fuel injection shop. On the V2203 that means we can rebuild and calibrate the injection pump and injectors in house, supply genuine Kubota overhaul parts, and help you source a complete engine when the core is past saving.

First: Which V2203 Do You Actually Have?

This matters more on the V2203 than on almost any other Kubota engine. “V2203” spans three physically different engines that share a name and very little else:

• V2203 indirect injection (IDI) | model codes V2203-B, -EB, -EBG, -E2B, -M-E2B, -M-E3B. Kubota E-TVCS spherical prechamber combustion, 87.0 x 92.4 mm bore and stroke, 2,197 cc. This is the usual Bobcat skid steer and Kubota tractor engine.
• V2203 direct injection (DI) | model codes V2203-DI and V2203-M-DI-E2B. Same 87.0 x 92.4 mm bottom end, but direct injection with no prechambers.
• V2203L-DI | the long-stroke Carrier Transicold engine, 83.0 x 102.4 mm and 2,216 cc. Different bore, different stroke, different parts. Carrier calls it CT4-134-DI, a name it also used for an earlier V2203-DI-E2B build.

Kubota stamps the engine serial number on the block, and on 03 Series engines it sits on the injection pump mounting surface. The sticker on top of the valve cover lists the engine model, serial and engine part number while it is still readable, but Kubota says not to identify the engine from the EPA emissions label, and the E3B emissions suffix is not marked on the engine at all. That is why we ask for the serial before quoting parts or a rebuild: the model name alone genuinely cannot tell us which V2203 is sitting in your machine.

Injection Pump & Injector Service

This is our core competency and the most common reason a V2203 comes to us. Kubota’s own service schedule calls for checking nozzle spray pattern and injection pressure every 1,500 hours, and the pump element and delivery valve tightness every 3,000 hours. Symptoms we see regularly on this engine:

• Delivery valve holder leaks. A well-documented recurring complaint on the V2203 inline pump. The sealing gasket under the holder is single use and does not survive a re-torque.
• Pump rack sticking, causing a no-start. A clicking fuel shutoff solenoid does not prove the rack actually moved. The correct test is to crack the injector lines and watch for a distinct pulse near each cylinder’s TDC.
• Fuel in the engine oil, which points at a worn pump plunger rather than anything in the cylinder head.
• Hard starting on the IDI variants, where the glow plugs sit in the prechamber. Longer preheat is inherent to the design, not a fault, but weak plugs make it much worse.

We test and rebuild the pump and injectors on Bosch-calibrated equipment and return them set to spec. We also accept mail-in pumps and injectors from anywhere in the country if your machine is not local to Northern California.

Rebuild or Replace? What the Numbers Say

Neither Kubota nor Carrier publishes an hours-to-overhaul figure for this engine. Both diagnose it on compression, which is the more useful test anyway. Cylinder-to-cylinder variation above 10 percent is the threshold both manufacturers flag, regardless of the absolute reading.

Two things determine whether a V2203 core is worth rebuilding:

• The block is parent bore, not sleeved. There are no factory replaceable liners. The remedy for bore wear is to bore and hone to the 0.25 mm oversize, and Kubota’s manual states plainly that once the oversize bore is worn past its limit, the block gets replaced. That is limited headroom. Aftermarket “liner kits” sold online are salvage sleeves, not factory parts.
• The cylinder head is the usual condemning part. Both Kubota and Carrier build a dye penetrant crack inspection into routine service on this engine, which tells you something. Cracks show up between the valve seats. Valve seat recession past the allowable limit also condemns the head, because Kubota publishes no seat insert replacement procedure.

Genuine Kubota overhaul kits are available by variant. Kubota Engine America lists the standard-size kits as KEAOK-10010 for V2203 except BG, KEAOK-10011 for the V2203 DI, KEAOK-10012 for the V2203-E2B, KEAOK-10013 for the V2203M-E2B and KEAOK-10014 for the V2203M-E3B, with separate numbers for oversize pistons and bearings and serial number breaks on some. Each kit includes piston kits, bearings, upper and lower gasket sets, valvetrain, oil pump, oil filter and thermostat. Call with your serial number and we will confirm the right kit.

Application & Fitment

Bobcat loaders and excavators, per Bobcat’s own engine part listings: 331, 334, 335, 341, 753, 763, 773, 7753, S130, S150, S160, S175, S185, T140, S450, S510, S530 and Toolcat 5600. Important: several of these models, including the S160, S185, 773 and Toolcat 5600, appear under both V2203 and V2003-T engine part numbers depending on serial range. The model name by itself cannot select the engine on a Bobcat.

Kubota machines, per Kubota’s parts catalog and workshop manuals: KX121-3S and KX121-3D excavators and U45-3S / U45-3D (V2203-M-E2BH), the R520 and R520S wheel loaders, and the L4200, L4240, L4300, L4310, L4330, L4350, L4400, L4610 and L4630 tractors. Engine codes vary by model, and the L4350 is listed with the direct injection V2203-DI. Kubota’s parts catalog lists the KX161-3 with the V2203-M-EBH-2, but the KX161-3S sold in the US, Canada and Australia was upgraded to a V2403-M in a later minor change, so check the engine serial before ordering.

Generator sets: Multiquip DCA-15SPX3, DCA-15SPX4 and DCA-15SPXU4, per Multiquip’s manuals. Note the later DCA15SPXU4F moved to a Kubota D1503 and is not a V2203.

Carrier Transicold refrigeration units, where Carrier calls the engine the CT4-134-DI. Carrier’s parts lists show the long-stroke V2203L-DI in the Ultra XT, XTC and XL, Extra XT, Ultima XTC, X2 1800, 2100 and 2500 series, Vector 6500 and 6600MT, and the RG and UG gensets. Earlier CT4-134-DI engines were built as the V2203-DI-E2B, listed for the Genesis TM900 and TM1000, Extra XT, Ultra XT, XTC and XL, Multi-Temp, Smart Air, Ultima 53 and Ultima XTC, plus a genset. Carrier’s parts list for engines built before serial XA0001 also shows a V2203-DI (CT4-134-DI) in the Phoenix Advantage and Thunderbird (T-Bird). The two builds use different pistons and several units appear on both lists, so order a reefer engine by its engine serial number, not the unit name.

Complete Engine Replacement

Complete V2203 engines, new and remanufactured, are cataloged through the Bobcat parts channel under part numbers including 6685981 and 6685981REM (331/334/341, 753/763/773/7753, S160/S185, Toolcat 5600), 7143319 and 7143319REM (S130/S150/S160/S175, T140), 7022149 (S450/S510/S530) and 6689052REM (334/335 excavators). Bobcat’s 6685981 listing, for example, ships without the starter, alternator, flywheel and flywheel housing, so budget for transferring yours.

Kubota itself does not run a remanufactured whole-engine program; Kubota reman covers components only, including injection pumps and injectors. New complete engines go through Kubota’s replacement engine program.

Emissions rules complicate new V2203 supply for machine repowers, because the variable-speed version of this engine has not been certified for the US market in some years, and replacement engine allowances carry conditions on machine age and configuration. We will tell you honestly what is available for your specific machine and serial number rather than take an order we cannot fill correctly. Call 530-668-0818.

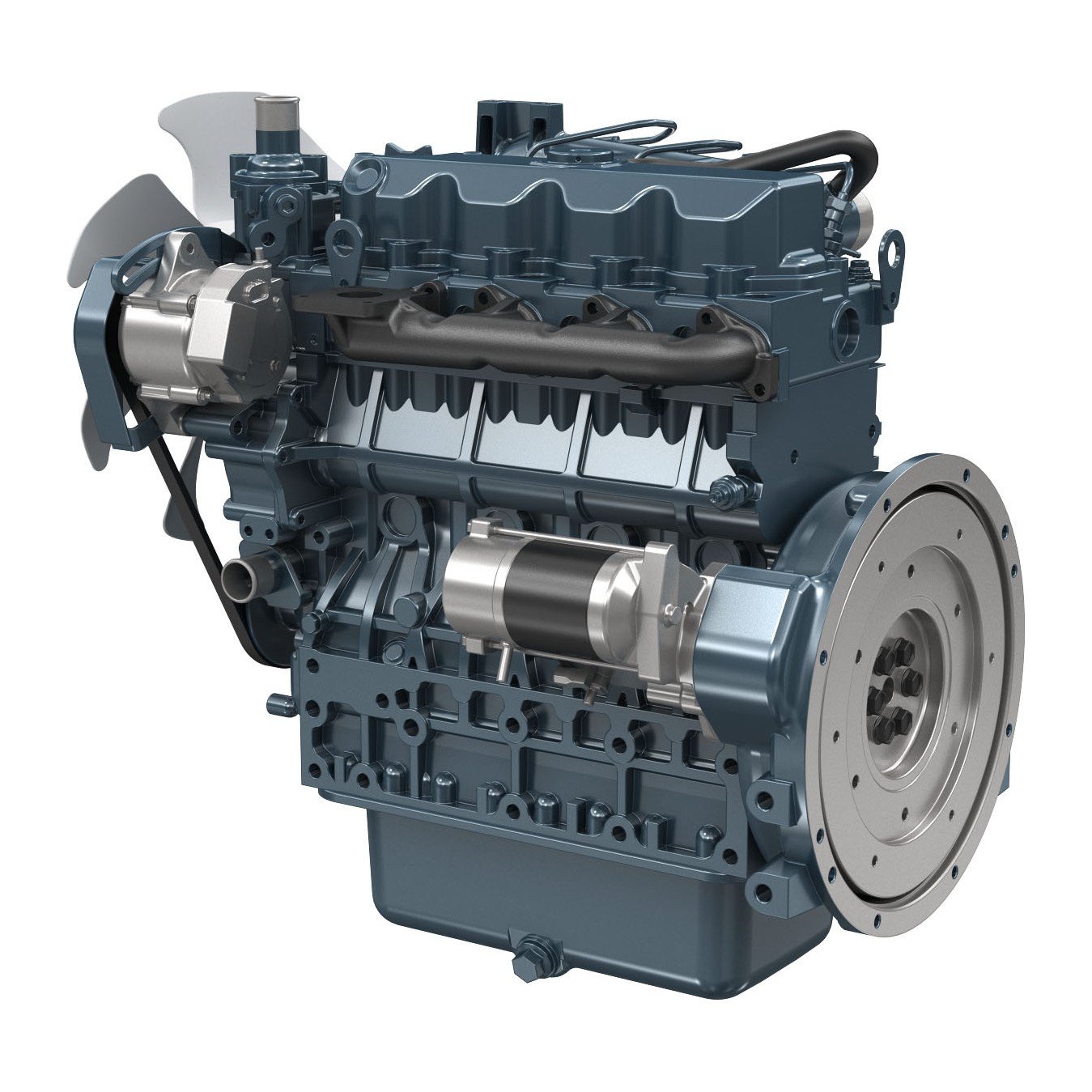

Engine Specifications (V2203-M, indirect injection)

• Type: vertical, water-cooled, 4-cycle, four-cylinder, naturally aspirated indirect injection diesel with Kubota E-TVCS combustion
• Displacement: 2,197 cc (134.1 cu in)
• Bore and stroke: 87.0 mm x 92.4 mm (3.43 in x 3.64 in)
• Rated output: approximately 35.9 to 36.4 kW (48.1 to 48.8 HP) SAE gross intermittent at 2,800 rpm, depending on emissions generation
• Maximum torque: 143.2 Nm (105.6 lb-ft) at 1,600 rpm
• Firing order: 1-3-4-2, counterclockwise viewed from the flywheel
• Dry weight: approximately 180 kg (397 lb)
• Cylinder head bolt torque: 93.1 to 98.0 Nm (68.7 to 72.3 ft-lb); head bolts are reusable, not torque to yield
• Generator spec (V2203-M-E3-BG): 24.2 kW standby, 20.2 kW continuous at 1,800 rpm

Ratings above are the industrial figures. In Carrier Transicold service the long-stroke V2203L-DI is rated far lower, 31.7 to 36.0 HP at 1,700 to 2,200 rpm depending on the unit, so do not compare a reefer engine’s output against an industrial spec sheet.

Parts We List for the V2203

Genuine Kubota and OEM parts on our site that name the V2203. Fit depends on the engine version and serial number, and each page lists exactly what it fits.

• Kubota V2203-M Injection Pump 1G916-51013 (Genuine)
• Kubota D1403, D1503, D1703 & V2203 IDI Fuel Injector | Denso 093500-4540 New (Kubota 16082-53903)
• Kubota D1703-M-DI, V2203-M-DI & V2403-M-DI Injector Nozzle Holder Assembly | Genuine Kubota 1G796-53004
• Kubota V1903, V2003, V2203 & V2403 IDI Fuel Injector | Denso 093500-5060 New (Kubota 16454-53905)
• Kubota V2203 & V2403 Fuel Injector, Nozzle Holder Kit | Genuine Kubota 16454-53905
• Kubota 03 Series V2203 & D1503 Fuel Stop Solenoid Actuator 12 V | Genuine Kubota 1G939-60012
• Kubota D1503, D1703, D1803, V2003, V2203 & V2403 Engine Stop Solenoid | Genuine Kubota 1A021-60017
• Kubota V2203 & V2403 (03 Series) Starter Motor, 12V 2.0 kW | Genuine Kubota 1K371-63010

Get a Quote

Call 530-668-0818 with your engine model and serial number, or your machine model and serial, and we will confirm which V2203 you have and what makes sense: pump and injector service, an overhaul kit, or a complete engine. We are at 1243 E Beamer St, Suite C, Woodland, CA 95776, and we ship parts and accept mail-in injection components nationwide.
